WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

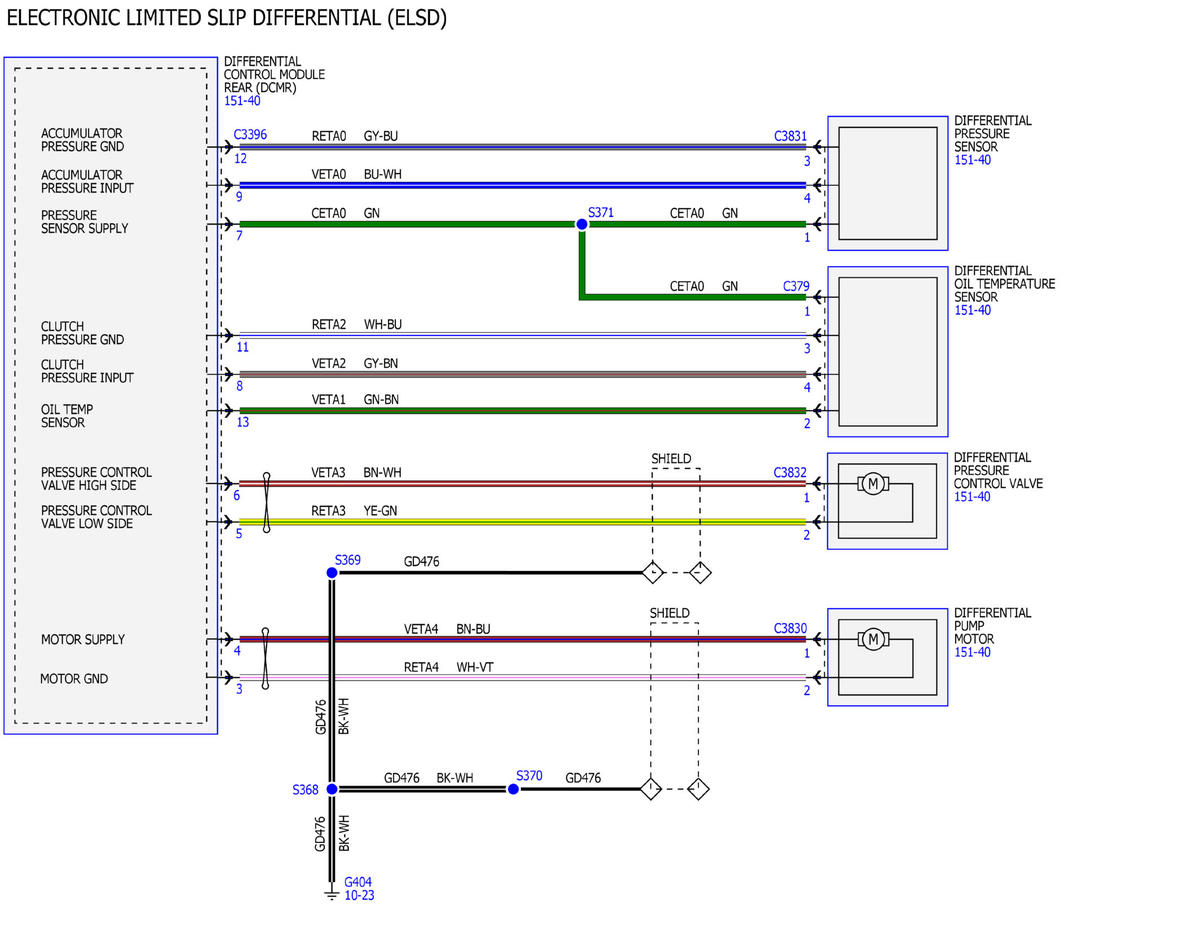

Fig 1: Four Wheel Drive Systems Wiring Diagrams (1 Of 5)
Courtesy of FORD MOTOR COMPANY

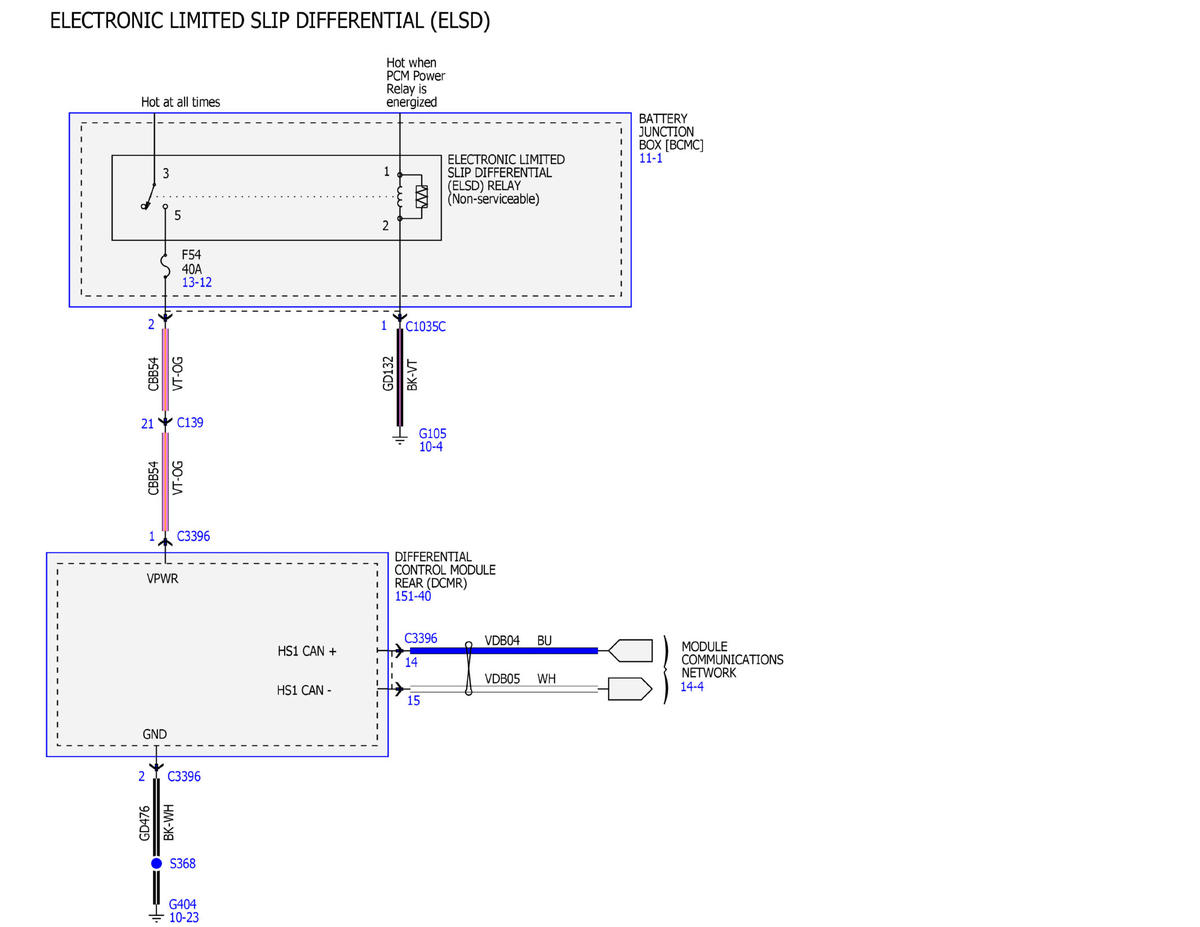

Fig 2: Four Wheel Drive Systems Wiring Diagrams (2 Of 5)
Courtesy of FORD MOTOR COMPANY

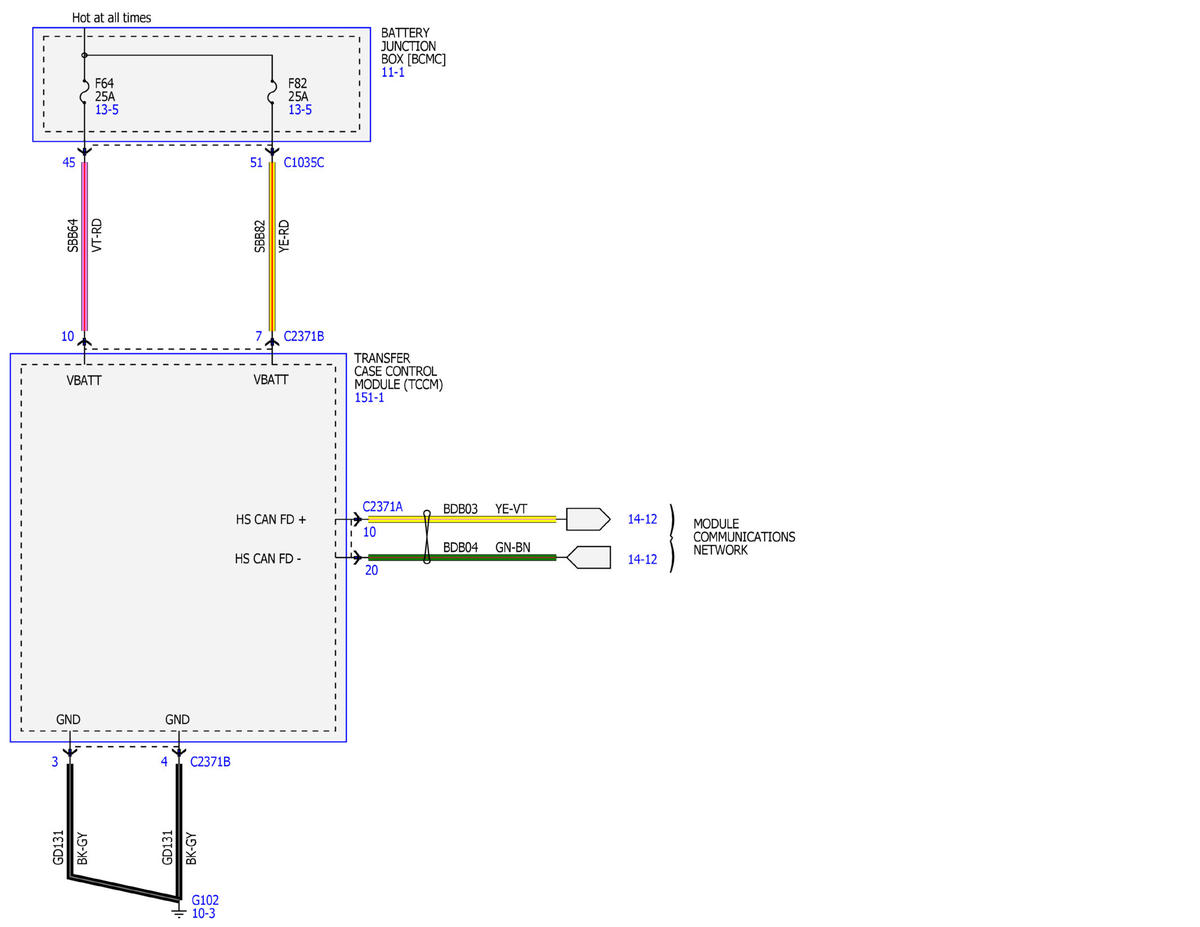

Fig 3: Four Wheel Drive Systems Wiring Diagrams (3 Of 5)
Courtesy of FORD MOTOR COMPANY

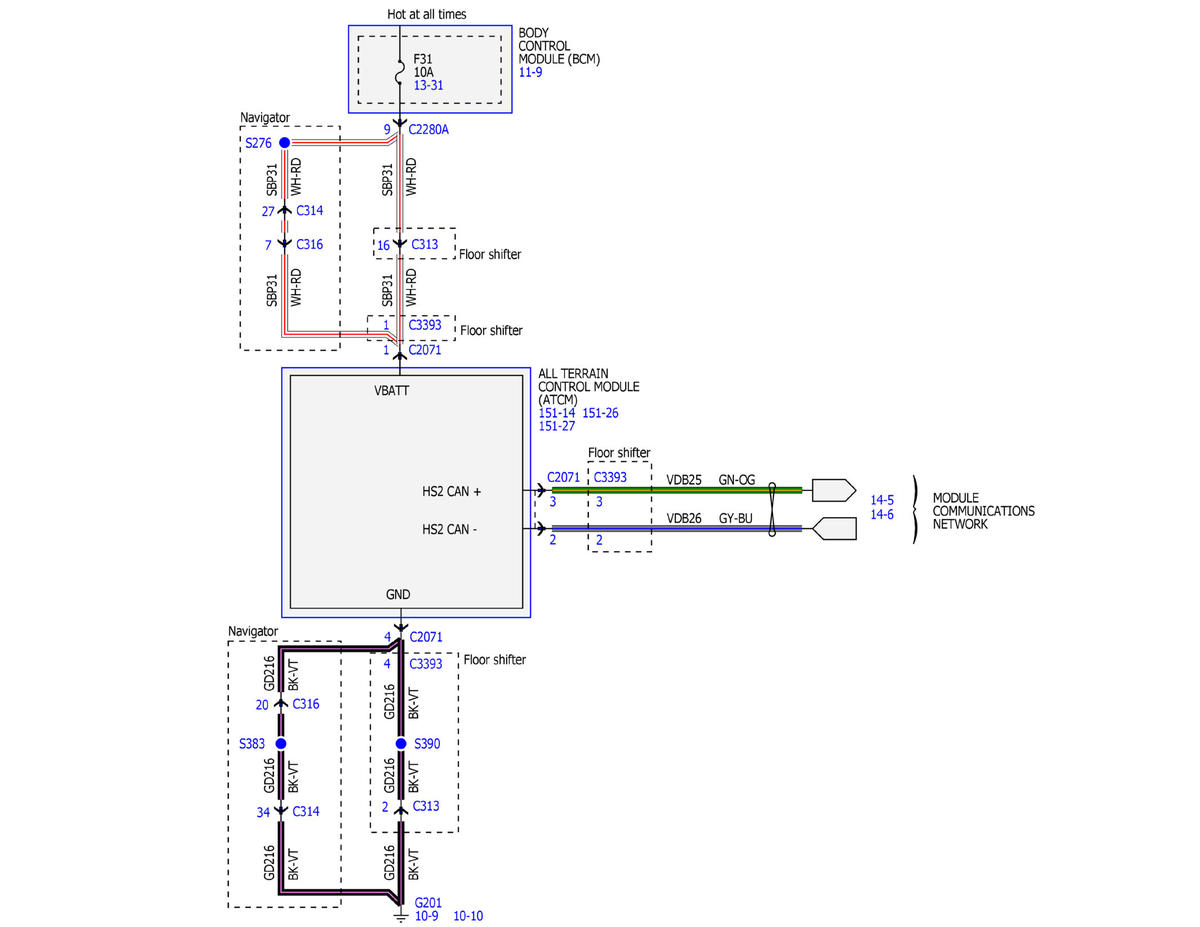

Fig 4: Four Wheel Drive Systems Wiring Diagrams (4 Of 5)
Courtesy of FORD MOTOR COMPANY

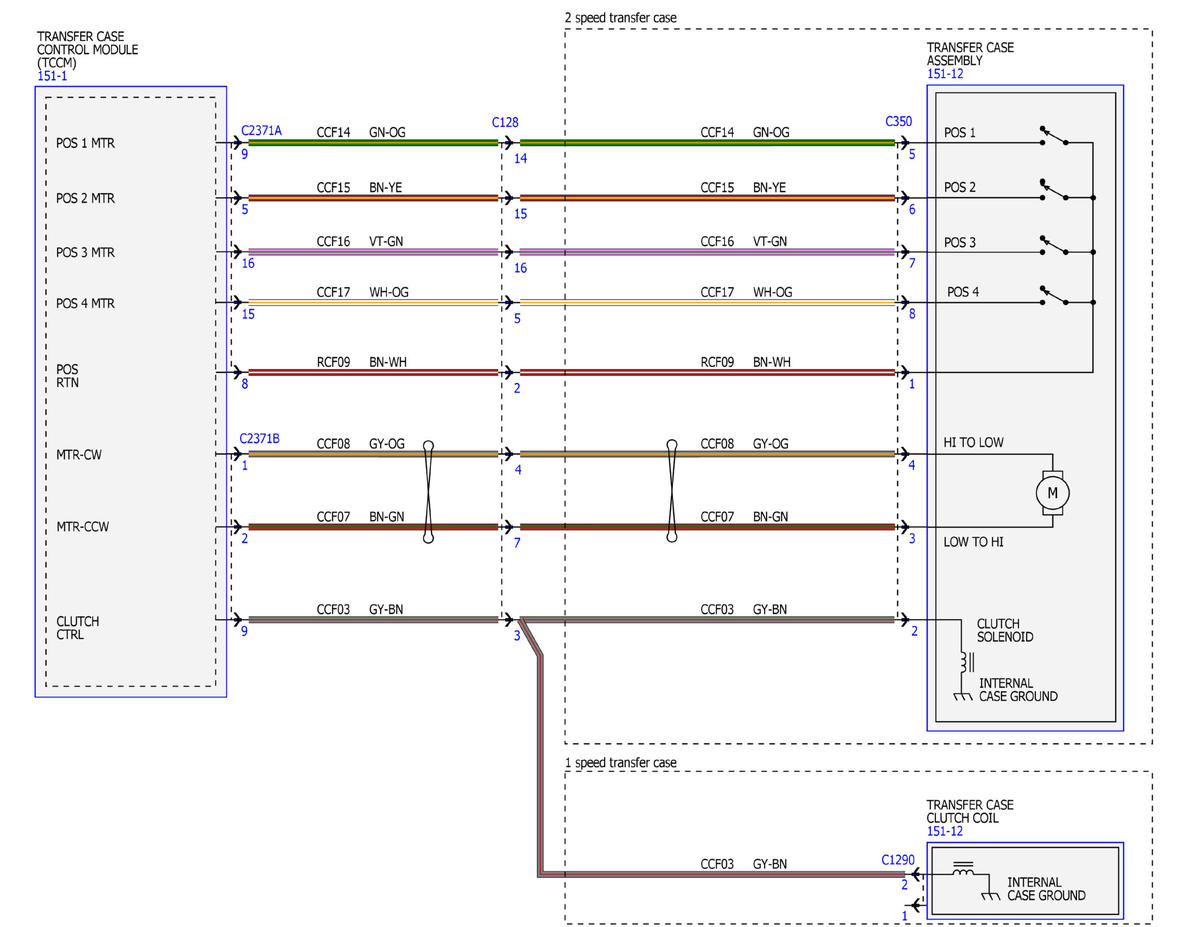

Fig 5: Four Wheel Drive Systems Wiring Diagrams (5 Of 5)
