Electronic Engine Controls - 3.5L

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

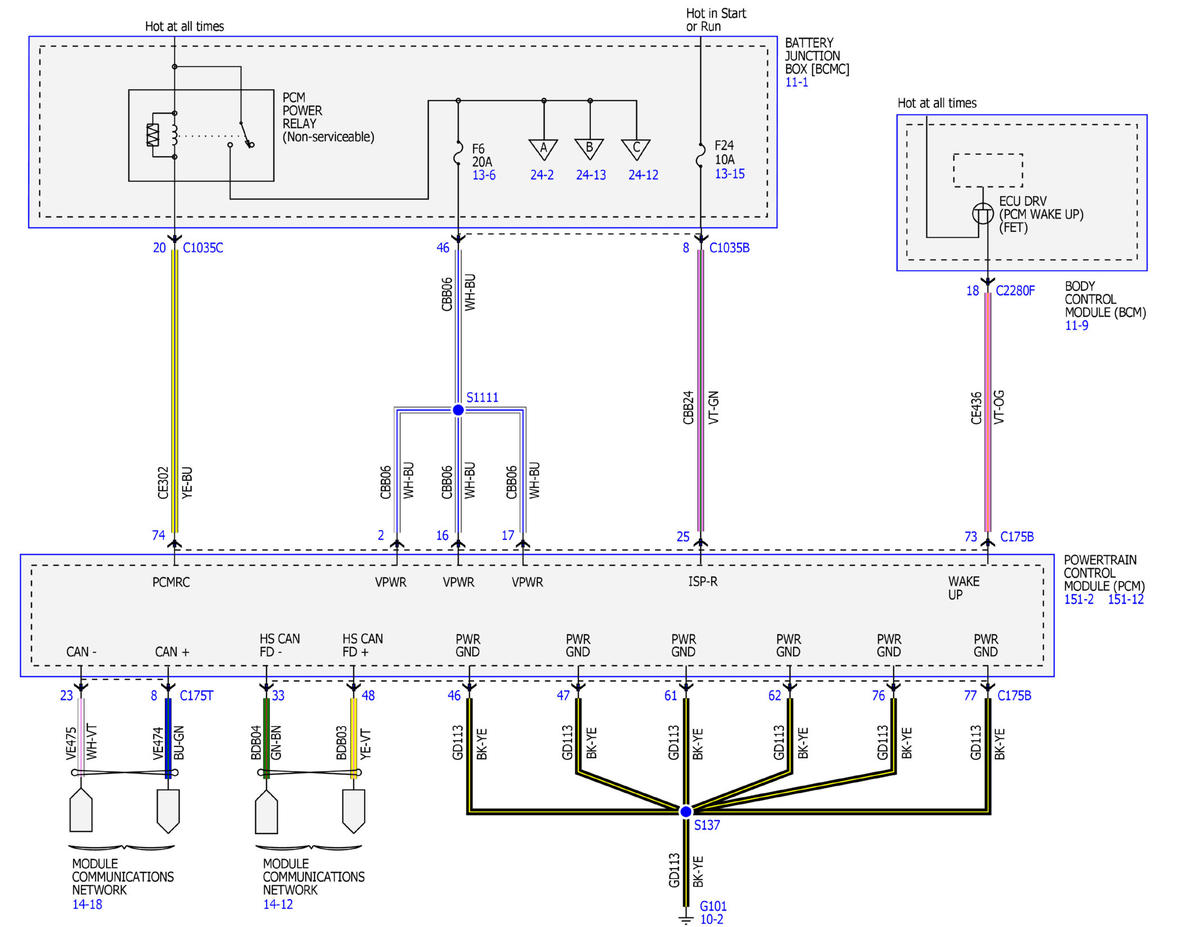

Fig 1: Electronic Engine Controls - 3.5L Wiring Diagrams (1 Of 21)

GFDWR184902

Courtesy of FORD MOTOR COMPANY

Fig 2: Electronic Engine Controls - 3.5L Wiring Diagrams (2 Of 21)

GFDWR184913

Courtesy of FORD MOTOR COMPANY

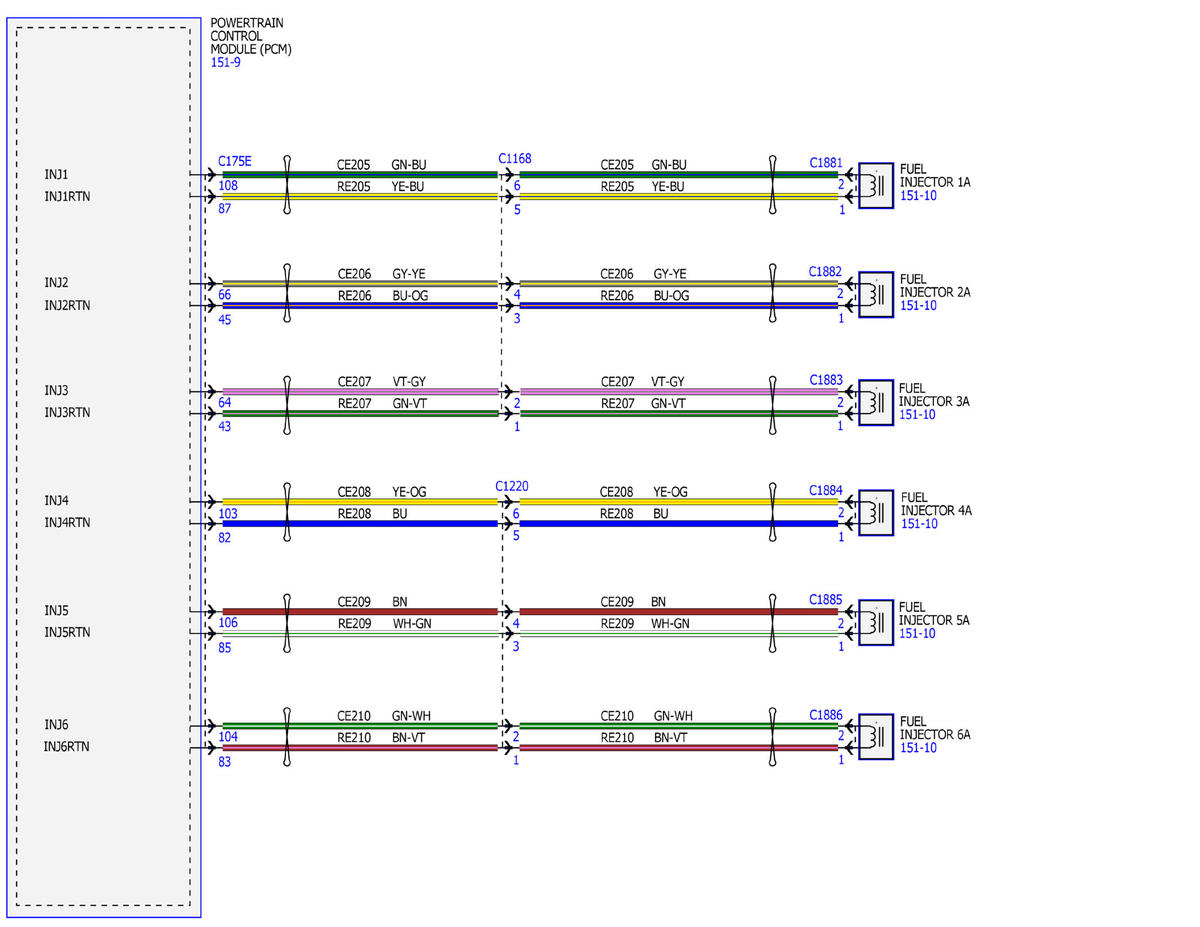

Fig 3: Electronic Engine Controls - 3.5L Wiring Diagrams (3 Of 21)

GFDWR184916

Courtesy of FORD MOTOR COMPANY

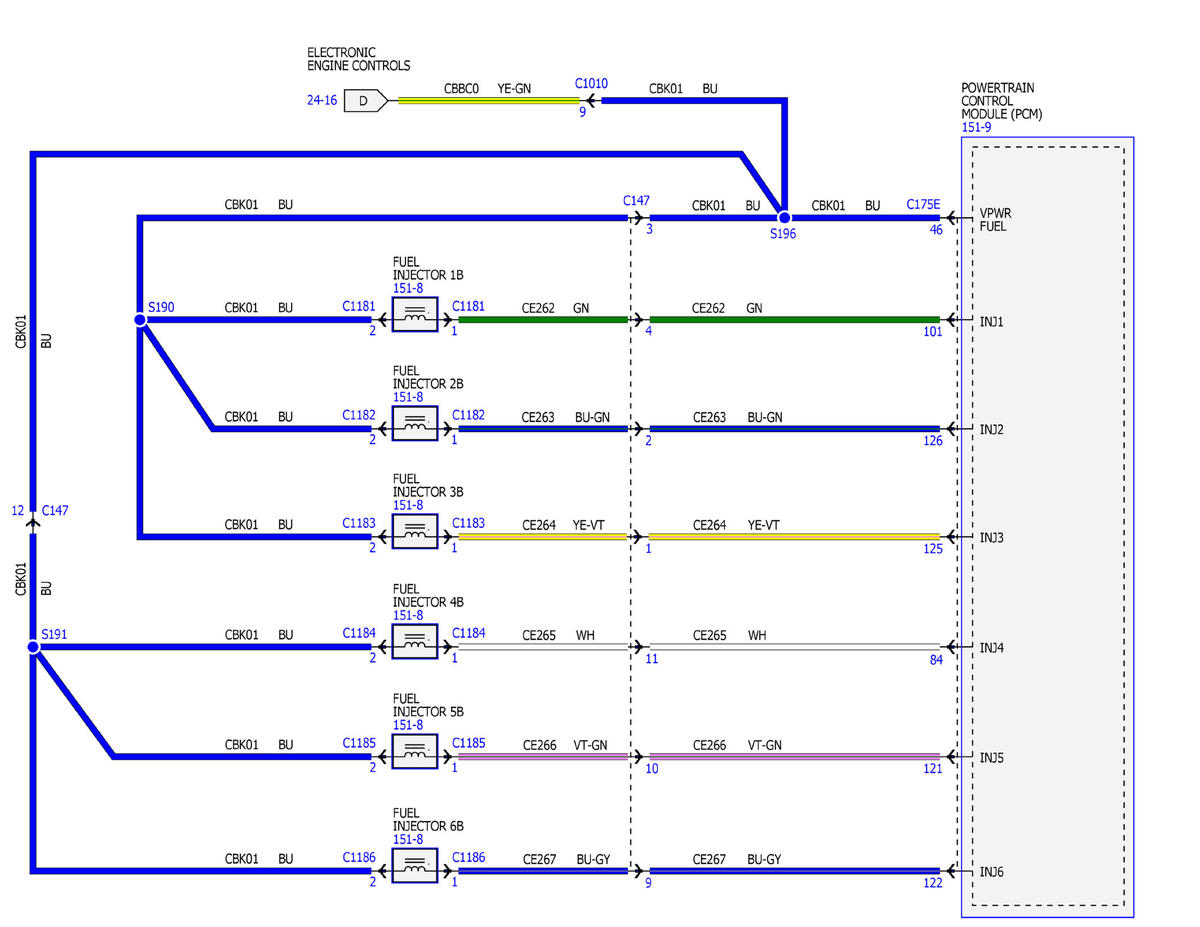

Fig 4: Electronic Engine Controls - 3.5L Wiring Diagrams (4 Of 21)

GFDWR184917

Courtesy of FORD MOTOR COMPANY

Fig 5: Electronic Engine Controls - 3.5L Wiring Diagrams (5 Of 21)

GFDWR184918

Courtesy of FORD MOTOR COMPANY

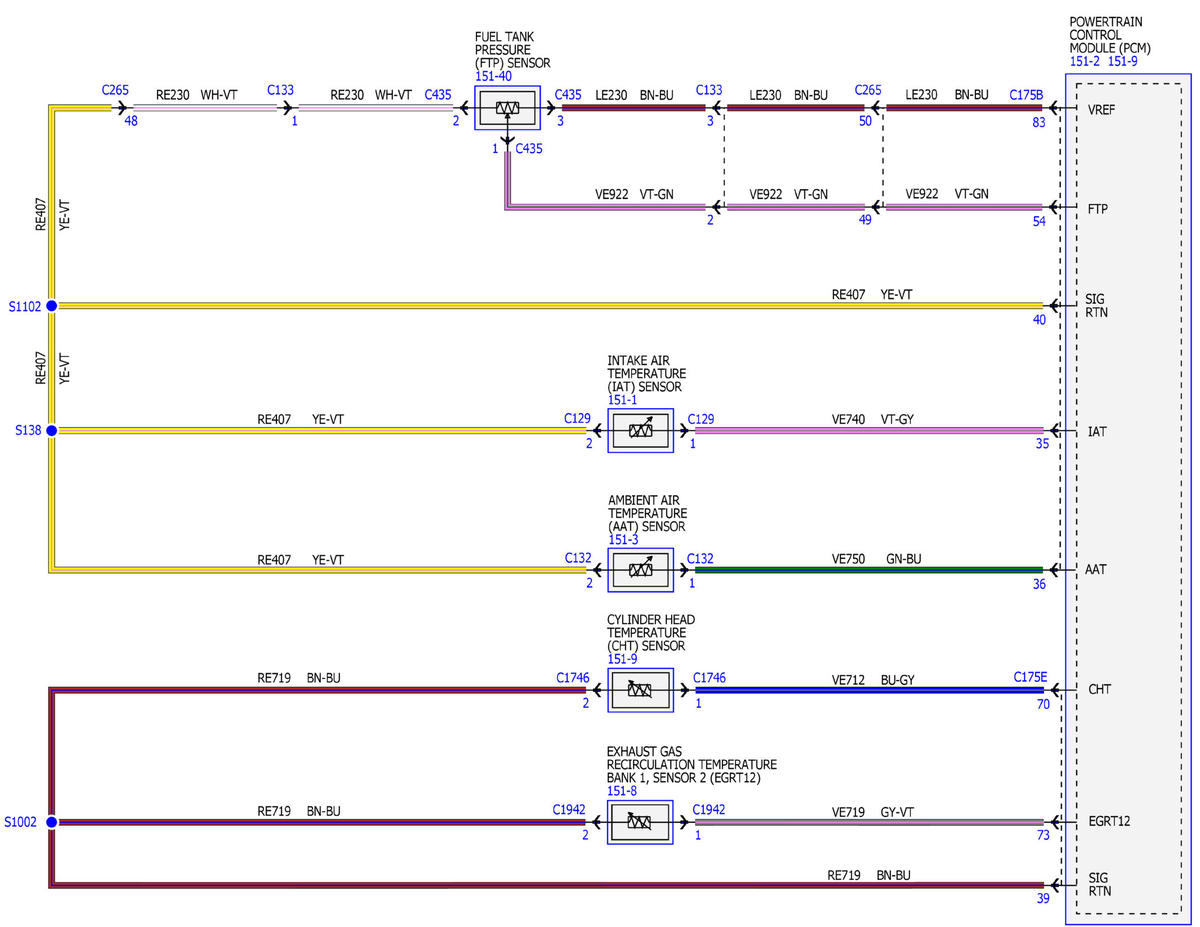

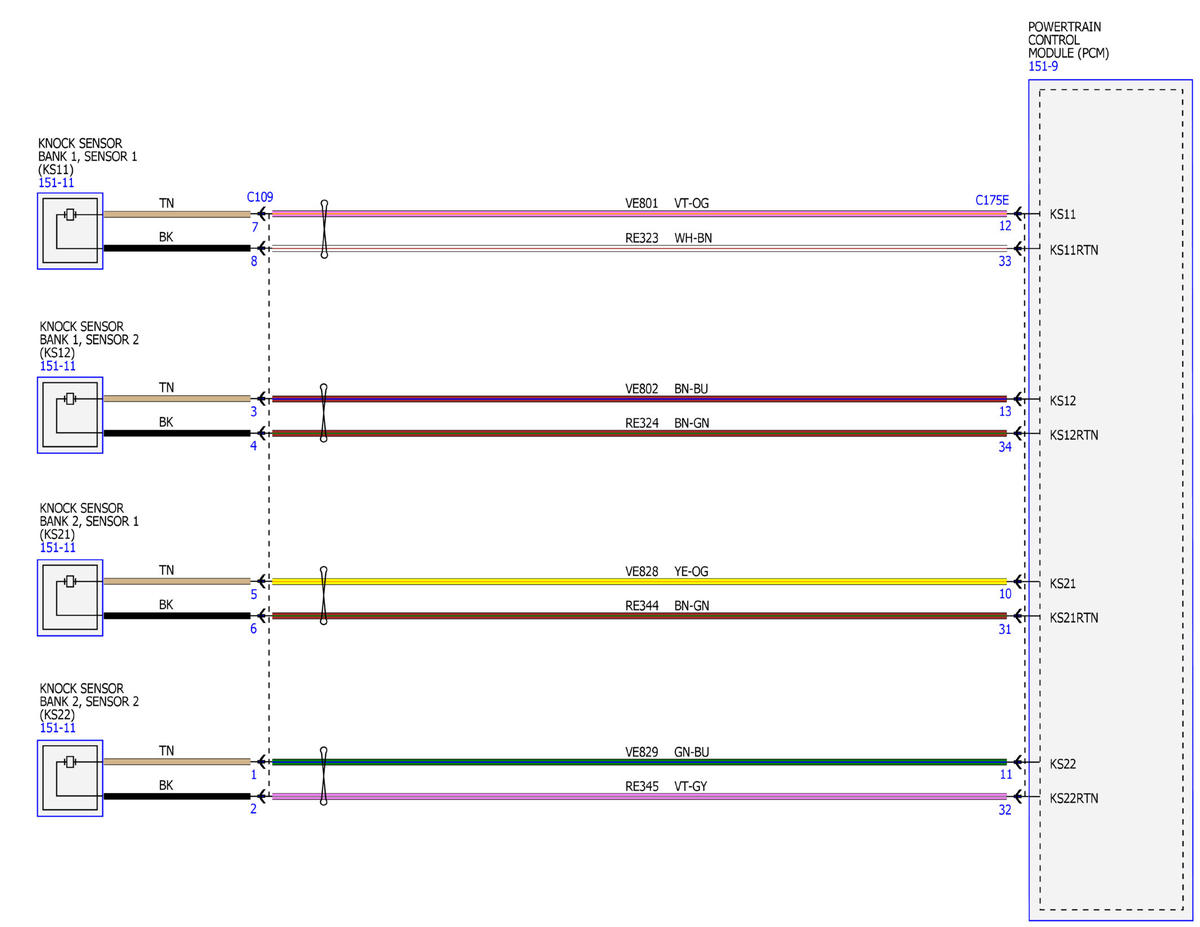

Fig 6: Electronic Engine Controls - 3.5L Wiring Diagrams (6 Of 21)

GFDWR184919

Courtesy of FORD MOTOR COMPANY

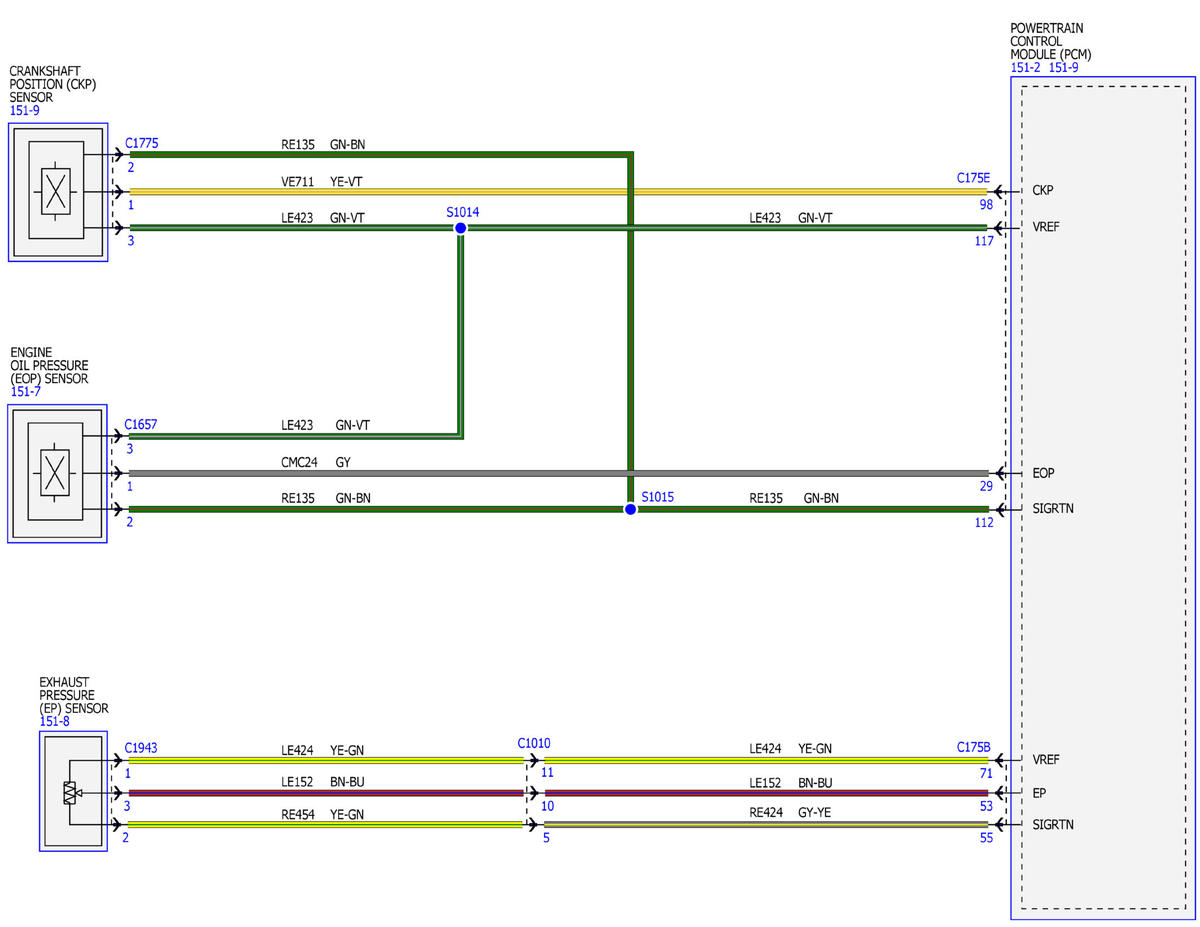

Fig 7: Electronic Engine Controls - 3.5L Wiring Diagrams (7 Of 21)

GFDWR184920

Courtesy of FORD MOTOR COMPANY

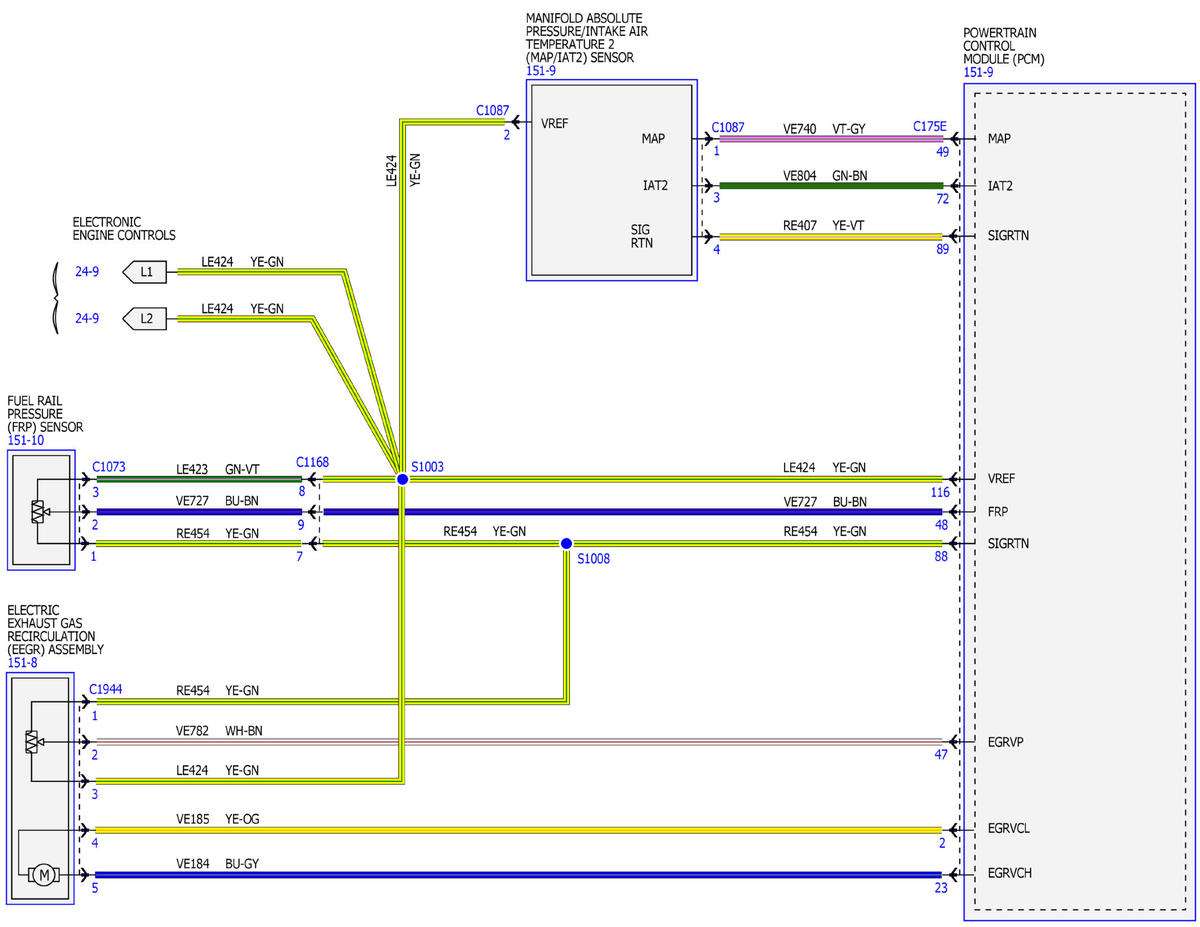

Fig 8: Electronic Engine Controls - 3.5L Wiring Diagrams (8 Of 21)

GFDWR184921

Courtesy of FORD MOTOR COMPANY

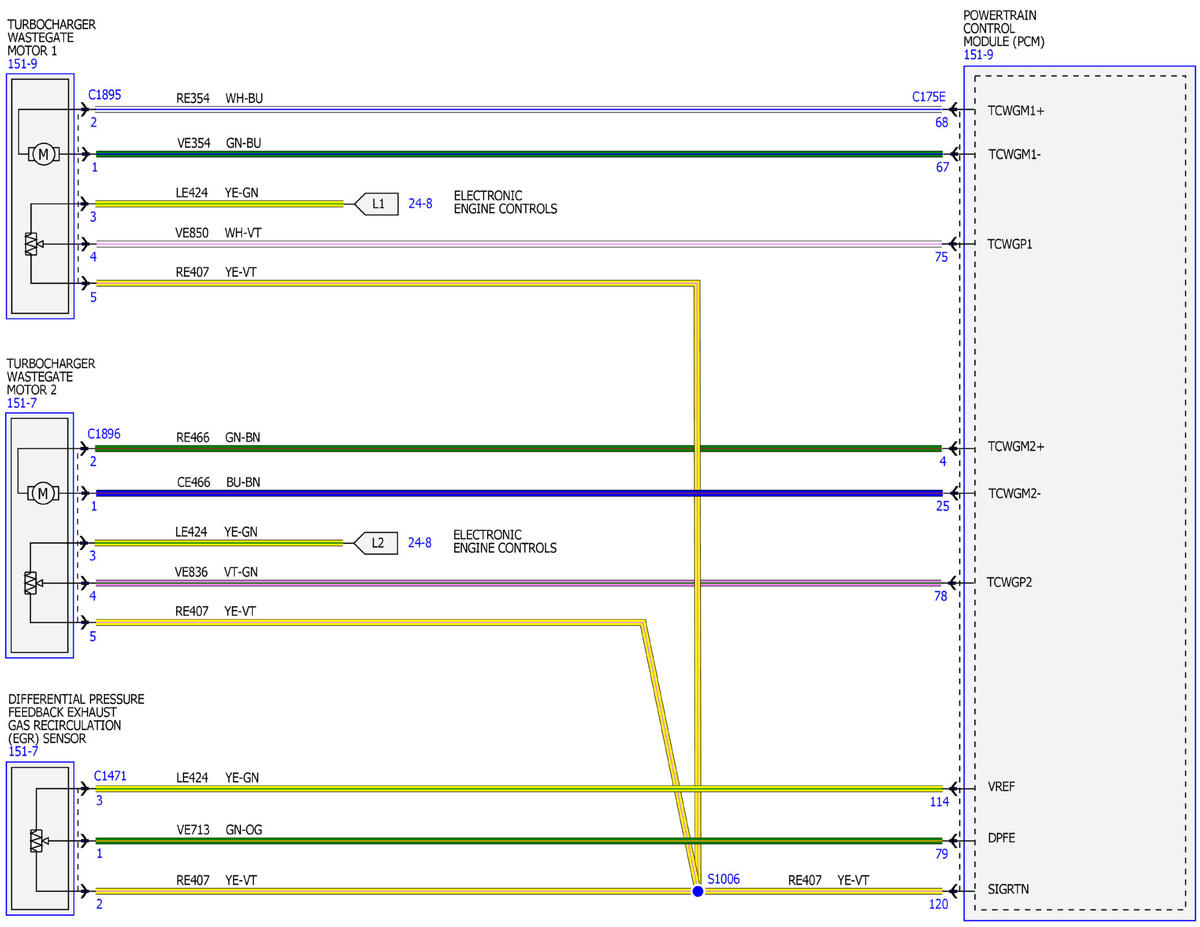

Fig 9: Electronic Engine Controls - 3.5L Wiring Diagrams (9 Of 21)

GFDWR184922

Courtesy of FORD MOTOR COMPANY

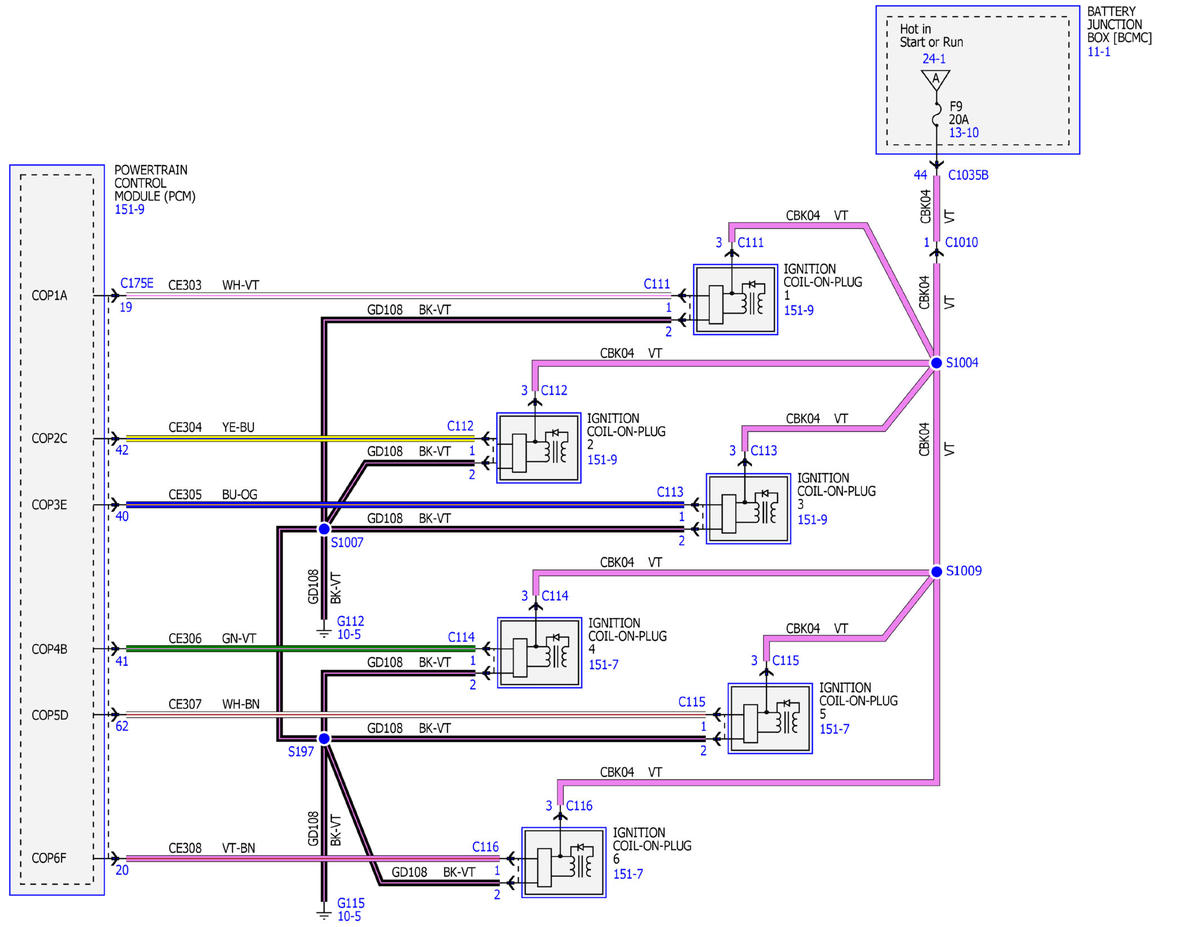

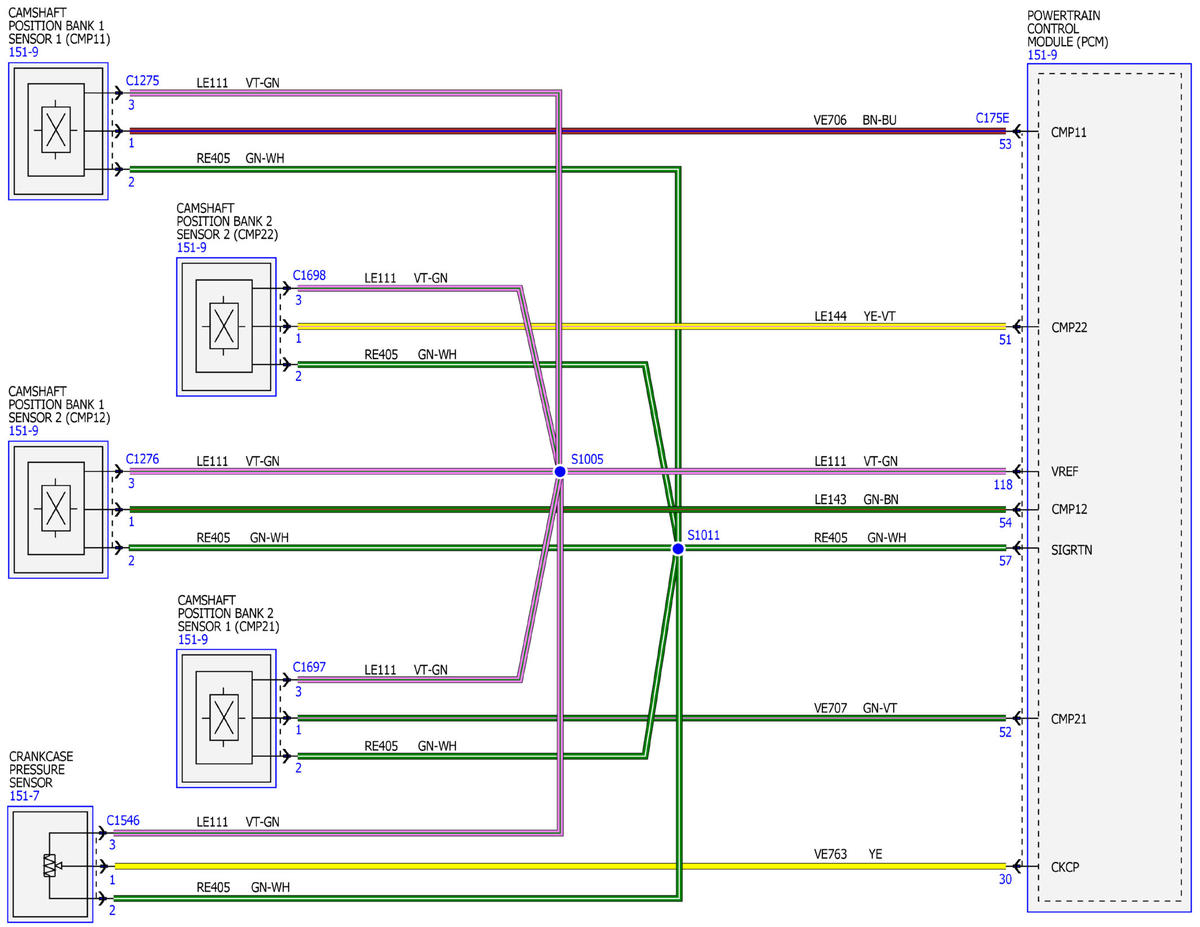

Fig 10: Electronic Engine Controls - 3.5L Wiring Diagrams (10 Of 21)

GFDWR184903

Courtesy of FORD MOTOR COMPANY

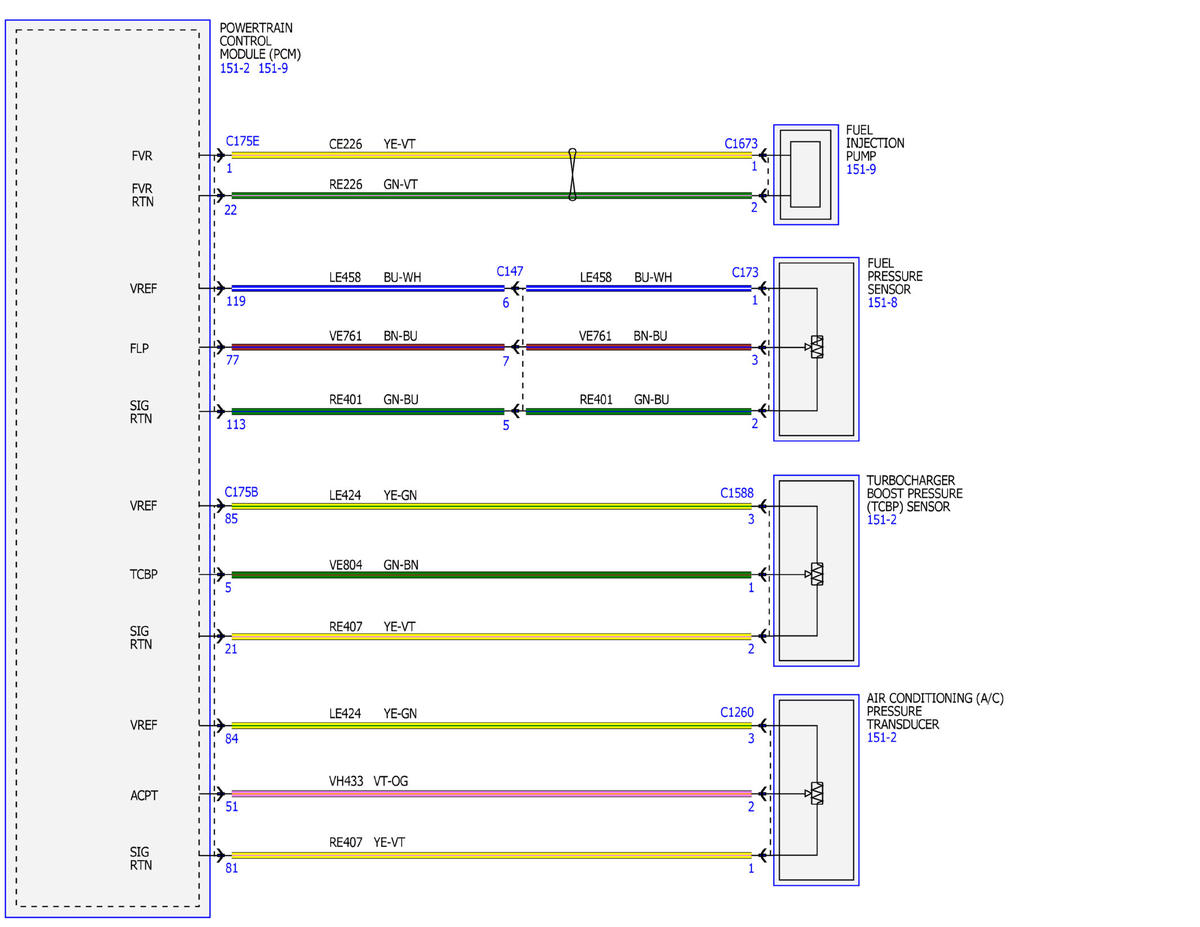

Fig 11: Electronic Engine Controls - 3.5L Wiring Diagrams (11 Of 21)

GFDWR184904

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls - 3.5L Wiring Diagrams (12 Of 21)

GFDWR184905

Courtesy of FORD MOTOR COMPANY

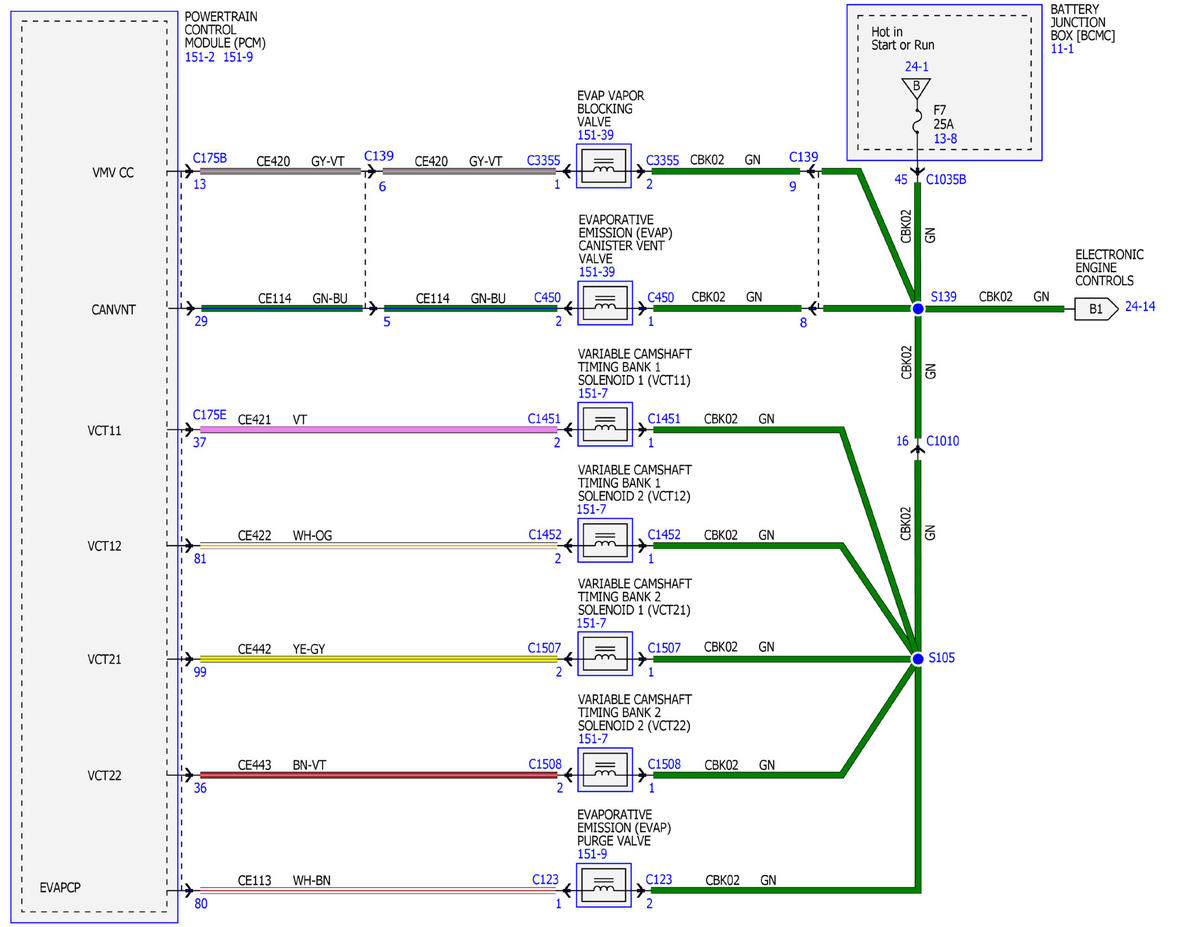

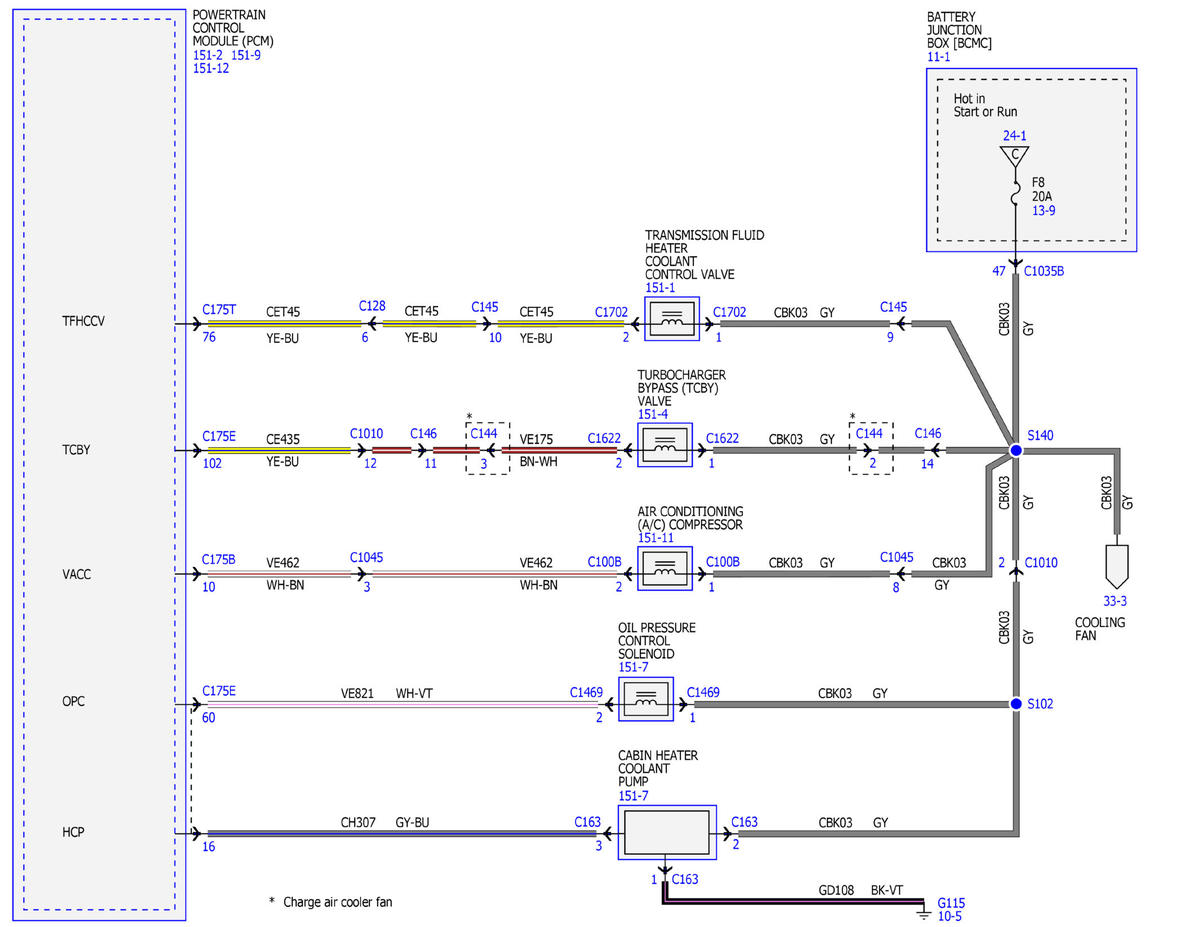

Fig 13: Electronic Engine Controls - 3.5L Wiring Diagrams (13 Of 21)

GFDWR184906

Courtesy of FORD MOTOR COMPANY

Fig 14: Electronic Engine Controls - 3.5L Wiring Diagrams (14 Of 21)

GFDWR184907

Courtesy of FORD MOTOR COMPANY

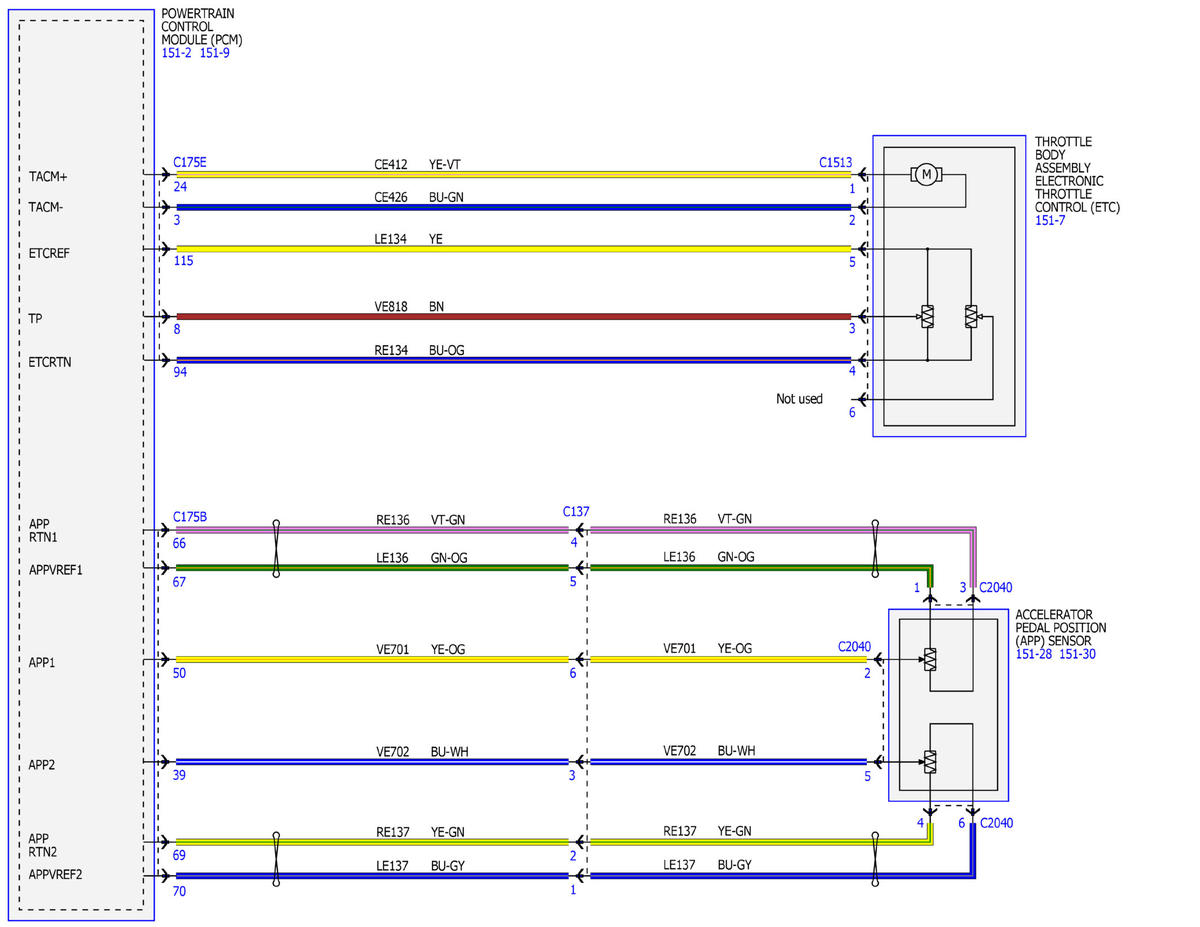

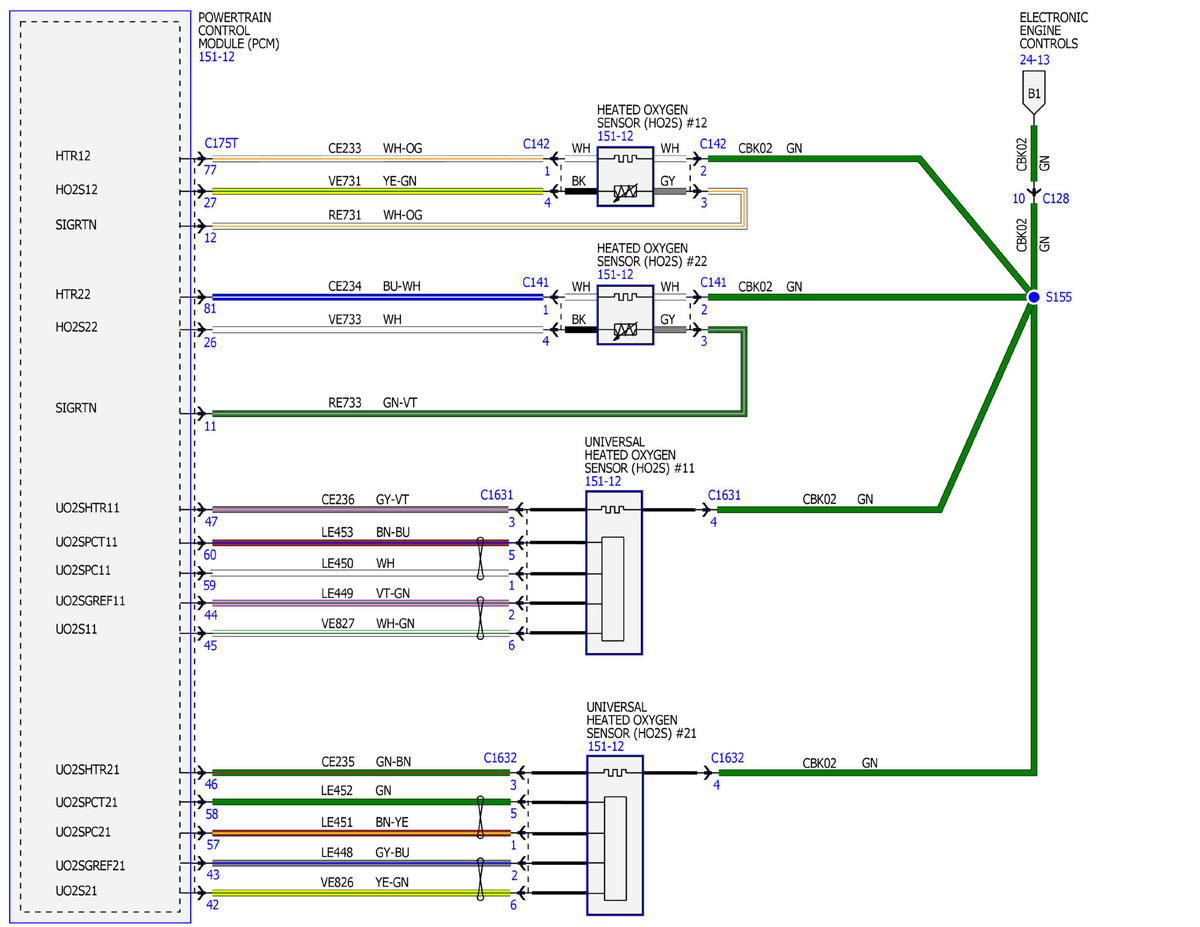

Fig 15: Electronic Engine Controls - 3.5L Wiring Diagrams (15 Of 21)

GFDWR184908

Courtesy of FORD MOTOR COMPANY

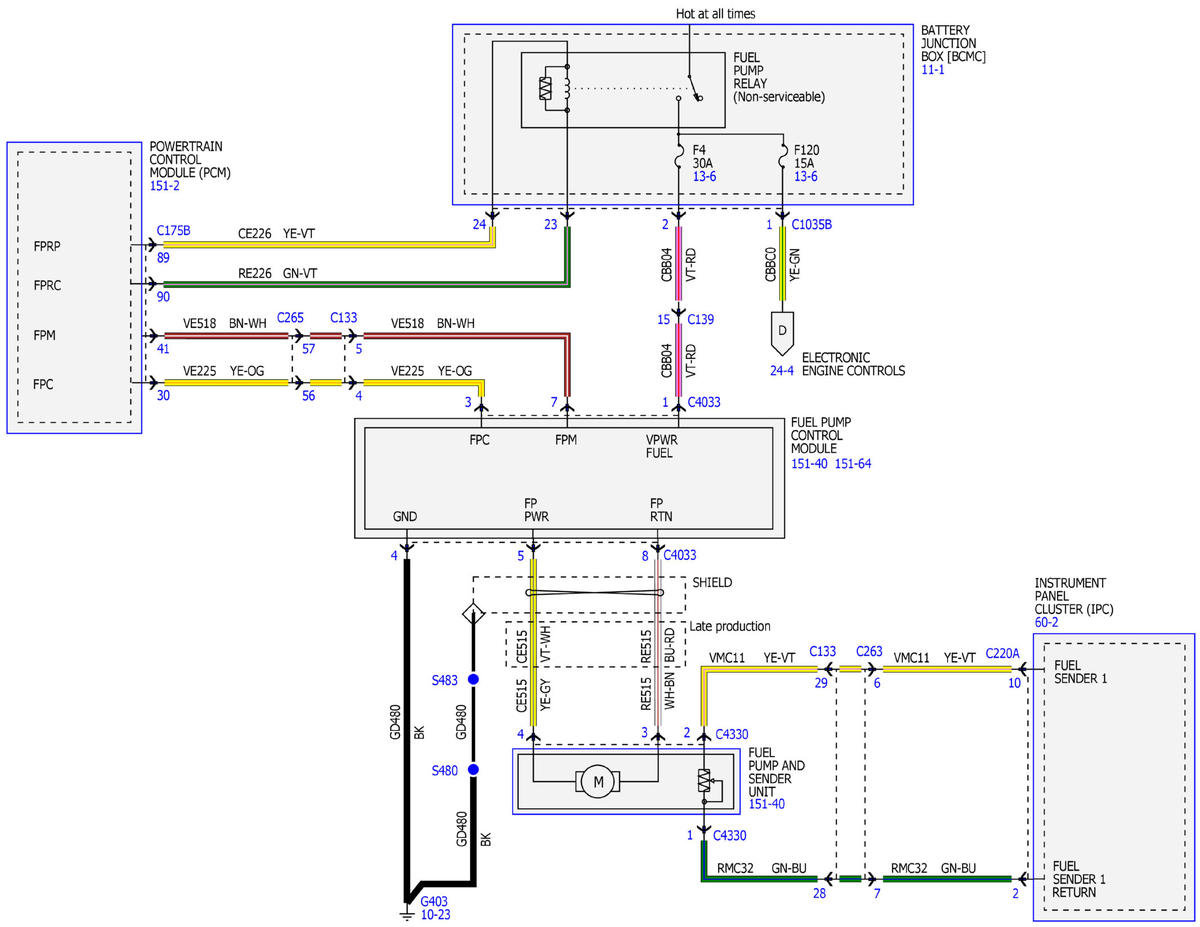

Fig 16: Electronic Engine Controls - 3.5L Wiring Diagrams (16 Of 21)

GFDWR184909

Courtesy of FORD MOTOR COMPANY

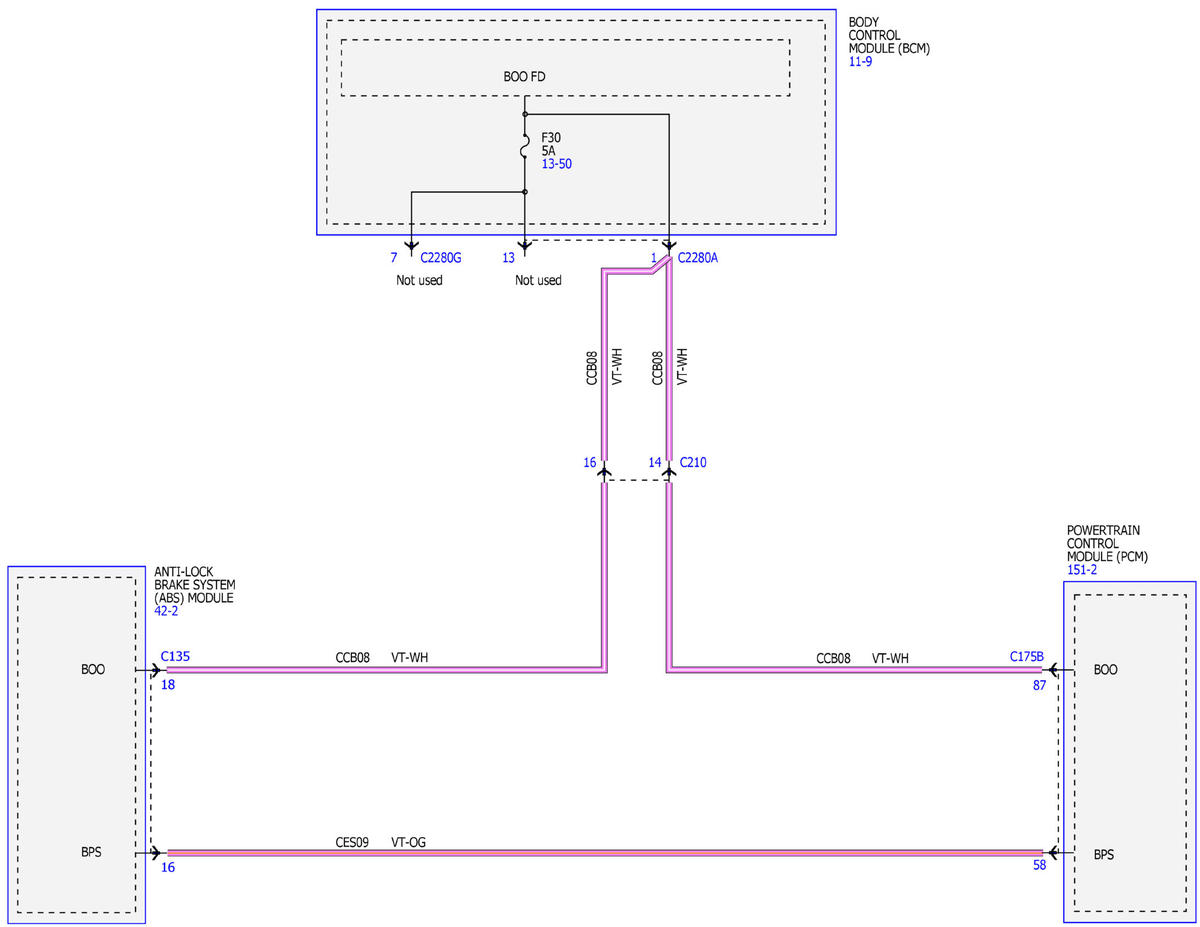

Fig 17: Electronic Engine Controls - 3.5L Wiring Diagrams (17 Of 21)

GFDWR184910

Courtesy of FORD MOTOR COMPANY

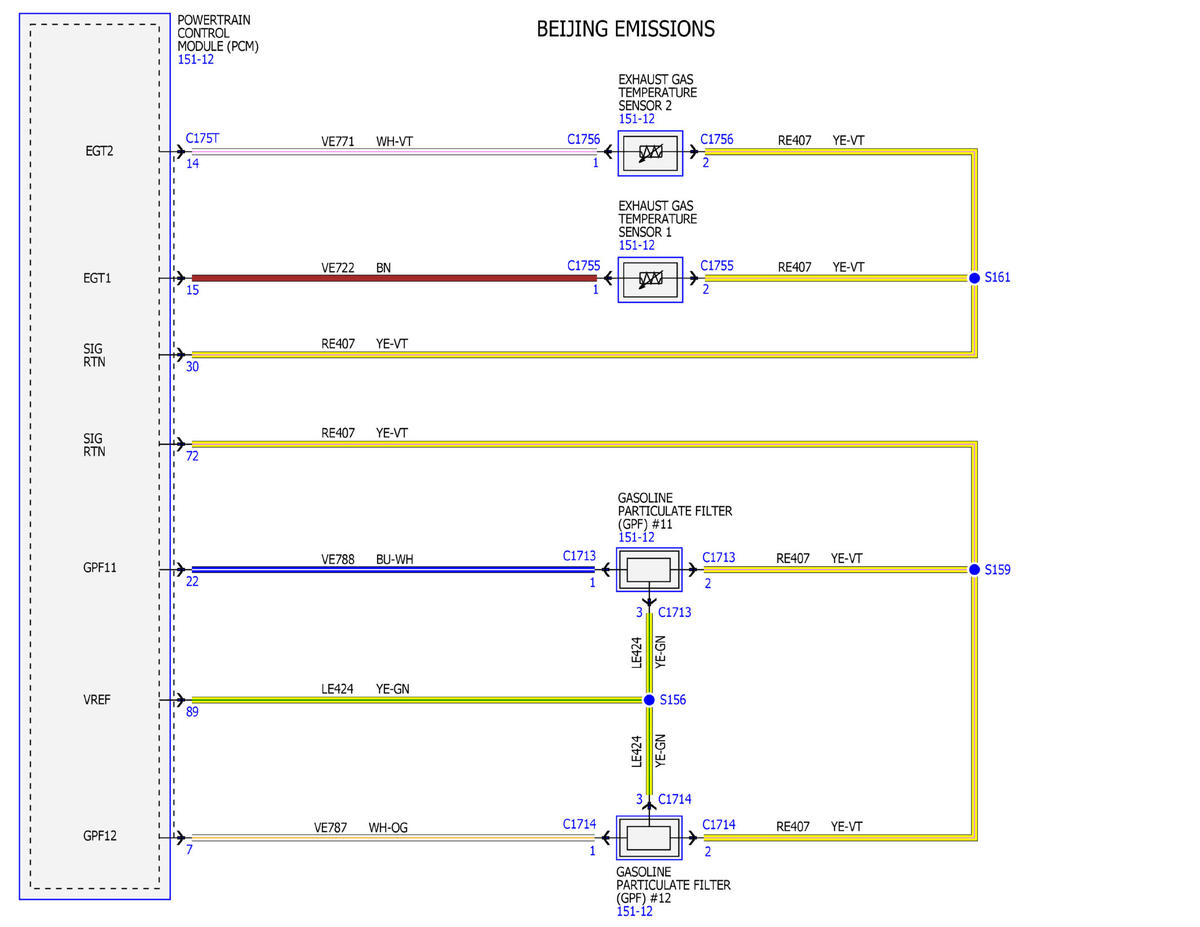

Fig 18: Electronic Engine Controls - 3.5L Wiring Diagrams (18 Of 21)

GFDWR184911

Courtesy of FORD MOTOR COMPANY

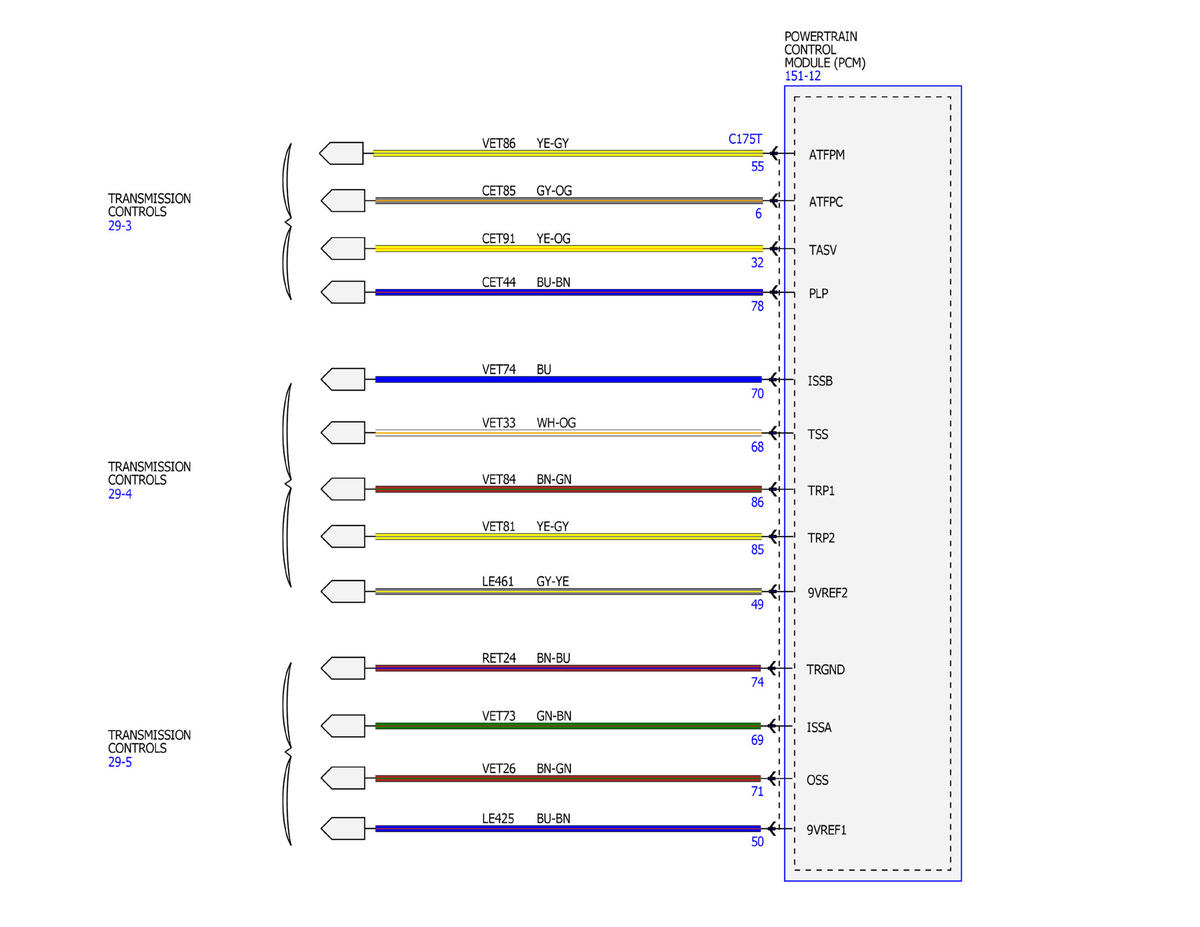

Fig 19: Electronic Engine Controls - 3.5L Wiring Diagrams (19 Of 21)

GFDWR184912

Courtesy of FORD MOTOR COMPANY

Fig 20: Electronic Engine Controls - 3.5L Wiring Diagrams (20 Of 21)

GFDWR184914

Courtesy of FORD MOTOR COMPANY

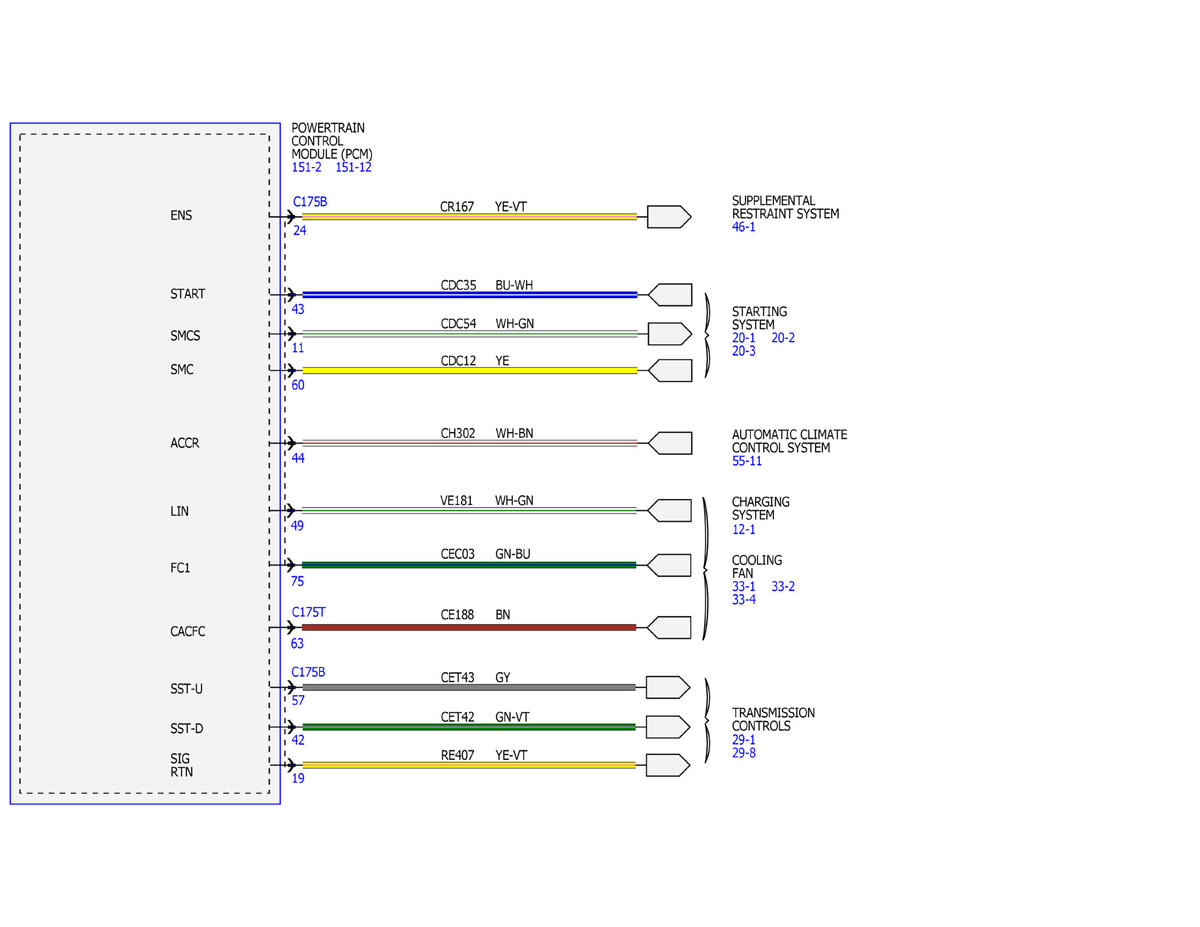

Fig 21: Electronic Engine Controls - 3.5L Wiring Diagrams (21 Of 21)

GFDWR184915

Courtesy of FORD MOTOR COMPANY
