Rear Subframe - AWD: Installation

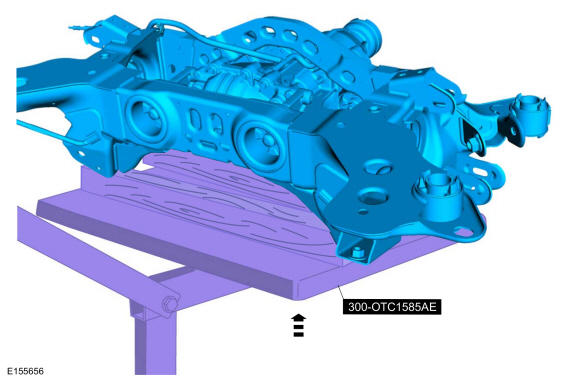

Raise the rear subframe and position it to the vehicle. Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

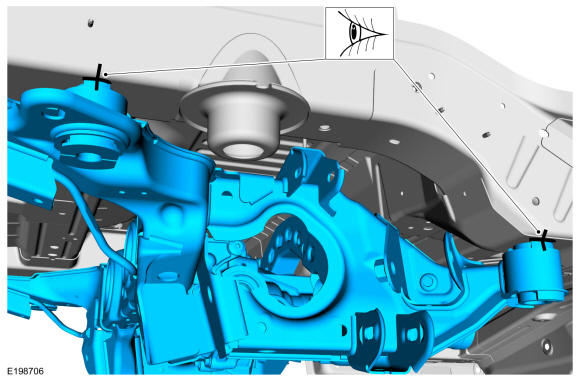

On both sides. Align the reference marks made during removal.

Courtesy of FORD MOTOR COMPANY

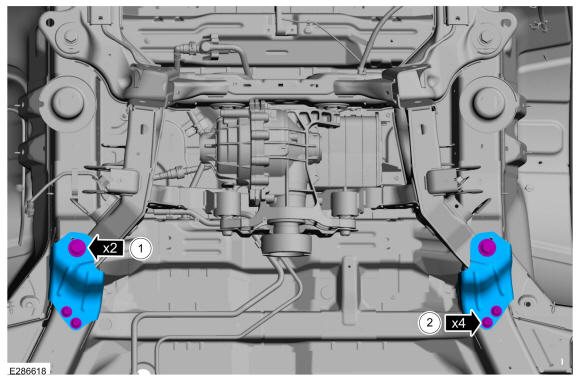

1. Position the rear subframe brackets and install the new rear subframe forward bolts.
  Torque: 129 lb.ft (175 Nm)
2. Install the new rear subframe bracket bolts.
  Torque: 41 lb.ft (55 Nm)
Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
