OEM Ground Distribution: Grounds

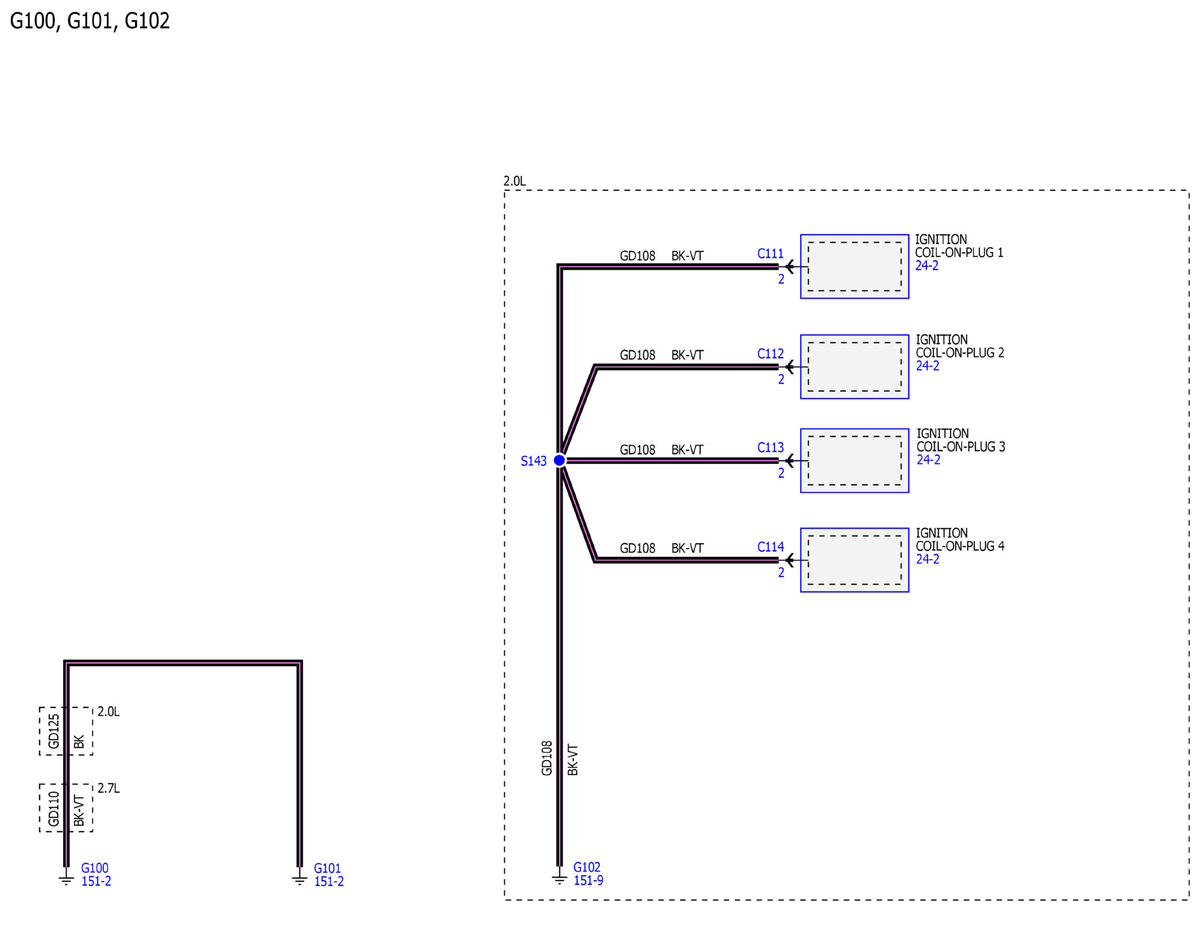

GFDWR163575Courtesy of FORD MOTOR COMPANY

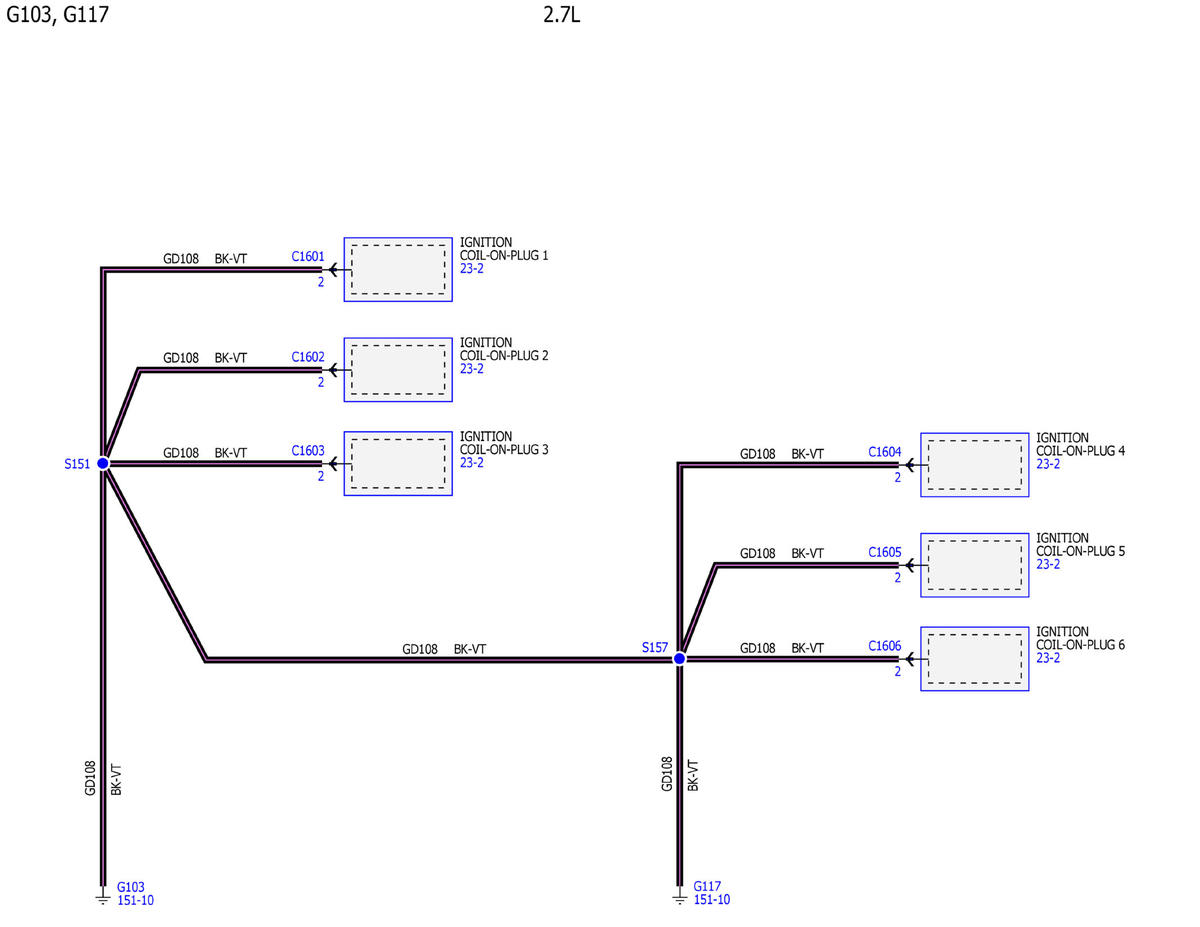

GFDWR163586Courtesy of FORD MOTOR COMPANY

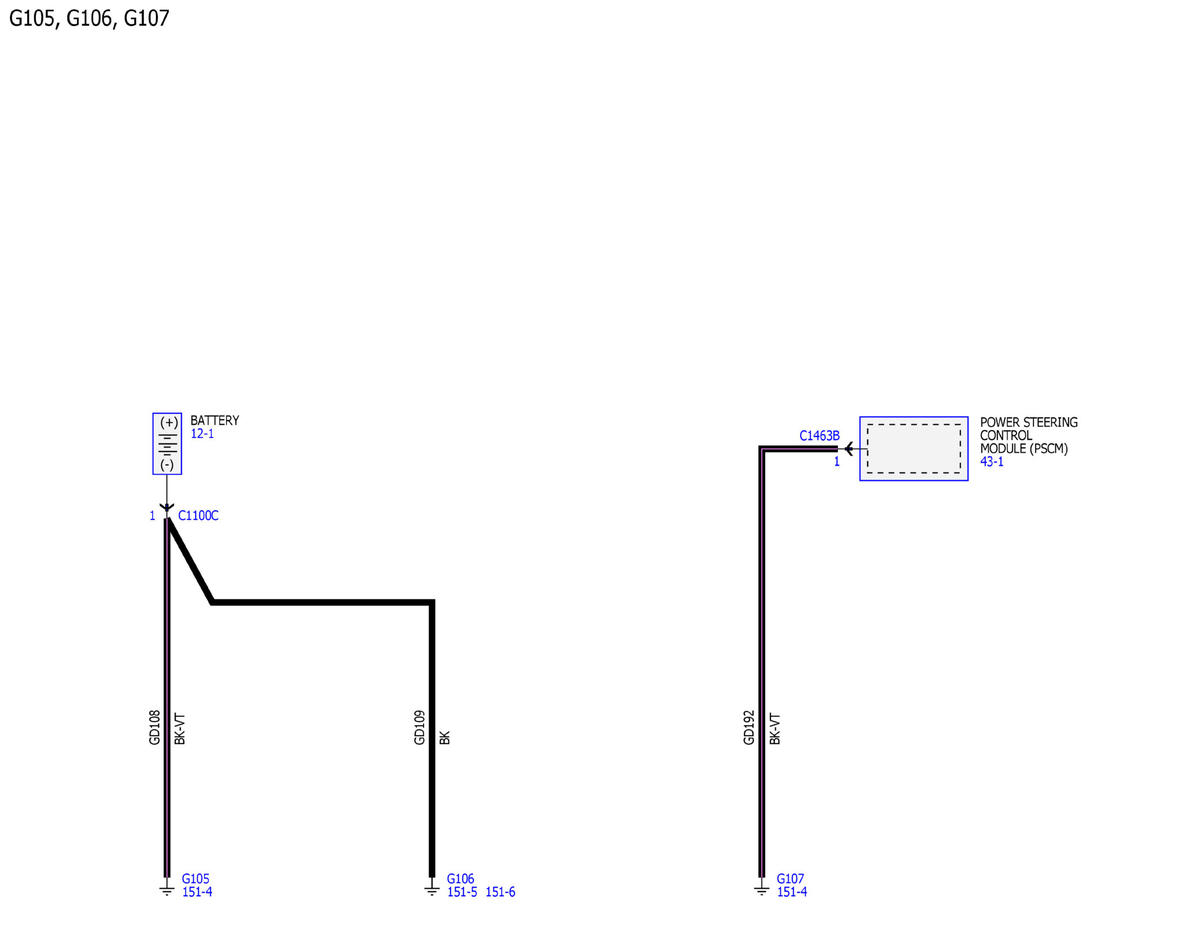

GFDWR163590Courtesy of FORD MOTOR COMPANY

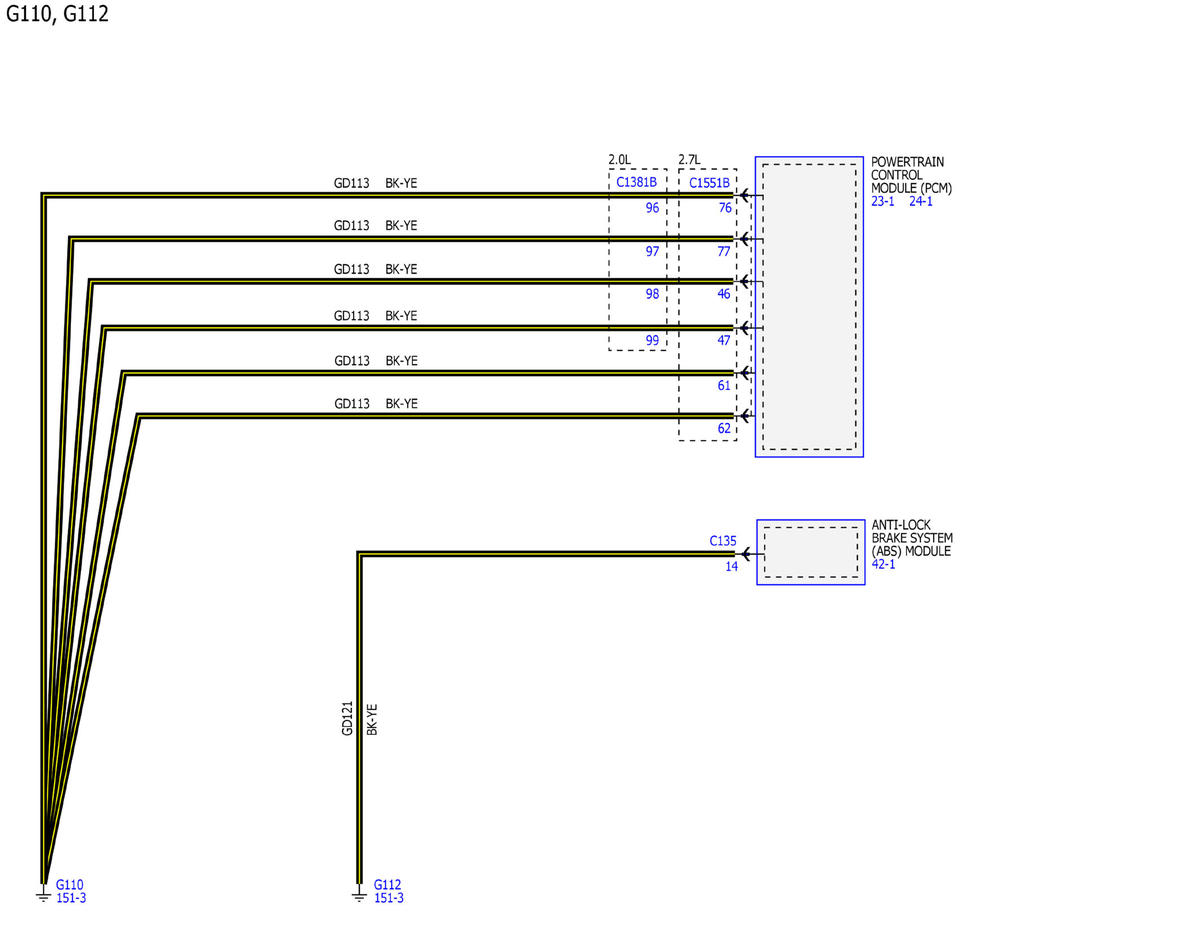

GFDWR163591Courtesy of FORD MOTOR COMPANY

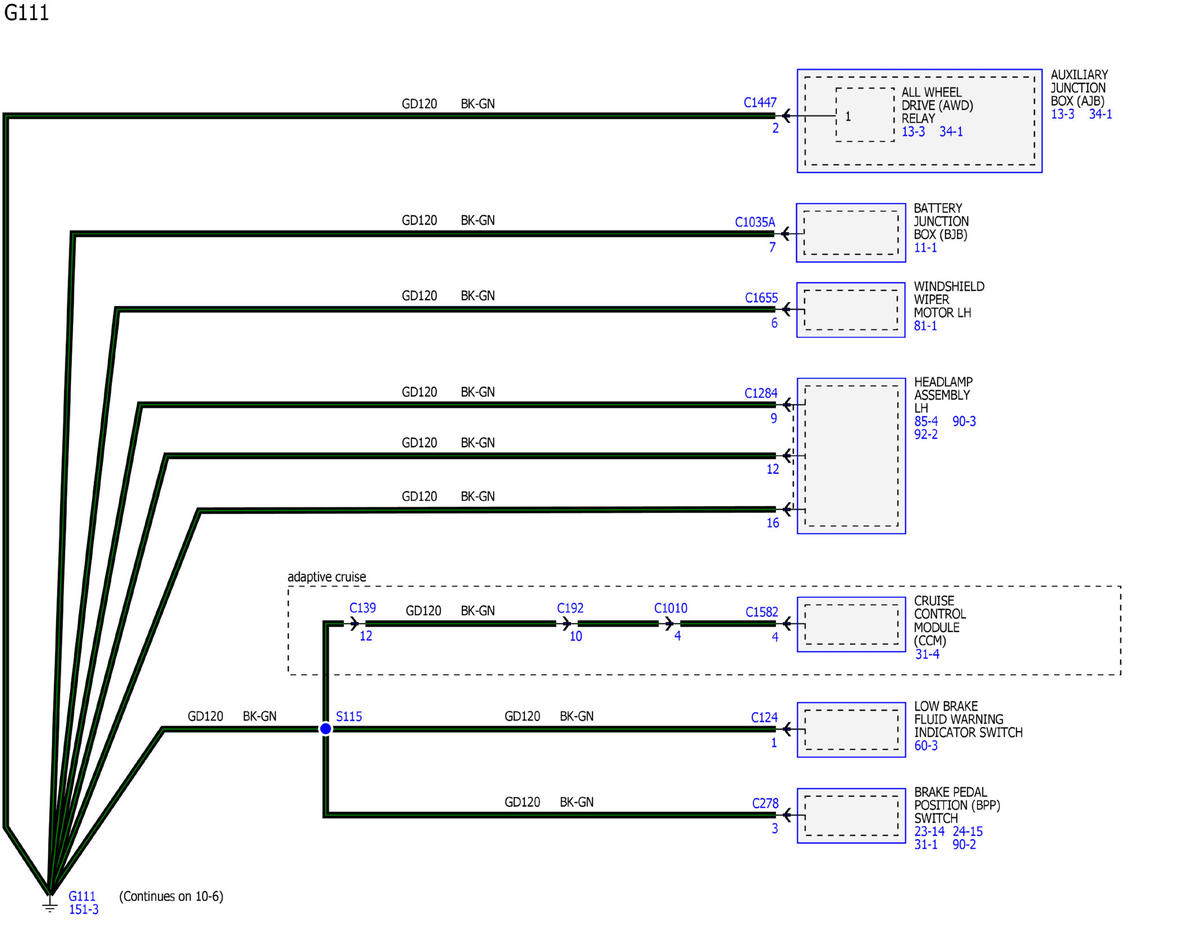

GFDWR163592Courtesy of FORD MOTOR COMPANY

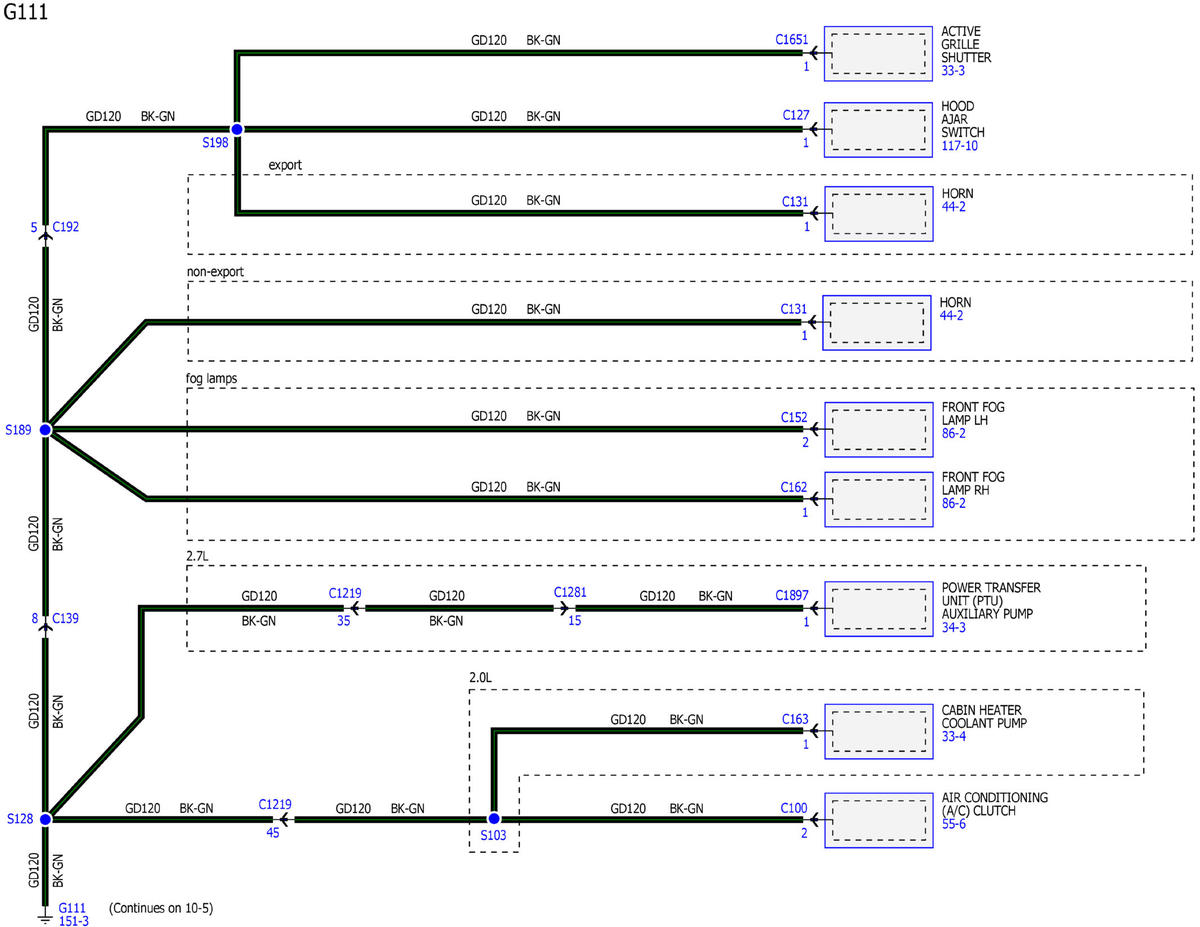

GFDWR163593Courtesy of FORD MOTOR COMPANY

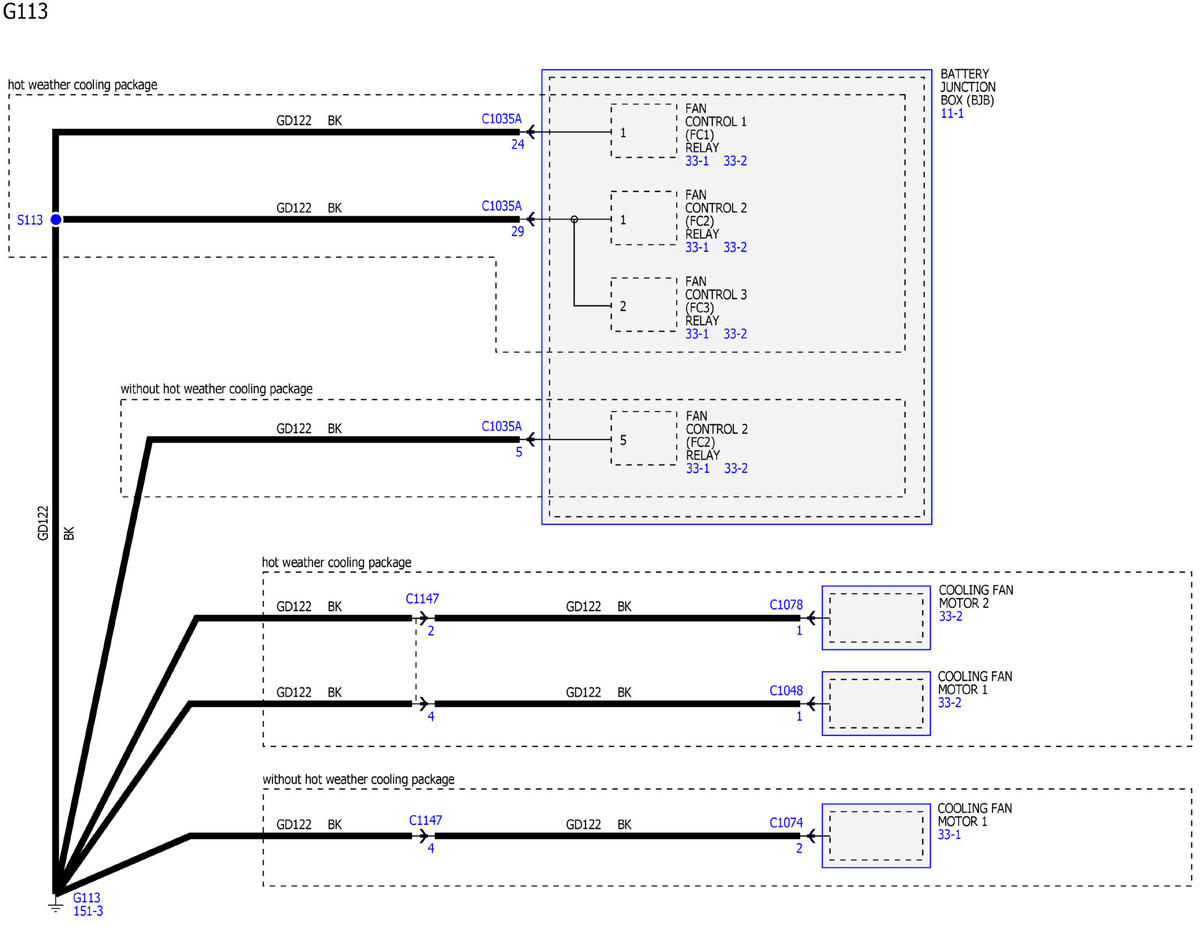

GFDWR163594Courtesy of FORD MOTOR COMPANY

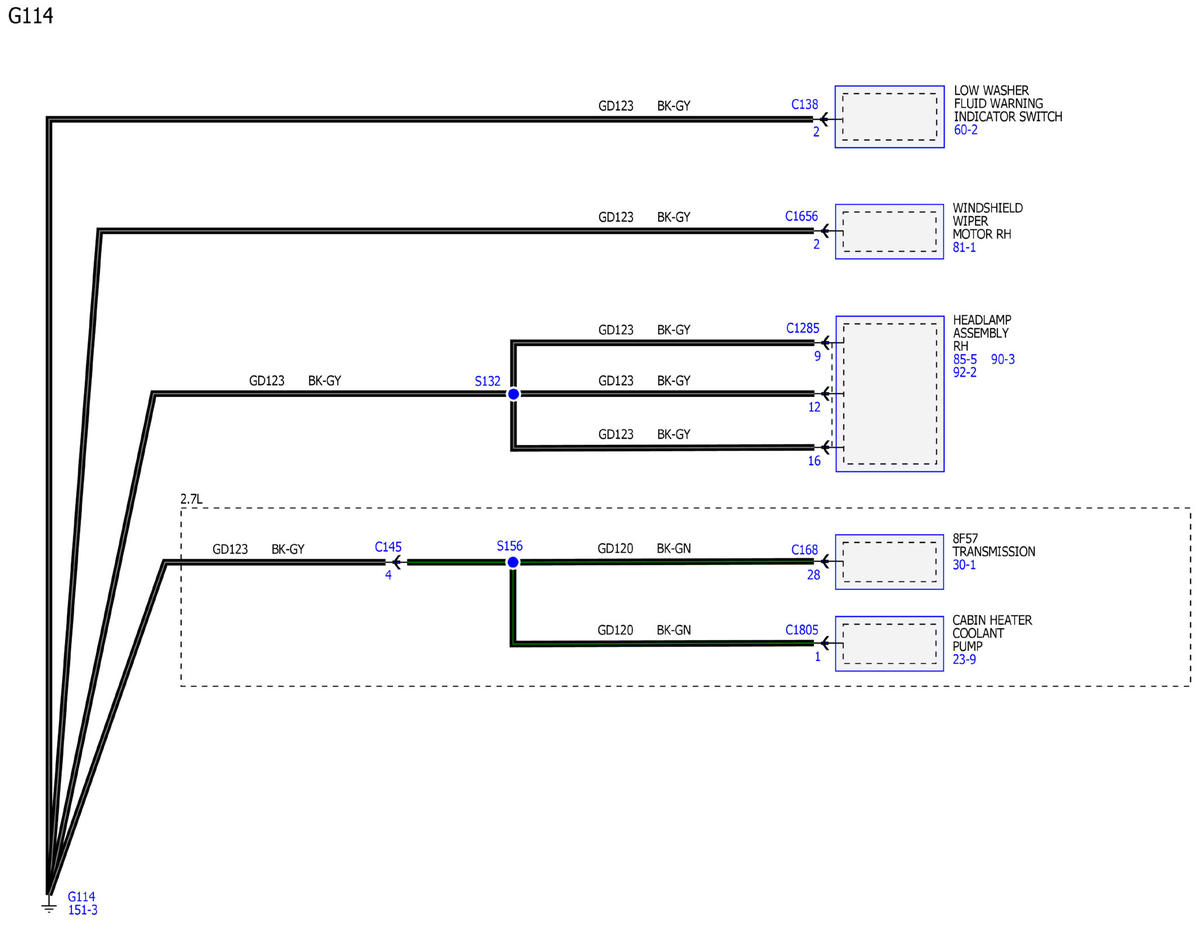

GFDWR163595Courtesy of FORD MOTOR COMPANY

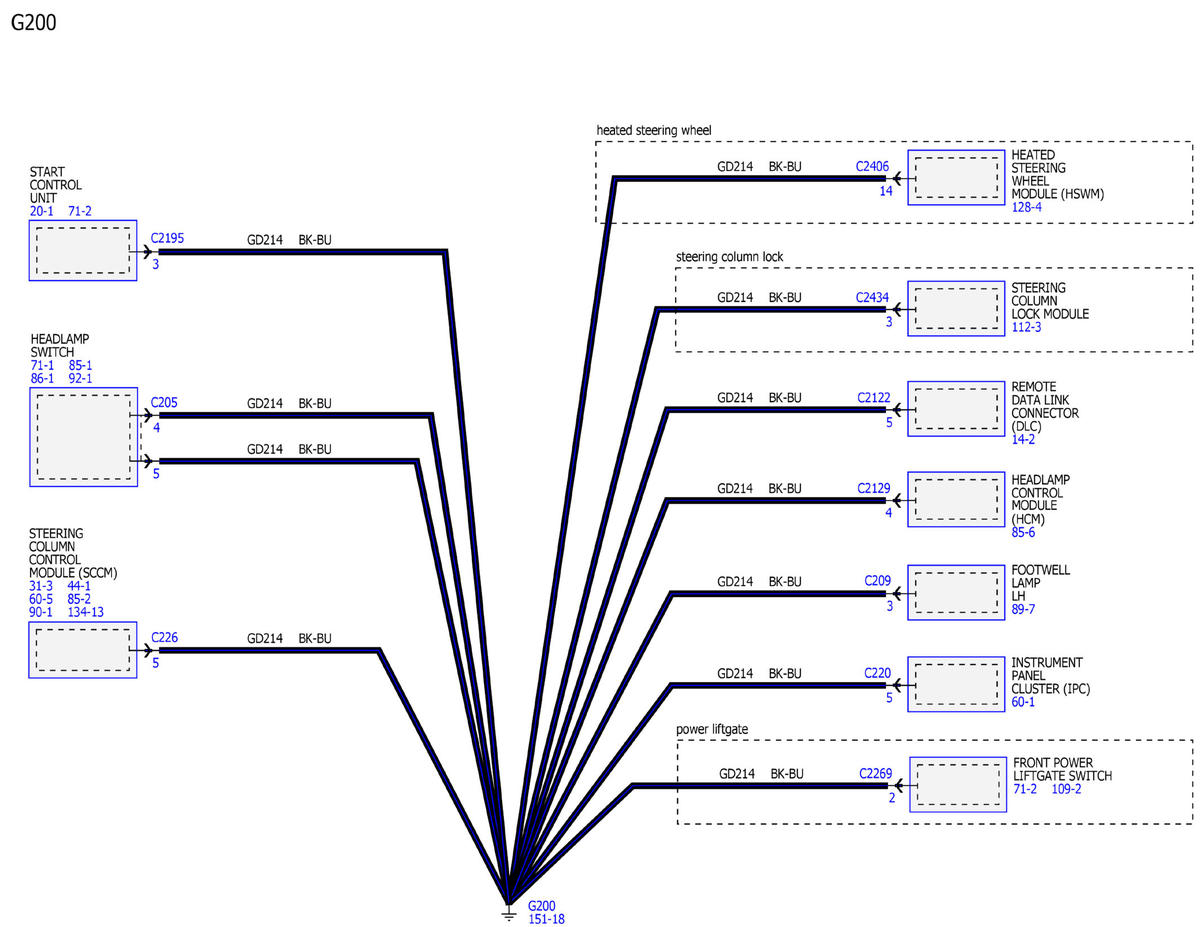

GFDWR163596Courtesy of FORD MOTOR COMPANY

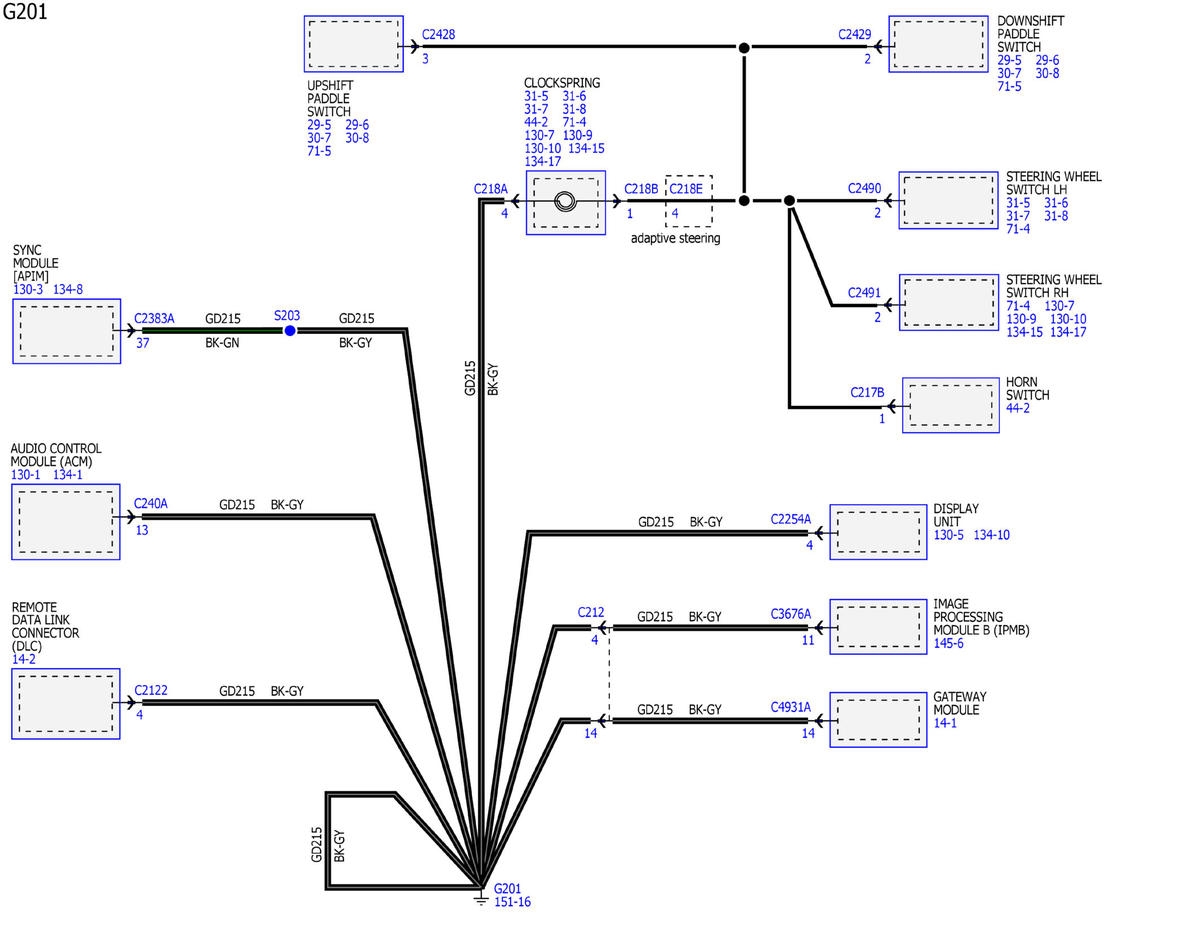

GFDWR163576Courtesy of FORD MOTOR COMPANY

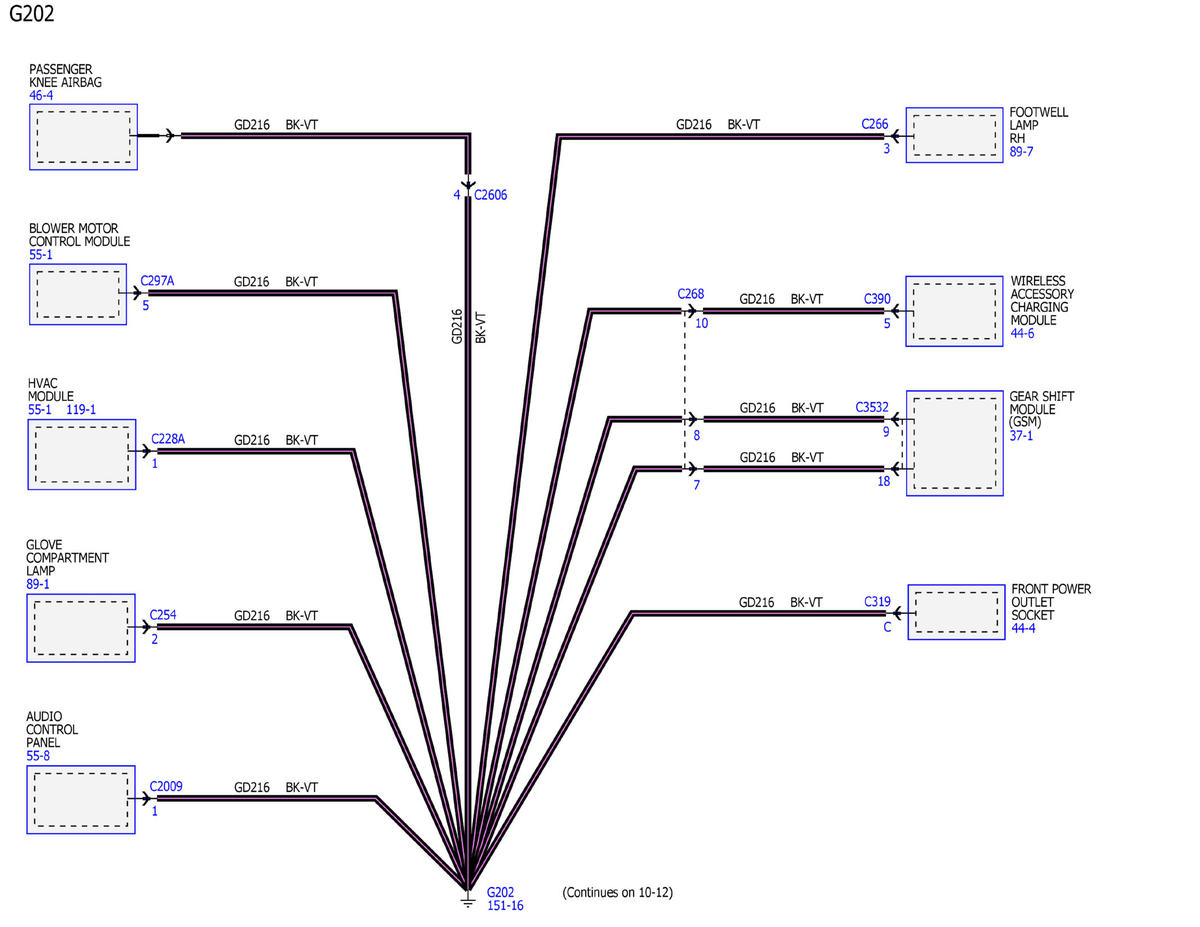

GFDWR163577Courtesy of FORD MOTOR COMPANY

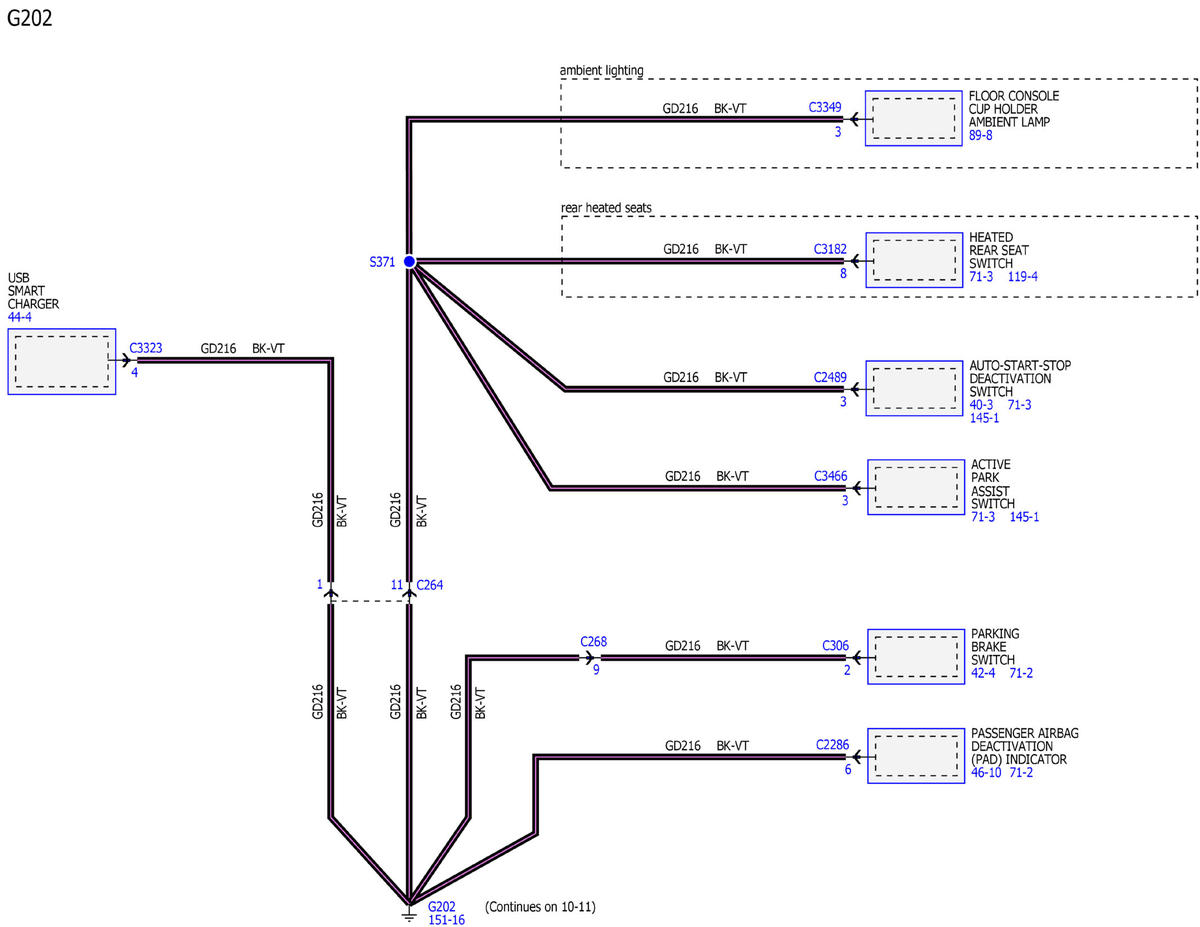

GFDWR163578Courtesy of FORD MOTOR COMPANY

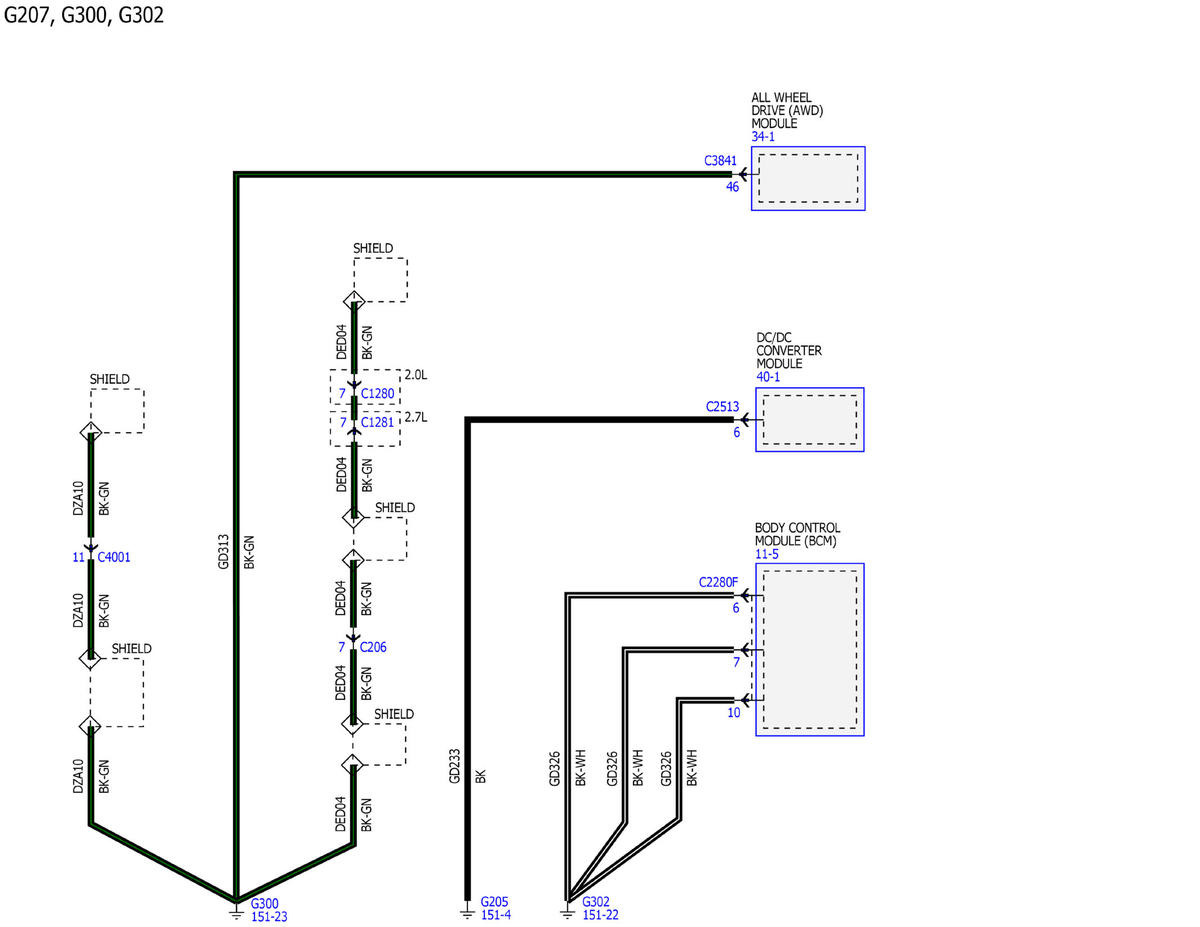

GFDWR163579Courtesy of FORD MOTOR COMPANY

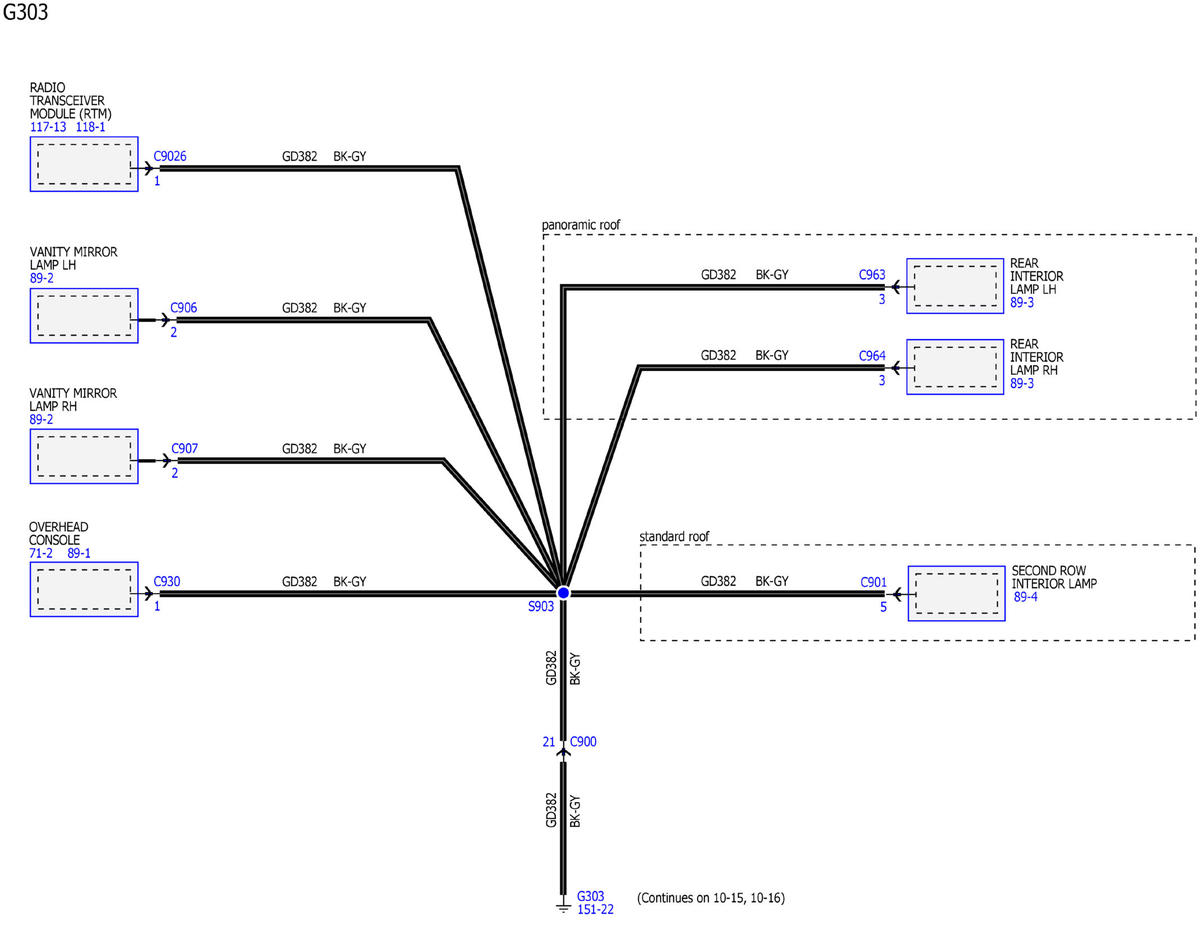

GFDWR163580Courtesy of FORD MOTOR COMPANY

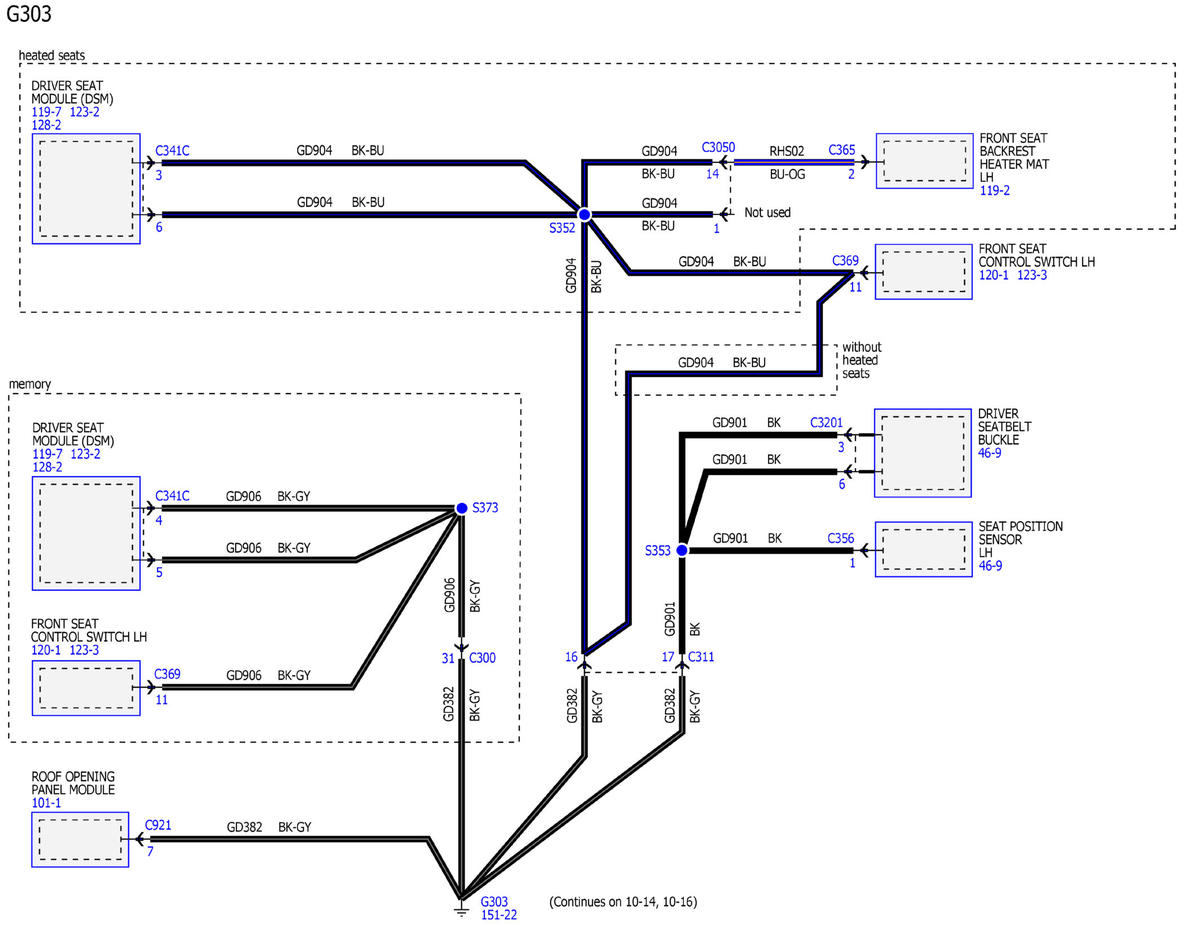

GFDWR163581Courtesy of FORD MOTOR COMPANY

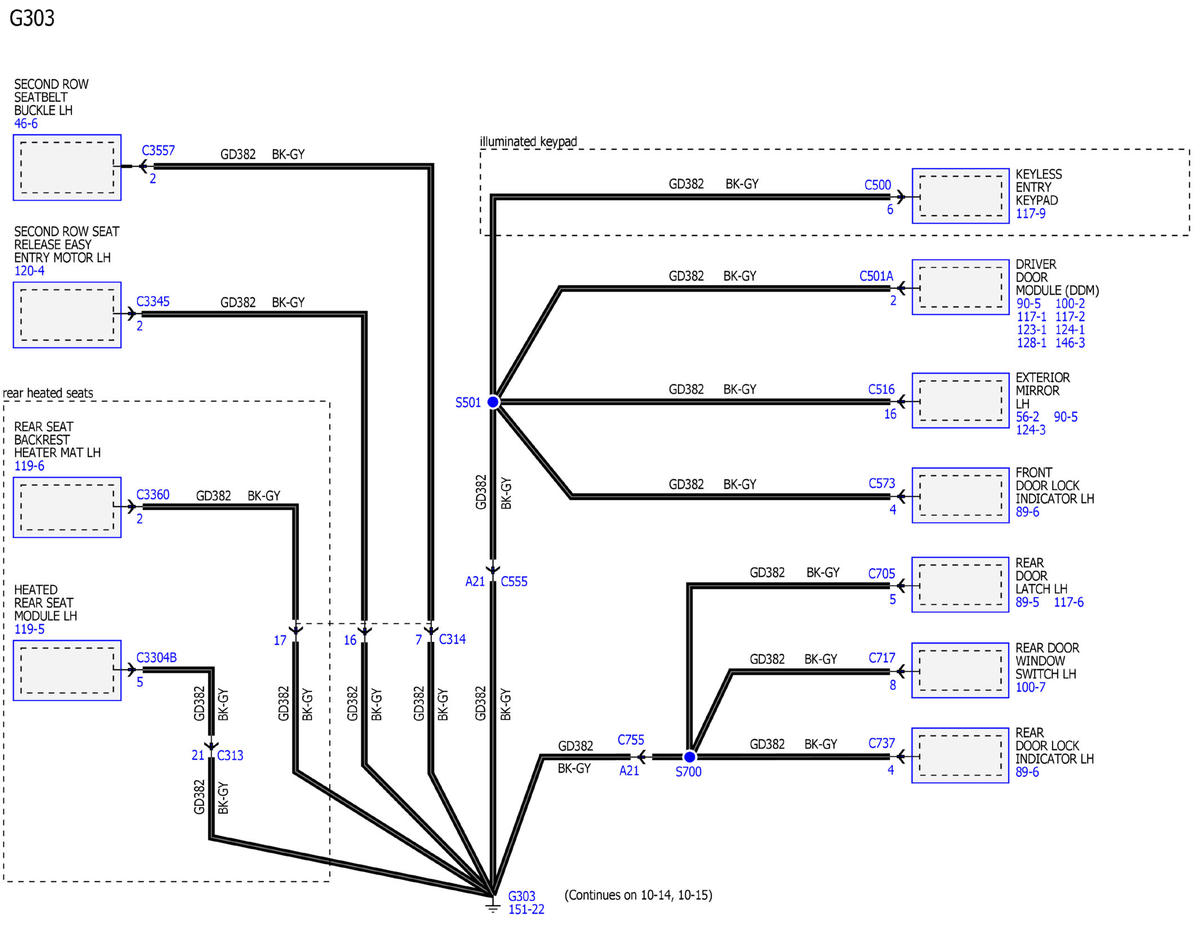

GFDWR163582Courtesy of FORD MOTOR COMPANY

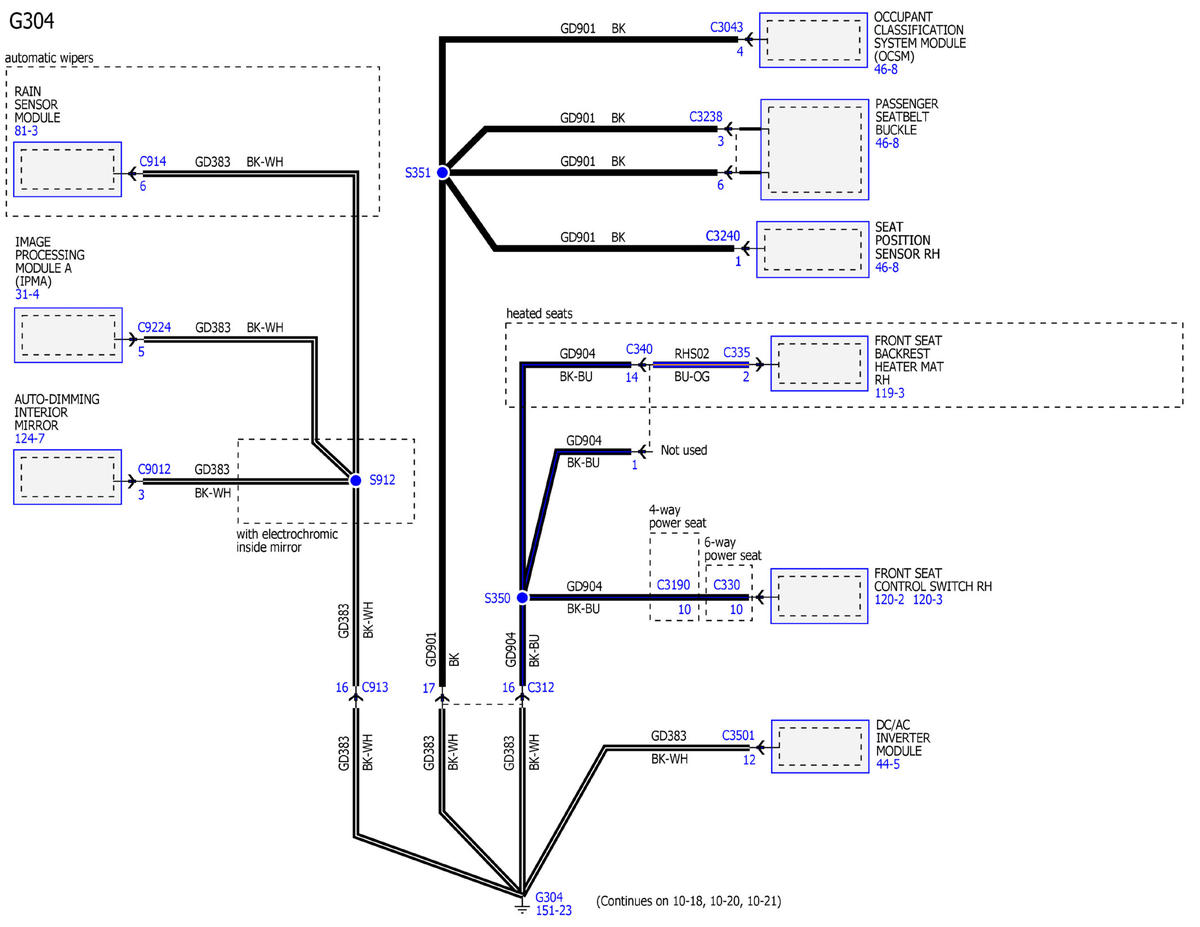

GFDWR163583Courtesy of FORD MOTOR COMPANY

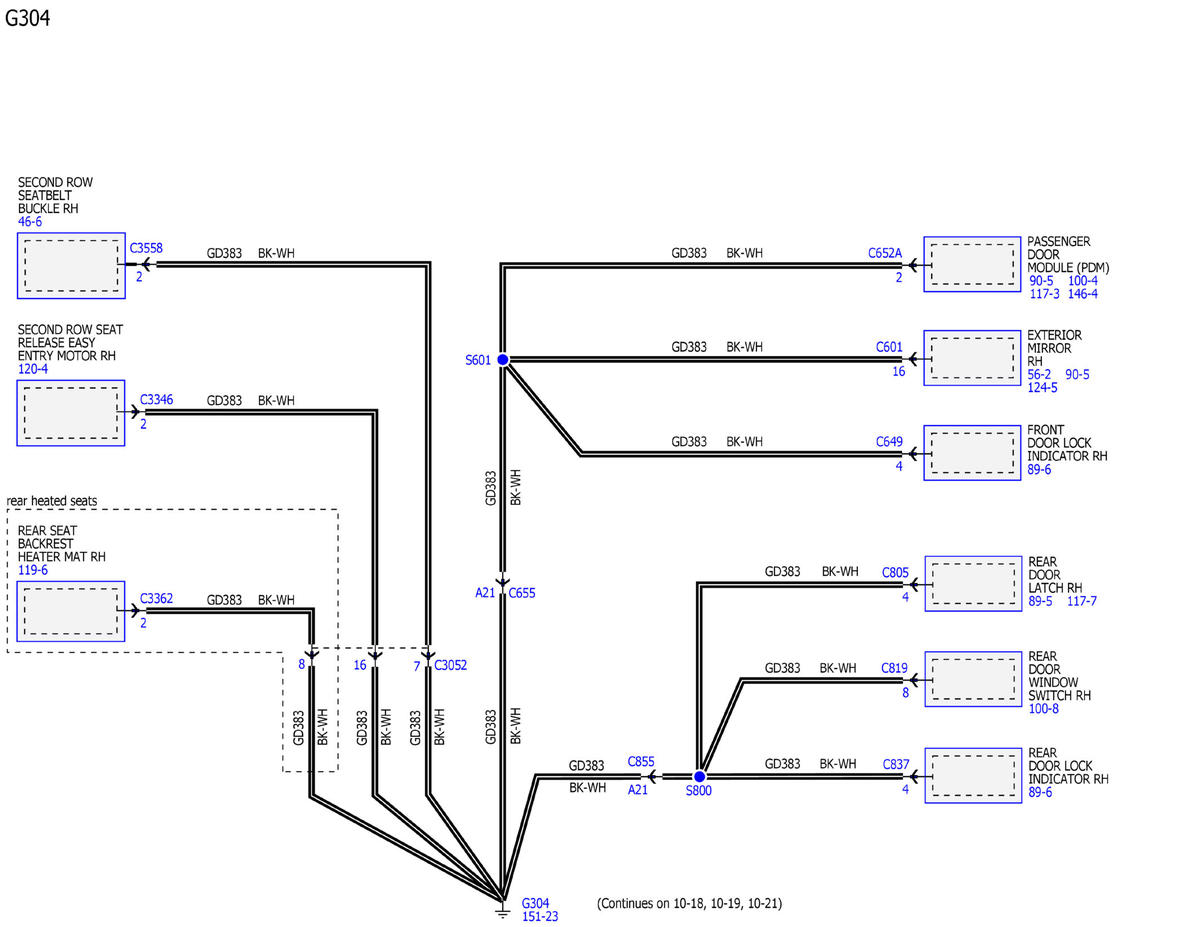

GFDWR163584Courtesy of FORD MOTOR COMPANY

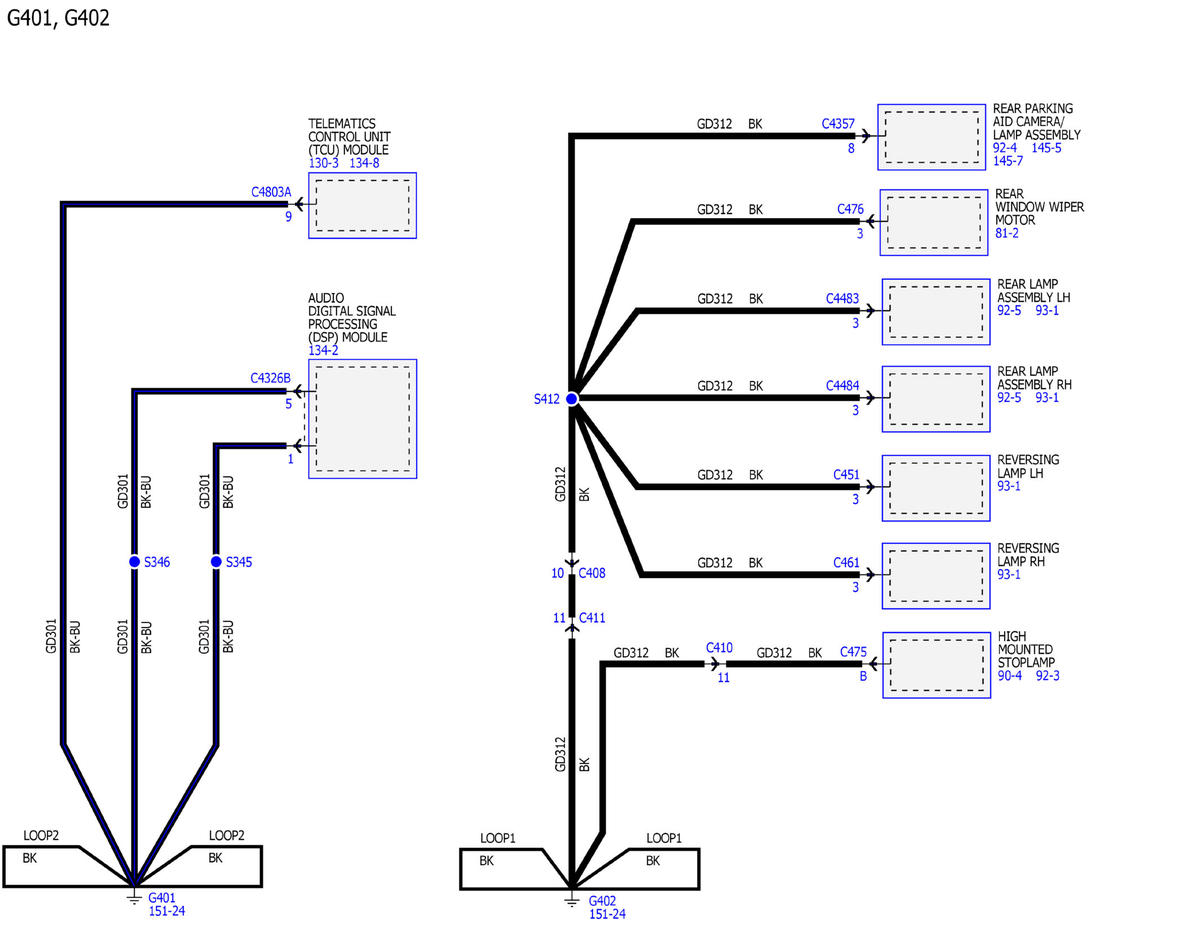

GFDWR163585Courtesy of FORD MOTOR COMPANY

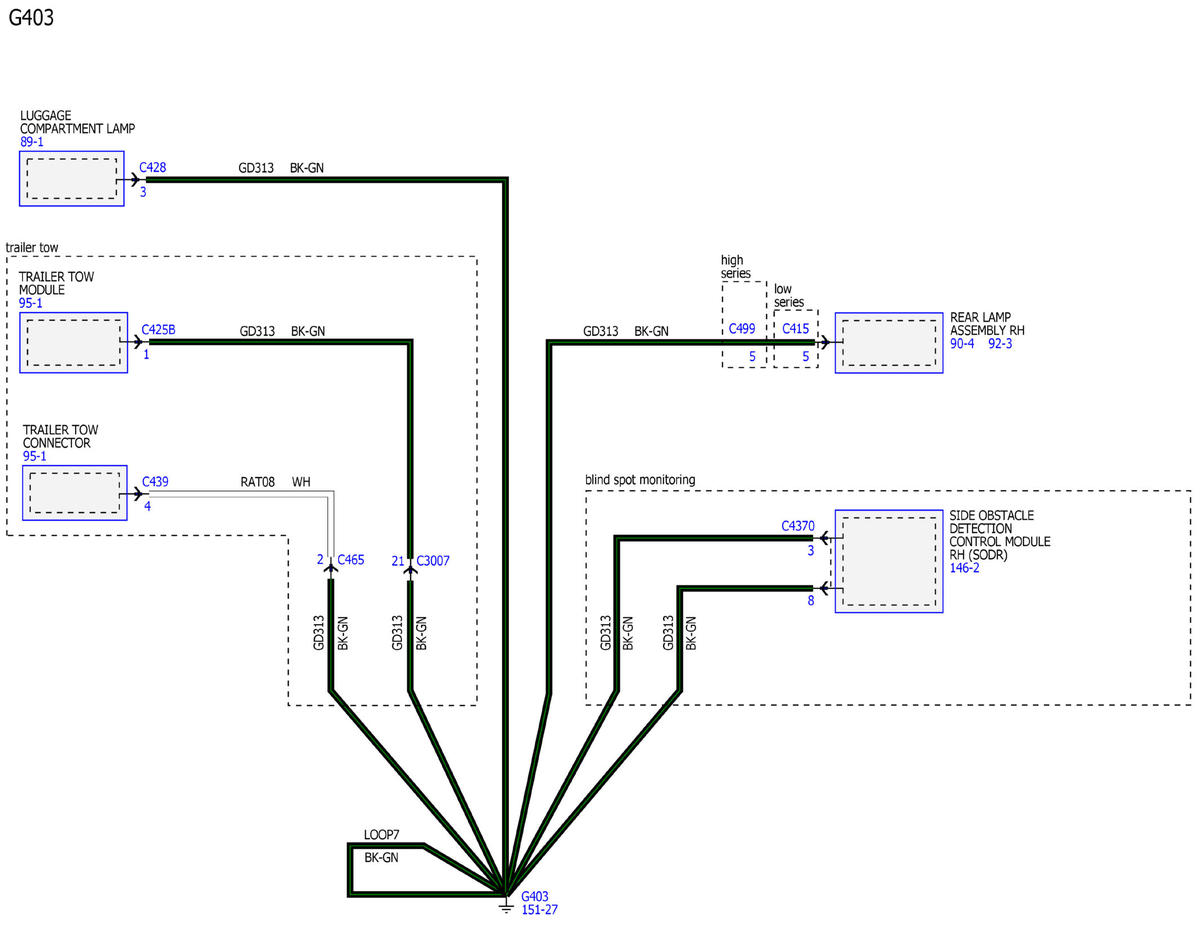

GFDWR163587Courtesy of FORD MOTOR COMPANY

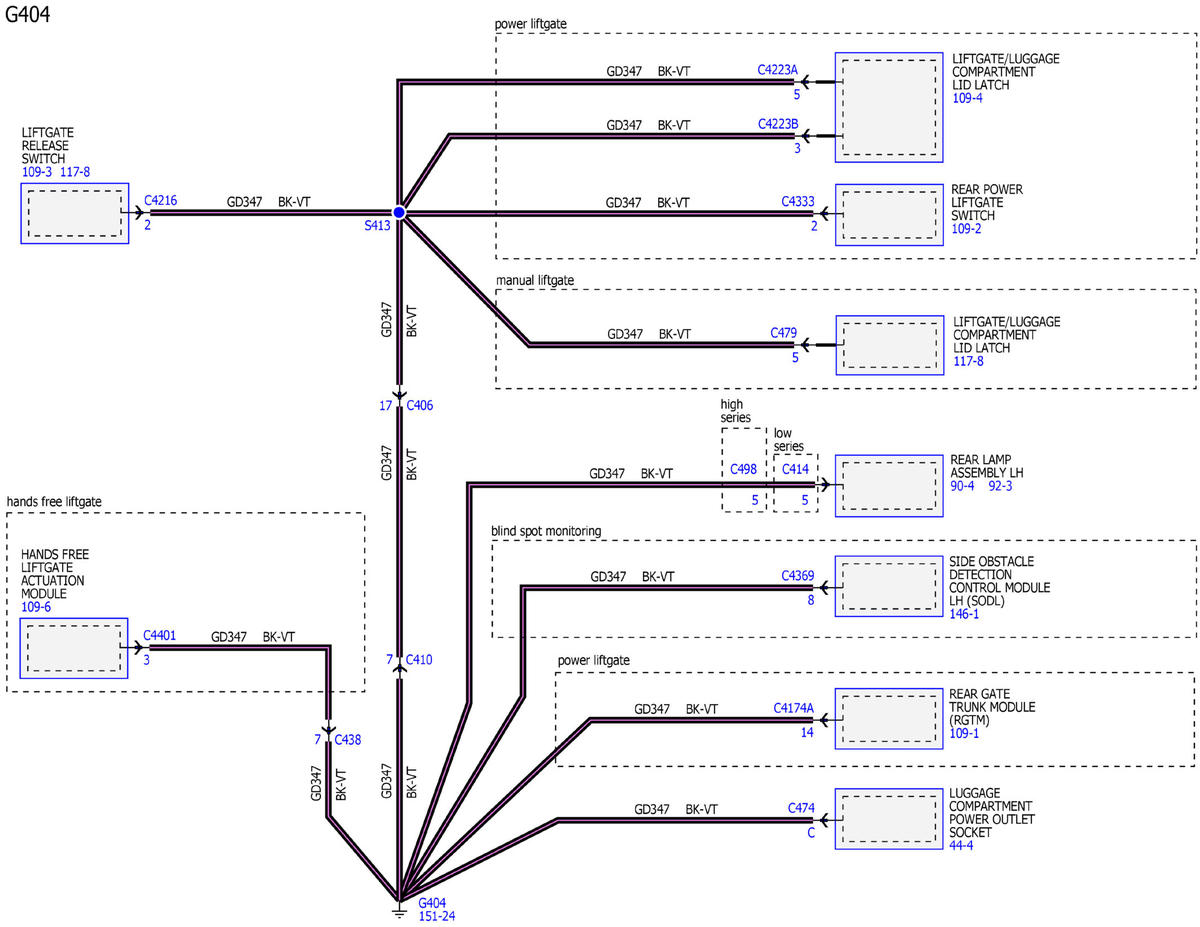

GFDWR163588Courtesy of FORD MOTOR COMPANY

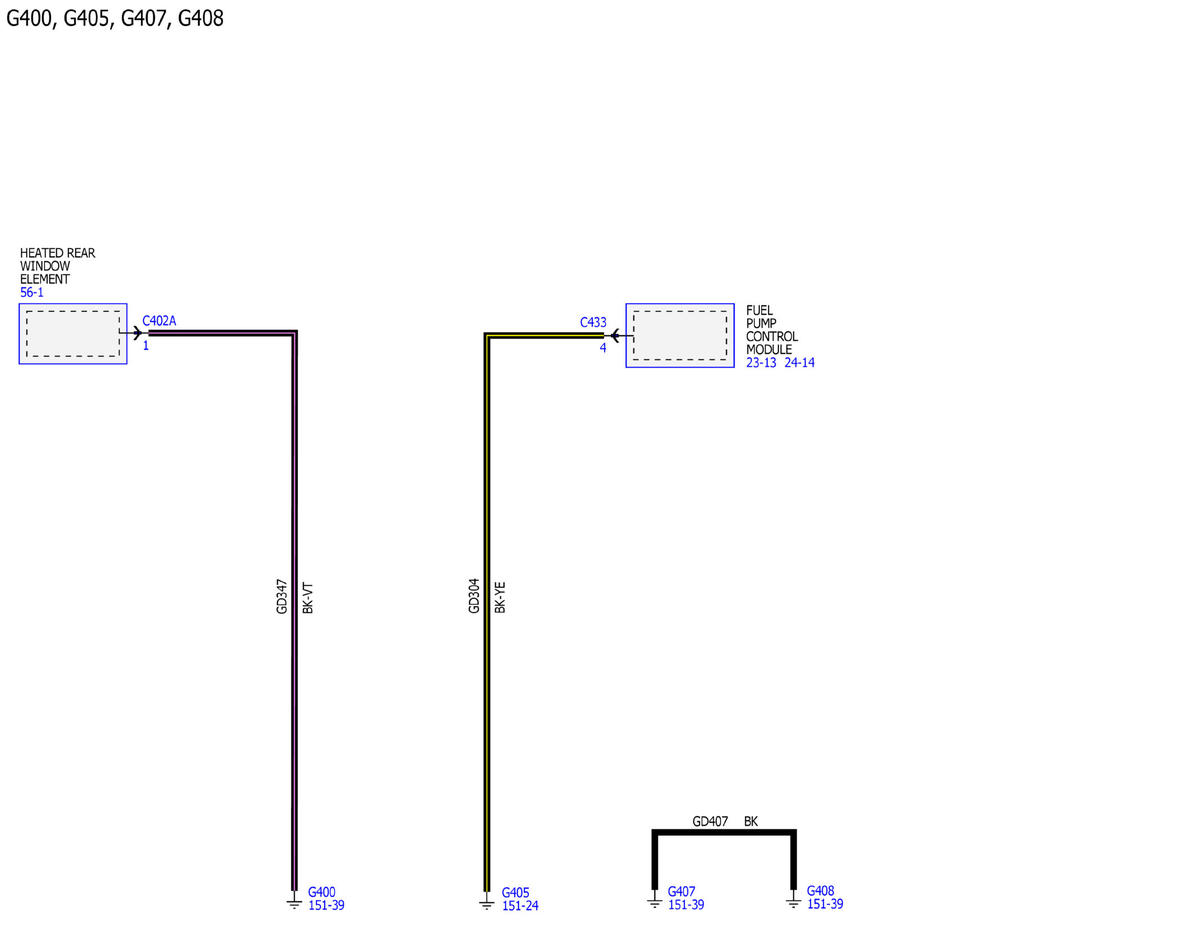

GFDWR163589Courtesy of FORD MOTOR COMPANY
