Home >> Ford >> 2023 >> Edge ST-Line >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Electrical Wiring Diagram Introduction >> Introduction

OEM Electrical Wiring Diagram Introduction: Introduction

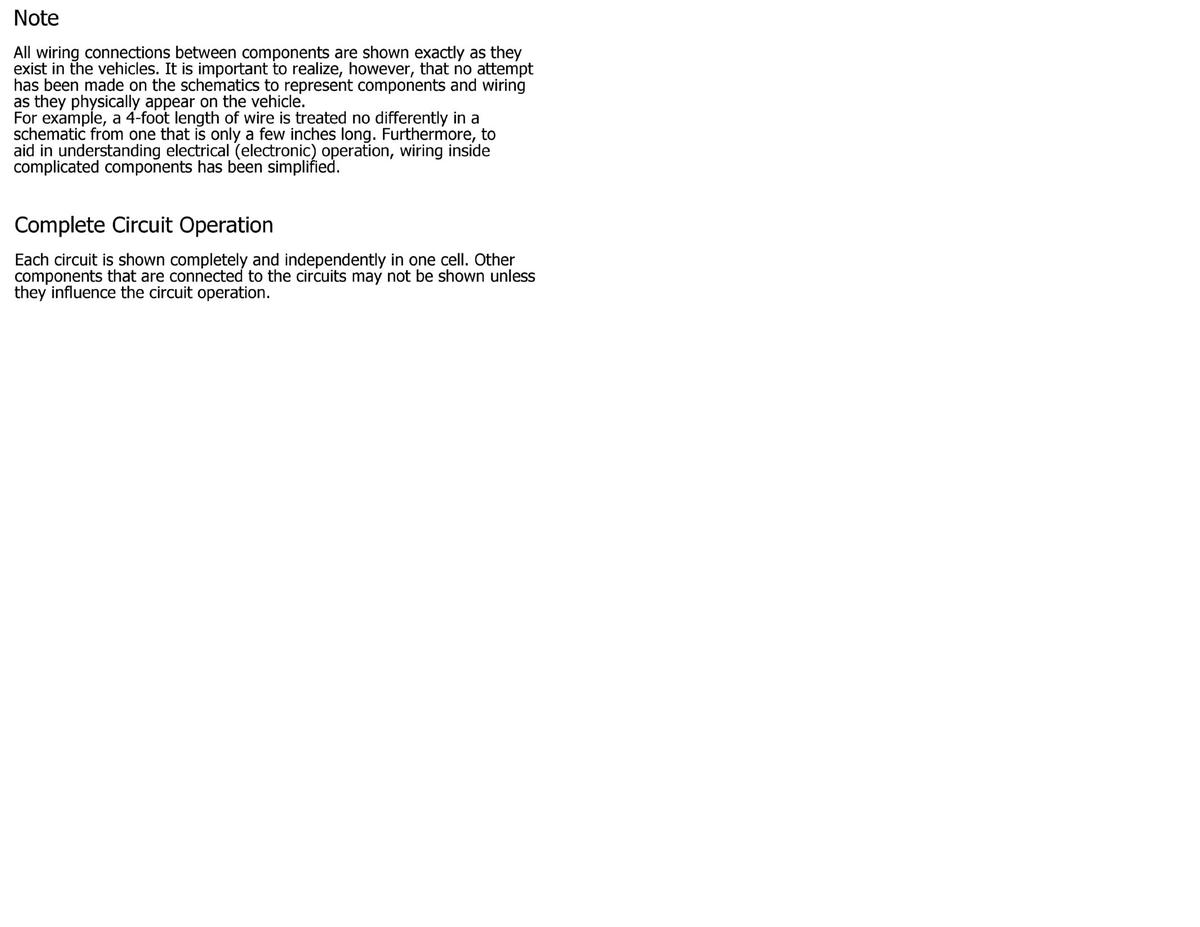

GFDWR163563Courtesy of FORD MOTOR COMPANY

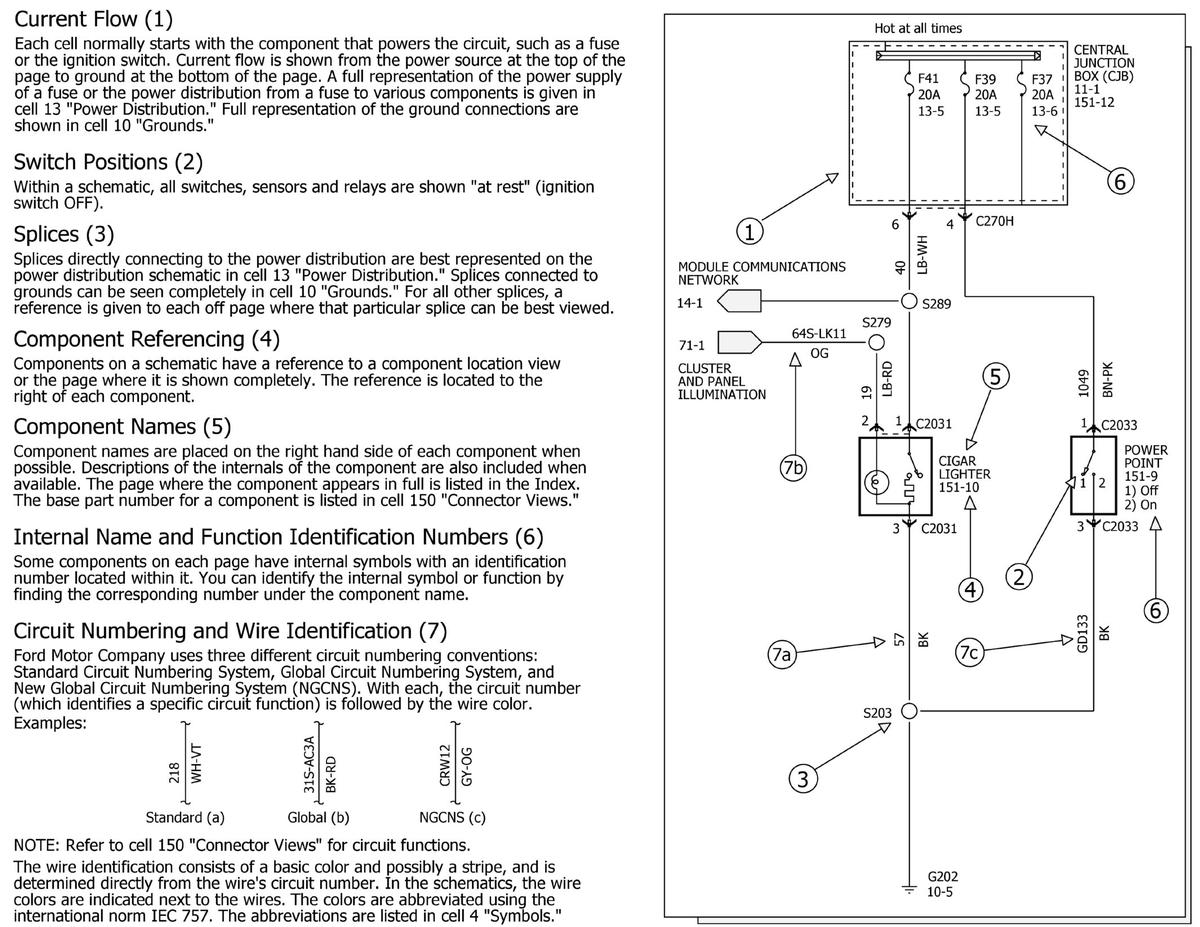

GFDWR163564Courtesy of FORD MOTOR COMPANY

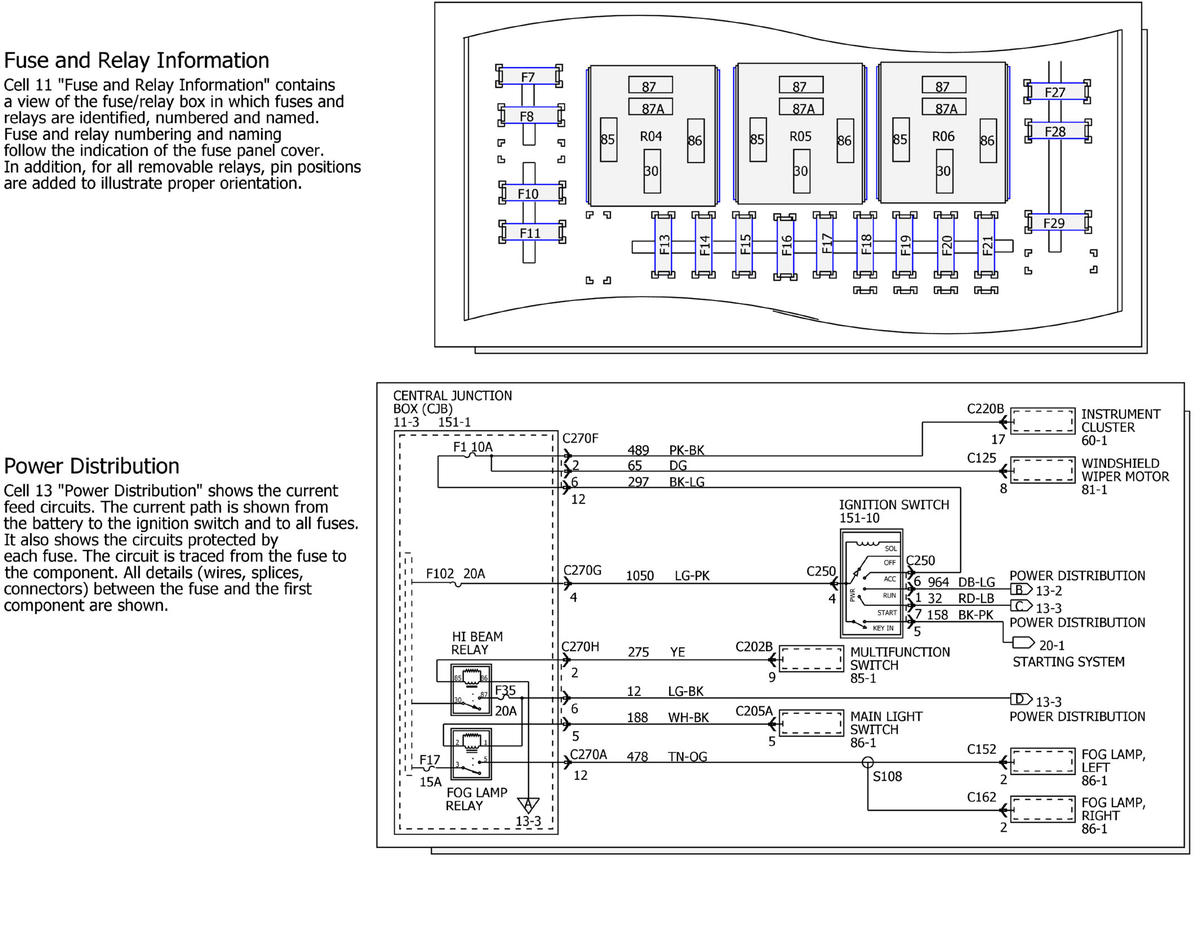

GFDWR163565Courtesy of FORD MOTOR COMPANY

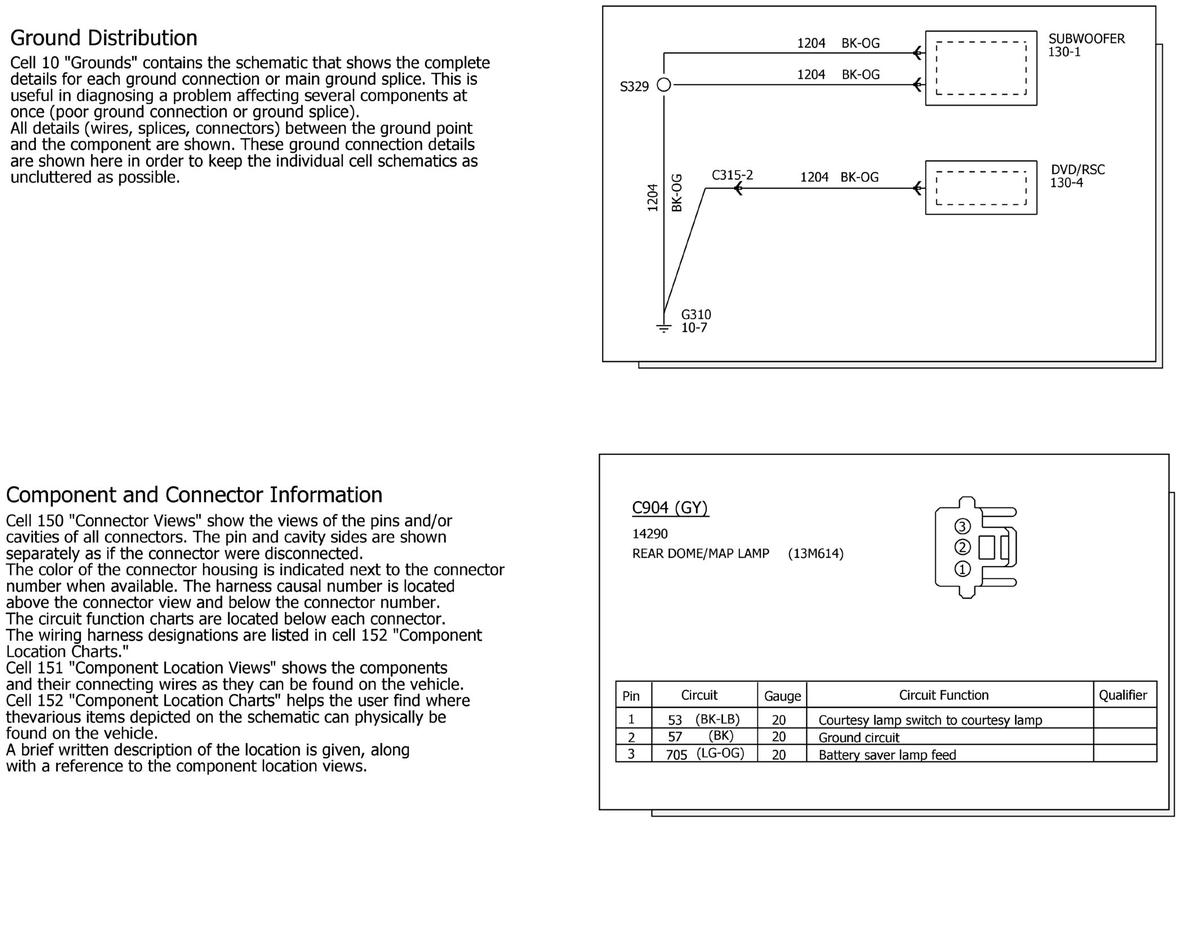

GFDWR163566Courtesy of FORD MOTOR COMPANY

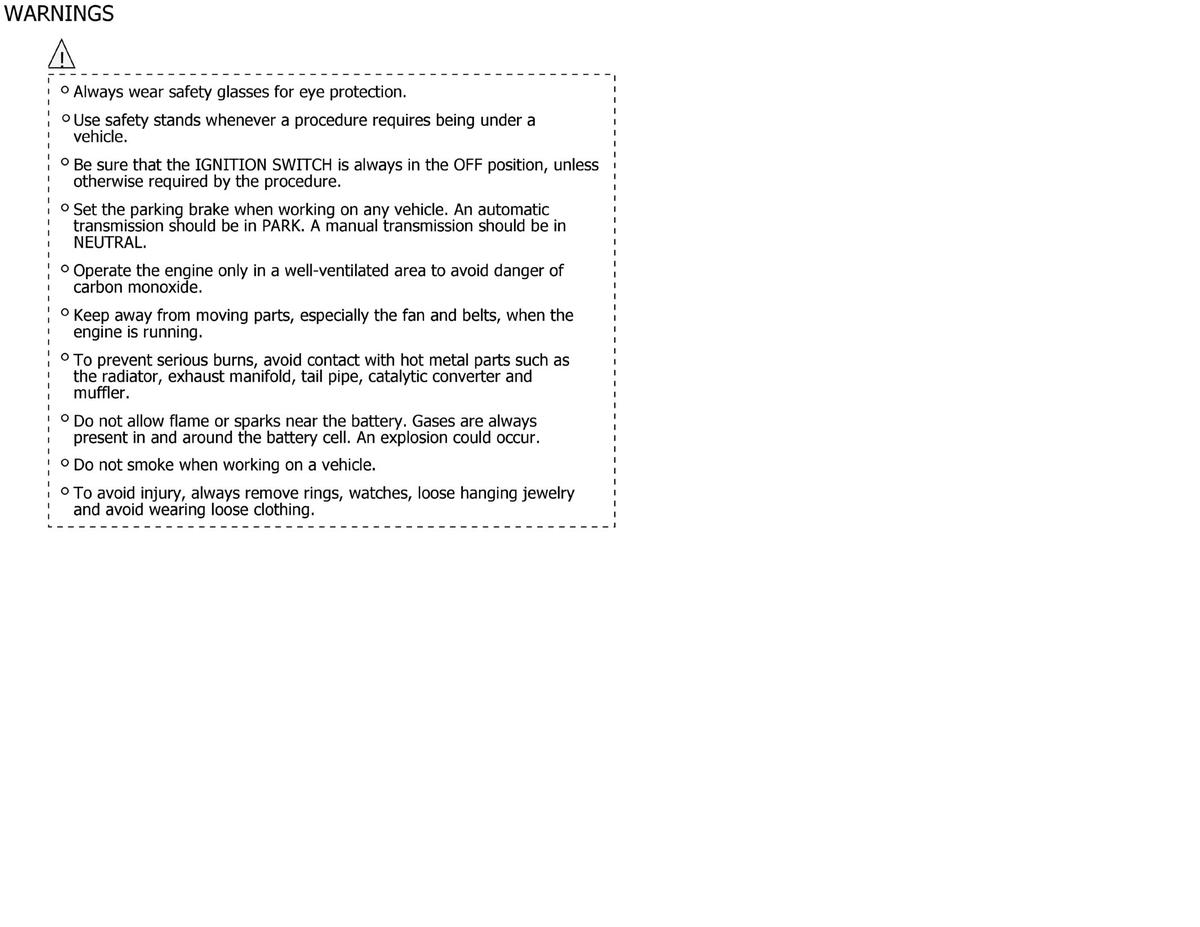

GFDWR163567Courtesy of FORD MOTOR COMPANY
