Intermediate Shaft: Removal

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front halfshaft RH. Refer to: Front Halfshaft RH - 2.0L EcoBoost (184kW/250PS) - MI4, All-Wheel Drive (AWD) . Refer to: Front Halfshaft RH - 2.7L EcoBoost (238kW/324PS), All-Wheel Drive (AWD) .

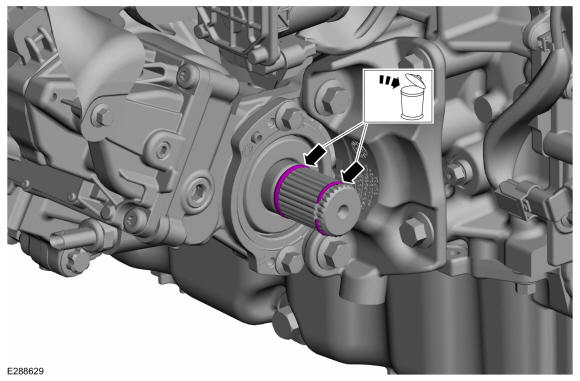

  2. Remove and discard the circlip and O-Ring seal from the intermediate shaft.
    GFD617681Courtesy of FORD MOTOR COMPANY

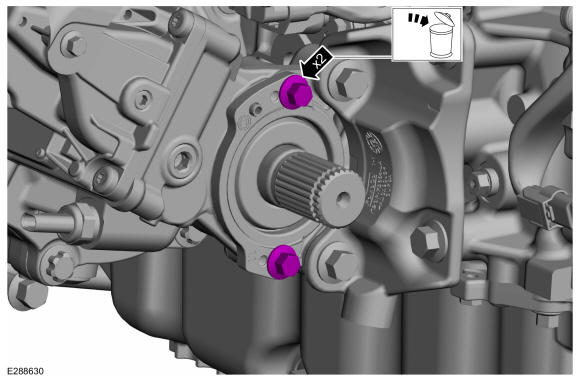

  3. Remove and discard the intermediate shaft mounting bolts.
    GFD617690Courtesy of FORD MOTOR COMPANY

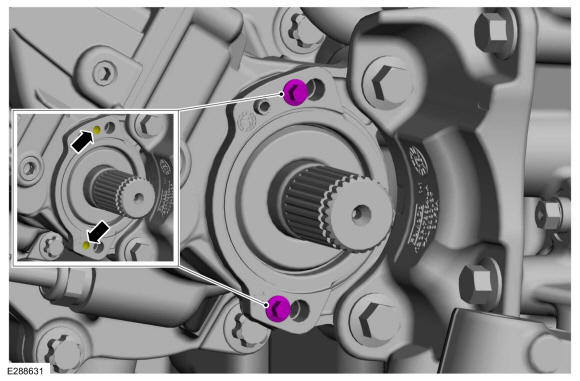

  4. Install two 6mm x 1.0 x 20mm bolts into the flange threads.
    GFD617691Courtesy of FORD MOTOR COMPANY

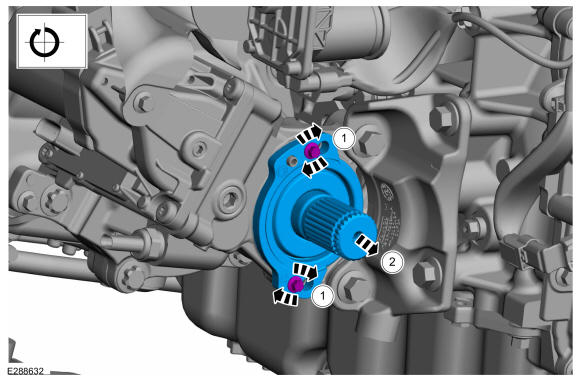

  5. Turn bolts evenly one turn at a time and remove the intermediate shaft.
    GFD617692Courtesy of FORD MOTOR COMPANY

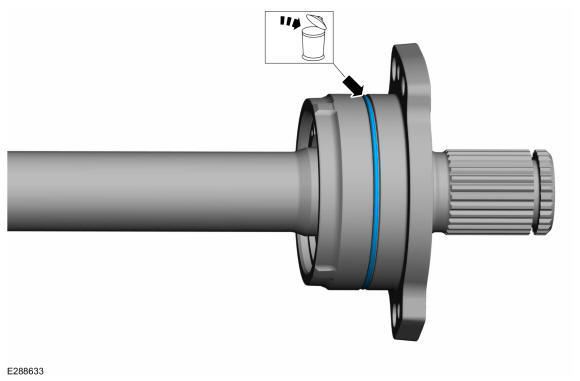

  6. Remove and discard the intermediate shaft bearing O-ring seal.
GFD617693Courtesy of FORD MOTOR COMPANY
