Cruise Control Module (CCM): Removal
WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front bumper cover. Refer to: FRONT BUMPER COVER .

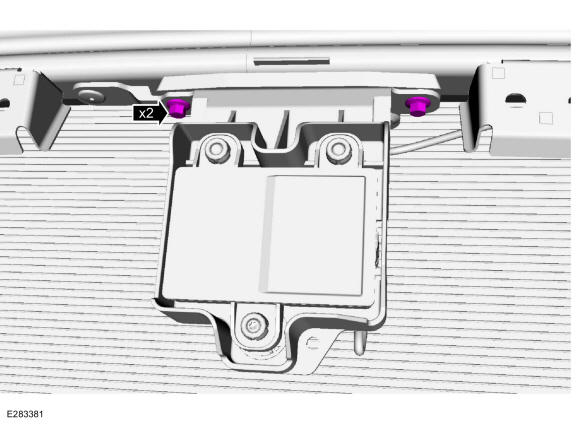

- Remove the CCM bolts.
Torque: 119 lb.in (13.5 Nm)

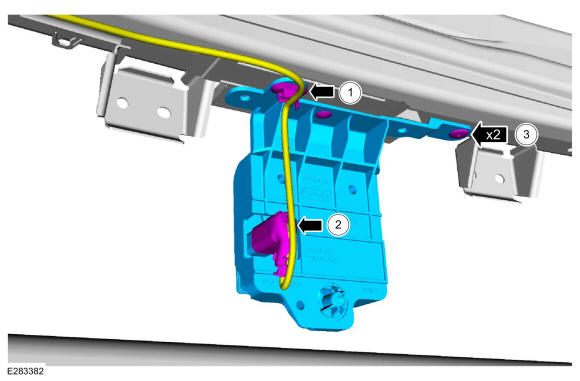

- Remove the CCM and bracket.
- Detach the wiring harness retainer from the bracket.
- Disconnect the CCM electrical connector.
- Detach the CCM bracket push pins and remove the CCM and bracket.
