Removal And Installation: Fender: Removal

WARNING: This page is about a different car, the 2022 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown in illustration, RH side similar.

Remove the fender splash shield. Refer to: Fender Splash Shield .

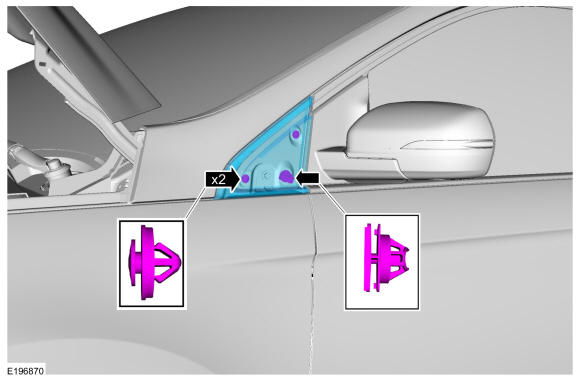

Remove the retainers and the door frame moulding.

Courtesy of FORD MOTOR COMPANY

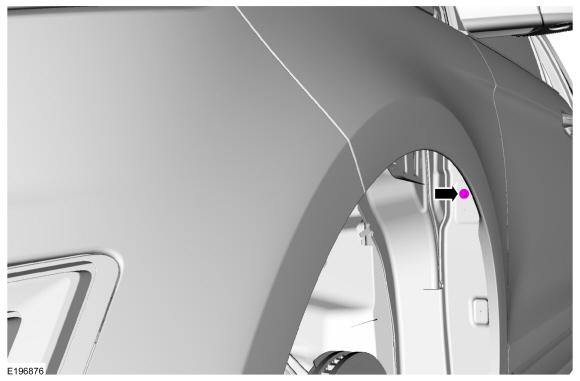

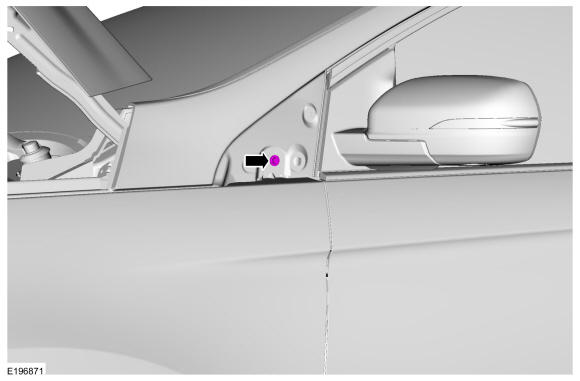

Remove the bolt.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

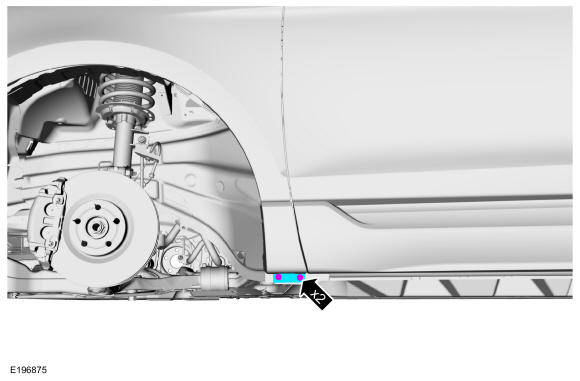

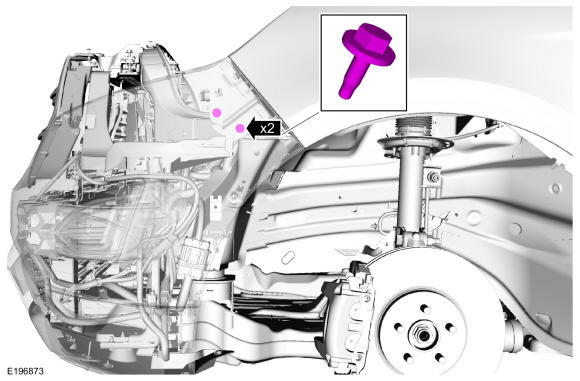

Remove the bolts.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

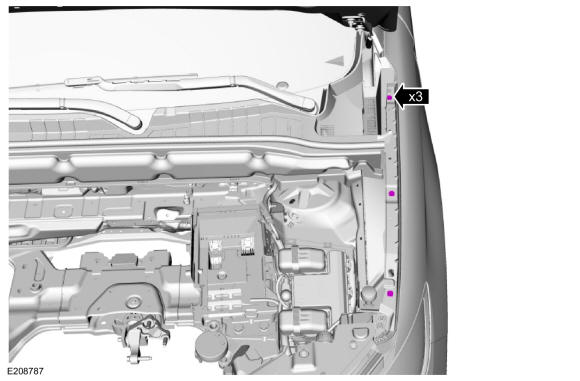

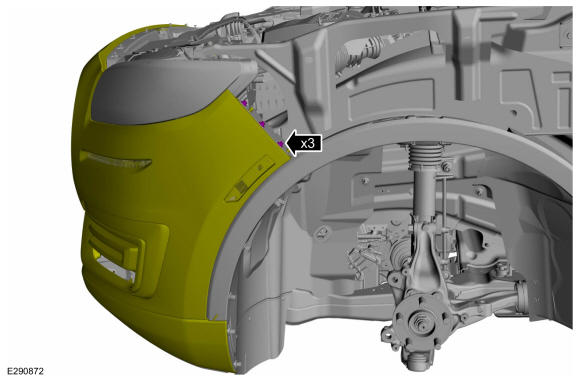

Remove the fender bolts.
Torque

: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

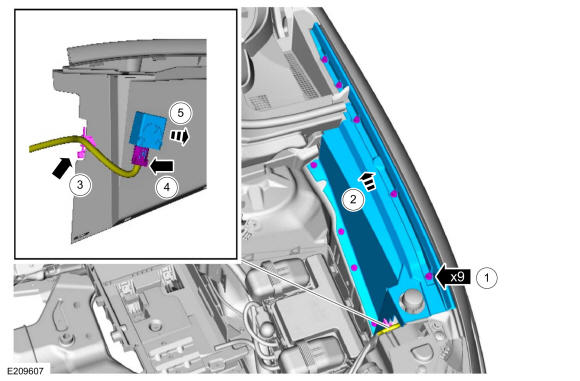

Remove the cowl filler panel and the RKE exterior sounder.
1. Remove the cowl filler panel retainers.
2. Remove the cowl filler panel from the fender.
3. Disconnect the RKE exterior sounder electrical harness routing clip.
4. Disconnect the RKE exterior sounder electrical connector.
5. Remove RKE exterior sounder.
Courtesy of FORD MOTOR COMPANY

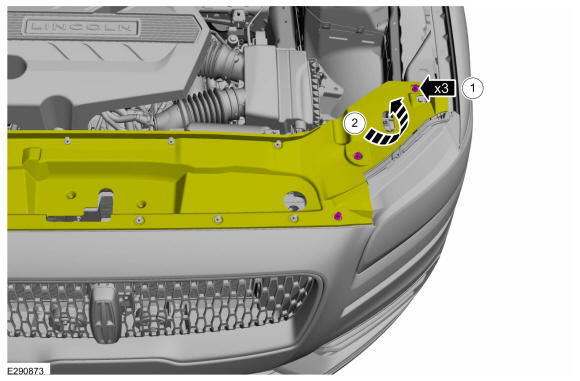

Remove the push pins and position the radiator sight shield aside.

Courtesy of FORD MOTOR COMPANY
Remove the bolts.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolts.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolt.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

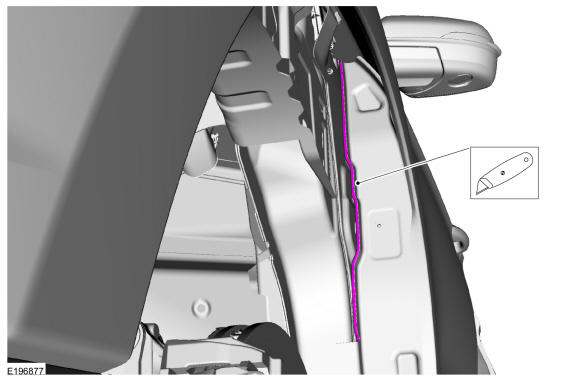

Carefully cut the foam sealant.

Courtesy of FORD MOTOR COMPANY
Remove the sound insulation.

Courtesy of FORD MOTOR COMPANY

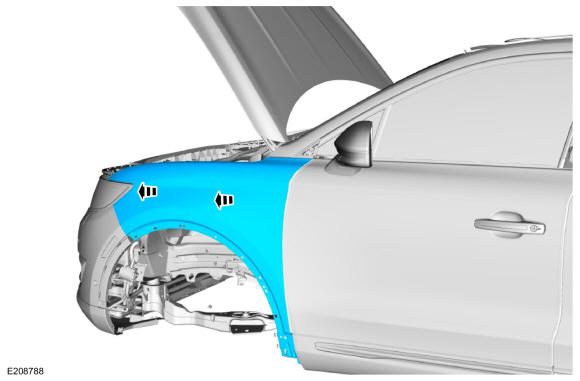

Remove the fender.

Courtesy of FORD MOTOR COMPANY
