Intrusion Sensor: Removal

WARNING: This page is about a different car, the 2022 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to: Overhead Console .

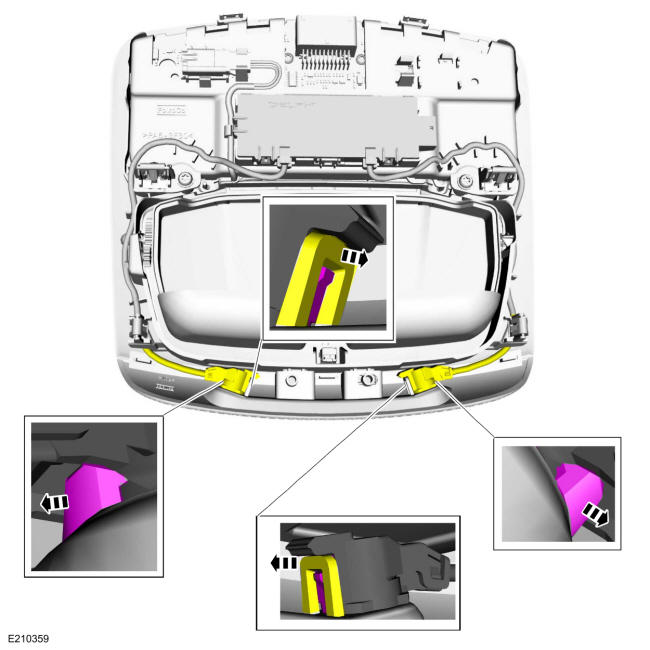

  2. Release the tabs and position aside the sensors.
    GFD621687Courtesy of FORD MOTOR COMPANY

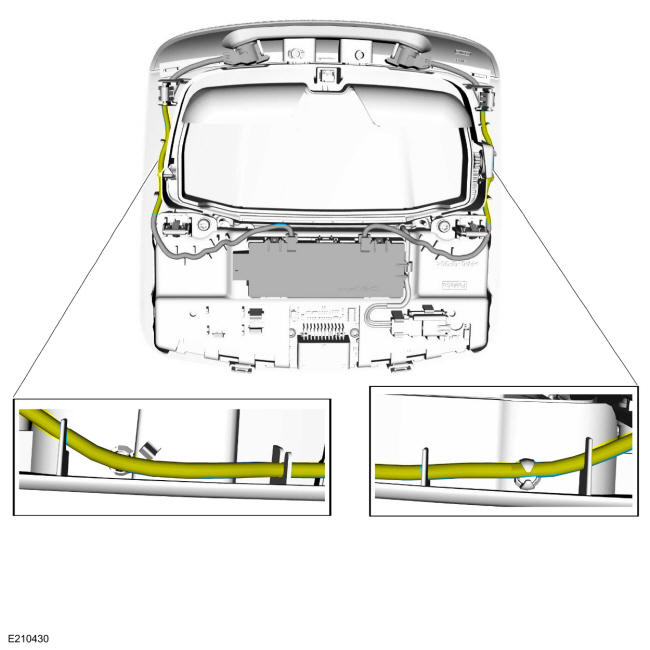

  3. Position aside the wire harness.
    GFD621688Courtesy of FORD MOTOR COMPANY

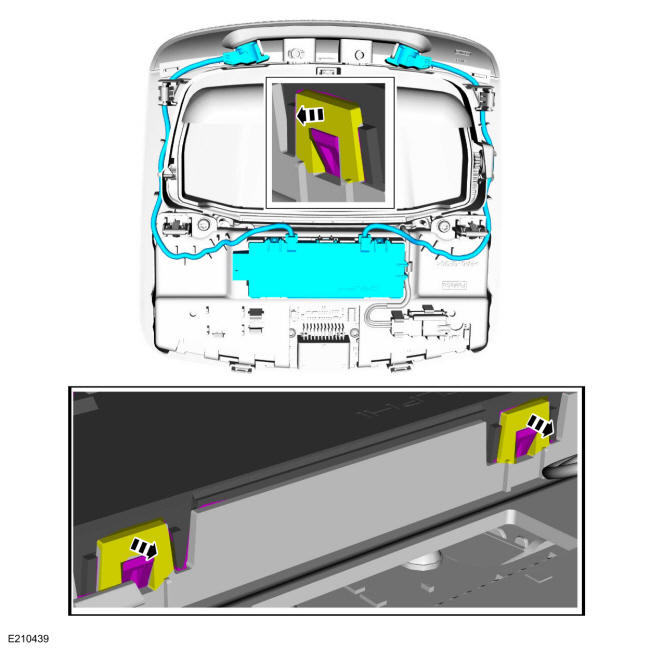

  4. Release the tabs and remove the intrusion sensor.
GFD621689Courtesy of FORD MOTOR COMPANY
