TCU Rear Ethernet Cable

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

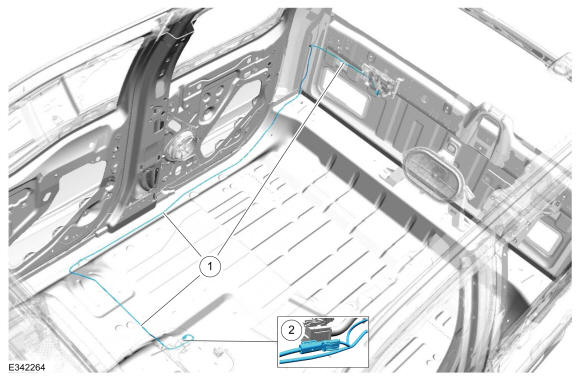

GFD561108Courtesy of FORD MOTOR COMPANY
Item Description
1 TCU rear Ethernet cable
2 Ethernet cable in-line connection
