Steering Column: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To prevent damage to the clockspring, make sure the front wheels are in the straight-ahead position.

NOTE: Precise tolerances are required when manufacturing a steering column. Never install a repaired, rebuilt, aftermarket, or remanufactured steering column. Always install a new steering column. Failure to follow this direction can result in steering column failure.

NOTE: Power adjustable steering column with push start shown, others similar.

NOTE: Removal steps in this procedure may contain installation details.

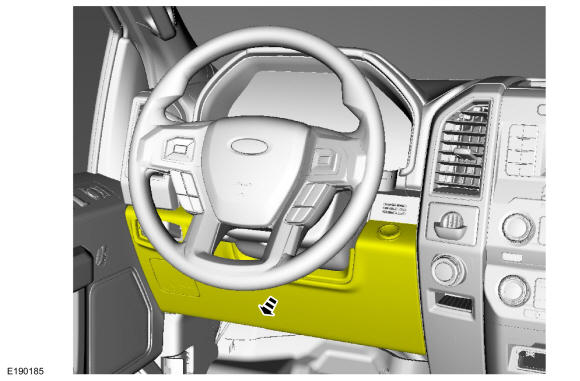

Lower the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY

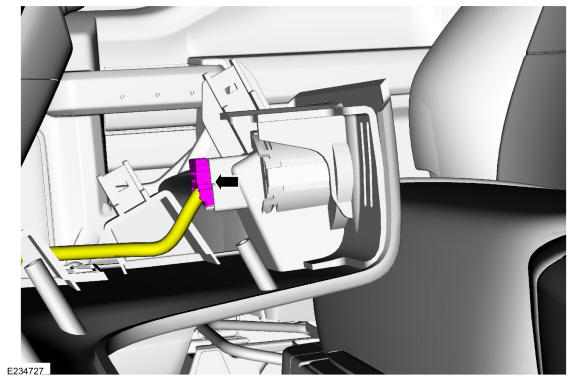

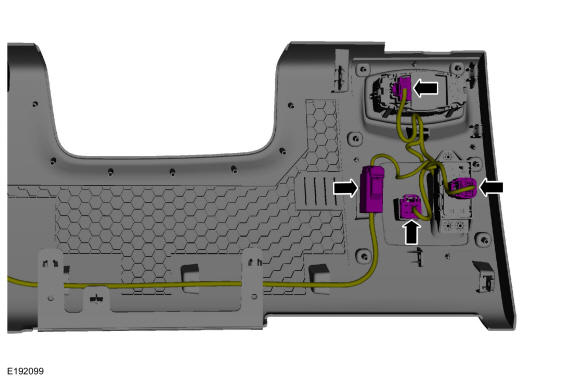

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector(s) and position the wire harness aside.

Courtesy of FORD MOTOR COMPANY

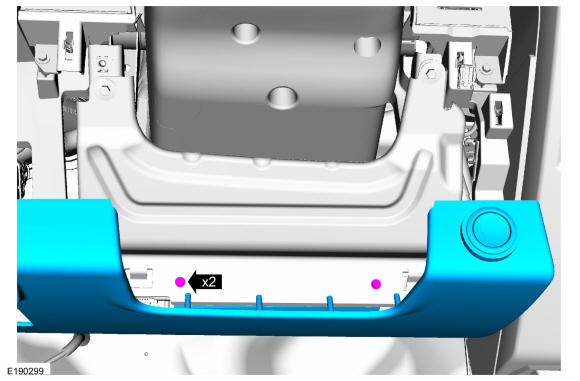

Remove the screws and the steering column opening trim panel.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

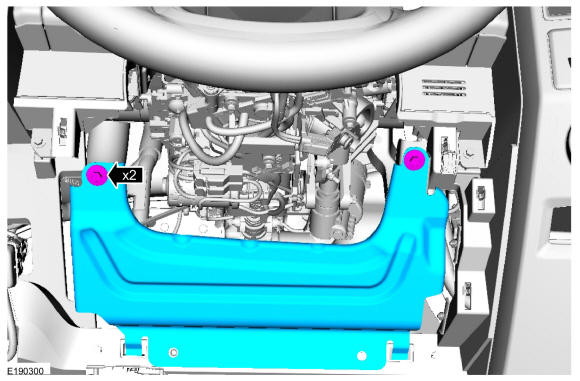

Remove the bolts and the steering column reinforcement panel.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the SCCM. Refer to: Steering Column Control Module (SCCM) . Refer to: Steering Column Control Module (SCCM) - Vehicles With: Adaptive Steering .

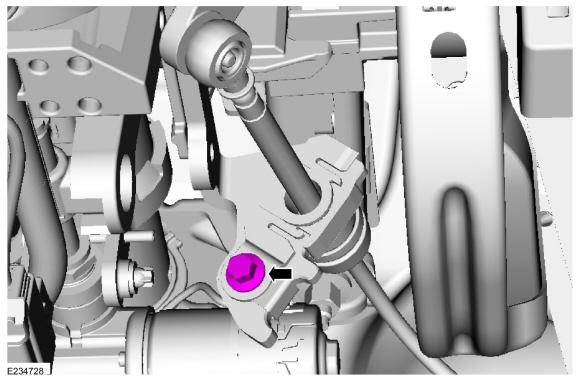

Remove the selector cable retainer bolt.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

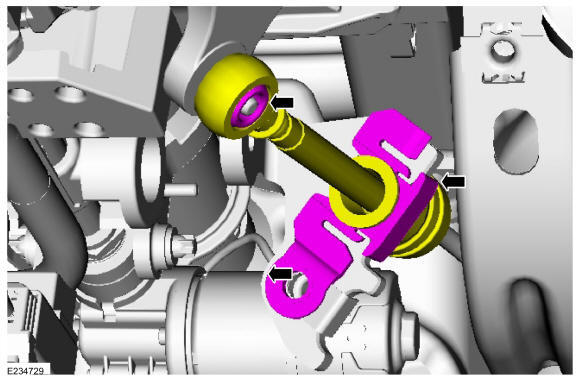

Disconnect the selector lever cable from the selector lever mechanism and the steering column.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

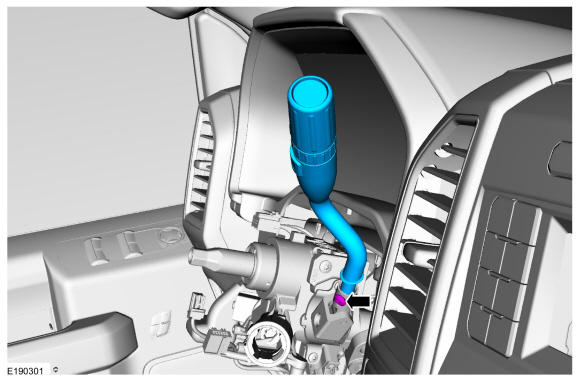

Remove the screw and the selector lever.

Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

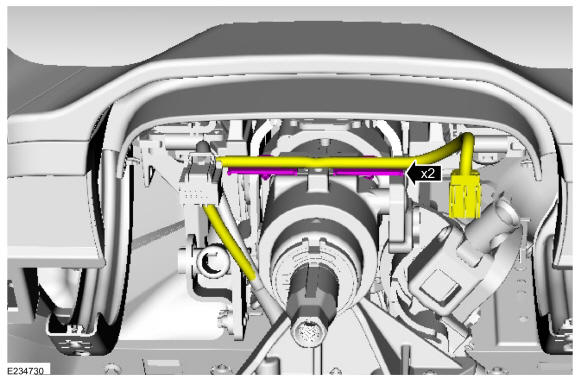

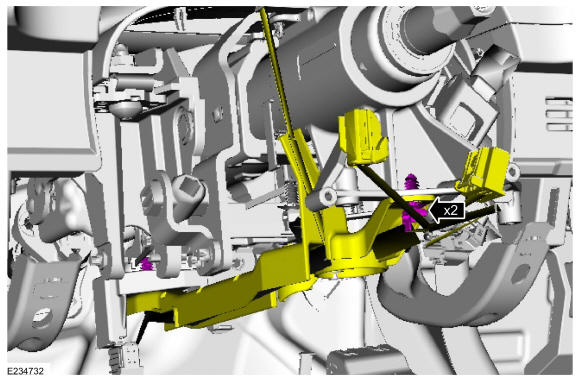

Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

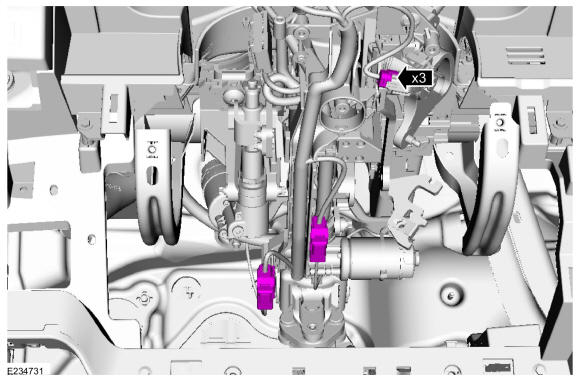

Disconnect the electrical connector(s).

Courtesy of FORD MOTOR COMPANY
Detach the wiring harness retainers and position the wire harness aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

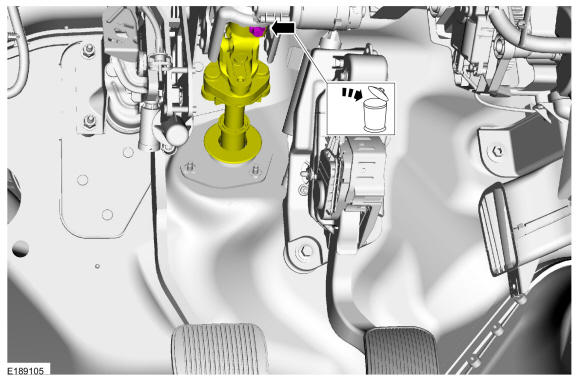

Remove and discard the bolt and disconnect the upper steering column shaft.

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

Remove and discard the nuts.

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

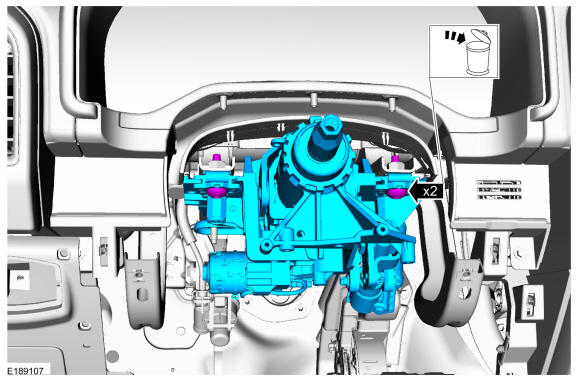

NOTE: Do not reuse steering column bolts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

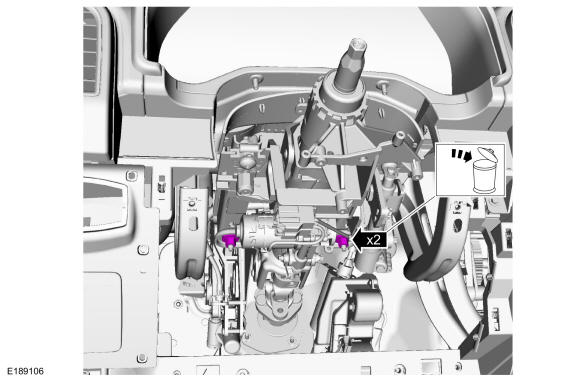

Remove and discard the bolts and remove the steering column.

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
