Overhead Console: Removal

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

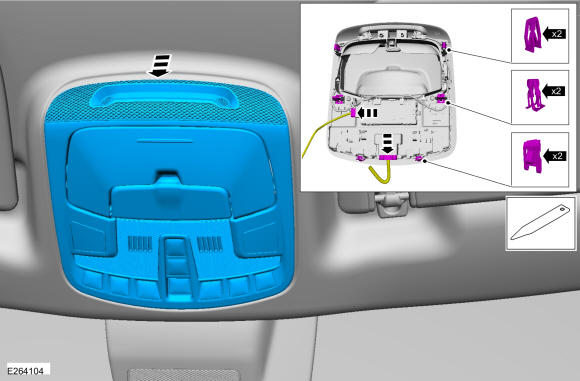

  1. Release the clips and remove the overhead console.

    • Disconnect the electrical connectors.

GFD709127Courtesy of FORD MOTOR COMPANY
