Instrument Panel Center Finish Panel: Removal

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Release the clips and remove the center finish panel.

    • Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

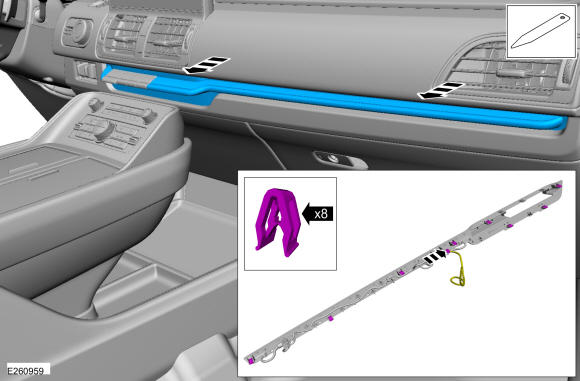

    GFD709105Courtesy of FORD MOTOR COMPANY
  2. Remove the bolts and the shifter module.

    • Disconnect the electrical connector.

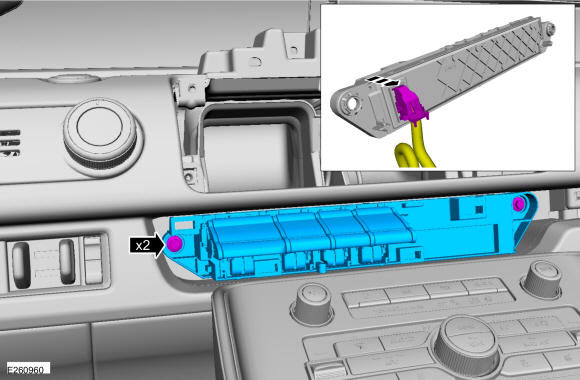

    GFD709106Courtesy of FORD MOTOR COMPANY
  3. Remove the FDIM. Refer to: Front Display Interface Module (FDIM) .
  4. Release the clips and remove the upper RH instrument panel finish panel.

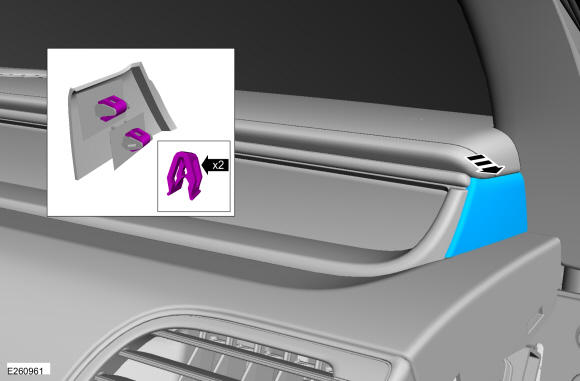

    GFD709107Courtesy of FORD MOTOR COMPANY
  5. Remove the bolts and the instrument panel center finish panel.

    • Disconnect the electrical connectors.

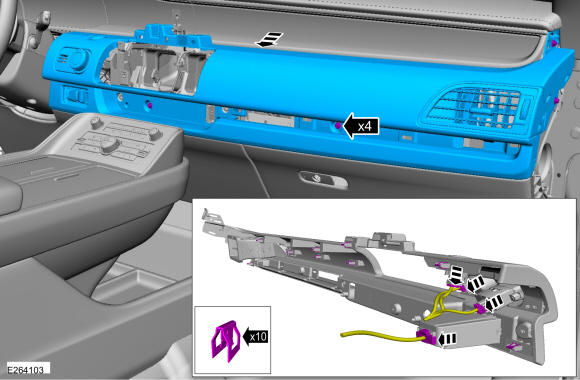

GFD709108Courtesy of FORD MOTOR COMPANY
