Transfer Case Draining and Filling

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name	Specification
Motorcraft® Thread Sealant with PTFETA-24-B	WSK-M2G350-A2
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	WSS-M2C938-A MERCON® LV,

Draining

With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING .

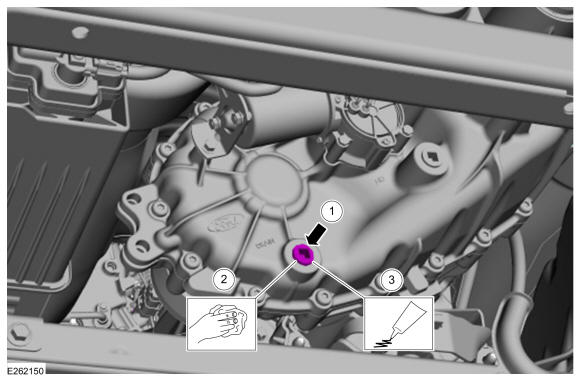

1. Remove the drain plug and drain the fluid.
2. Clean the drain plug and the area around drain plug.
3. Apply thread sealant to the drain plug threads and install the drain plug.
  Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

  Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

Filling

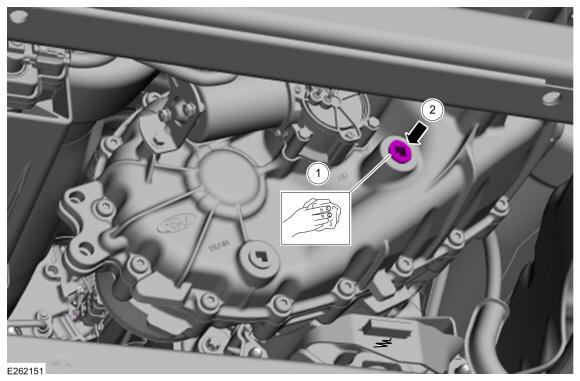

1. Clean the fill plug and the area around fill plug.
2. Remove the fill plug.
Courtesy of FORD MOTOR COMPANY

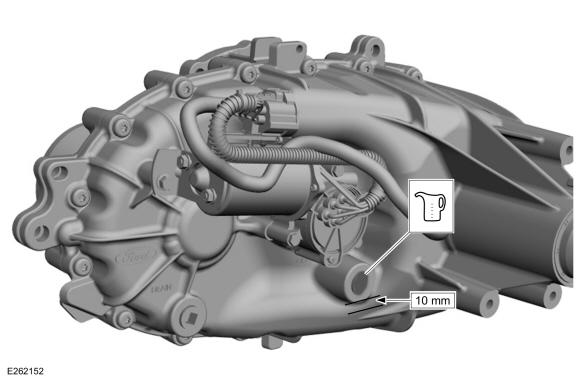

Fill the transfer case with 1.4L (2.9 pt) of clean fluid. The transfer case fluid must be within 10mm (0.393 in) below the fill plug hole.
Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

Courtesy of FORD MOTOR COMPANY
1. Apply thread sealant to the fill plug threads.
2. Install the fill plug.
  Torque: 133 lb.in (15 Nm)
