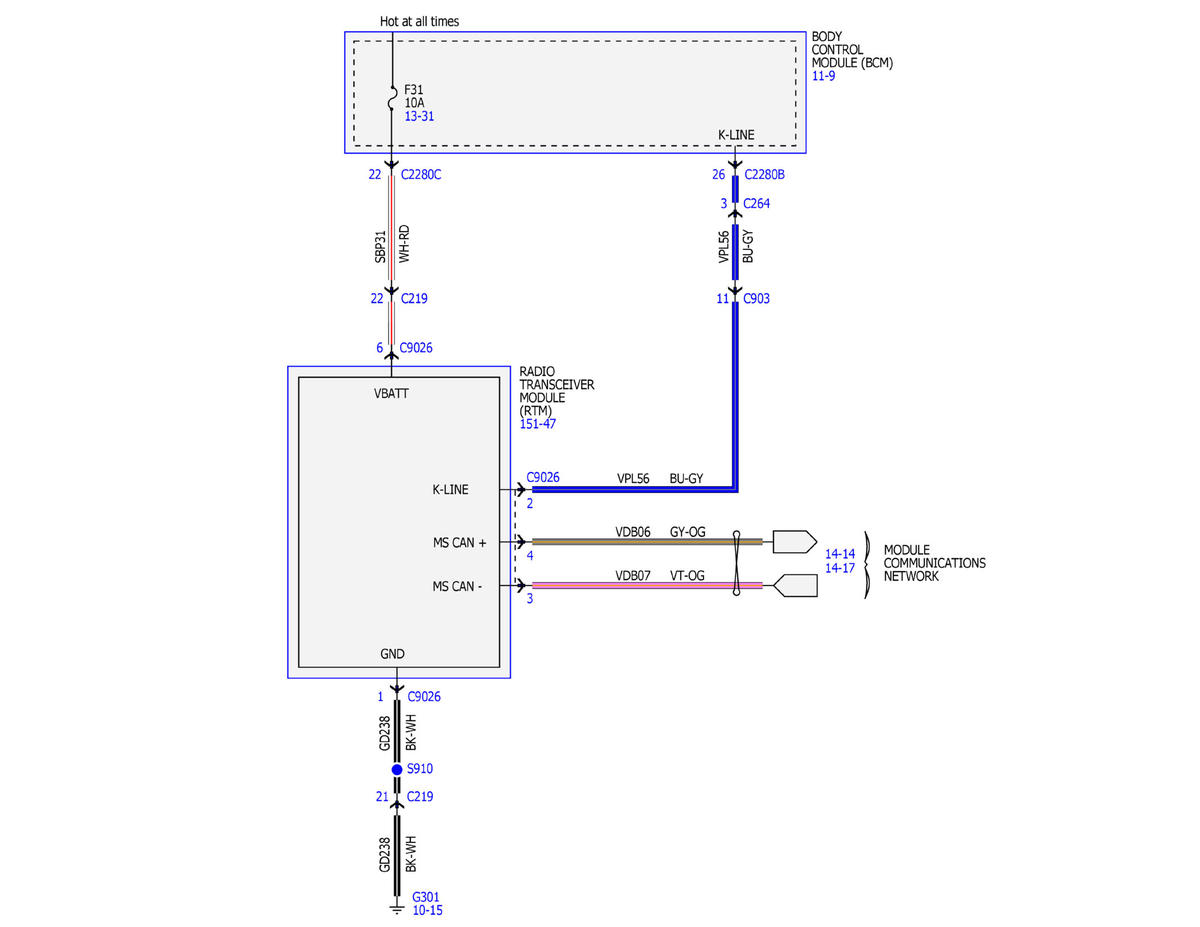

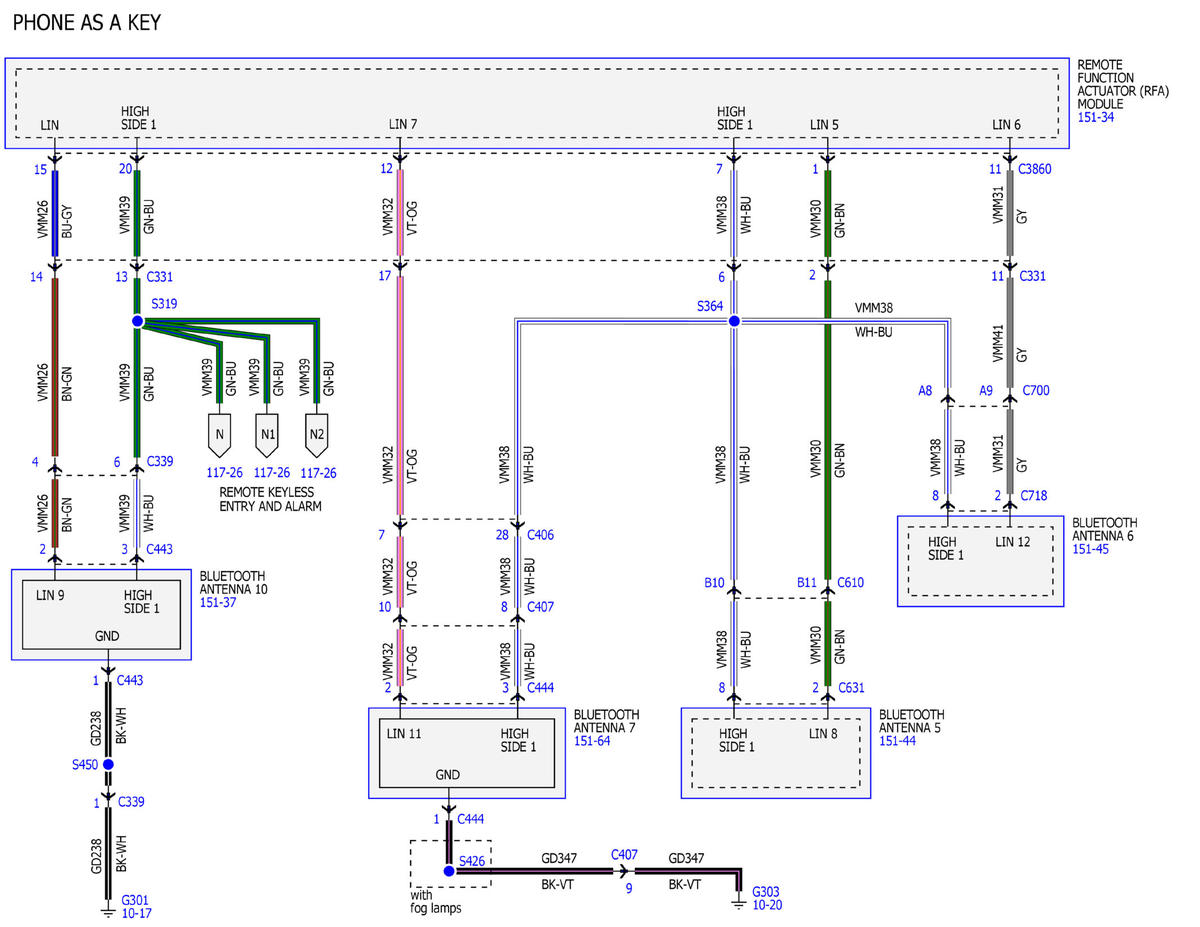

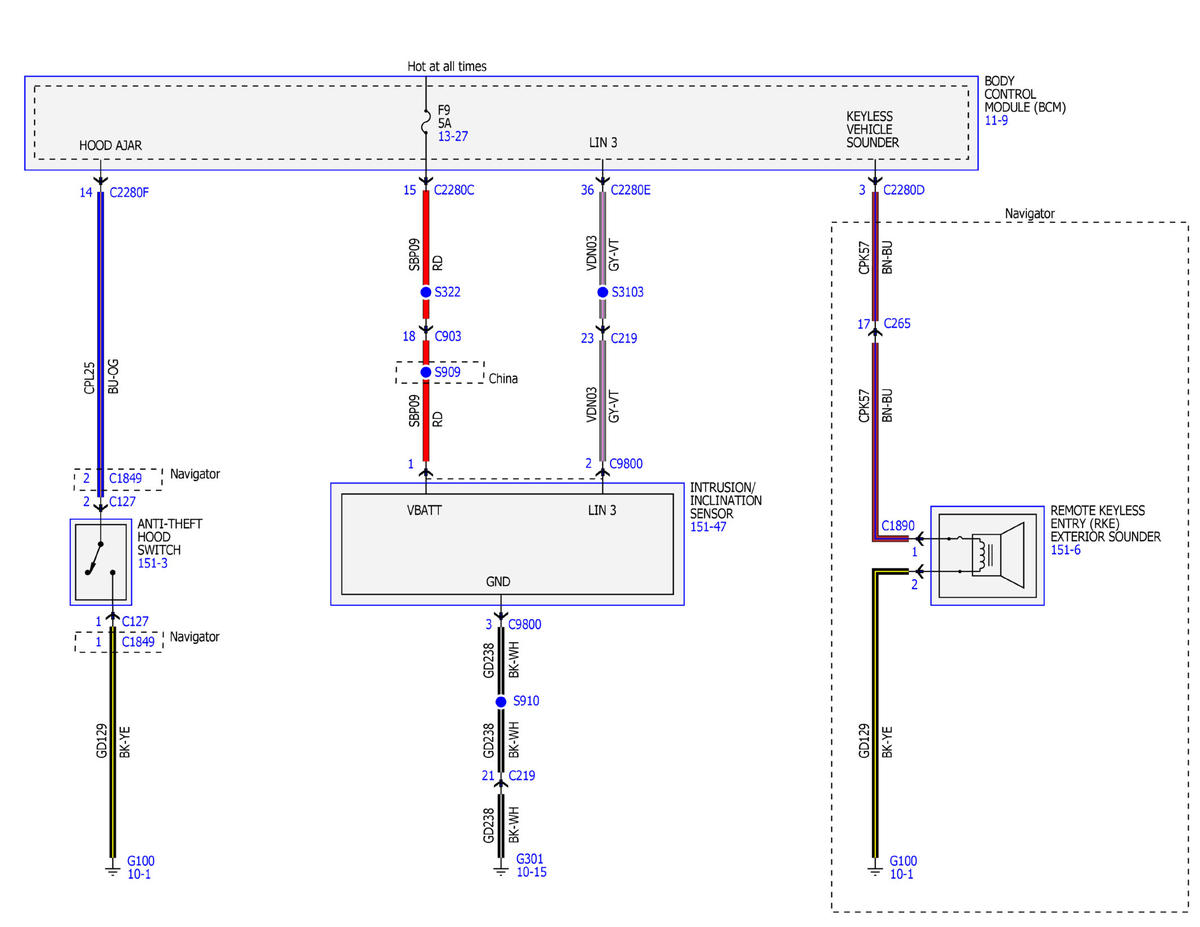

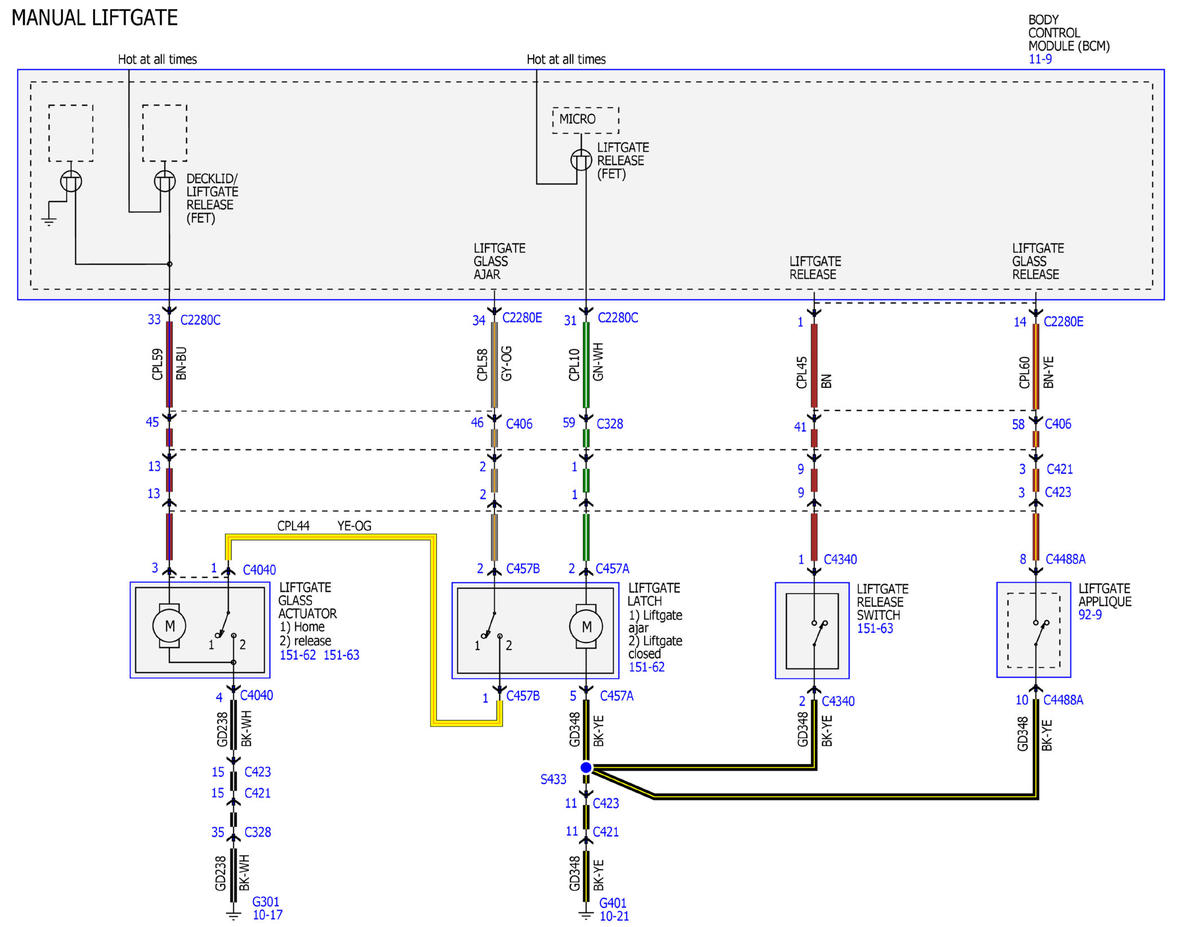

Fig 1: Remote Keyless Entry and Alarm Wiring Diagrams (1 Of 26)
Courtesy of FORD MOTOR COMPANY

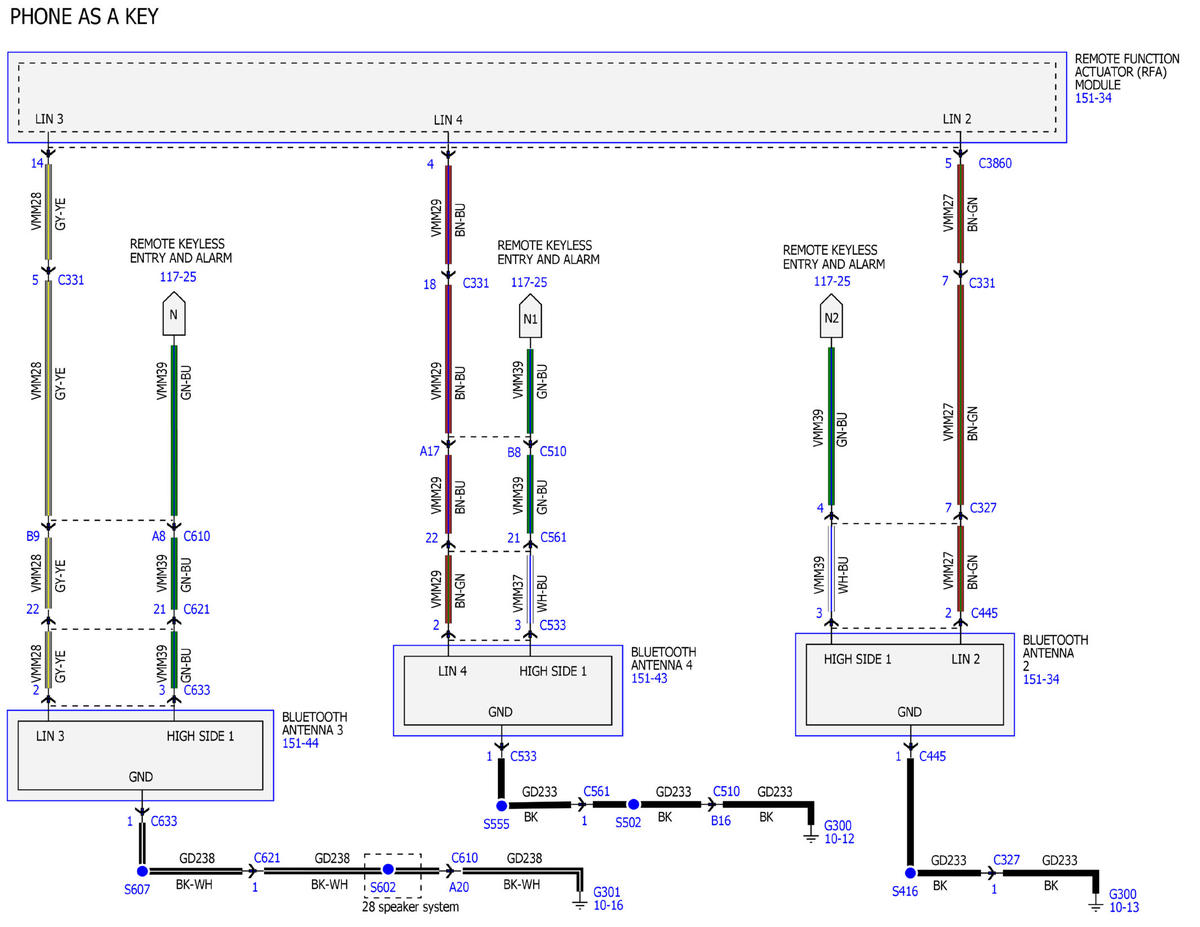

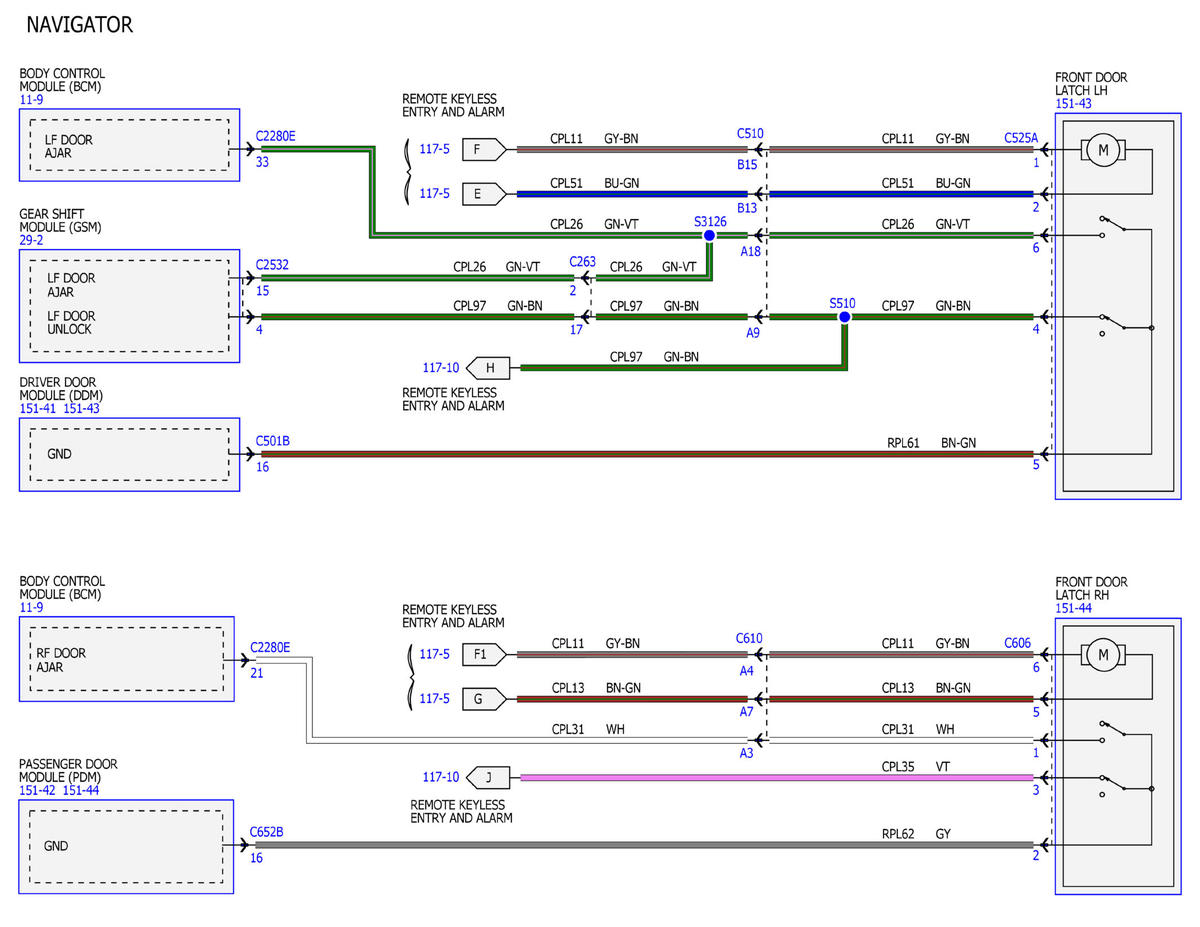

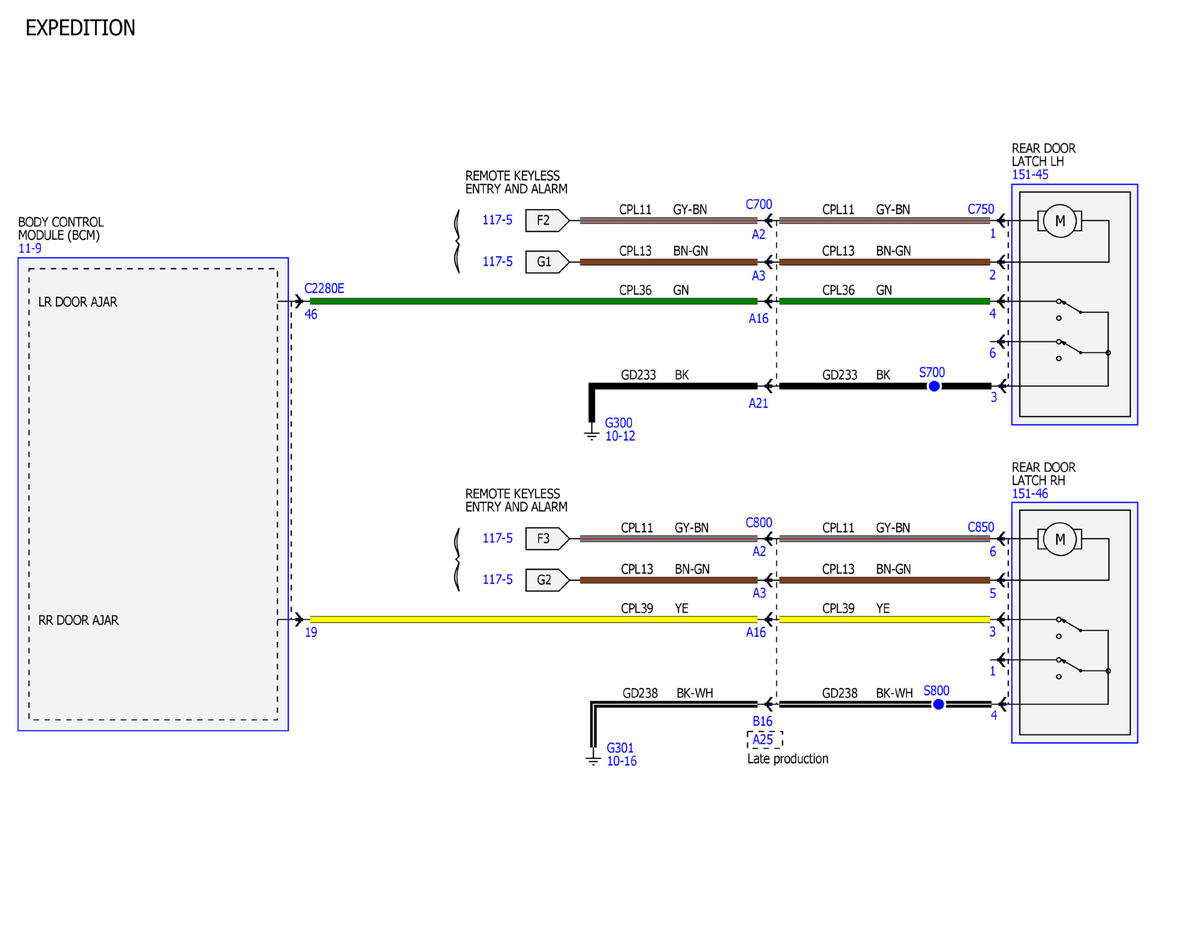

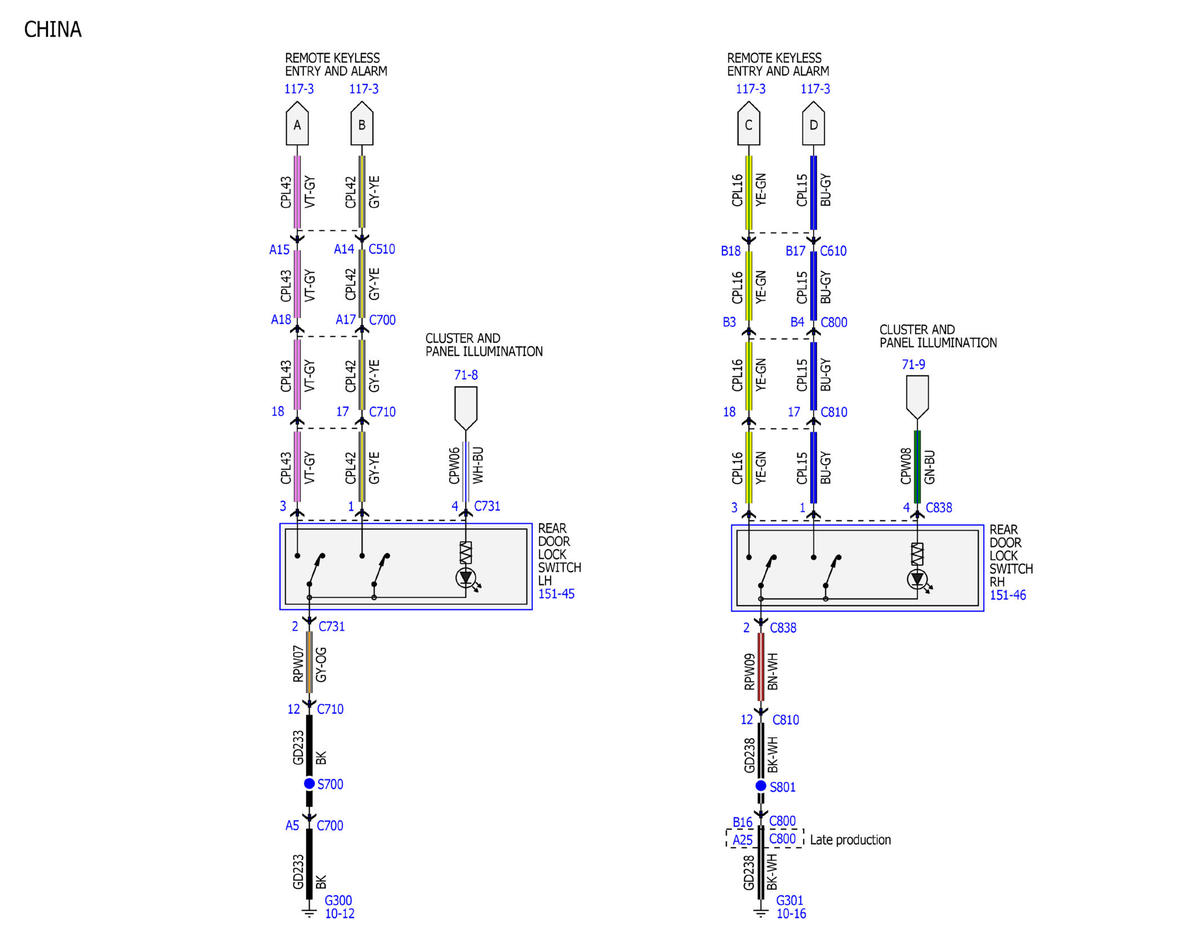

Fig 2: Remote Keyless Entry and Alarm Wiring Diagrams (2 Of 26)
Courtesy of FORD MOTOR COMPANY

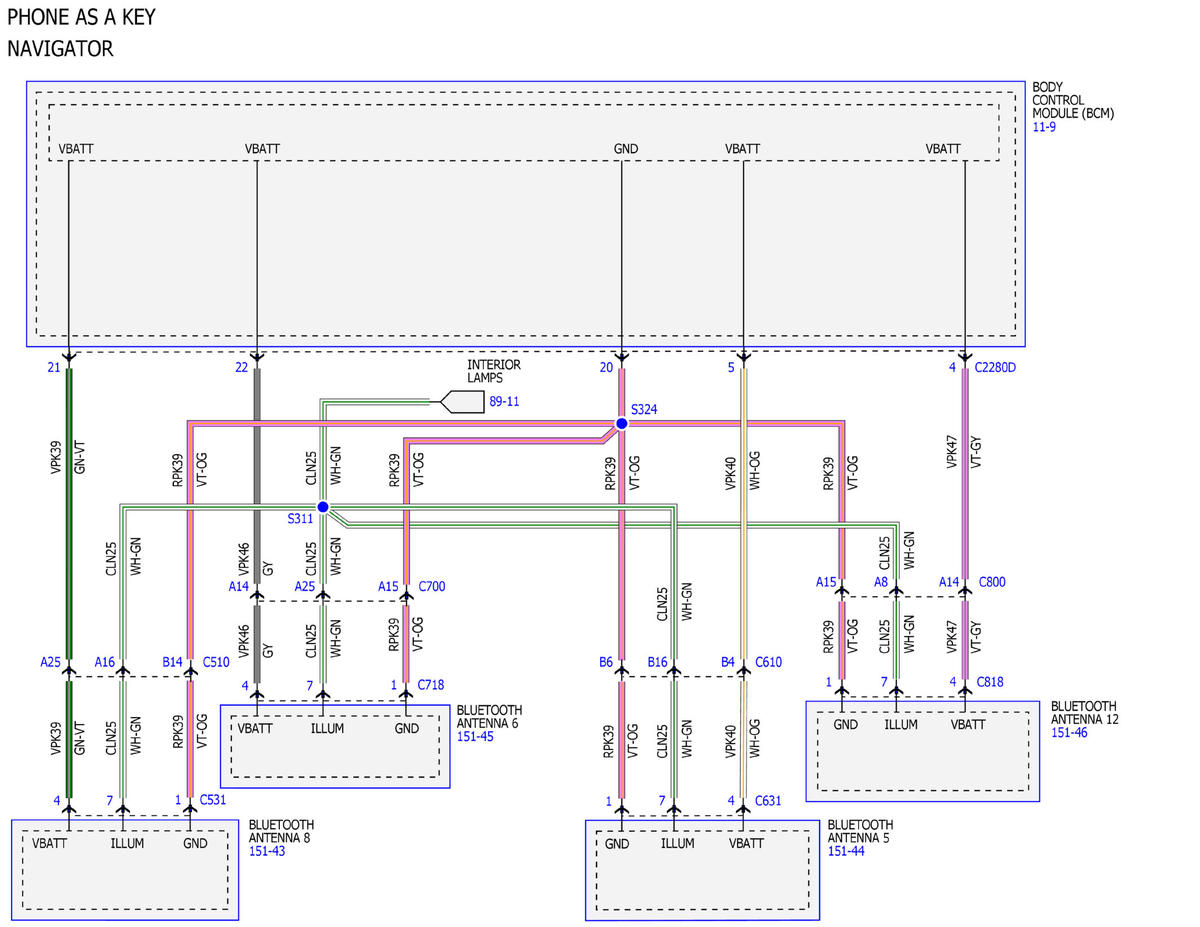

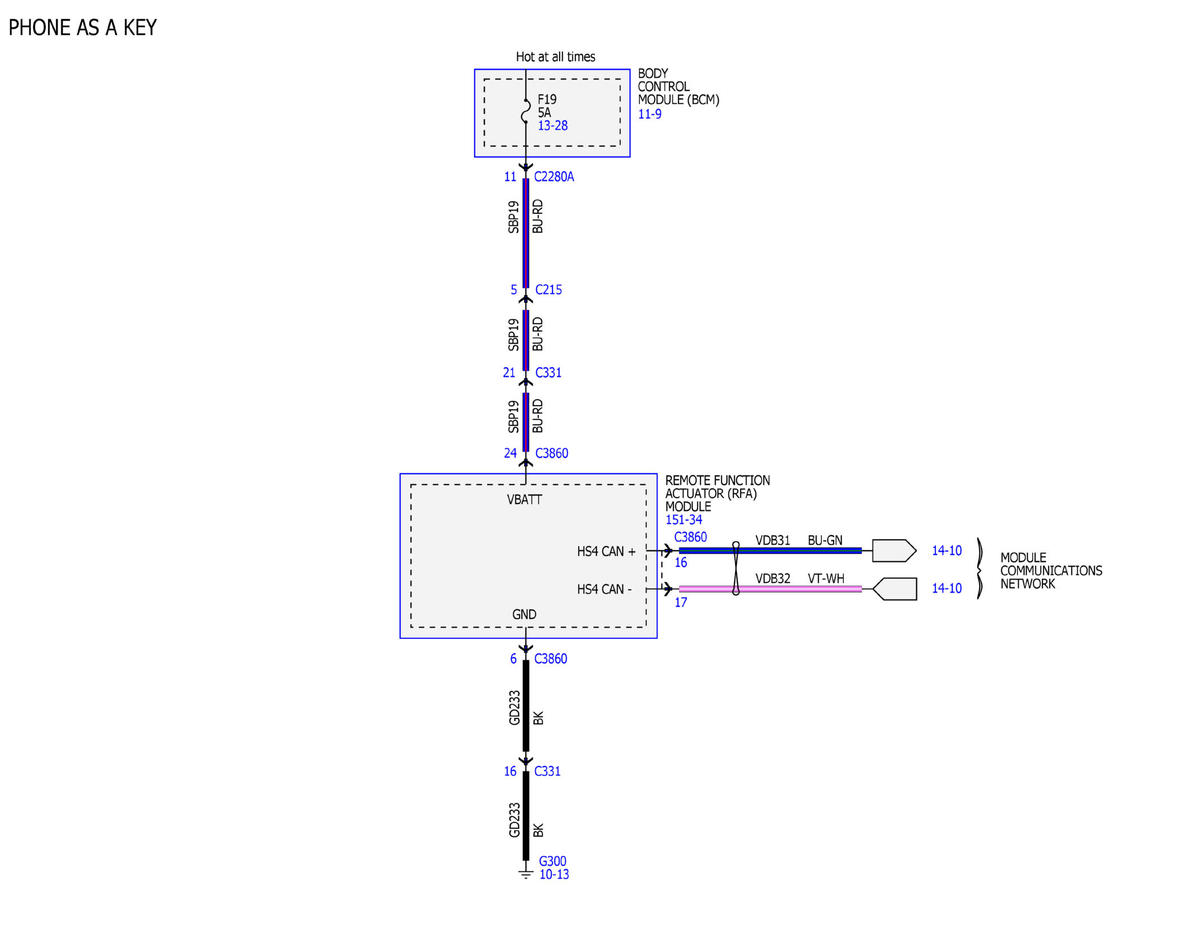

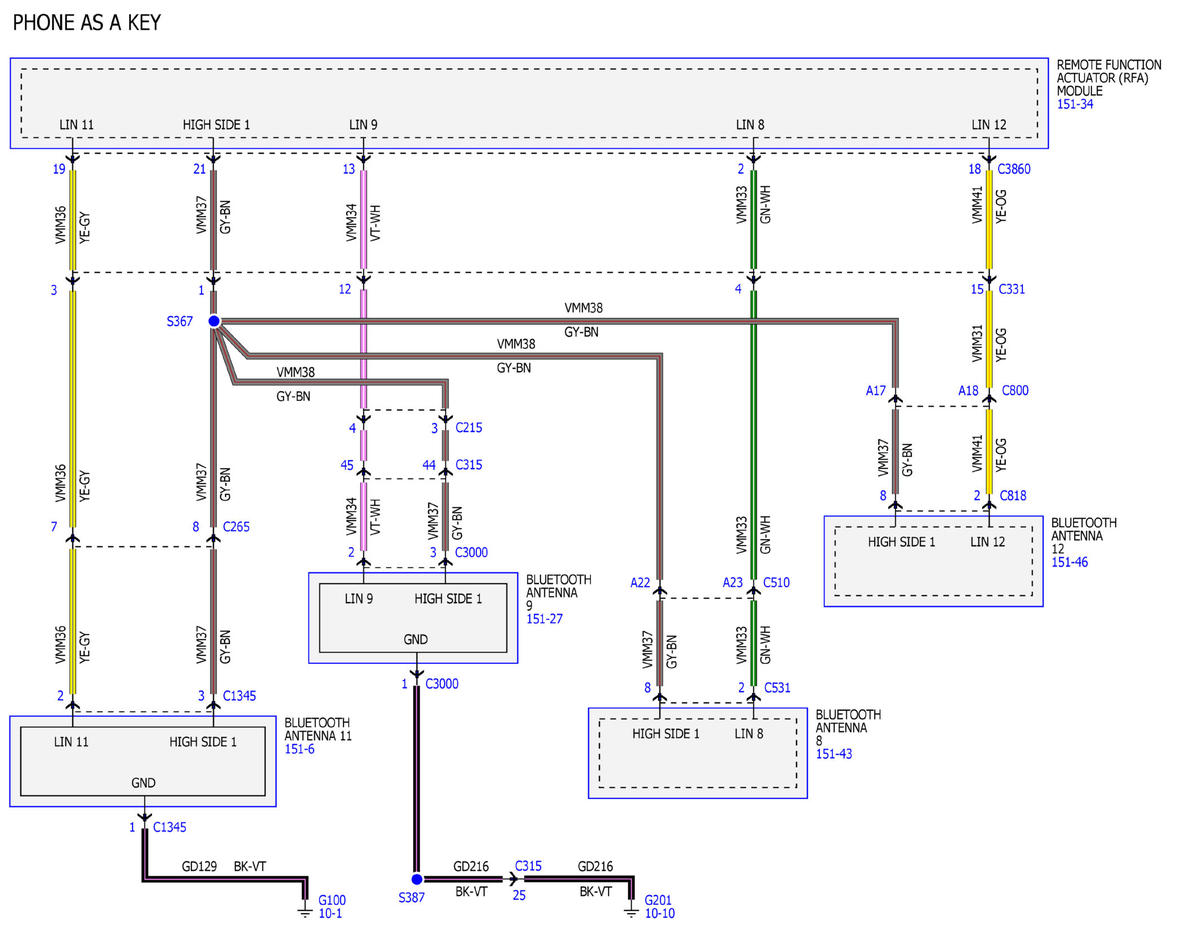

Fig 3: Remote Keyless Entry and Alarm Wiring Diagrams (3 Of 26)
Courtesy of FORD MOTOR COMPANY

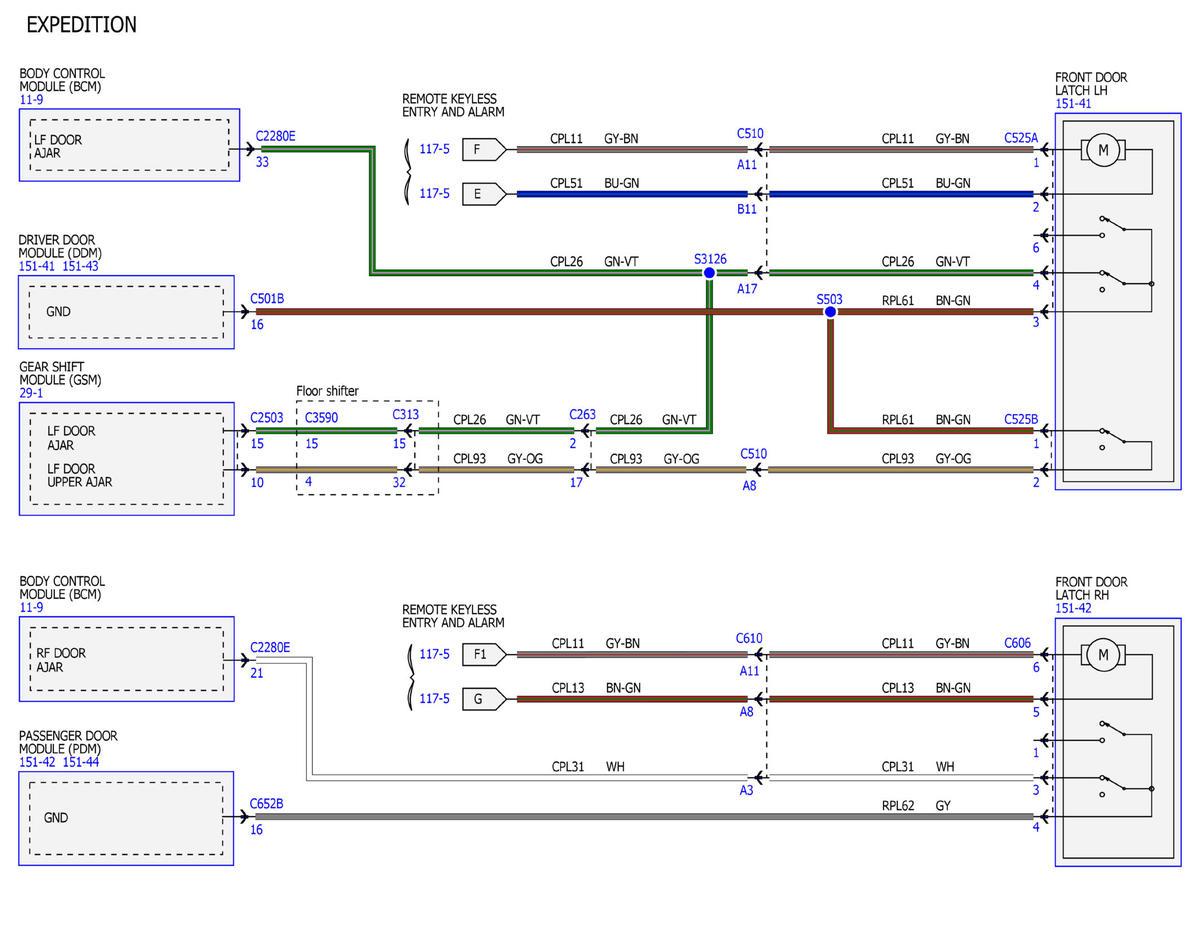

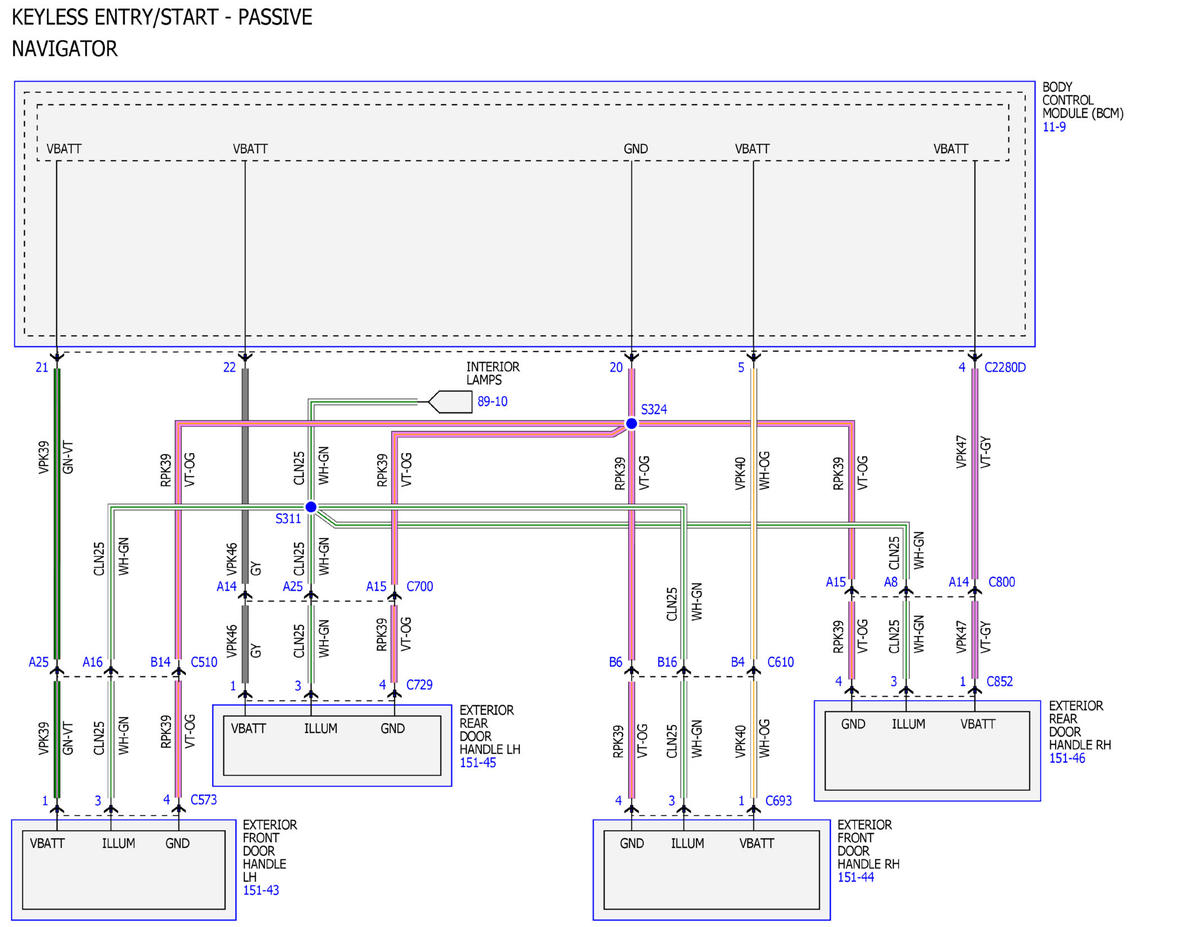

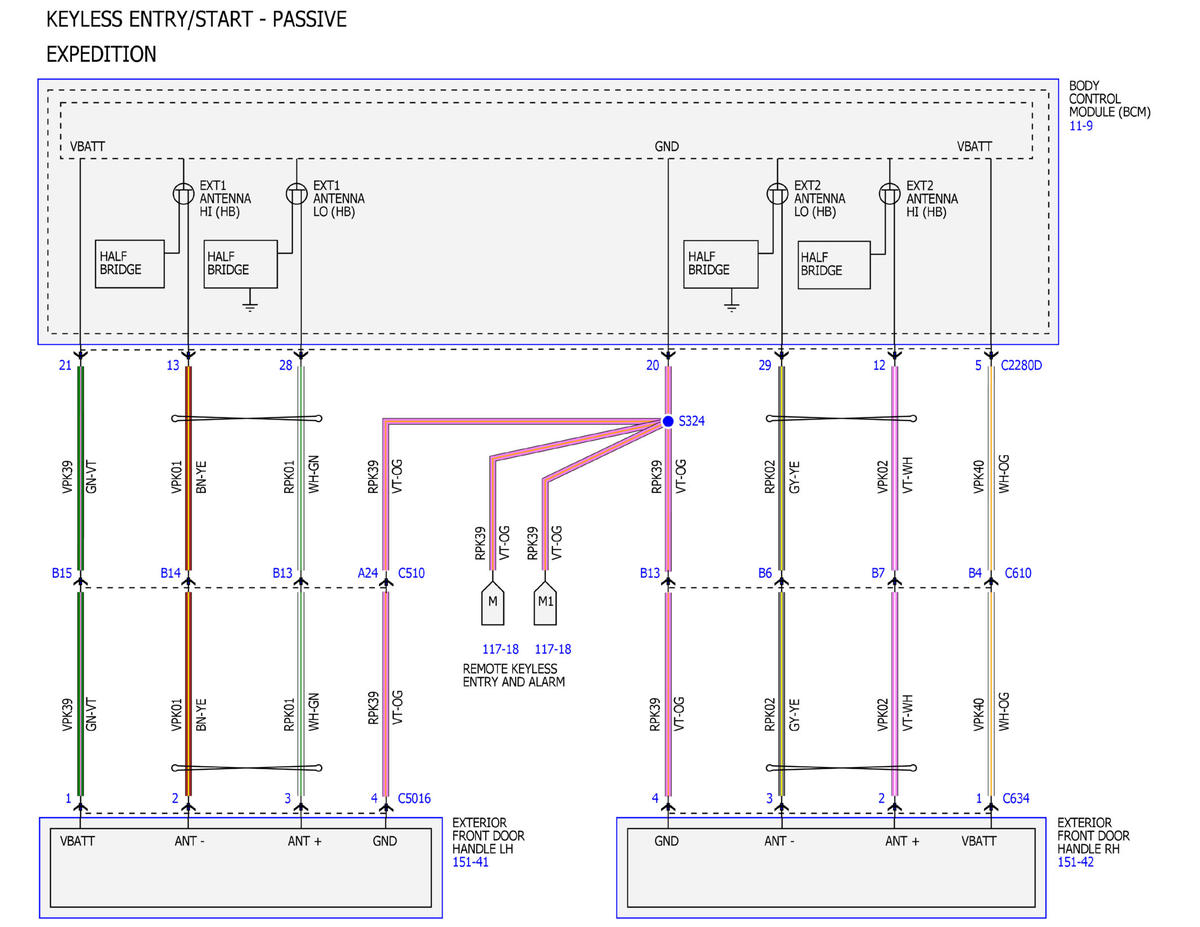

Fig 4: Remote Keyless Entry and Alarm Wiring Diagrams (4 Of 26)
Courtesy of FORD MOTOR COMPANY

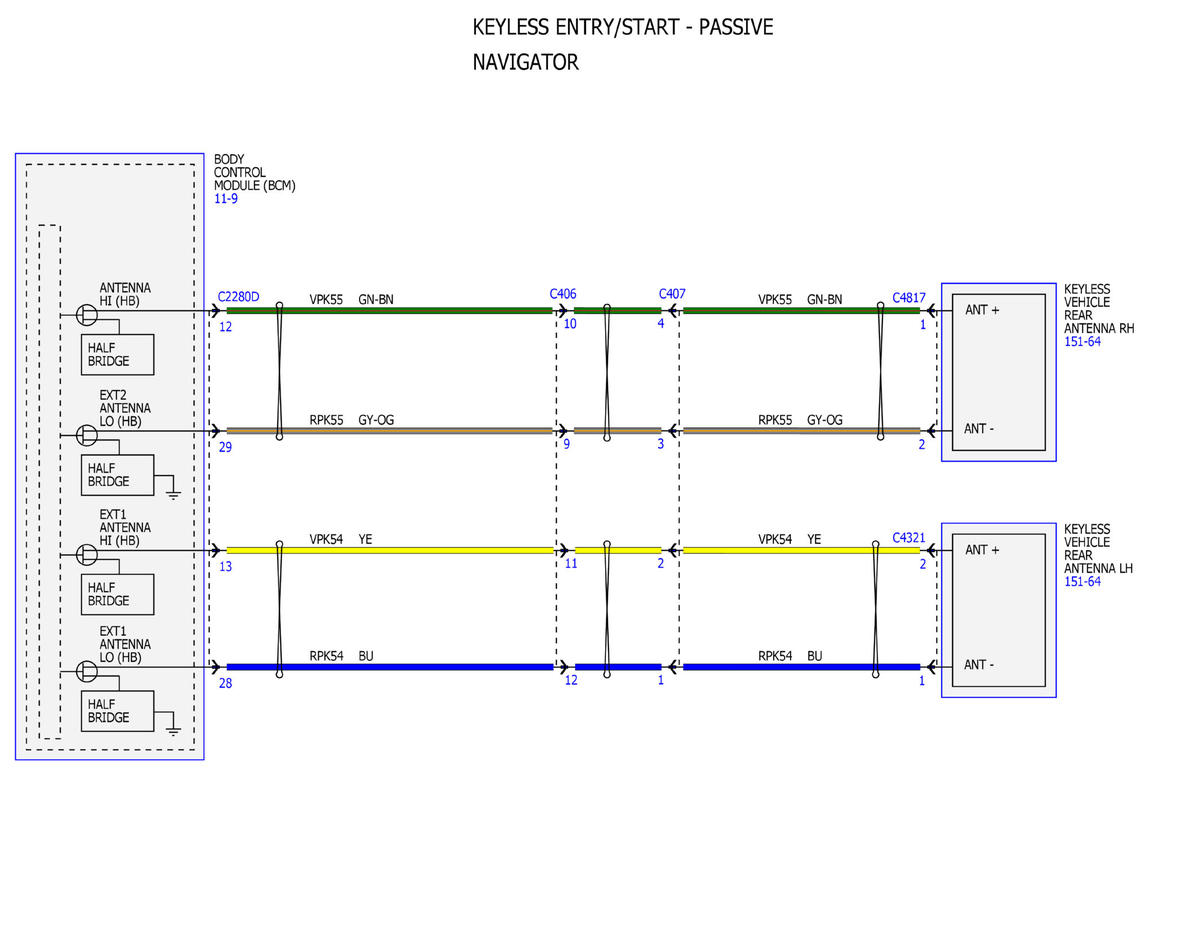

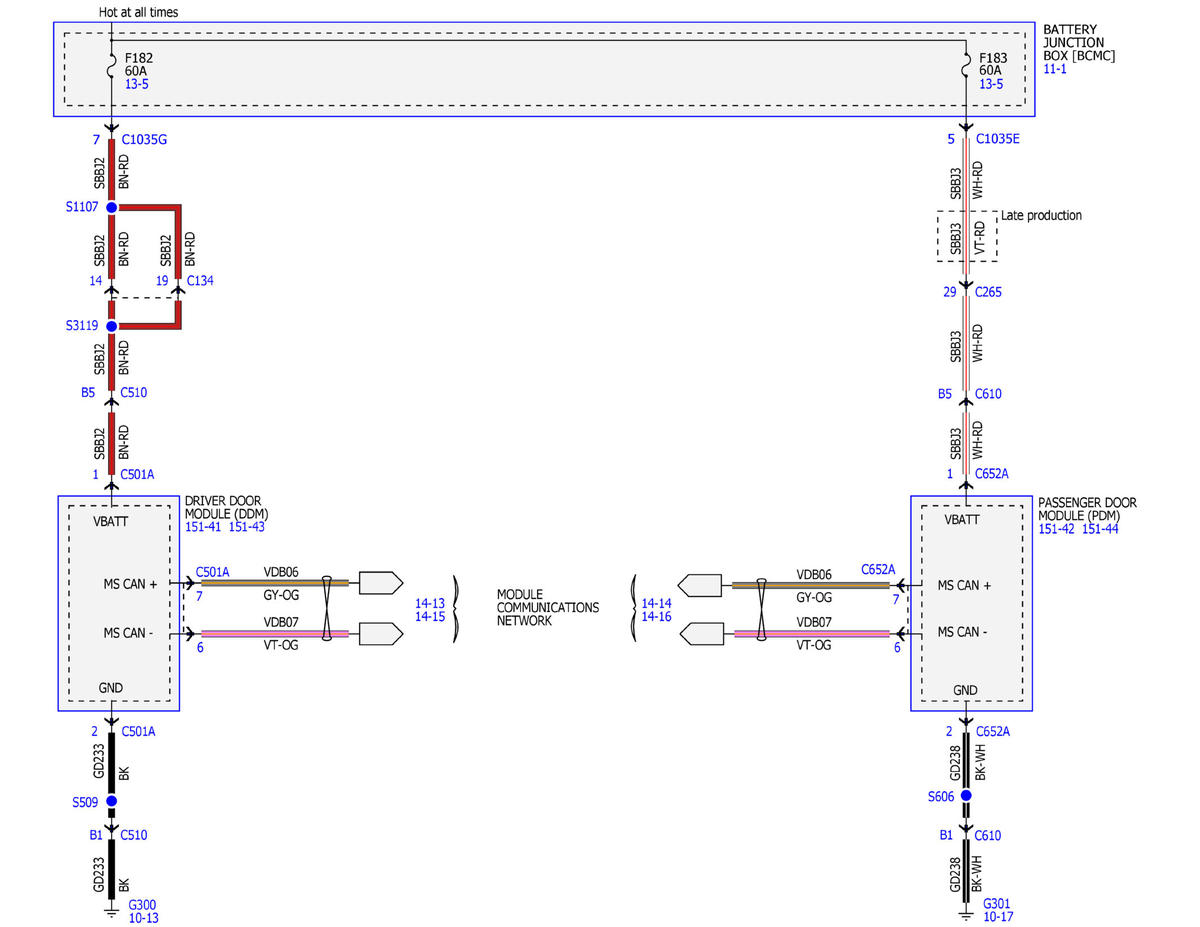

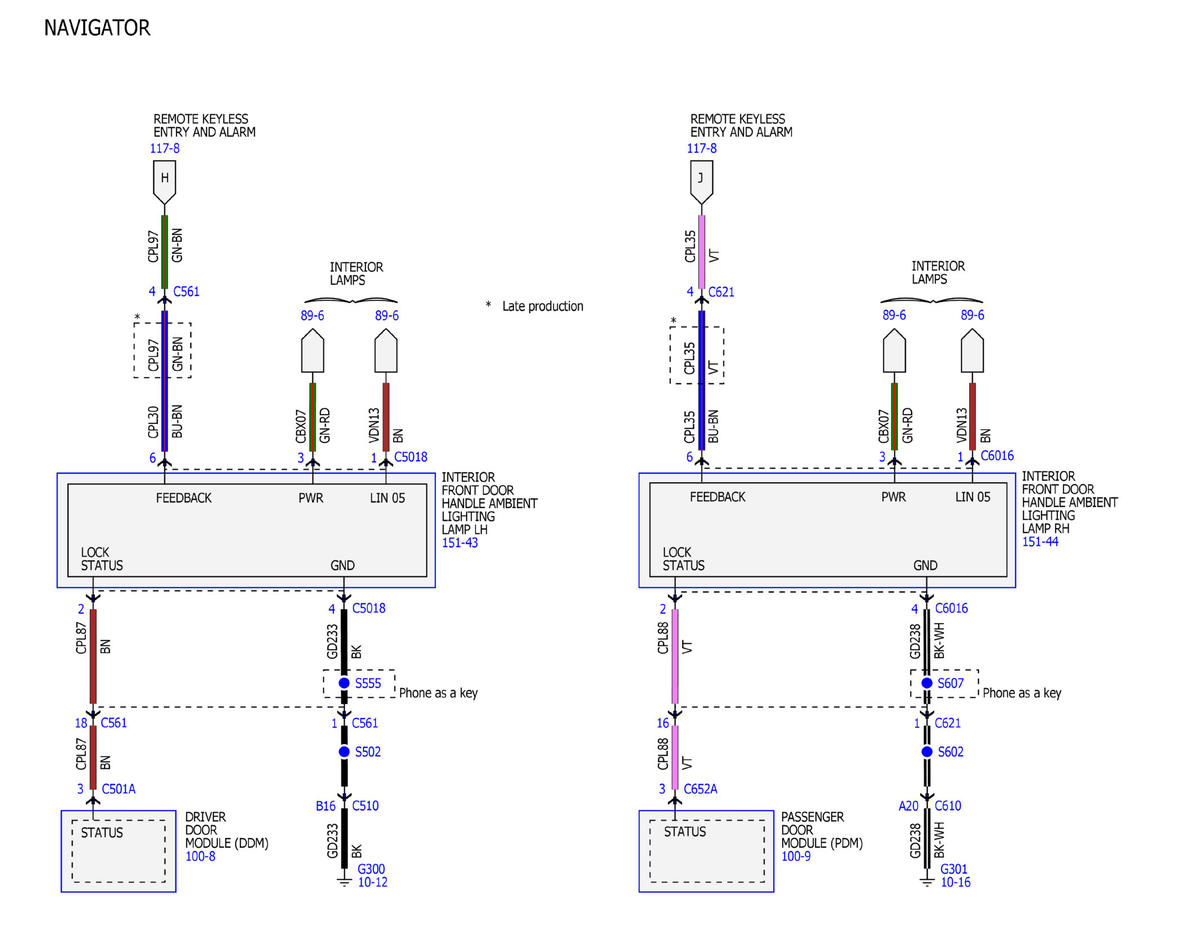

Fig 5: Remote Keyless Entry and Alarm Wiring Diagrams (5 Of 26)
Courtesy of FORD MOTOR COMPANY

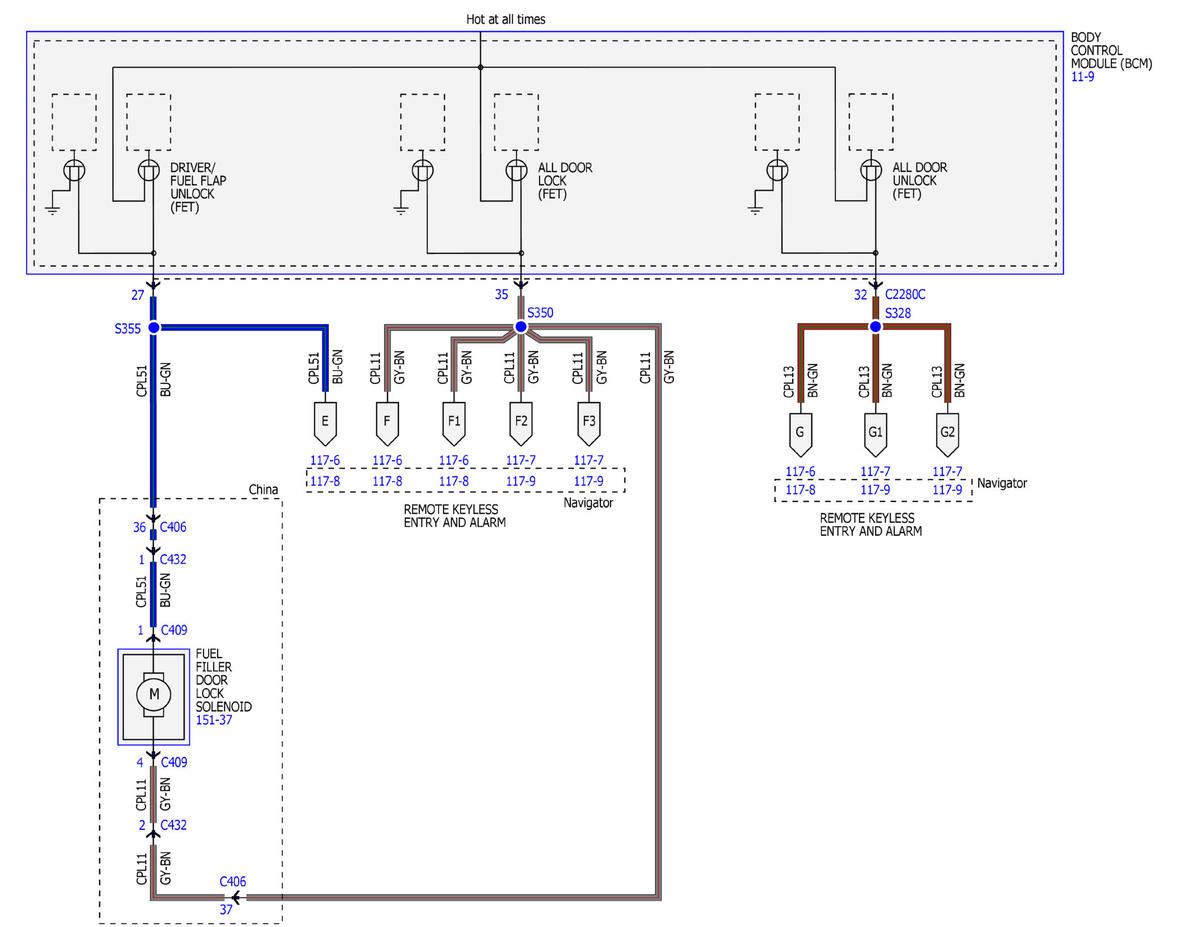

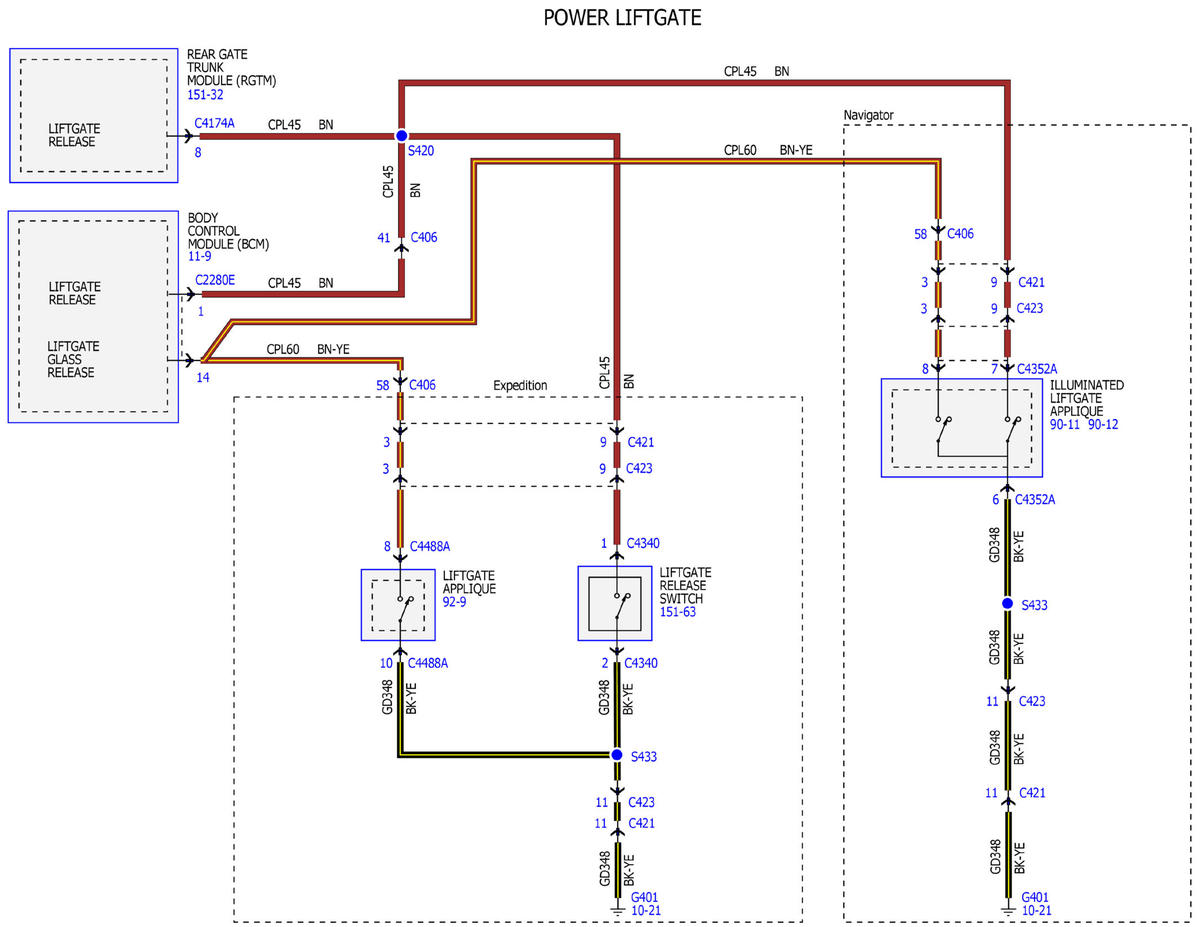

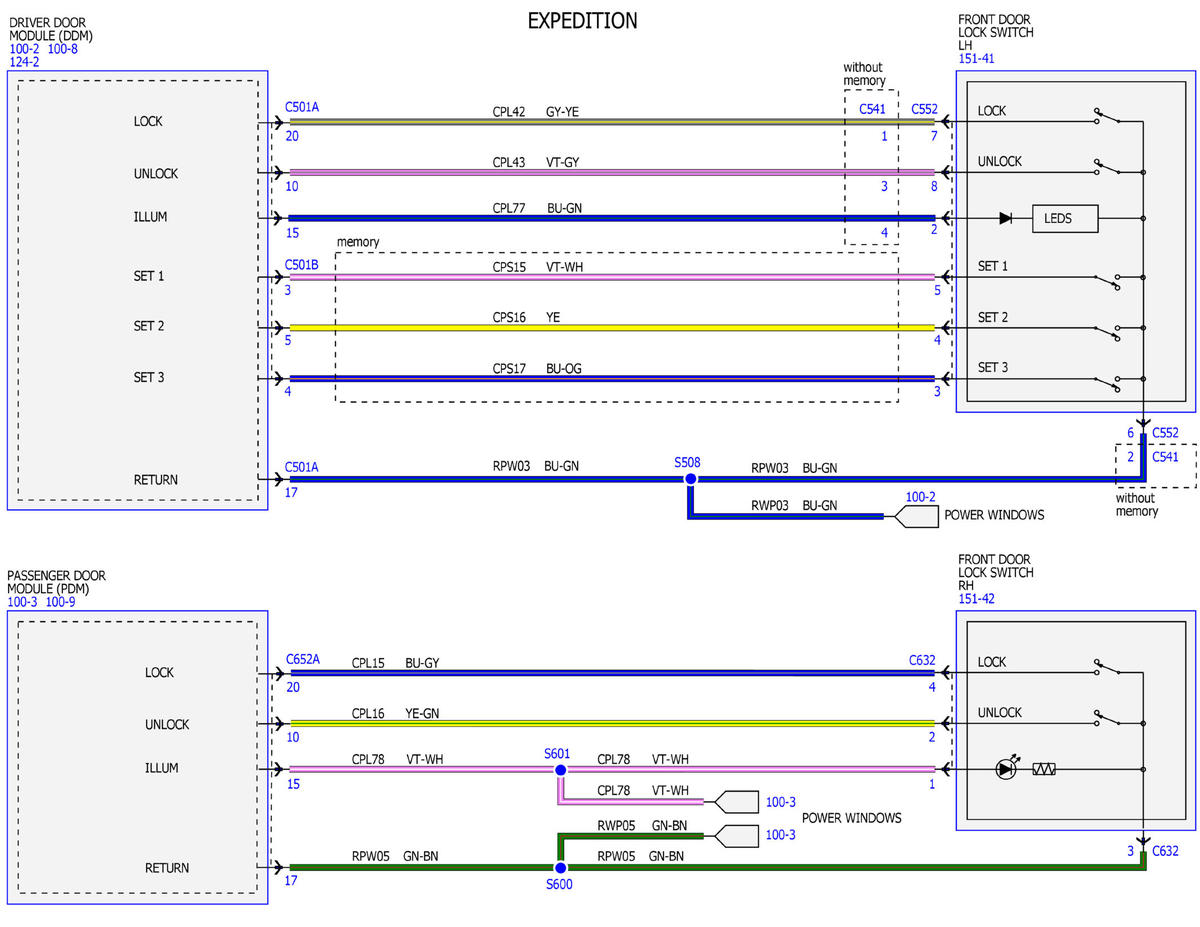

Fig 6: Remote Keyless Entry and Alarm Wiring Diagrams (6 Of 26)
Courtesy of FORD MOTOR COMPANY

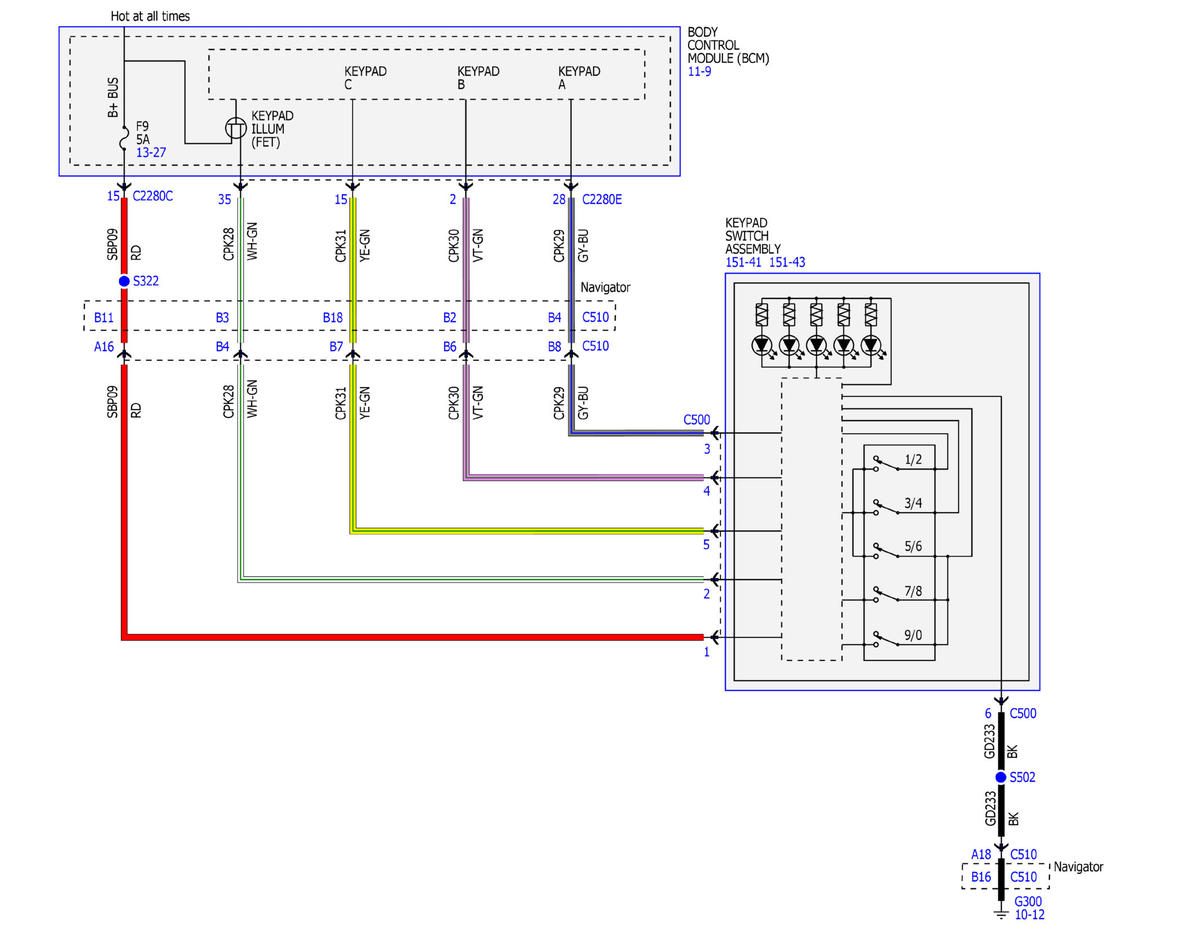

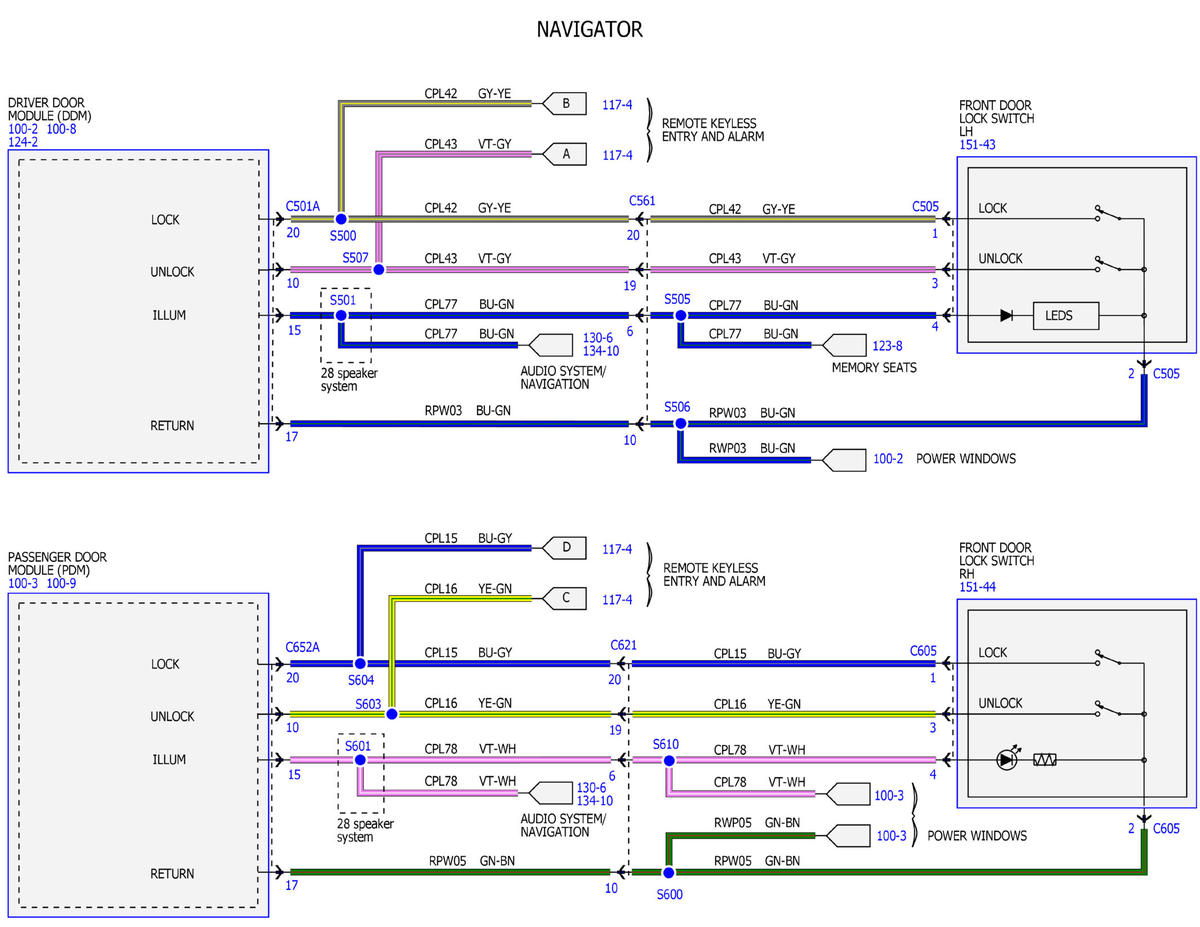

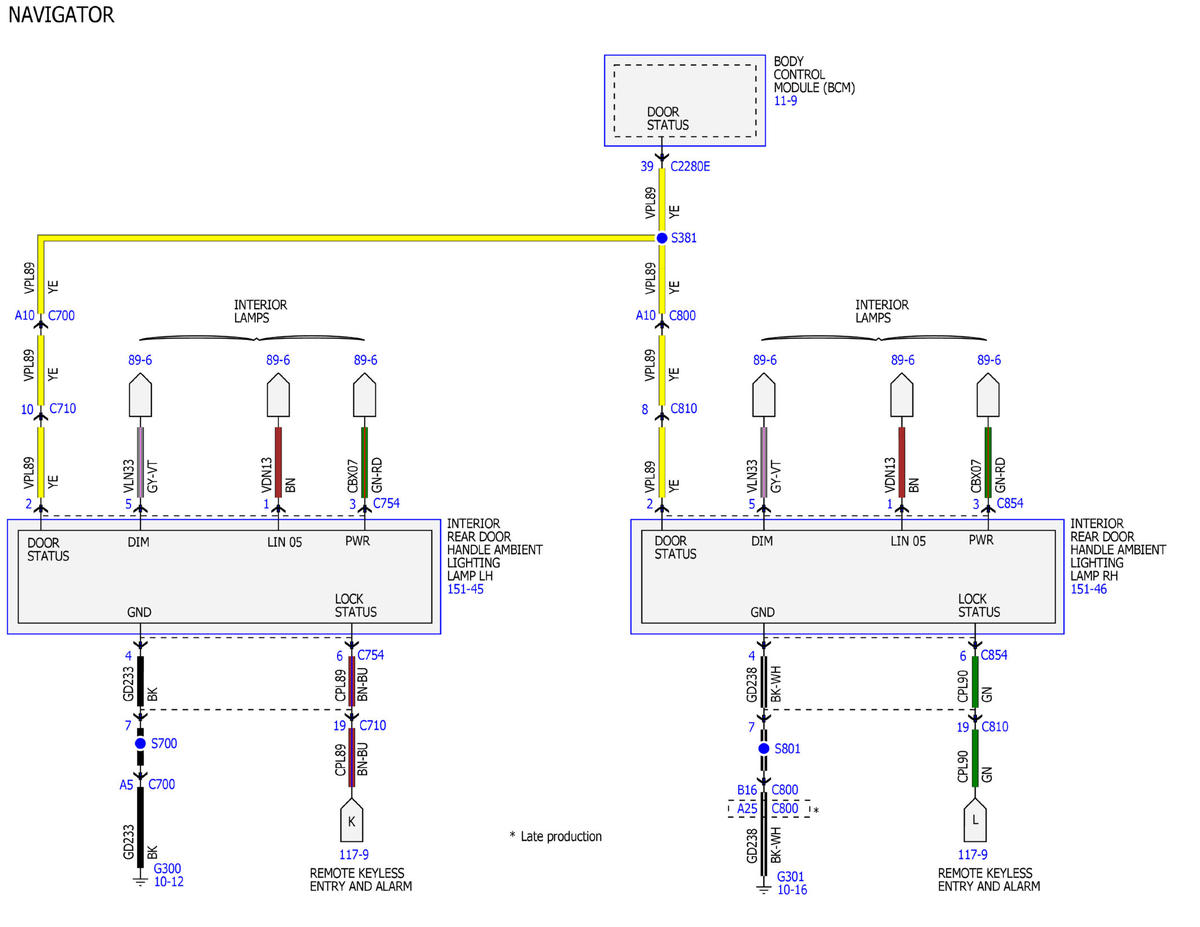

Fig 7: Remote Keyless Entry and Alarm Wiring Diagrams (7 Of 26)
Courtesy of FORD MOTOR COMPANY

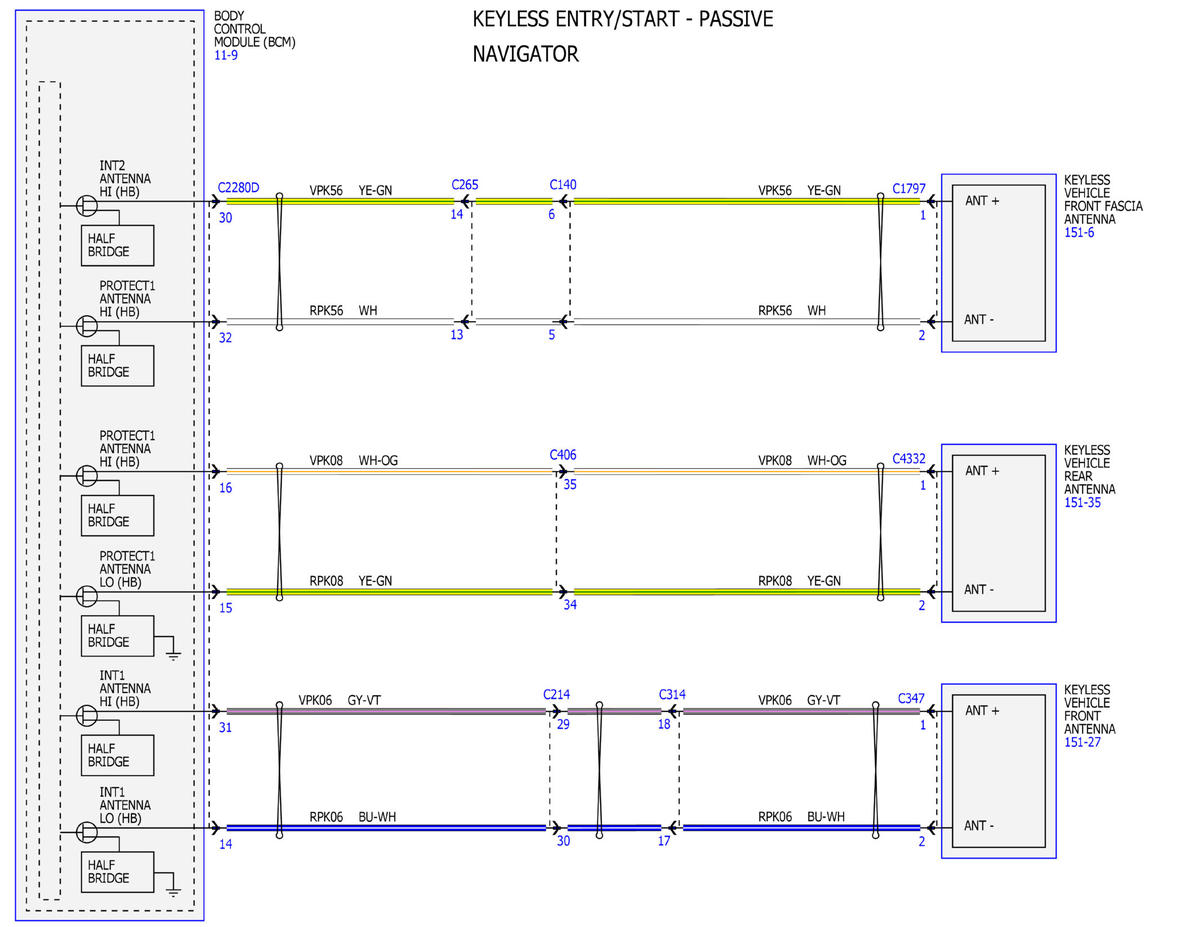

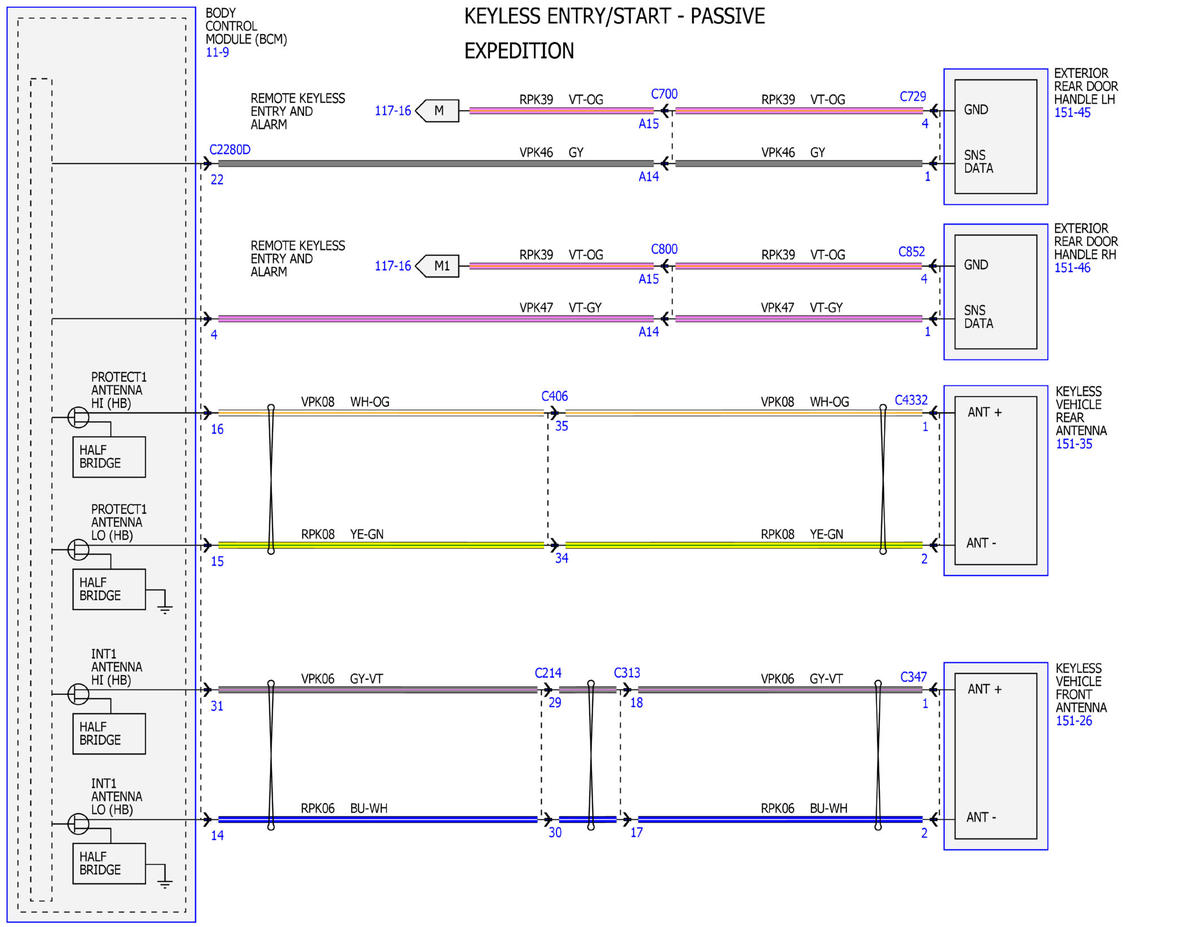

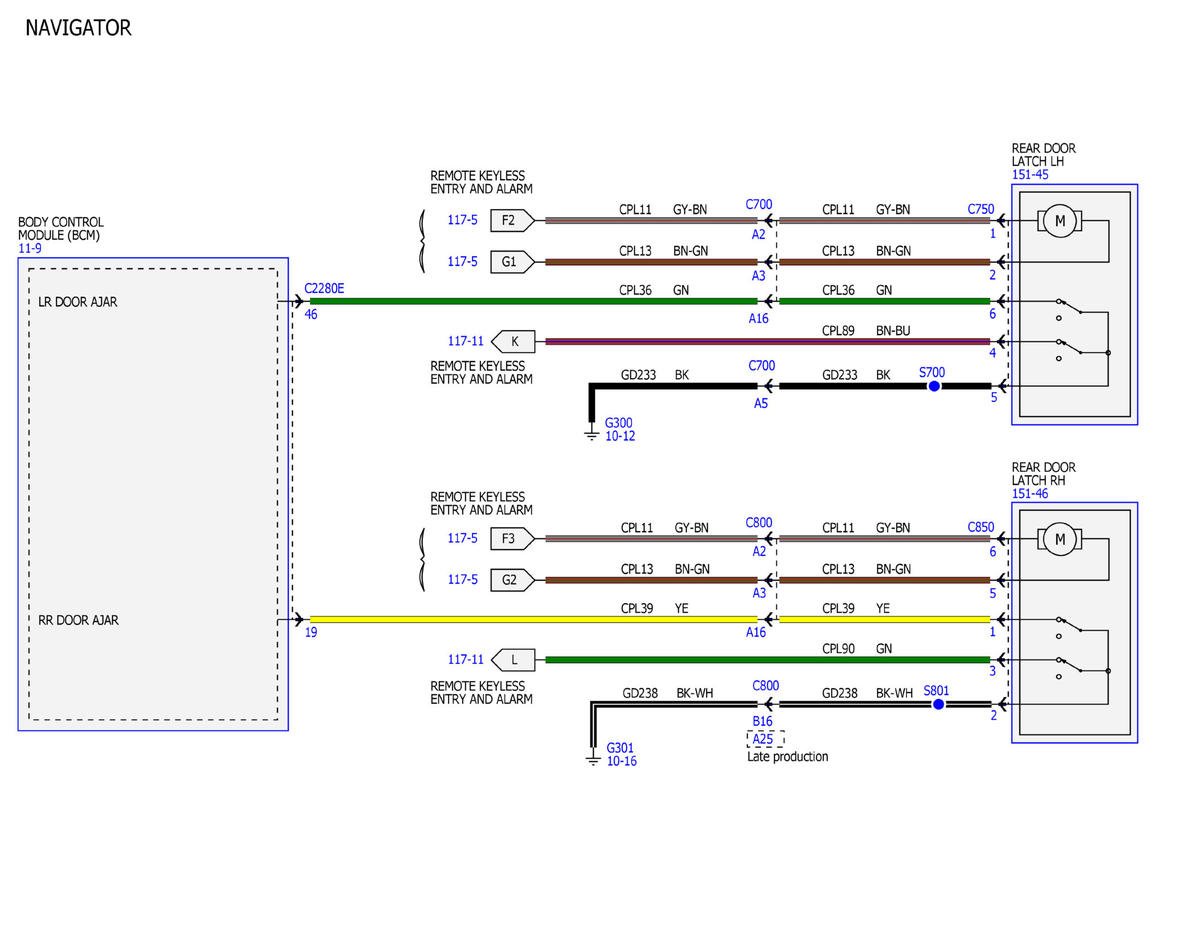

Fig 8: Remote Keyless Entry and Alarm Wiring Diagrams (8 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 9: Remote Keyless Entry and Alarm Wiring Diagrams (9 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 10: Remote Keyless Entry and Alarm Wiring Diagrams (10 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 11: Remote Keyless Entry and Alarm Wiring Diagrams (11 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 12: Remote Keyless Entry and Alarm Wiring Diagrams (12 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 13: Remote Keyless Entry and Alarm Wiring Diagrams (13 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 14: Remote Keyless Entry and Alarm Wiring Diagrams (14 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 15: Remote Keyless Entry and Alarm Wiring Diagrams (15 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 16: Remote Keyless Entry and Alarm Wiring Diagrams (16 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 17: Remote Keyless Entry and Alarm Wiring Diagrams (17 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 18: Remote Keyless Entry and Alarm Wiring Diagrams (18 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 19: Remote Keyless Entry and Alarm Wiring Diagrams (19 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 20: Remote Keyless Entry and Alarm Wiring Diagrams (20 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 21: Remote Keyless Entry and Alarm Wiring Diagrams (21 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 22: Remote Keyless Entry and Alarm Wiring Diagrams (22 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 23: Remote Keyless Entry and Alarm Wiring Diagrams (23 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 24: Remote Keyless Entry and Alarm Wiring Diagrams (24 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 25: Remote Keyless Entry and Alarm Wiring Diagrams (25 Of 26)
Courtesy of FORD MOTOR COMPANY
Fig 26: Remote Keyless Entry and Alarm Wiring Diagrams (26 Of 26)
