Heated Window

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

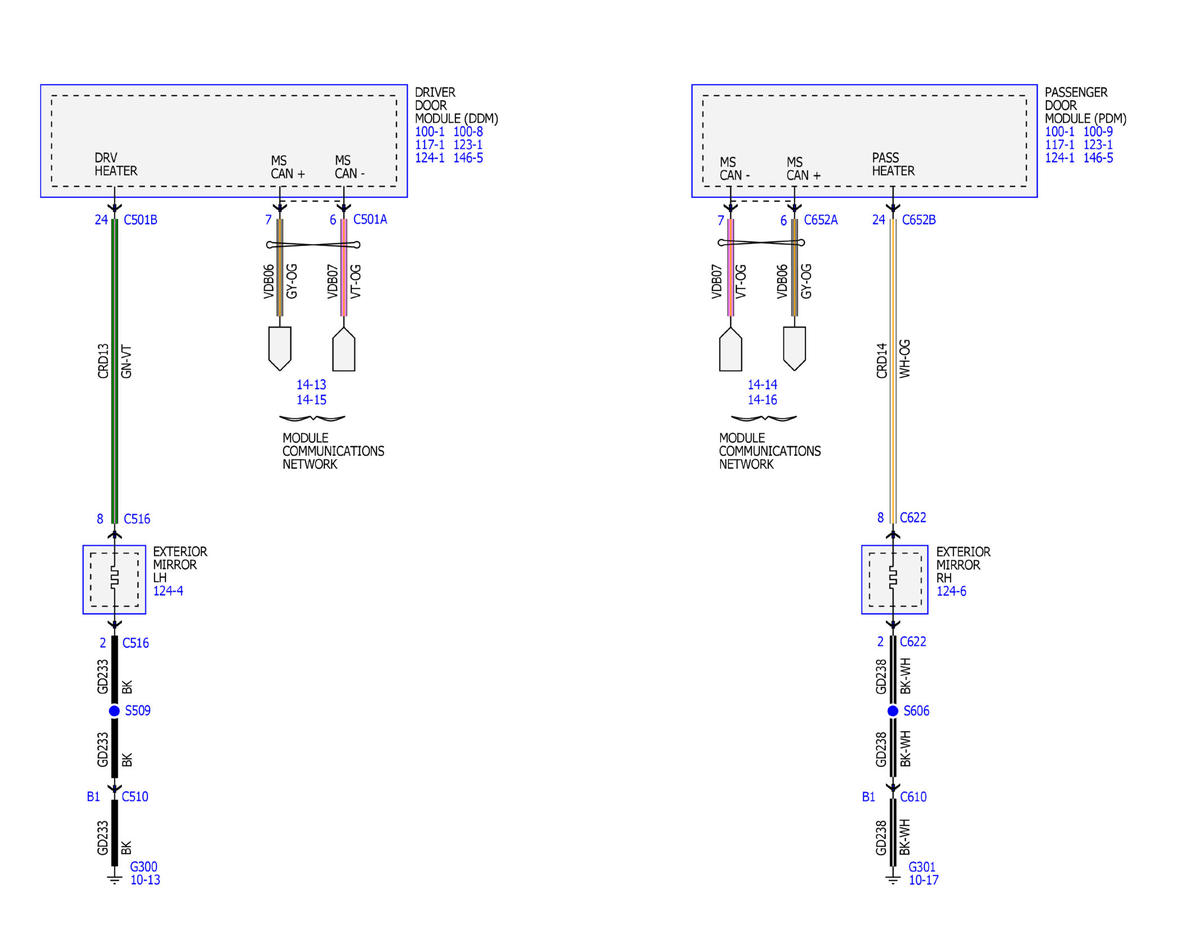

Fig 1: Heated Window Wiring Diagrams (1 Of 3)

Courtesy of FORD MOTOR COMPANY

Fig 2: Heated Window Wiring Diagrams (2 Of 3)

Courtesy of FORD MOTOR COMPANY

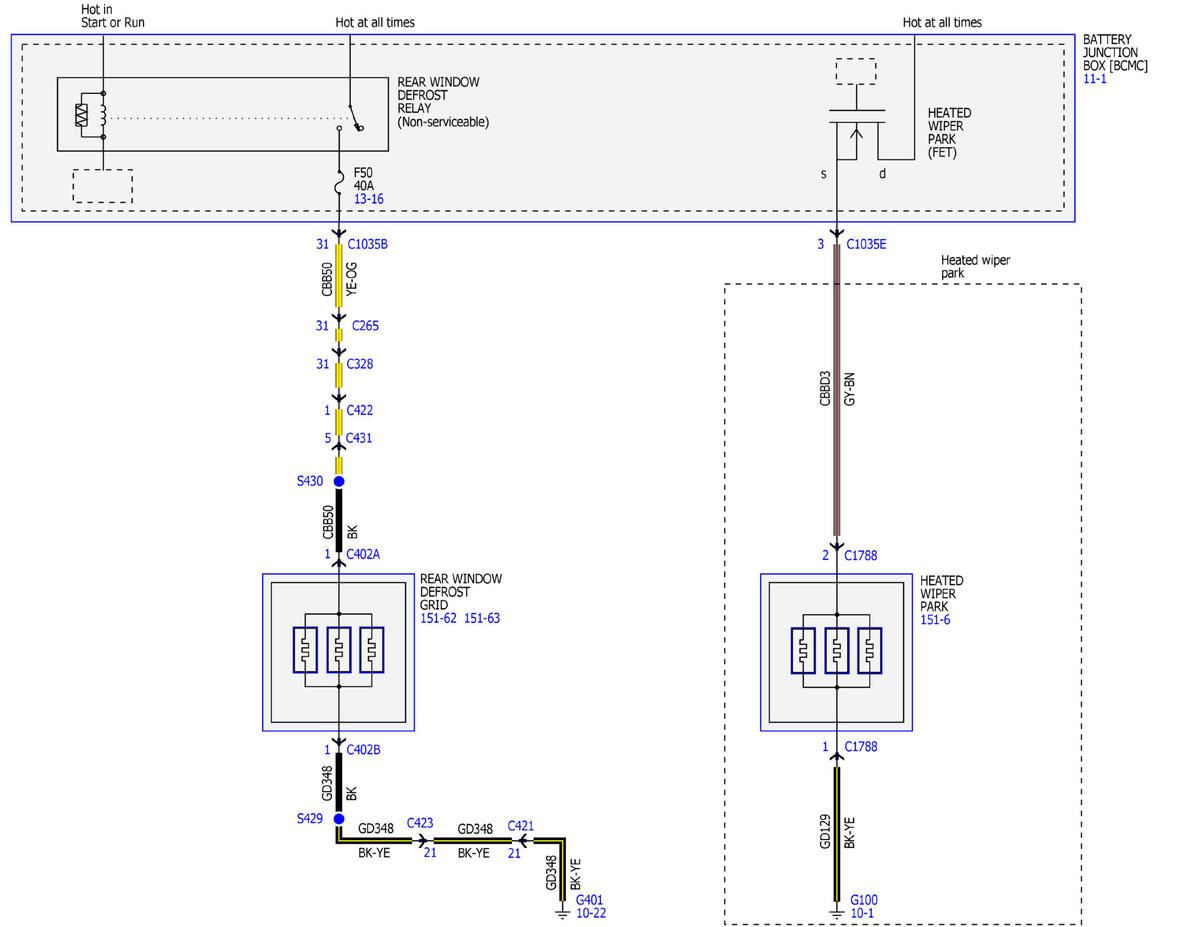

Fig 3: Heated Window Wiring Diagrams (3 Of 3)

Courtesy of FORD MOTOR COMPANY
