Cruise Control

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

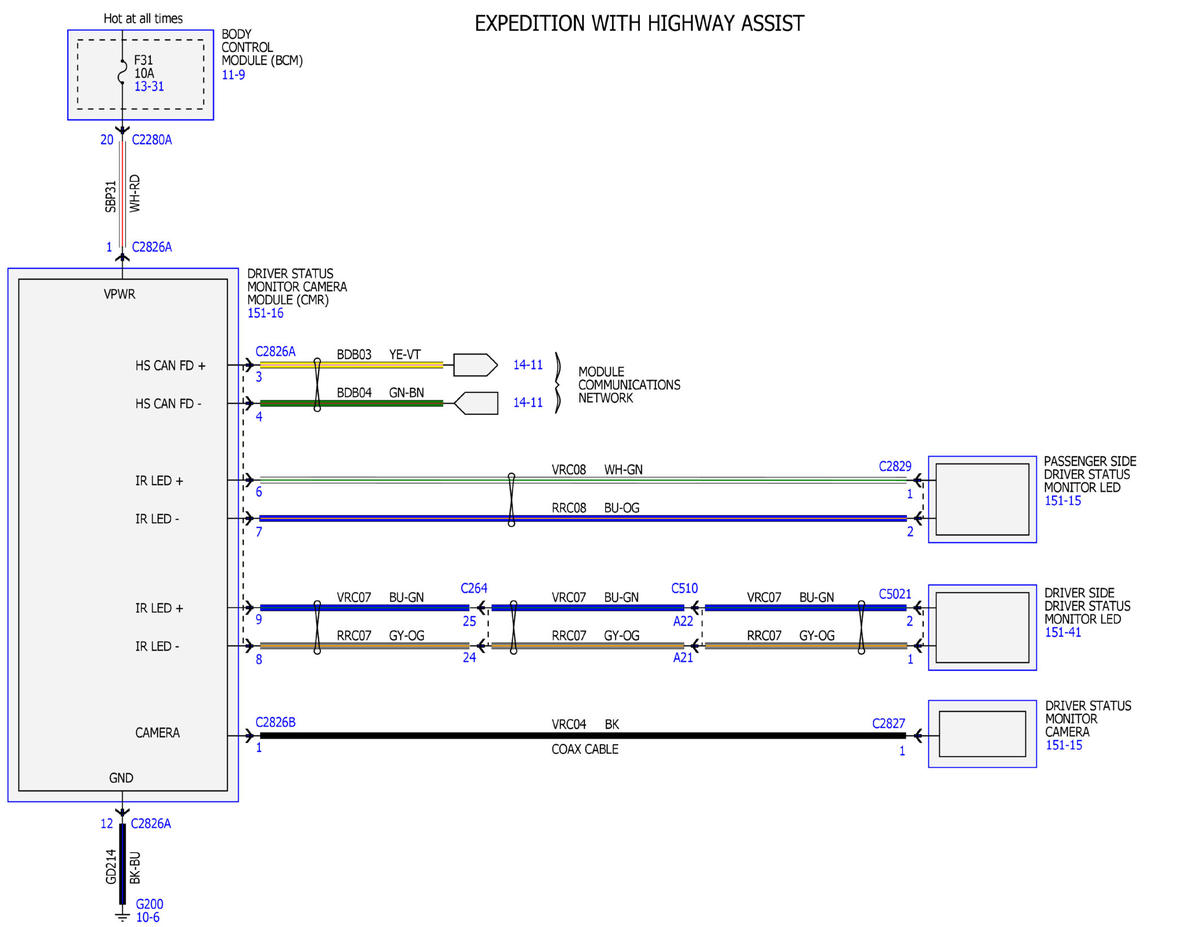

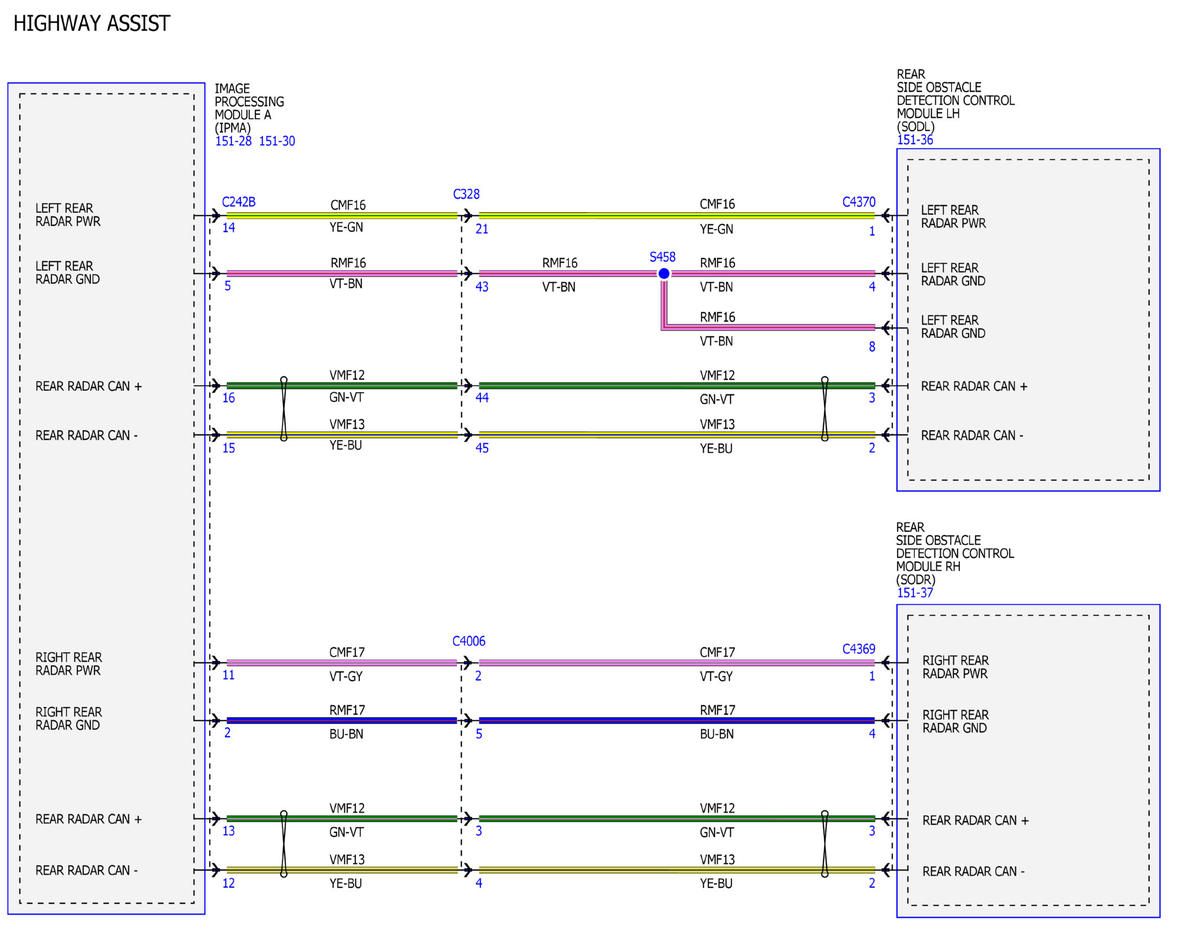

Fig 1: Cruise Control Wiring Diagrams (1 Of 11)

Courtesy of FORD MOTOR COMPANY

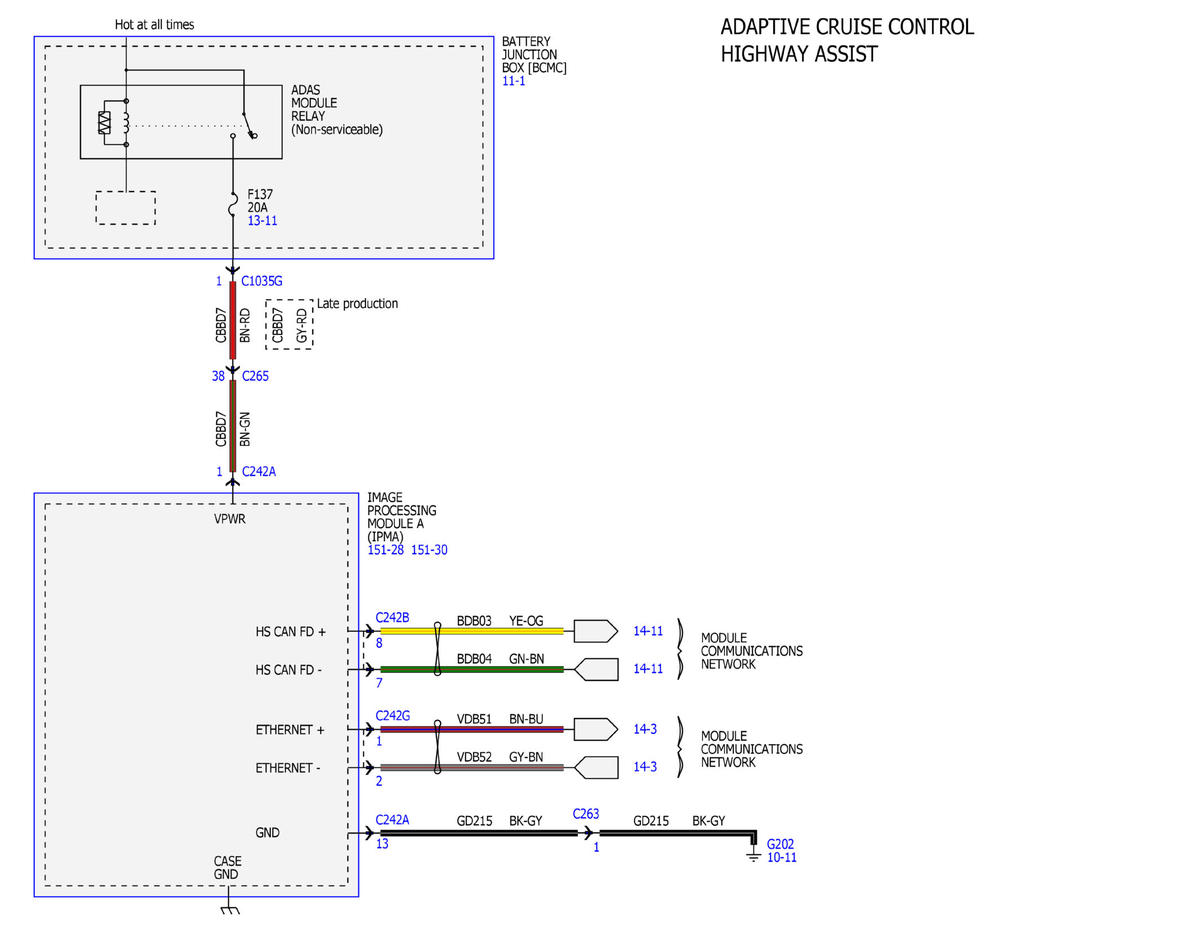

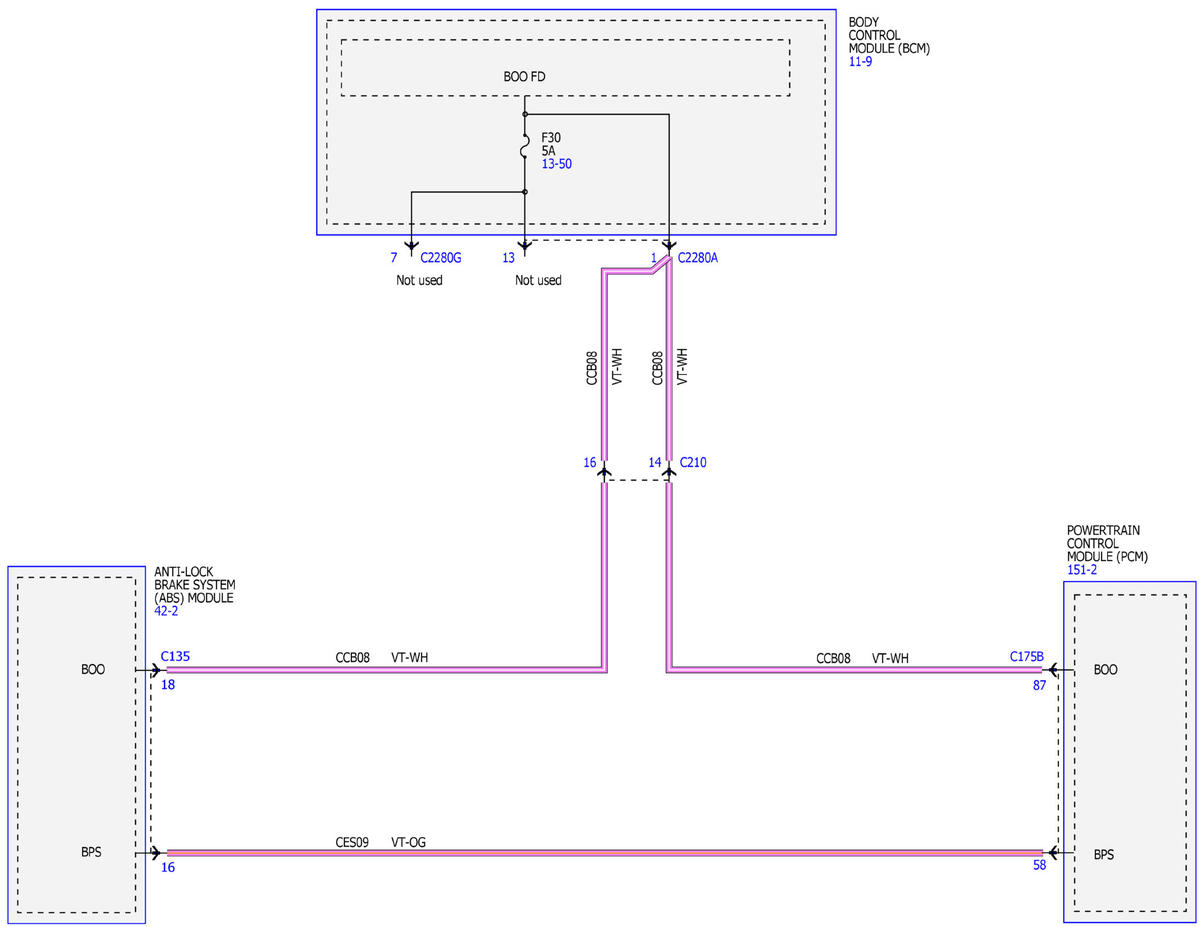

Fig 2: Cruise Control Wiring Diagrams (2 Of 11)

Courtesy of FORD MOTOR COMPANY

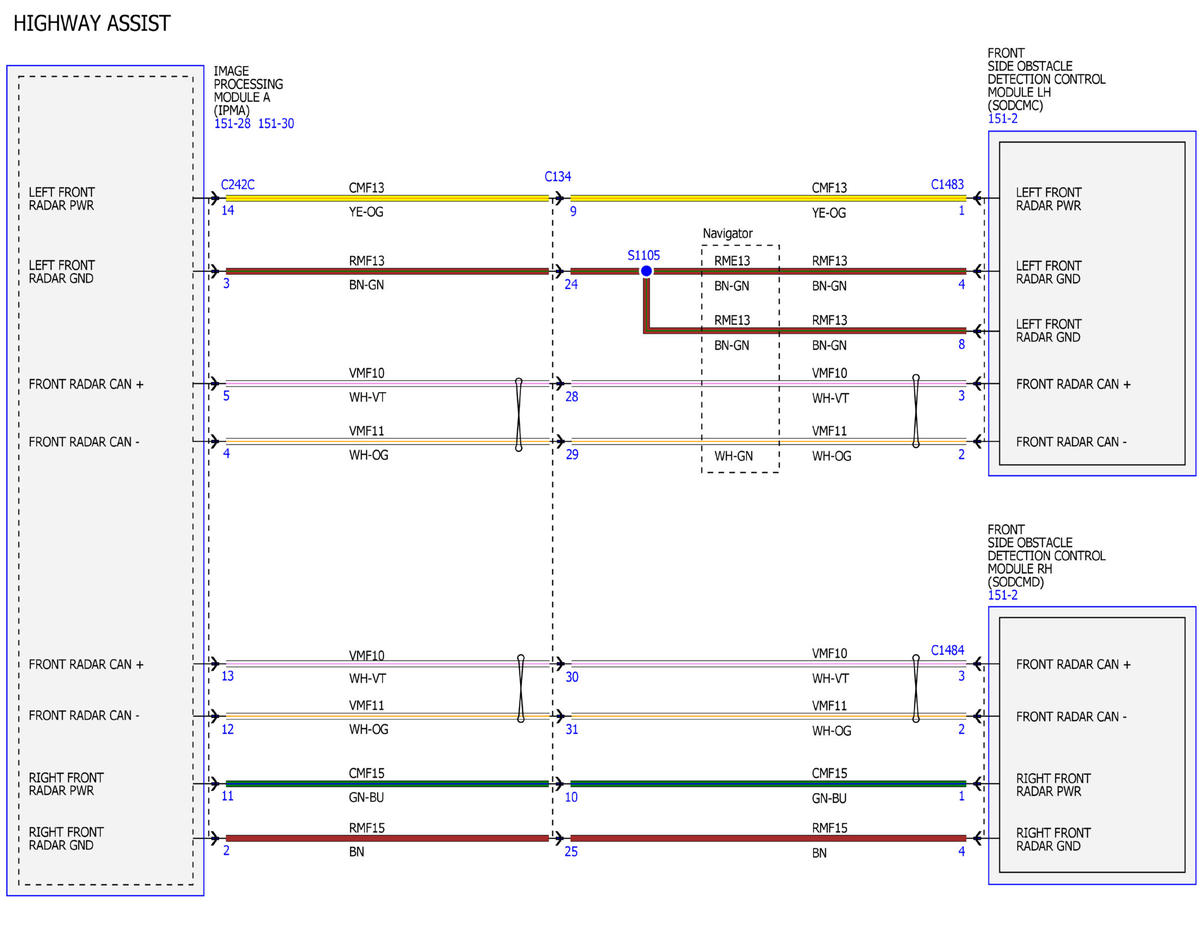

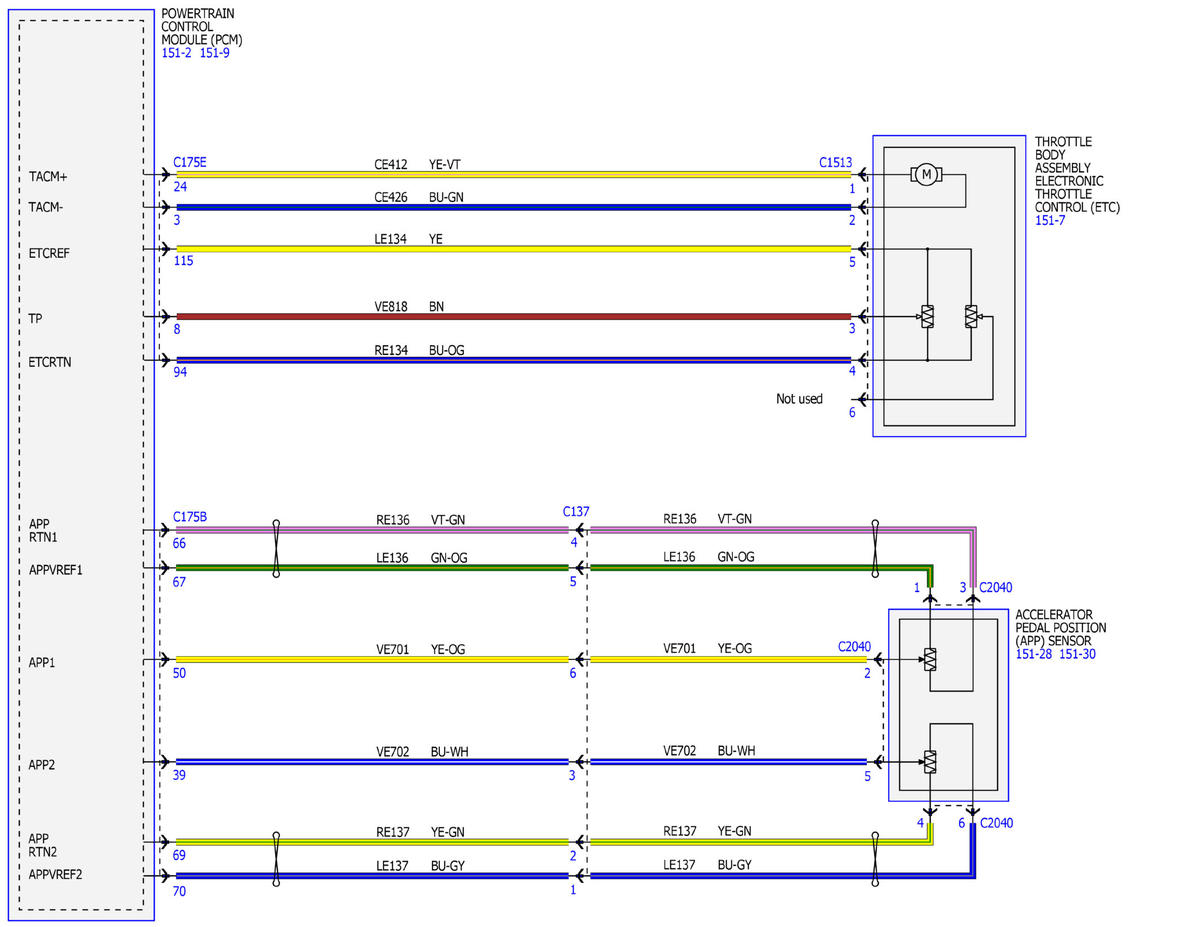

Fig 3: Cruise Control Wiring Diagrams (3 Of 11)

Courtesy of FORD MOTOR COMPANY

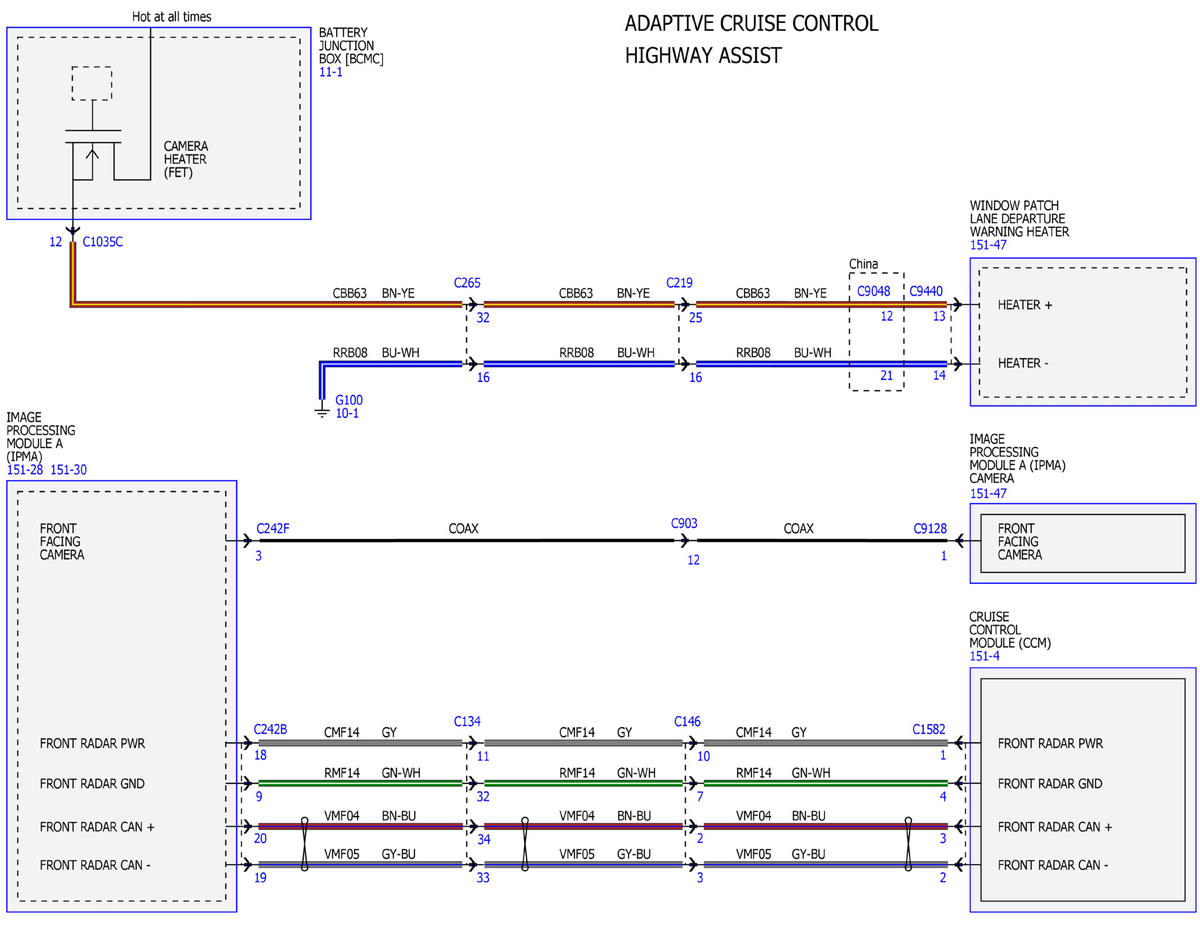

Fig 4: Cruise Control Wiring Diagrams (4 Of 11)

Courtesy of FORD MOTOR COMPANY

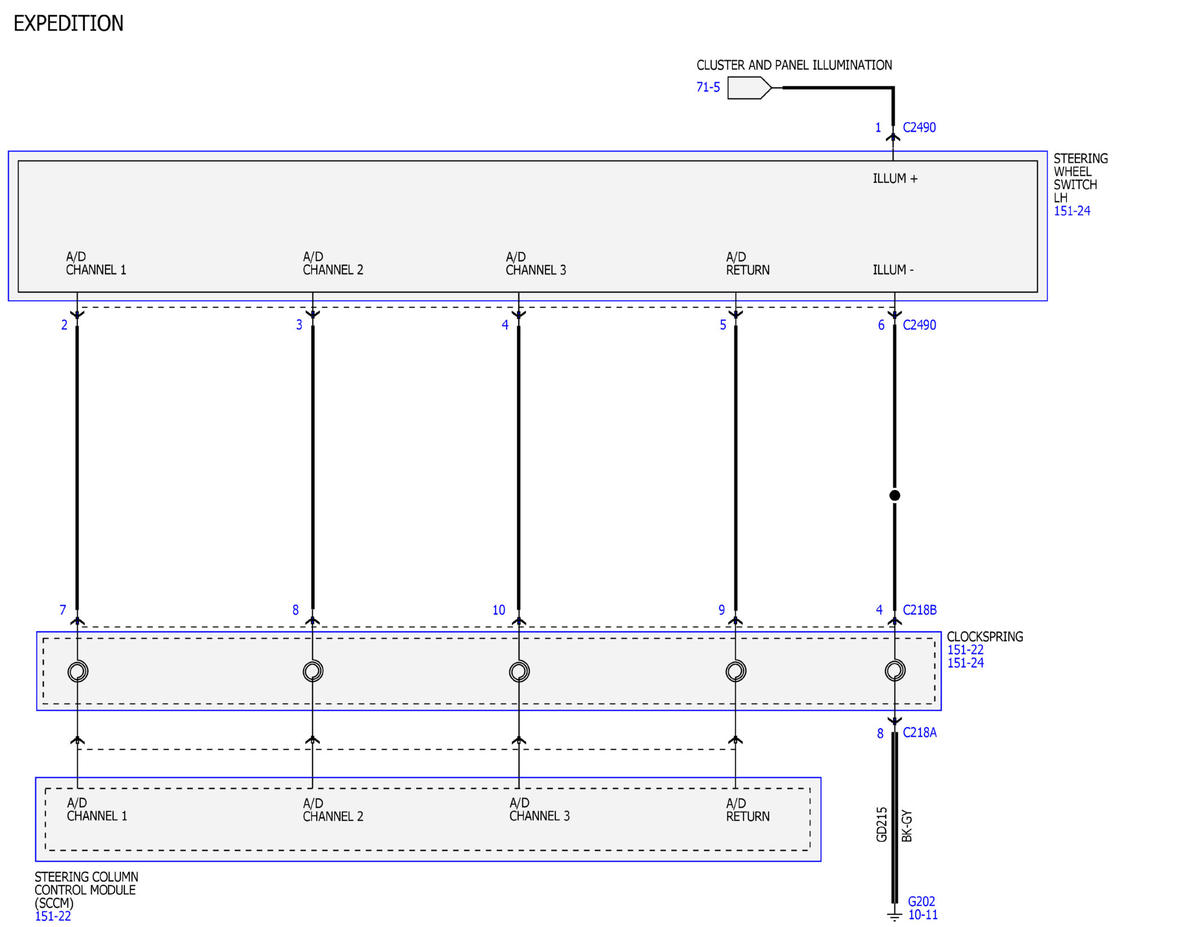

Fig 5: Cruise Control Wiring Diagrams (5 Of 11)

Courtesy of FORD MOTOR COMPANY

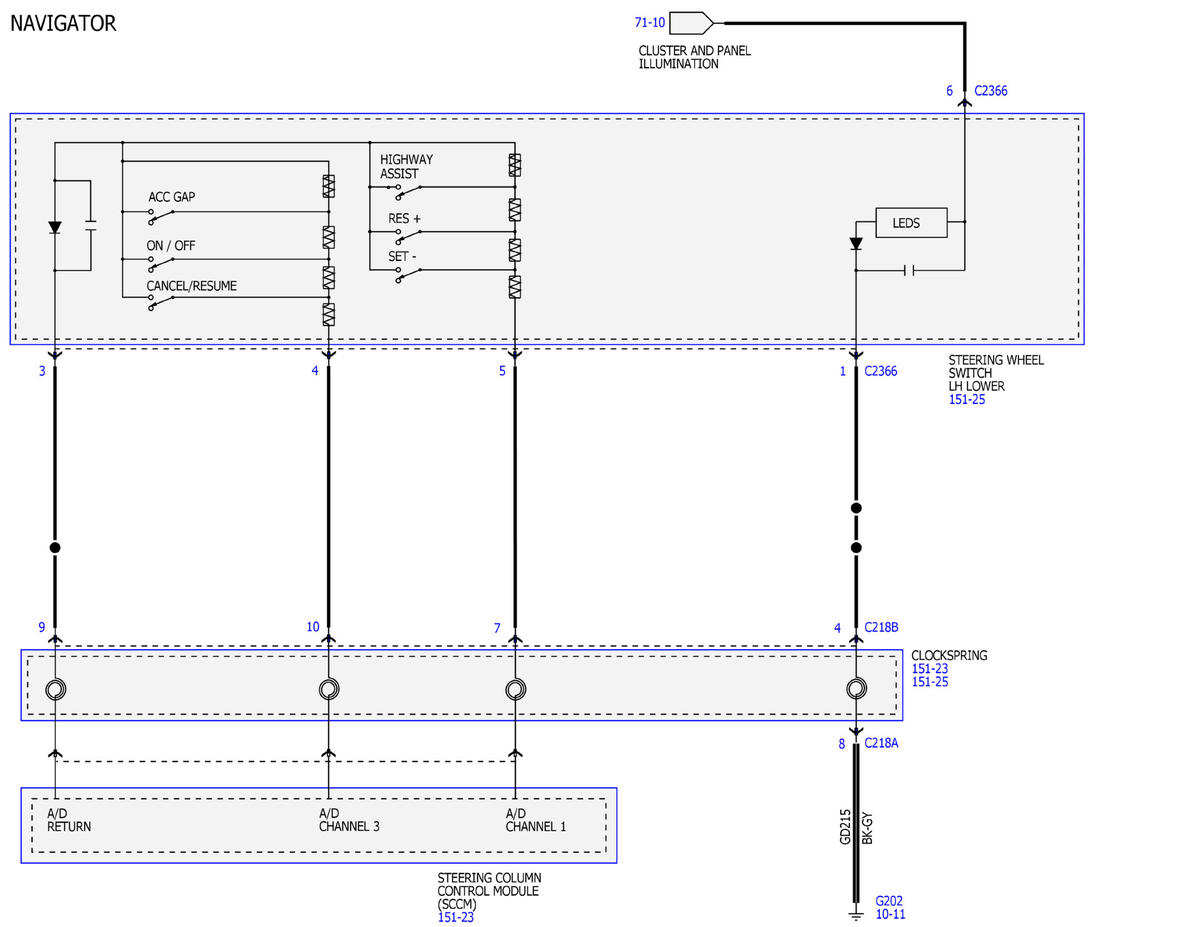

Fig 6: Cruise Control Wiring Diagrams (6 Of 11)

Courtesy of FORD MOTOR COMPANY

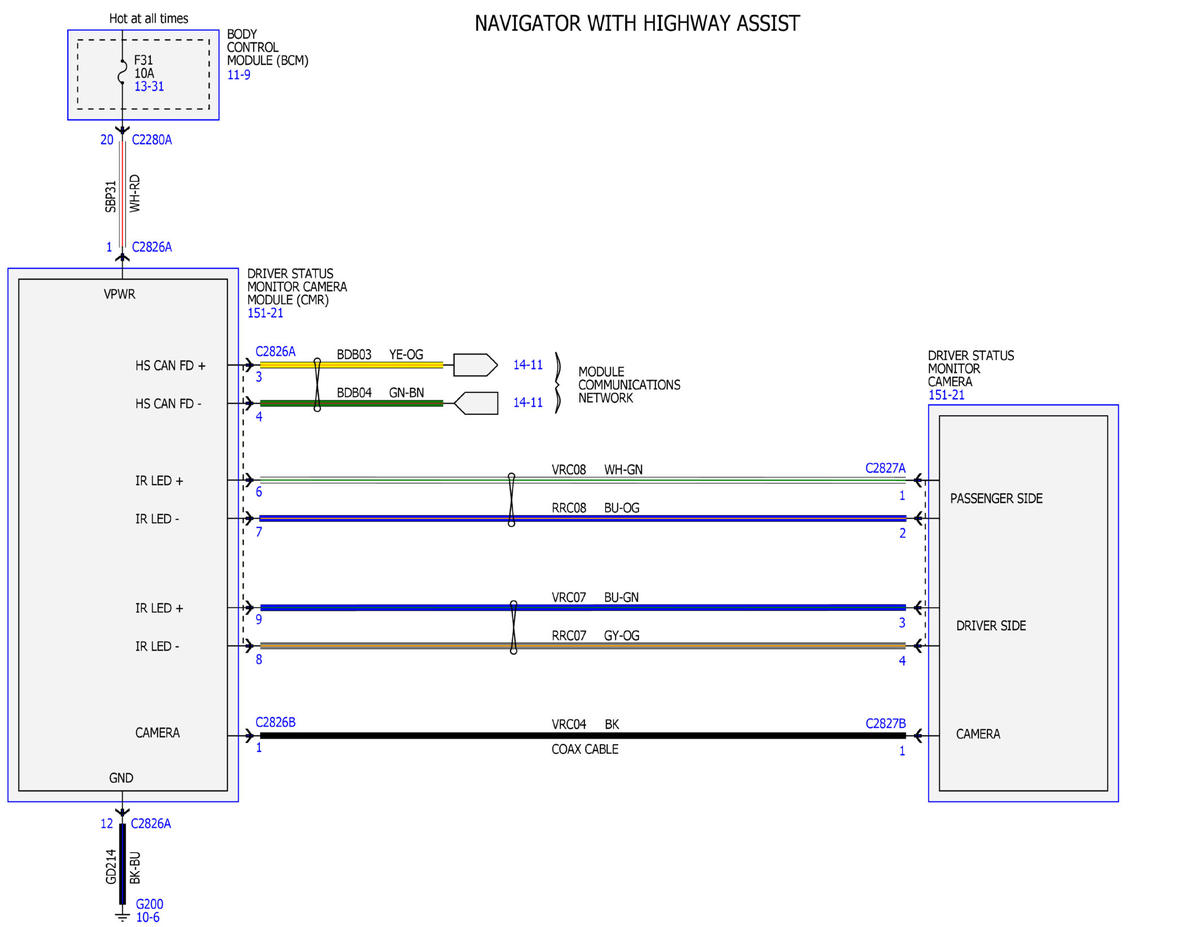

Fig 7: Cruise Control Wiring Diagrams (7 Of 11)

Courtesy of FORD MOTOR COMPANY

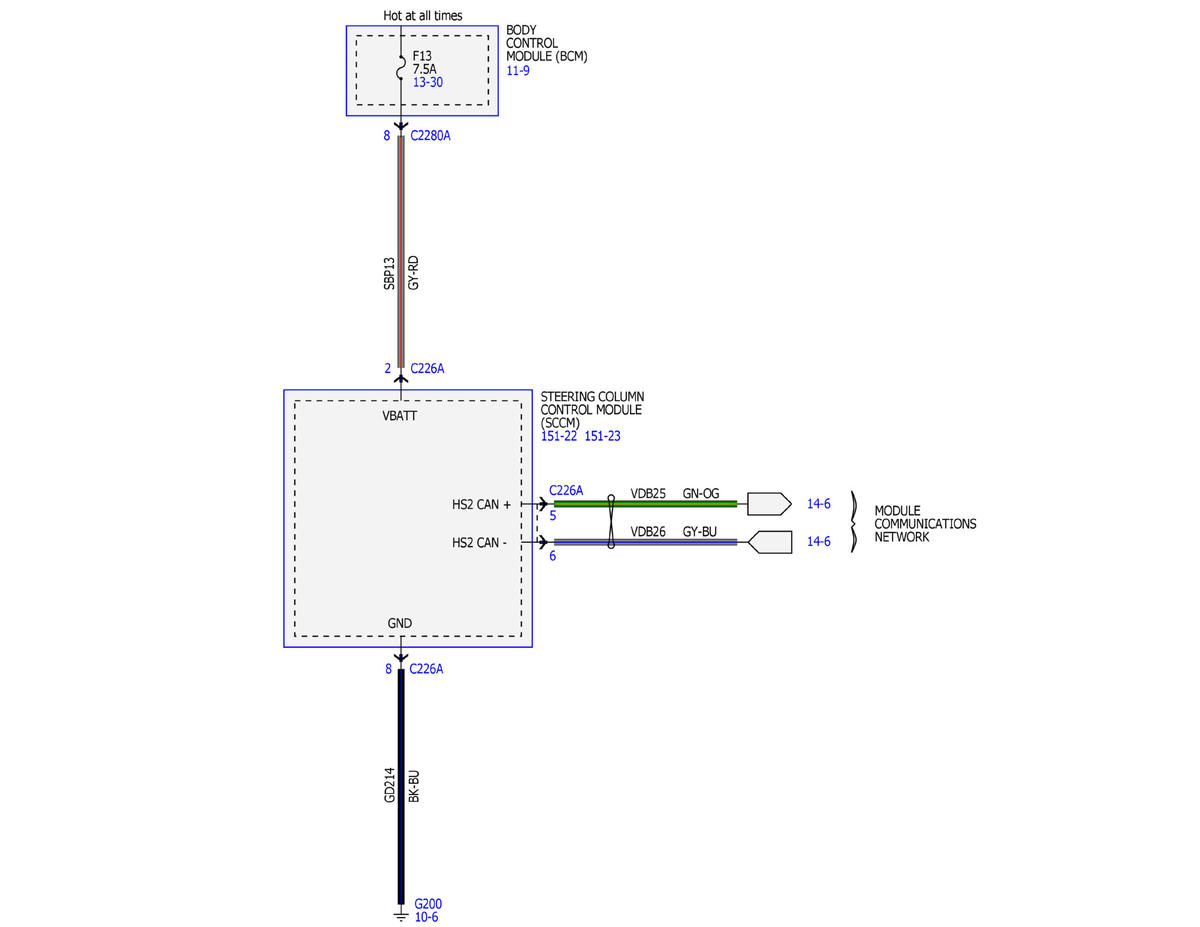

Fig 8: Cruise Control Wiring Diagrams (8 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Cruise Control Wiring Diagrams (9 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Cruise Control Wiring Diagrams (10 Of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Cruise Control Wiring Diagrams (11 Of 11)

Courtesy of FORD MOTOR COMPANY
