Fuse And Relay Location

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

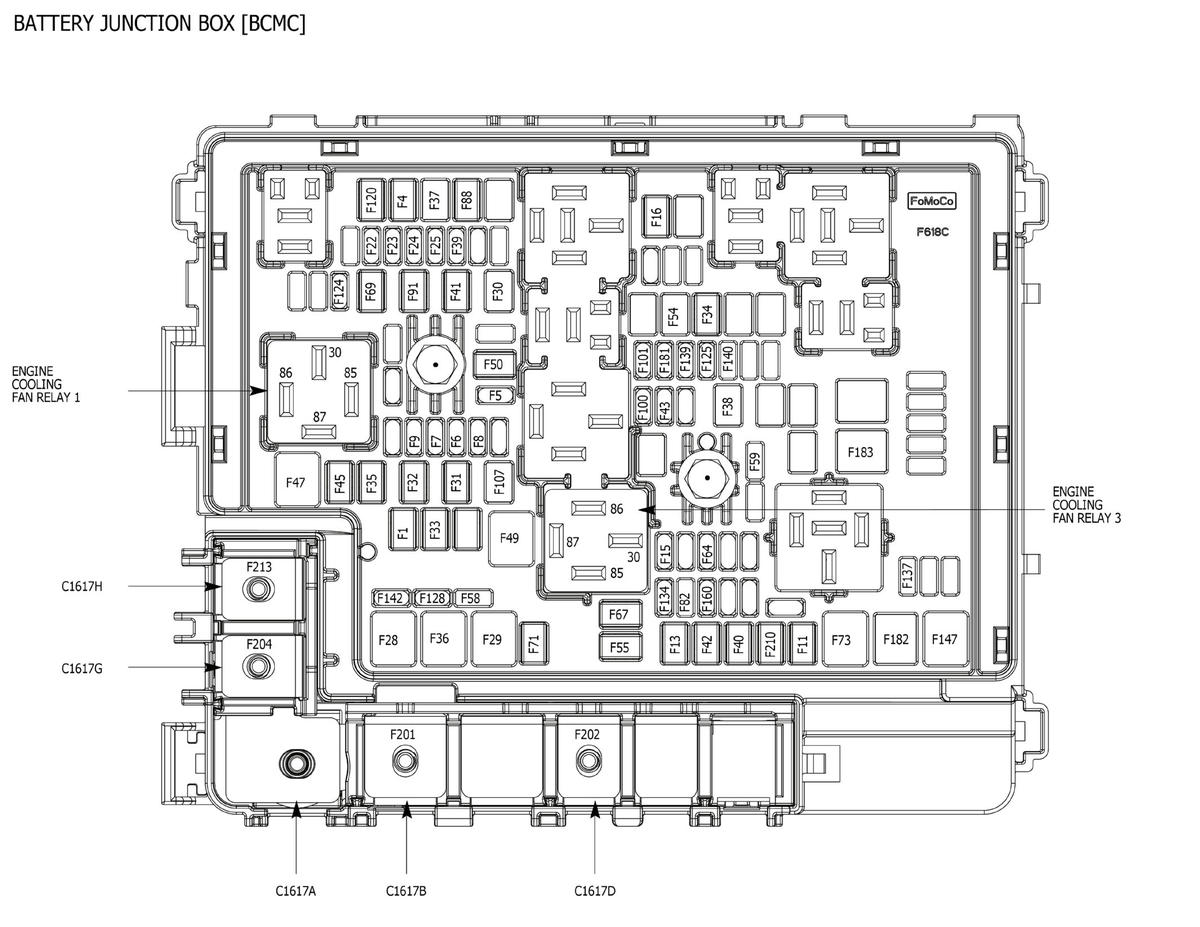

Fig 1: Battery Junction Box (BCMC) Components Location (1 Of 2)

Courtesy of FORD MOTOR COMPANY

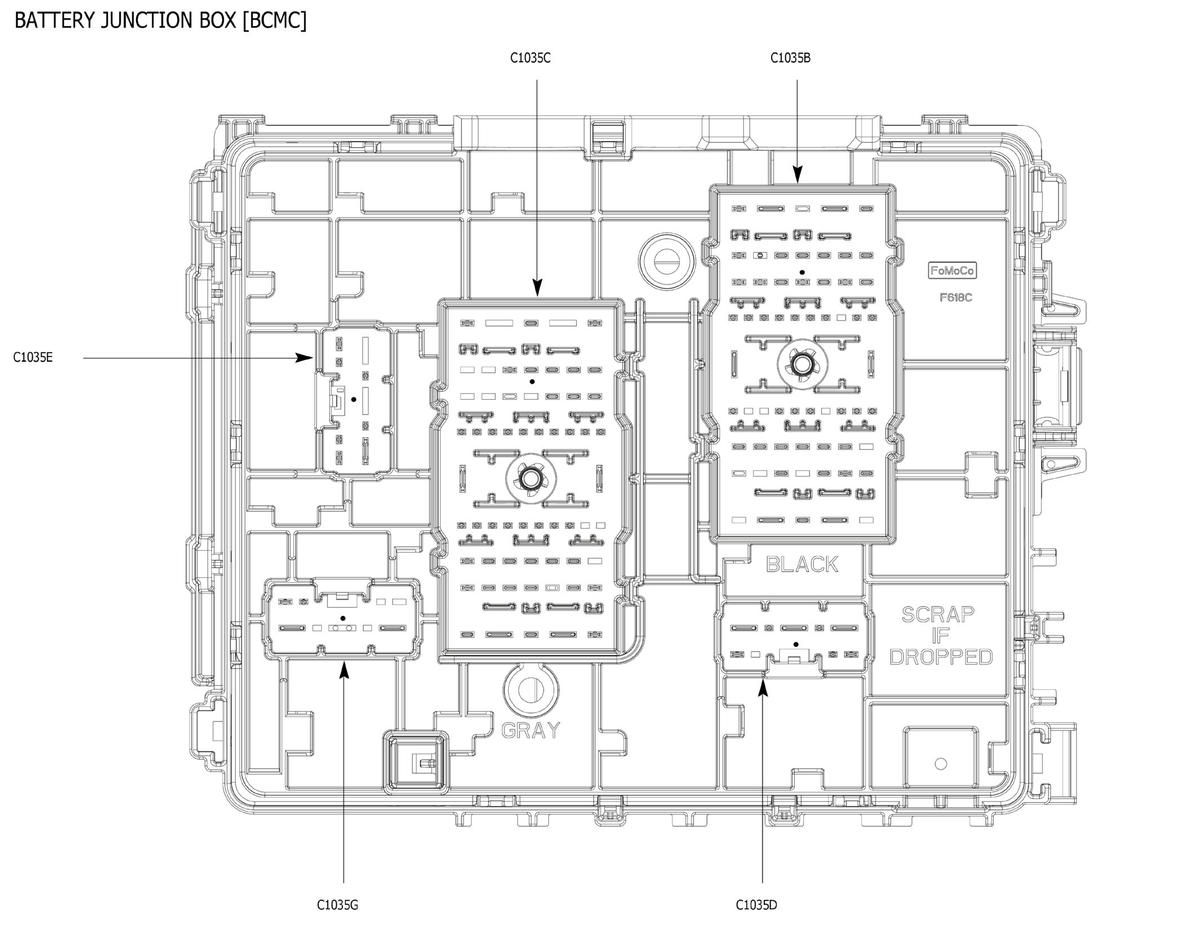

Fig 2: Battery Junction Box (BCMC) Components Location (2 Of 2)

Courtesy of FORD MOTOR COMPANY

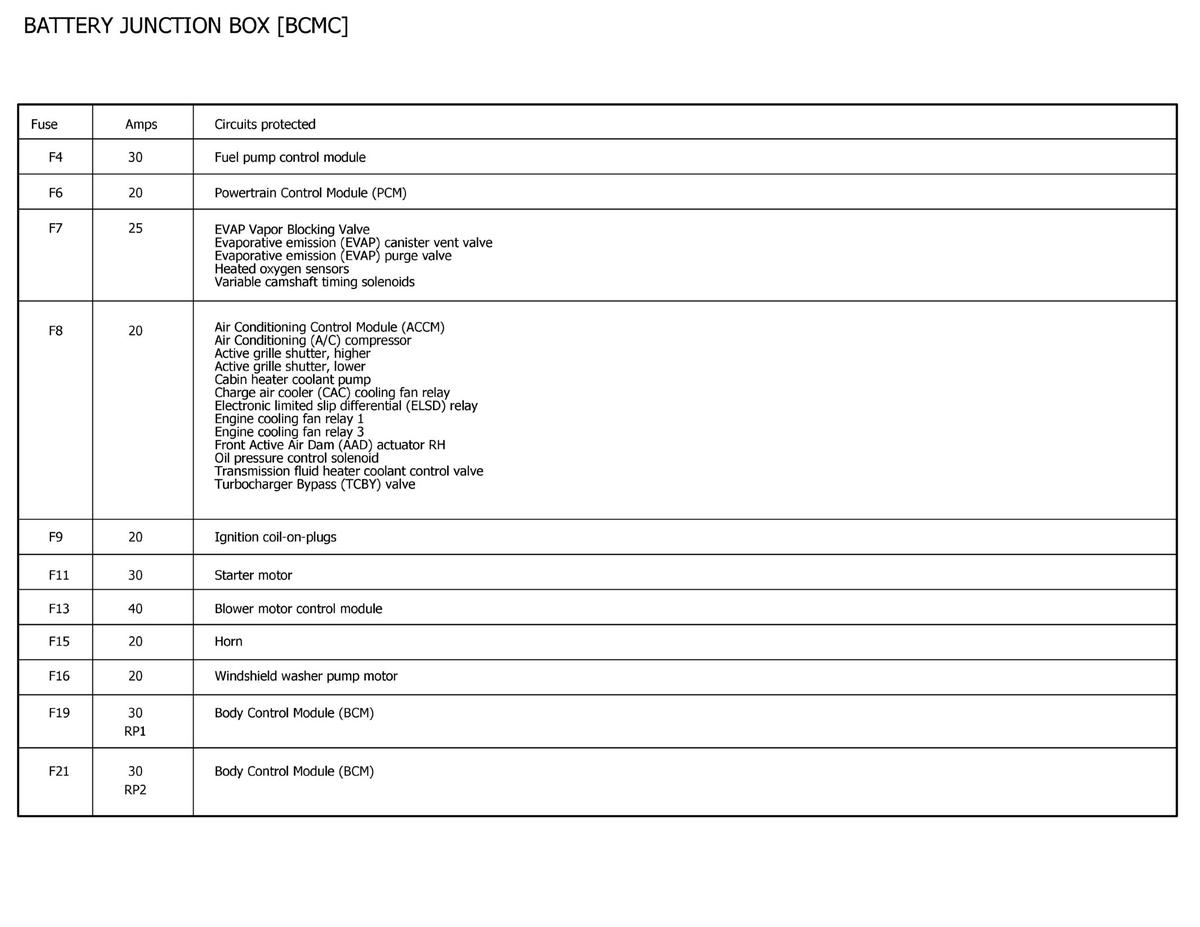

Fig 3: Battery Junction Box (BCMC) Components Location Legend F4 - F21 (1 Of 6)

Courtesy of FORD MOTOR COMPANY

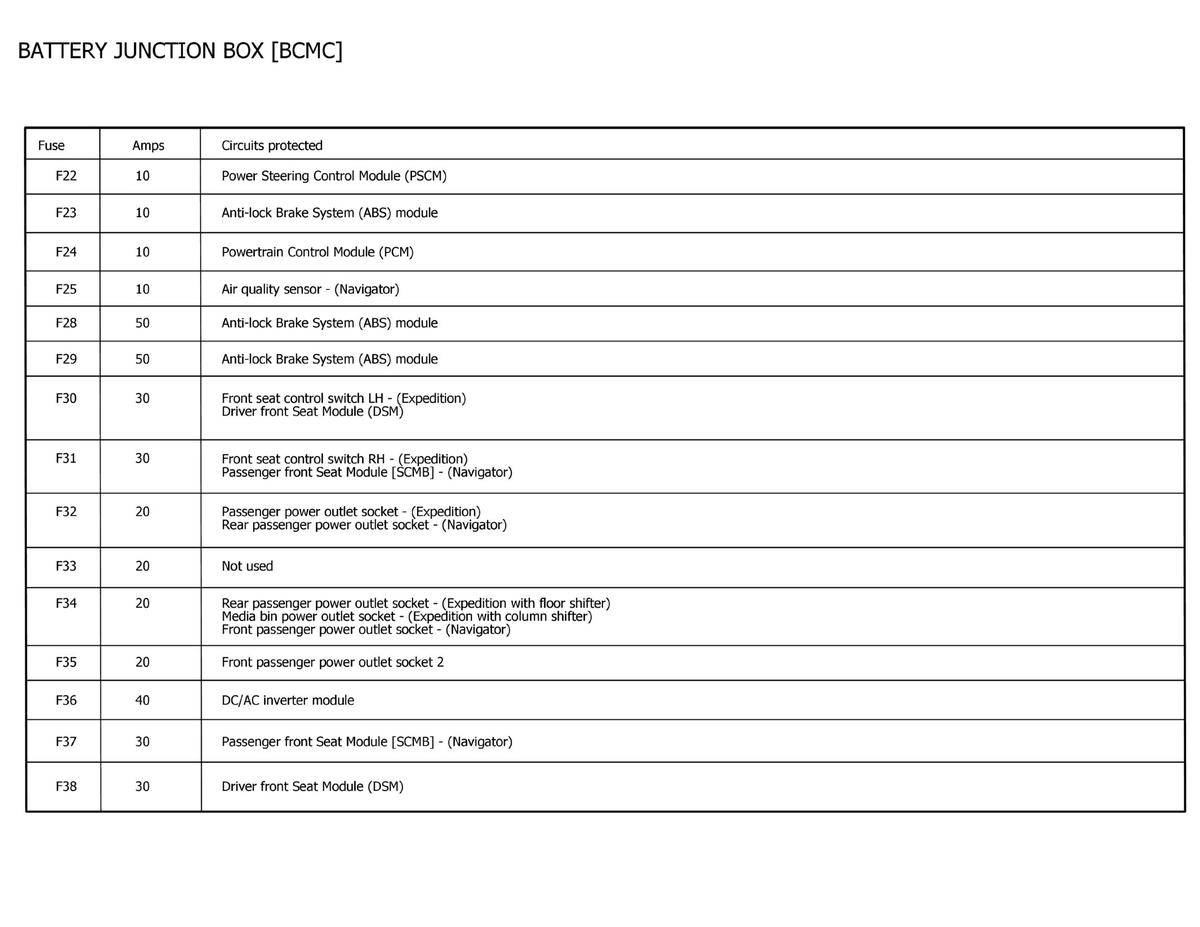

Fig 4: Battery Junction Box (BCMC) Components Location Legend F22 - F38 (2 Of 6)

Courtesy of FORD MOTOR COMPANY

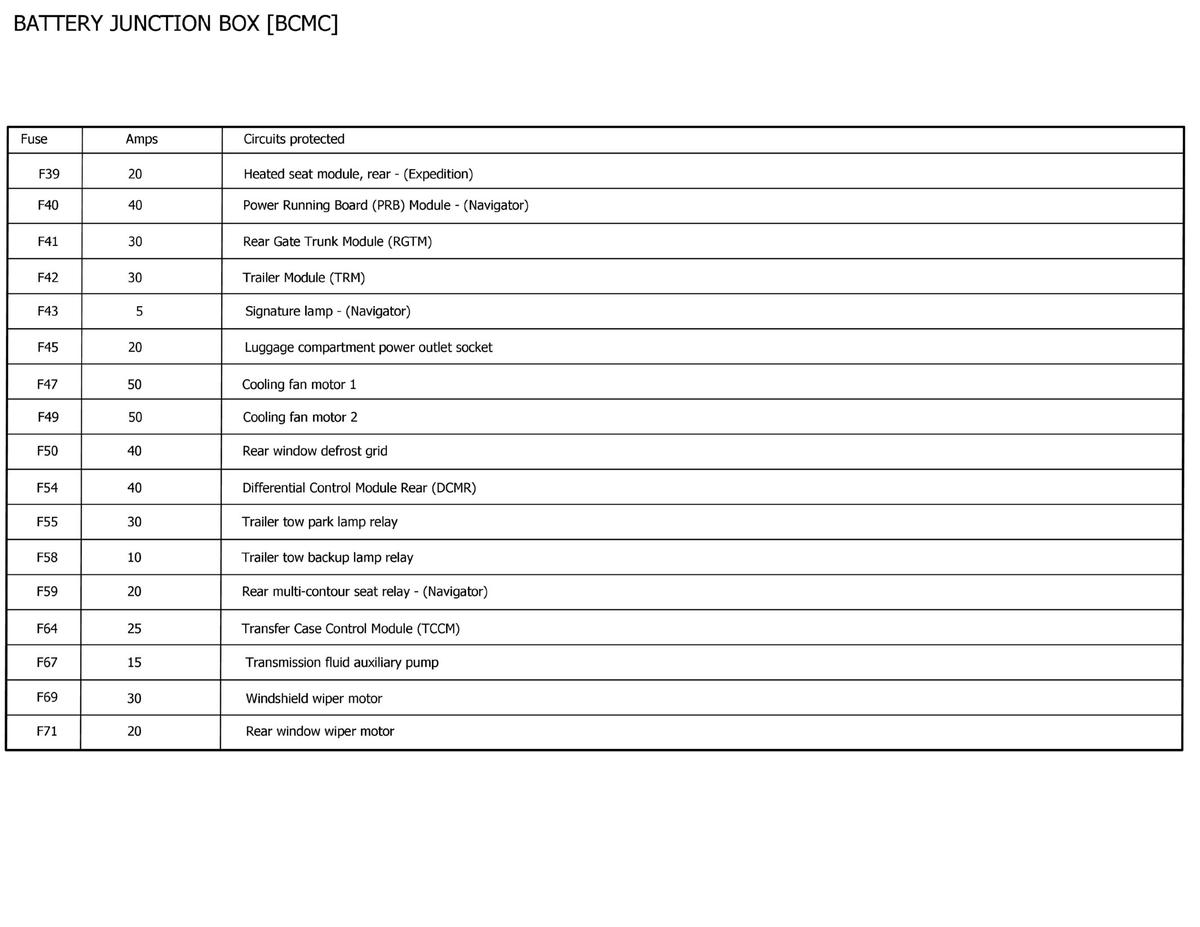

Fig 5: Battery Junction Box (BCMC) Components Location Legend F39 - F71 (3 Of 6)

Courtesy of FORD MOTOR COMPANY

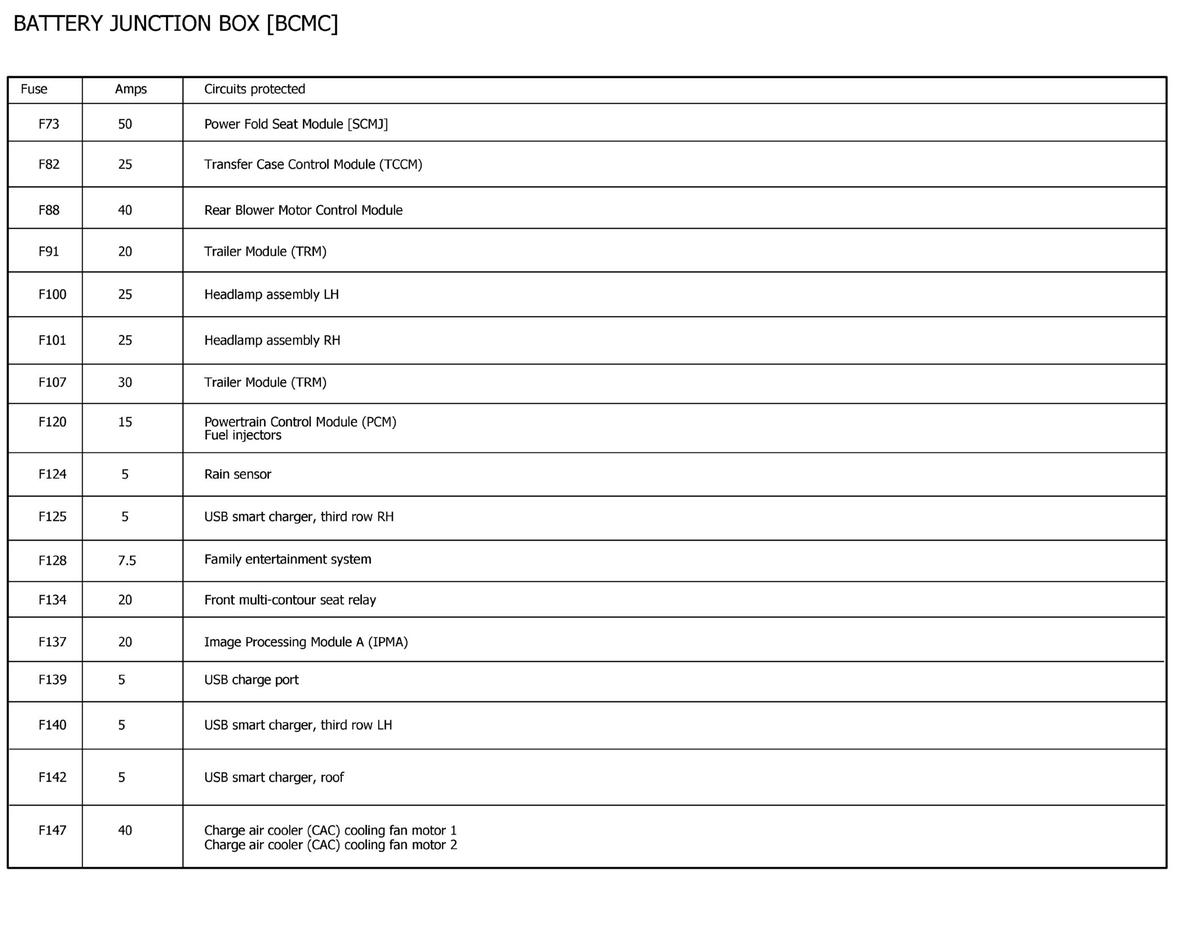

Fig 6: Battery Junction Box (BCMC) Components Location Legend F73 - F147 (4 Of 6)

Courtesy of FORD MOTOR COMPANY

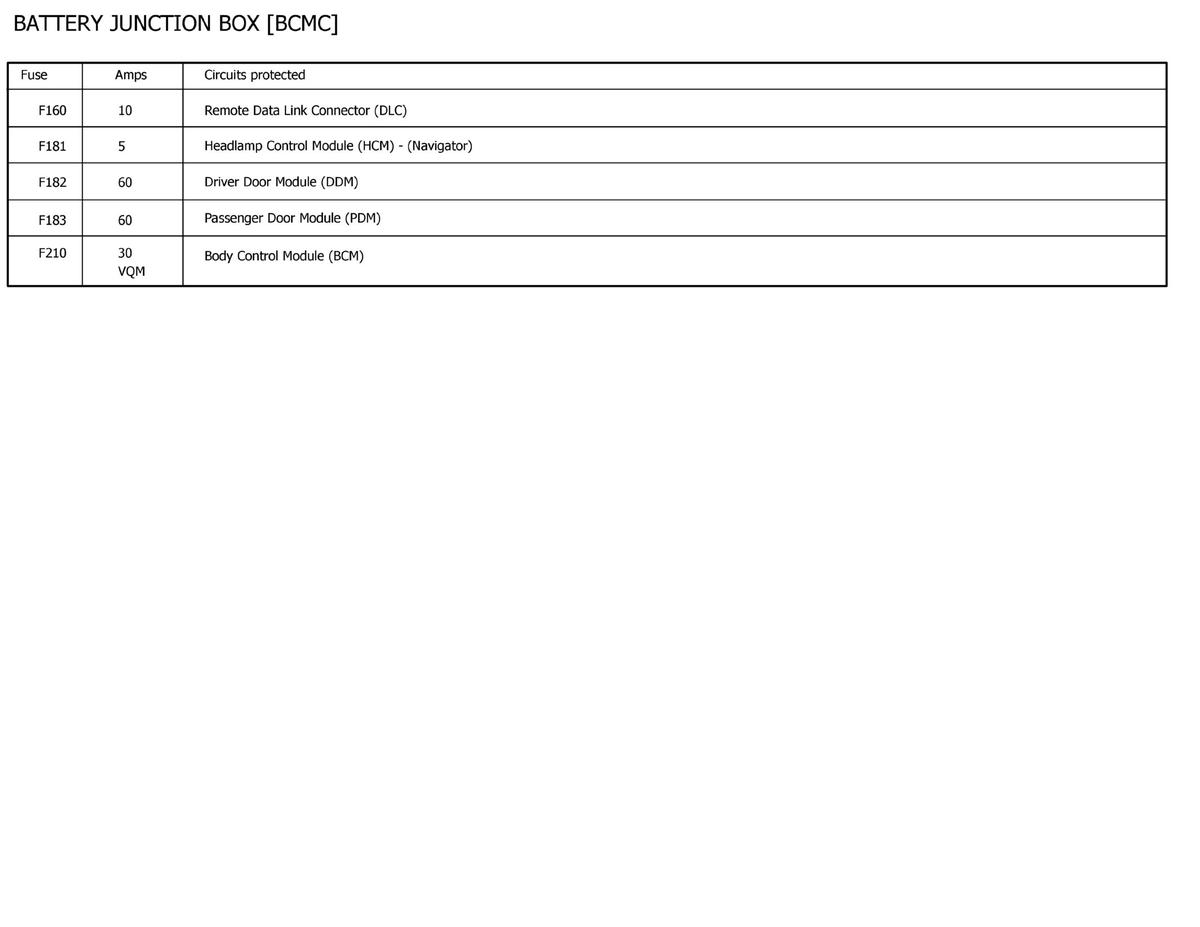

Fig 7: Battery Junction Box (BCMC) Components Location Legend F160 - F210 (5 Of 6)

Courtesy of FORD MOTOR COMPANY

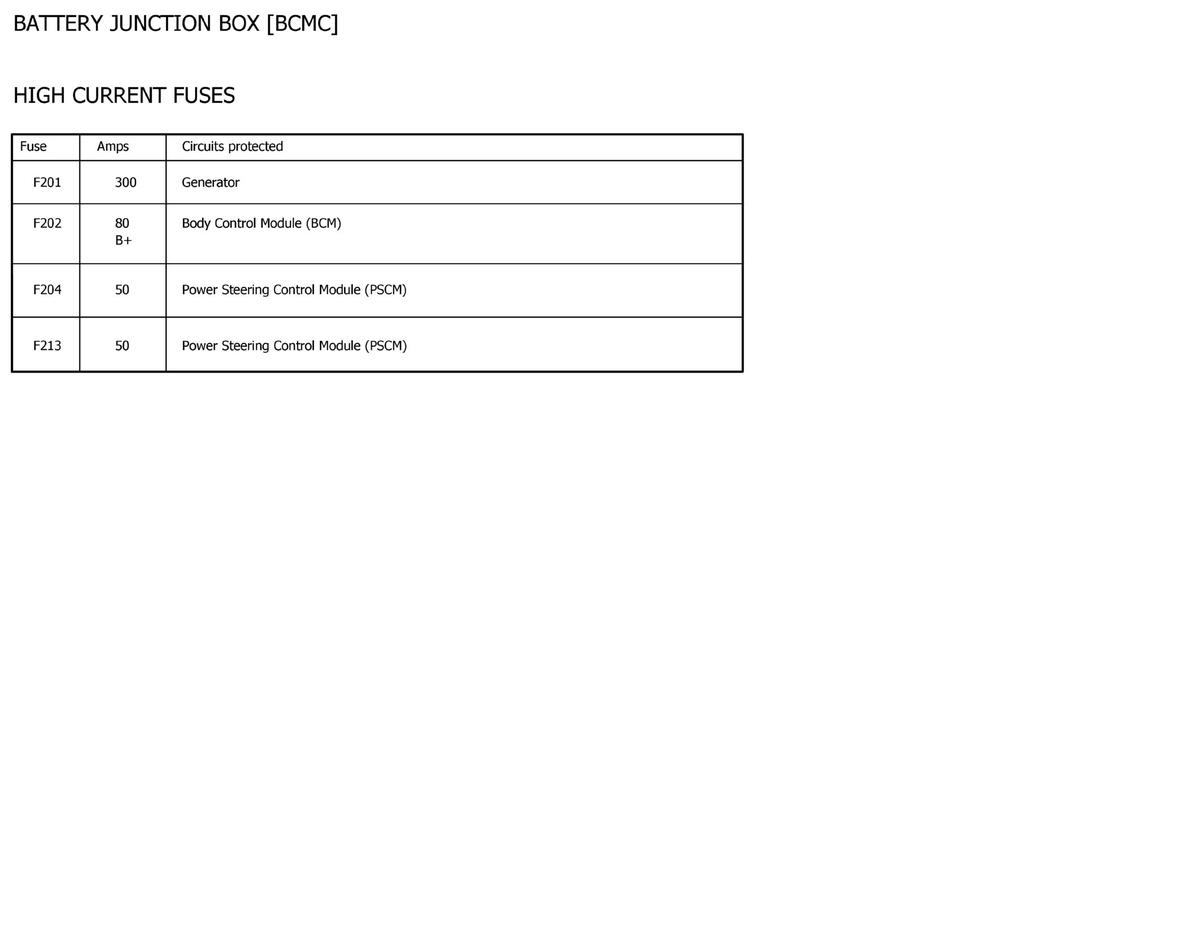

Fig 8: Battery Junction Box (BCMC) Components Location Legend F201 - F213 (6 Of 6)

Courtesy of FORD MOTOR COMPANY

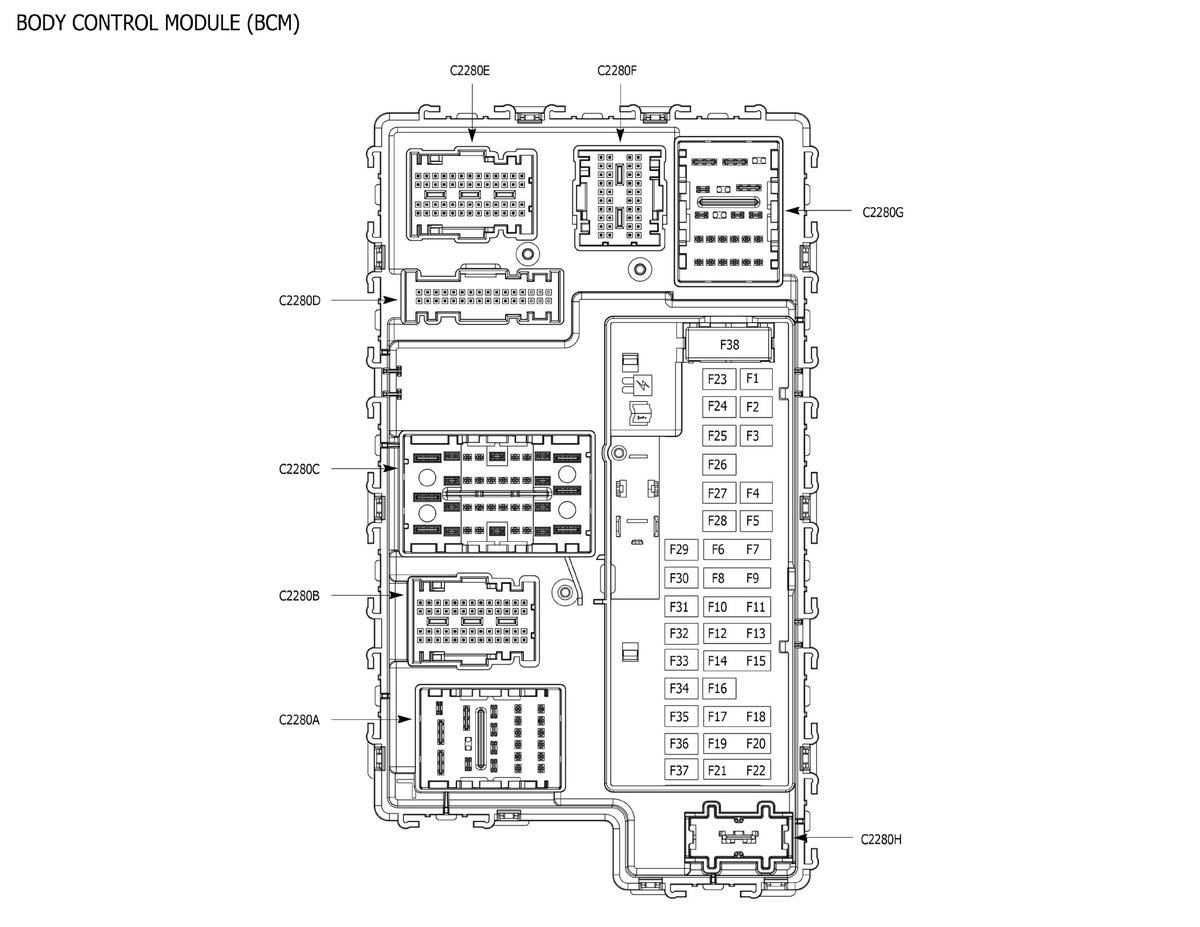

Fig 9: Battery Control Module (BCM) Components Location

Courtesy of FORD MOTOR COMPANY

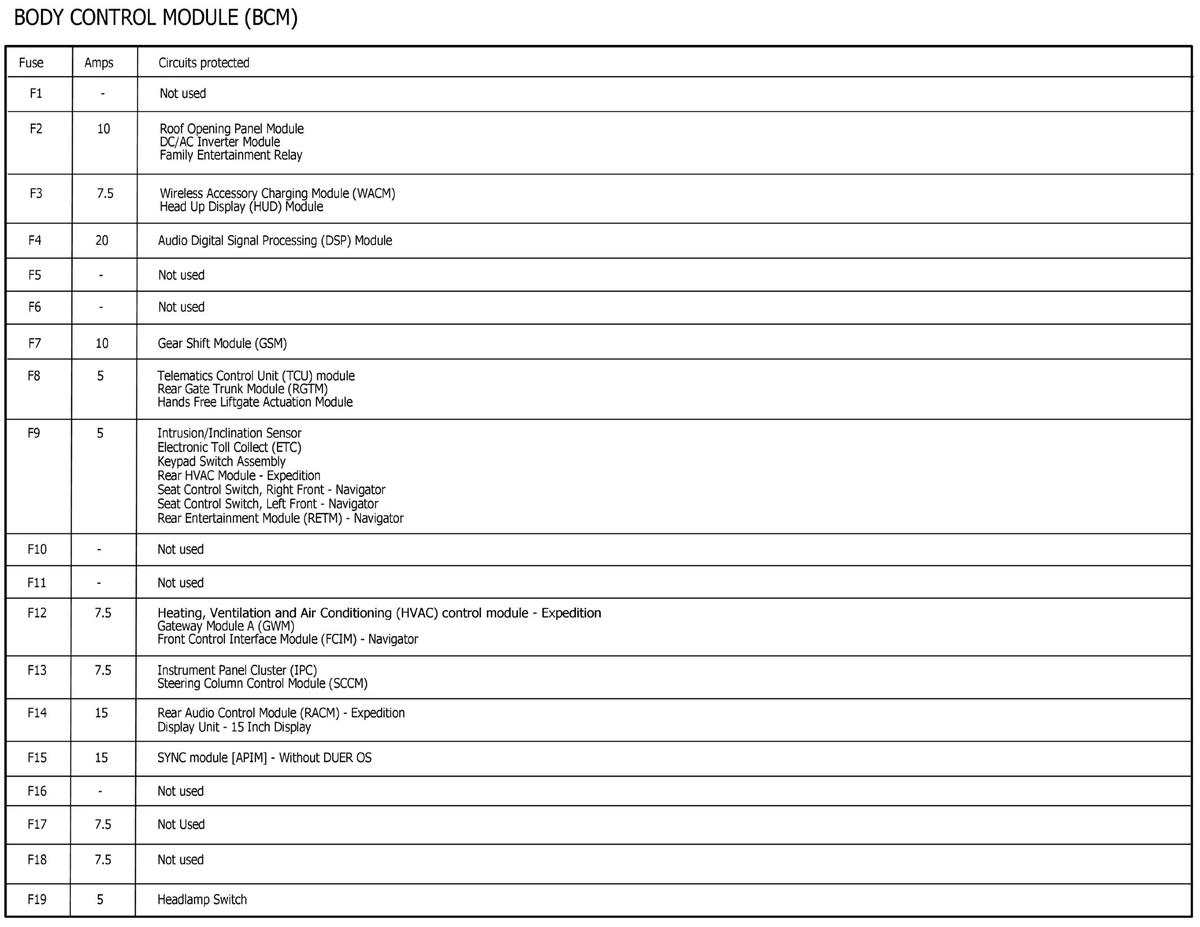

Fig 10: Body Control Module (BCM) Components Location Legend F1 - F19 (1 Of 2)

Courtesy of FORD MOTOR COMPANY

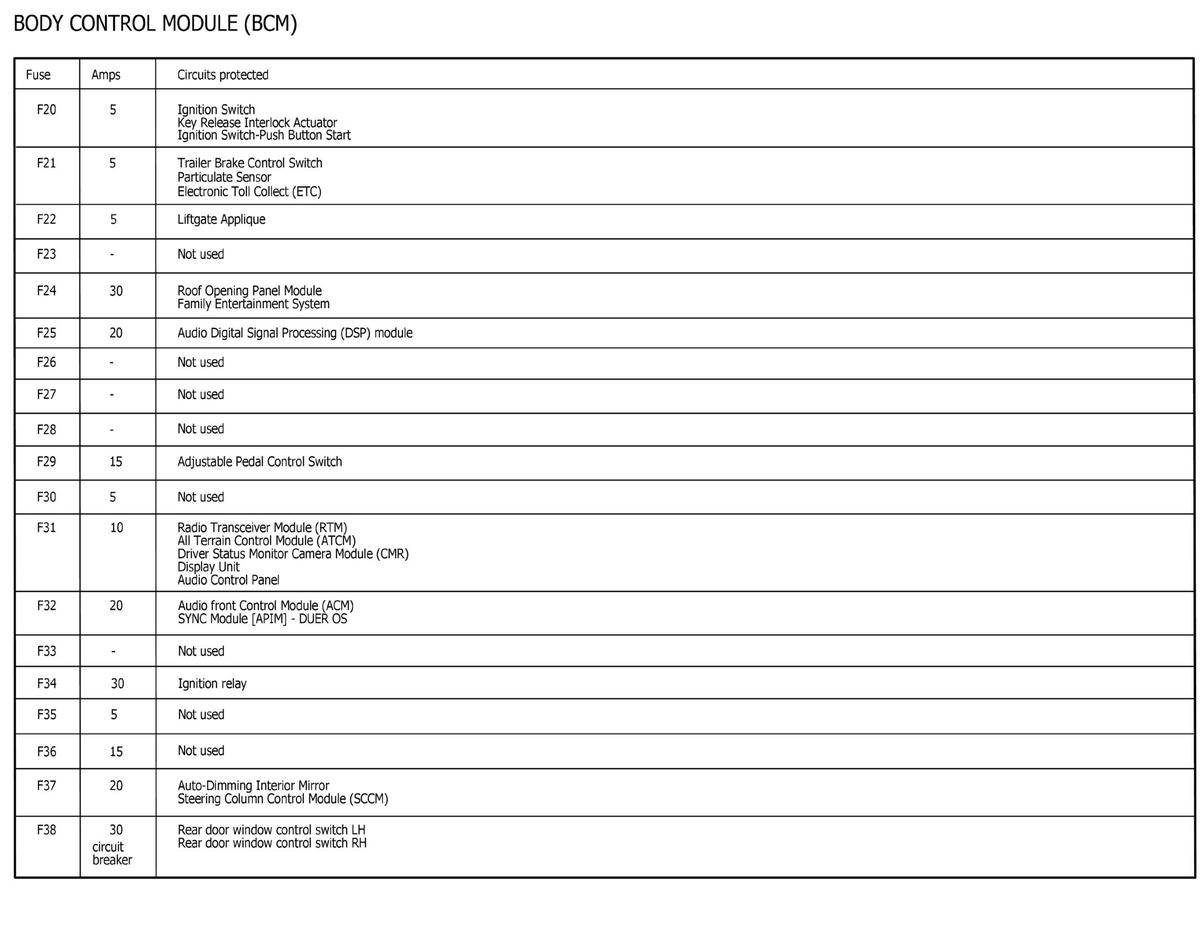

Fig 11: Body Control Module (BCM) Components Location Legend F20 - F38 (2 Of 2)

Courtesy of FORD MOTOR COMPANY
