Electronic Engine Controls - 2.0L ECOBOOST (184KW/250PS) - Mi4
>>
Description And Operation
>>
Electronic Engine Controls - Component Location
>>

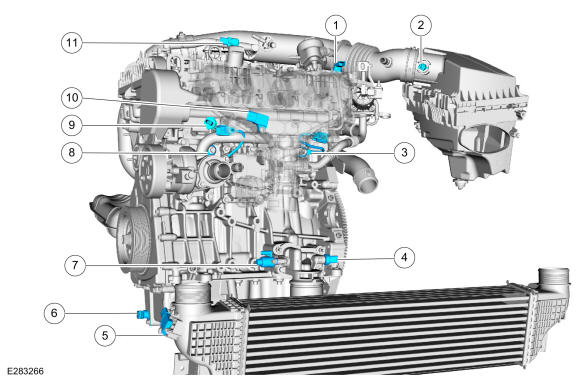

Electronic Engine Controls- Front
Electronic Engine Controls- Front
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Intake CMP sensor
2
IAT sensor
3
KS rear
4
EOP sensor
5
Turbocharger Boost Pressure Sensor
6
Engine oil level sensor
7
Oil pressure control solenoid
8
KS front
9
FRP sensor
10
MAPT sensor
11
Crankcase pressure sensor
