Rear Gate Trunk Module (RGTM): Removal
-
NOTE: This step is only necessary when installing a new component.NOTE: The PMI process must begin with the current RGTM installed. If the current RGTM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions.
- If equipped. Remove the DSP. Refer to: Audio Digital Signal Processing (DSP) Module .
- Remove the LH load space trim panel. Refer to: Loadspace Trim Panel .
-

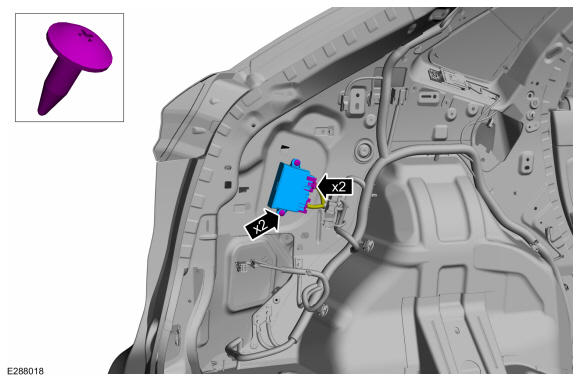

- Disconnect the electrical connectors.
- Remove the screws.
- Remove the RGTM.
