Rear Door Alignment: Adjustment
All alignments

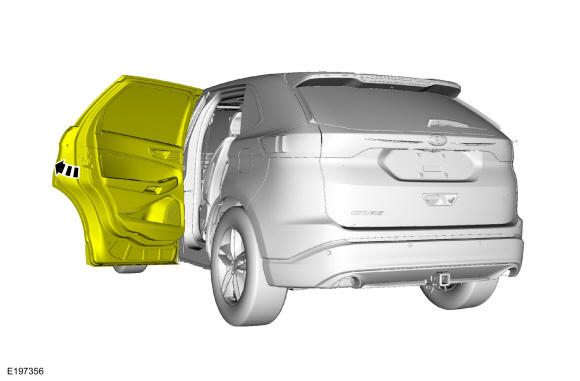

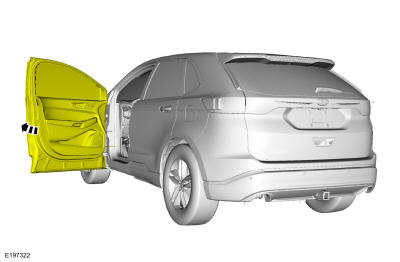

- Open the rear door.

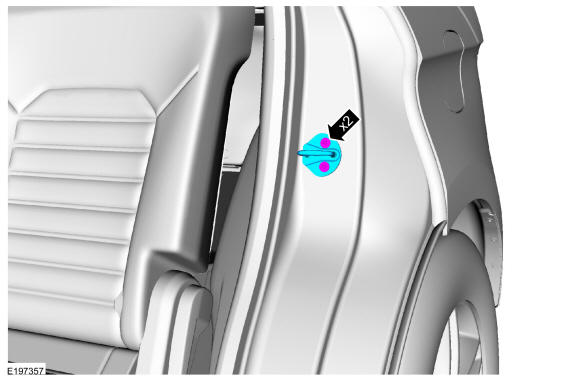

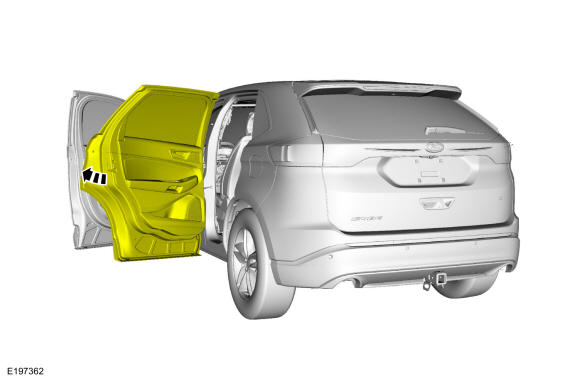

- Remove the bolts and the striker assembly.
Torque: 18 lb.ft (25 Nm)

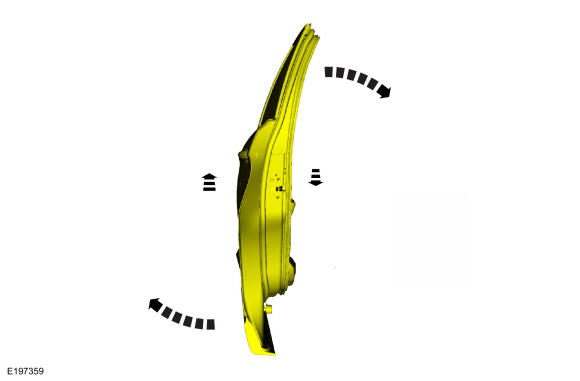

Rear door in and out, up and down alignment

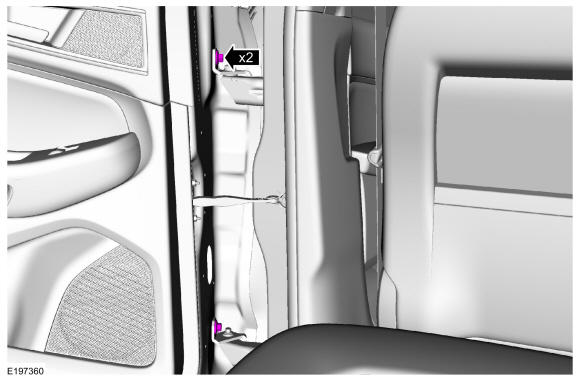

- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
- Adjust the door to specification. Refer to:
.
- Tighten the bolts.
Torque: 35 lb.ft (48 Nm)

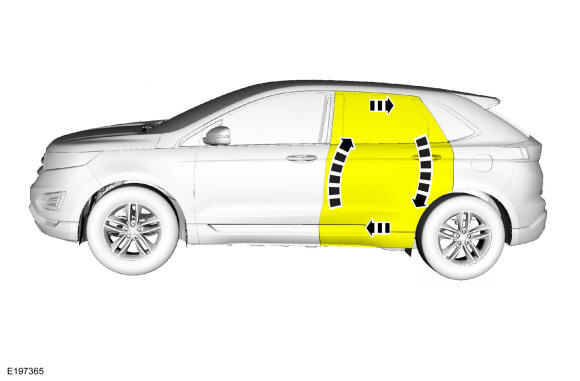

Rear door fore, aft and tilt alignment
- Remove the lower B-pillar trim panel. Refer to: B-Pillar Trim Panel .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

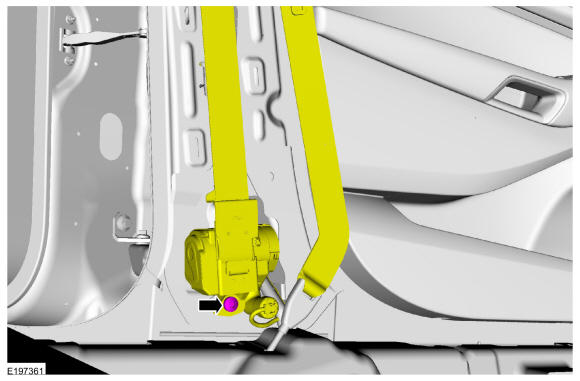

- Remove the bolt and position aside the safety belt retractor.
- Open the front door.

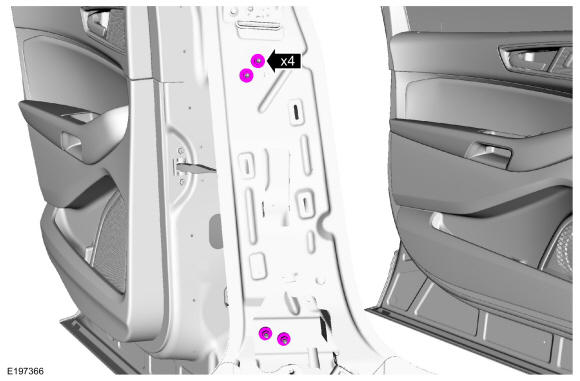

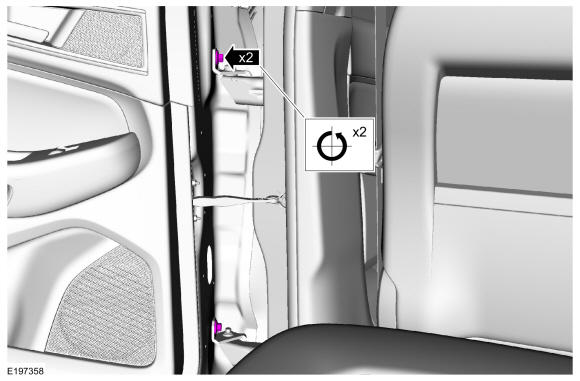

- Loosen the nuts to permit movement of the door. Loosen: : 2 turn(s)
- Carefully close the rear door.
- Carefully close the front door.

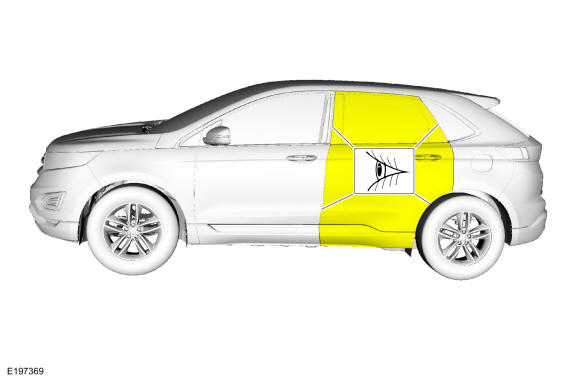

- Adjust the door to specification. Refer to:
.
- Carefully open the front door.
- Carefully open the rear door.
- Tighten the nuts.
Torque: 22 lb.ft (30 Nm)
- Install the safety belt retractor and the bolt.
Torque: 30 lb.ft (40 Nm)
-
NOTE: During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.
Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
- Check the active restraint system for correct operation. Refer to: Seatbelt Systems
.
All alignments
- Install the striker assembly.
Torque: 18 lb.ft (25 Nm)
- Inspect the body-to-rear door dimensions. Refer to: .
