Pedestrian Alert Control Module (PACM): Removal
WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.

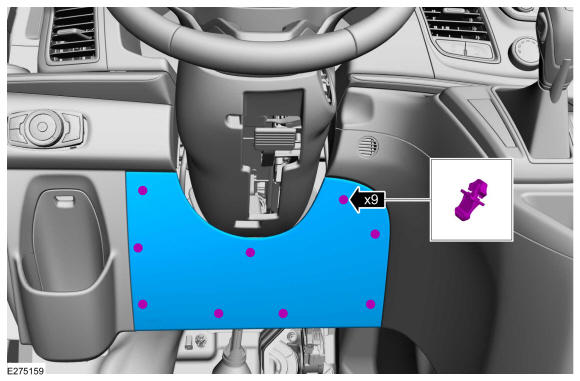

- Release the clips and remove the lower steering column opening trim panel.

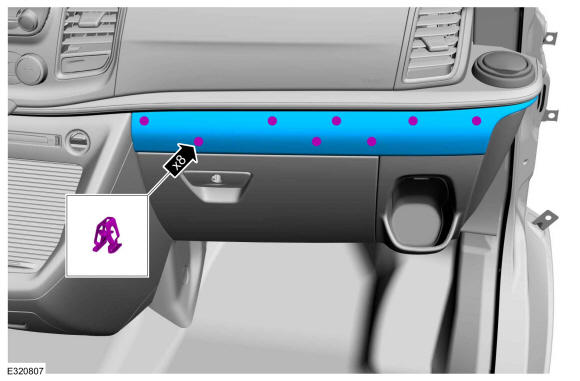

- Release the clips and remove the trim panel.

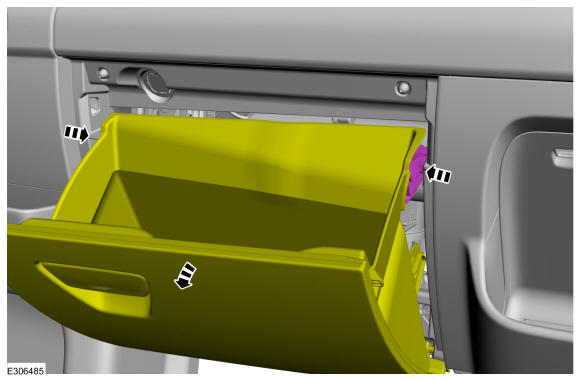

- Press the stop tabs inward and fully lower the glove compartment.

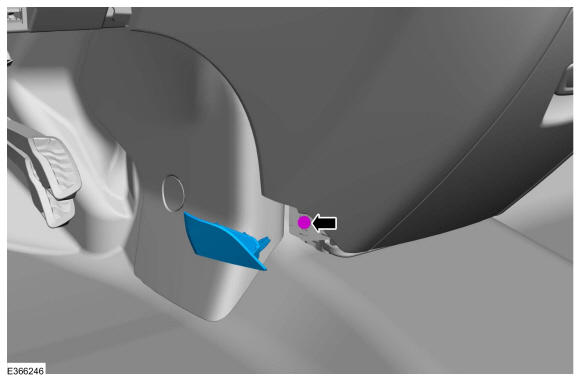

- On both sides. Remove the cover and the screw.

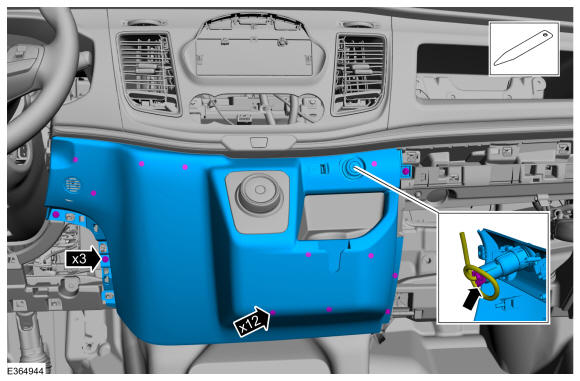

- Remove the screws, release the clips, disconnect the electrical connector and remove the lower instrument panel trim panel. Install the General Equipment: Interior Trim Remover
Torque: 19 lb.in (2.2 Nm)

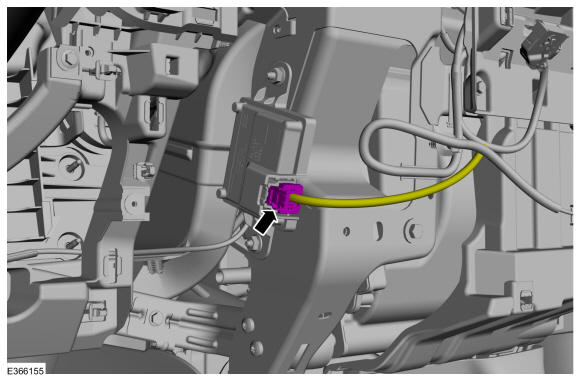

- Disconnect the electrical connector.

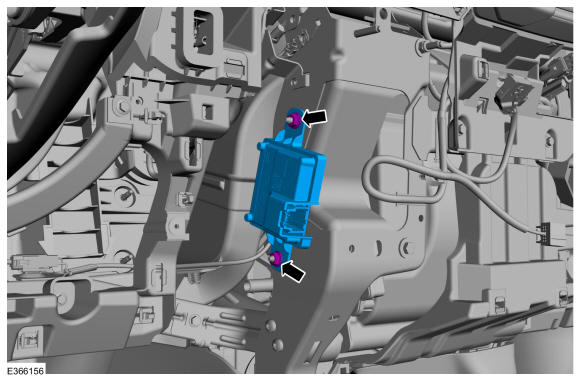

- Remove the nuts and the PACM.
Torque: 48 lb.in (5.4 Nm)
