Steering Column: Installation

  1. To install, reverse the removal procedure.

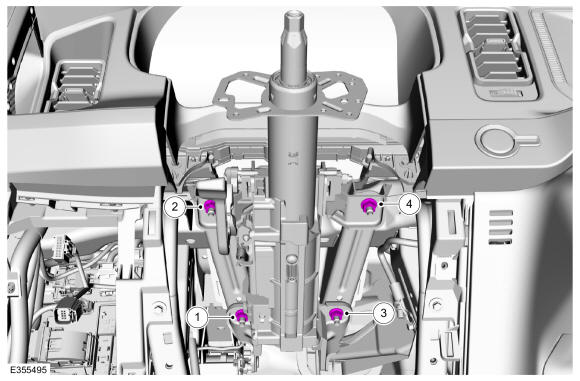

  2. Torque the steering column retainers following the sequence shown.

    Torque: 133 lb.in (15 Nm)

    GFD755901Courtesy of FORD MOTOR COMPANY
  3. Repower the SRS. Refer to: SUPPLEMENTAL RESTRAINT SYSTEM (SRS) REPOWERING .
