Front Seat Track Repair

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Activation

1. If equipped, using both the height and front tilt functions, adjust the seat to it's highest position.
2. If equipped with a front seat lower trim panel valance, remove the affected front seat. Refer to the Front Seats  removal and installation procedure.
3. If equipped, remove the DSM or SCMB. Refer to the Front Seats  removal and installation procedure.
4. If equipped, remove the seat module mounting bracket.

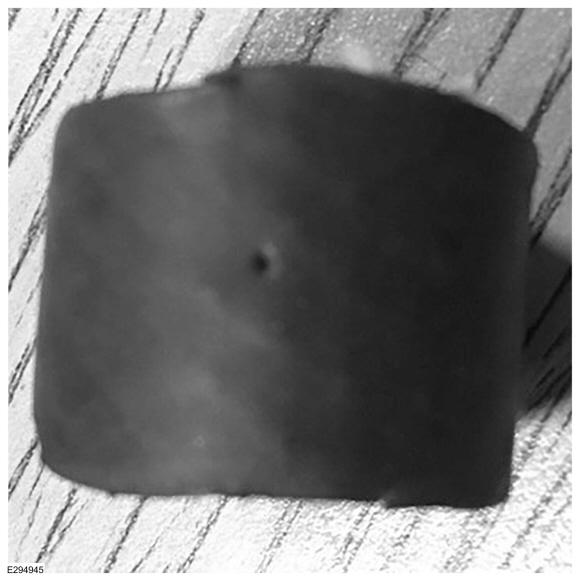

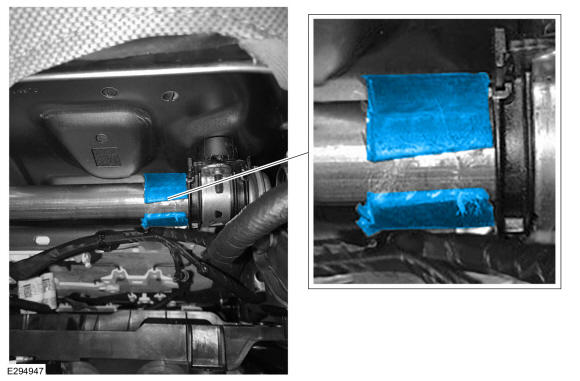

5. Cut 2 pieces of 1 inch (25.4mm) long section of 3/4 inch (19mm) diameter heater hose.

   Courtesy of FORD MOTOR COMPANY

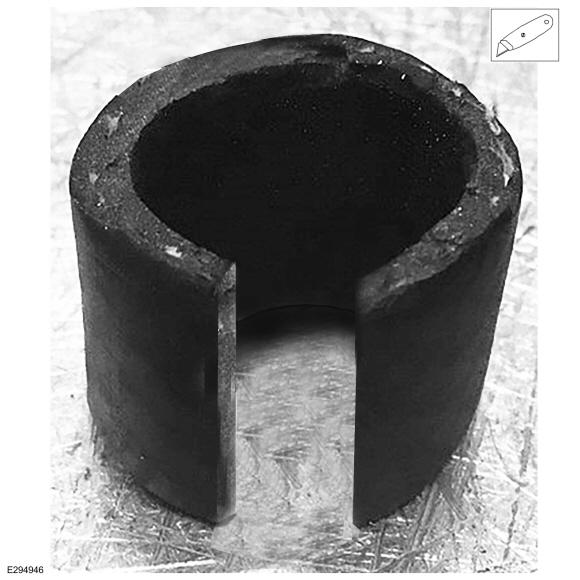

6. Cut a slit in both of the 1 inch (25.4mm) pieces of heater hose.

   Courtesy of FORD MOTOR COMPANY

7. On both sides, install the heater hose over the front cross tube.

   Courtesy of FORD MOTOR COMPANY

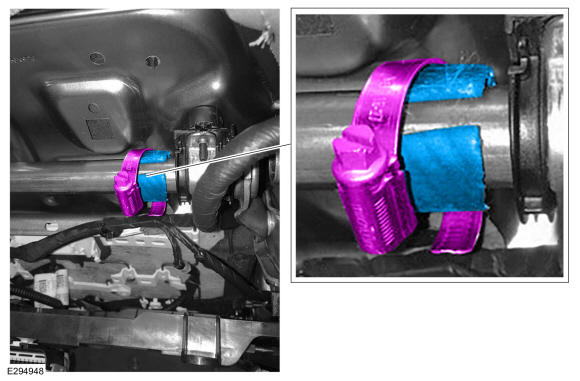

8. On both sides, install a 3/8 inch (9.5mm) hose clamp over the heater hose securing the heater hose to the cross tube.

   Courtesy of FORD MOTOR COMPANY

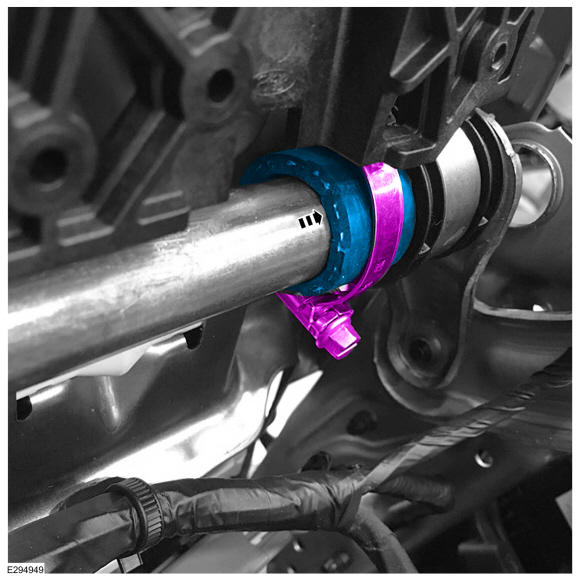

9. NOTE: Note the orientation of the 3/8 inch (9.5mm) hose clamp.

   On both sides, push the heater hose against the handcuff bracket or cushion hook and tighten the hose clamp as shown.

   Torque: 33 lb.in (3.7 Nm)

   Courtesy of FORD MOTOR COMPANY

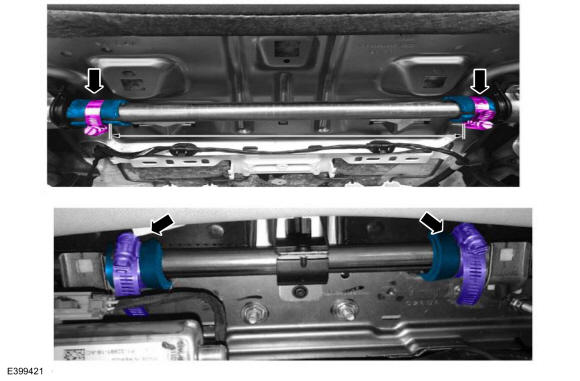

10. On both sides, verify the position of the heater hose and hose clamp.

    Courtesy of FORD MOTOR COMPANY

11. If equipped, install the seat module mounting bracket.
12. If equipped, install the DSM or SCMB. Refer to the appropriate 501-10A removal and installation procedure.
13. If equipped with a front seat lower trim panel valance, install the affected front seat. Refer to the 501-10A removal and installation procedure.
