Module Controlled Functions - Component Location

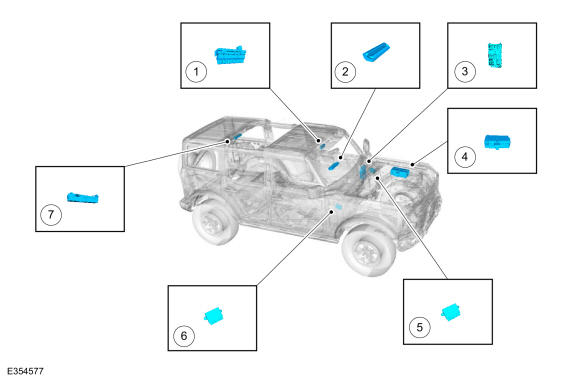

GFD760549

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Auxiliry Switches
2	SIMA
3	BCM
4	BCMC
5	DDM
6	PDM
7	RTM
