Fuel Pump Driver Module (FPDM): Installation

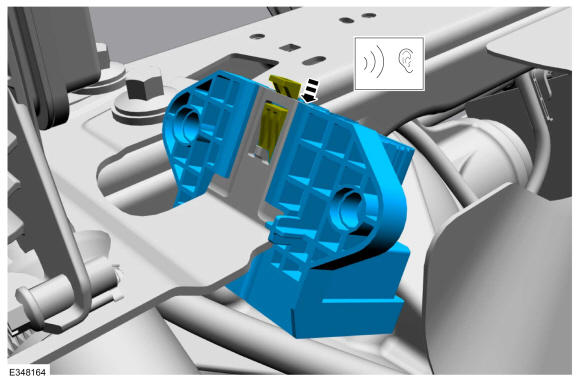

  1. .Install the fuel pump driver module to the bracket until it clicks and locks into position.
    GFD757890Courtesy of FORD MOTOR COMPANY

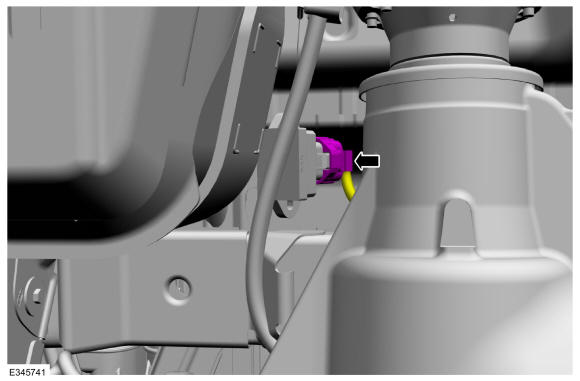

  2. Connect the fuel pump driver module electrical connector.
GFD757888Courtesy of FORD MOTOR COMPANY
