Identification Codes: VIN
VIN Locator

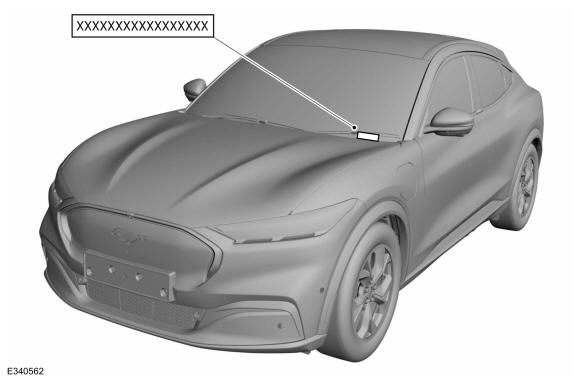

The VIN is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN is also found on the VC label. If the VIN plate requires replacement, authorized dealers must contact their respective regional office.
| Item | Description |
|---|---|
| 1 | WMI (World Manufacturer) |
| 2 | Restraint-type code |
| 3 | Vehicle line, series, body-type code |
| 4 | Engine-type code |
| 5 | Computer-generated check digit |
| 6 | Model year code |
| 7 | Assembly plant code |
| 8 | Production sequence number |
World Manufacturer Identifier
The first 3 VIN positions are the WMI (world manufacturer identifier.
- 3FM - Ford Motor Company, Mexico, Multipurpose Vehicle
Restraint Type
The fourth VIN position is the vehicle restraint type code.
- T - Active safety belts (all positions), driver and front passenger air bags, driver knee inflatables, side inflatables 1st and 2nd row.
Vehicle Line, Series and Body Type
Positions 5 through 7 indicate vehicle line, series and body type.
- K1R - BEV, Select - LHD, RWD
- K1S - BEV, Select - LHD, e AWD (electric AWD)
- K2R - BEV, California Route 1 - LHD, RWD
- K3R - BEV, Premium - LHD, RWD
- K3S - BEV, Premium - LHD, e AWD (electric AWD)
- K4S - BEV, GT - LHD, e AWD (electric AWD)
Engine Type
The eighth VIN position identifies the engine type, displacement and number of cylinders.
- 7 - Electric Motor, 88kWh usable extended range battery, primary drive unit
- E - Electric Motor, 88kWh usable extended range battery, limited rear primary drive unit, limited larger secondary drive unit
- M - Electric Motor, 68kWh usable standard range battery, rear primary drive unit
- S - Electric Motor, 68kWh usable standard range battery, rear primary drive unit, smaller secondary drive unit
- U - Electric Motor, 88kWh usable extended range battery, rear primary drive unit, smaller secondary drive unit
- X - Electric Motor, Performance 88kWh usable extended range battery, rear primary drive unit, larger secondary drive unit
Check Digit
The ninth VIN position is a government-assigned, computer-generated check digit.
- 0 - 9
Model Year
The tenth VIN position is the model year code.
- M - 2021
Assembly Plant
The eleventh digit identified the assembly plant code.
- M - Ford Cuautitlan Assembly Plant, (Mexico)
Production Sequence Number
The last 6 VIN positions are a numeric code for the vehicle build sequence. This is also the vehicle serial and warranty number. The serial number can also be found on the engine block, transmission and frame.
- A00001- F99999
