OEM Ground Distribution: Grounds

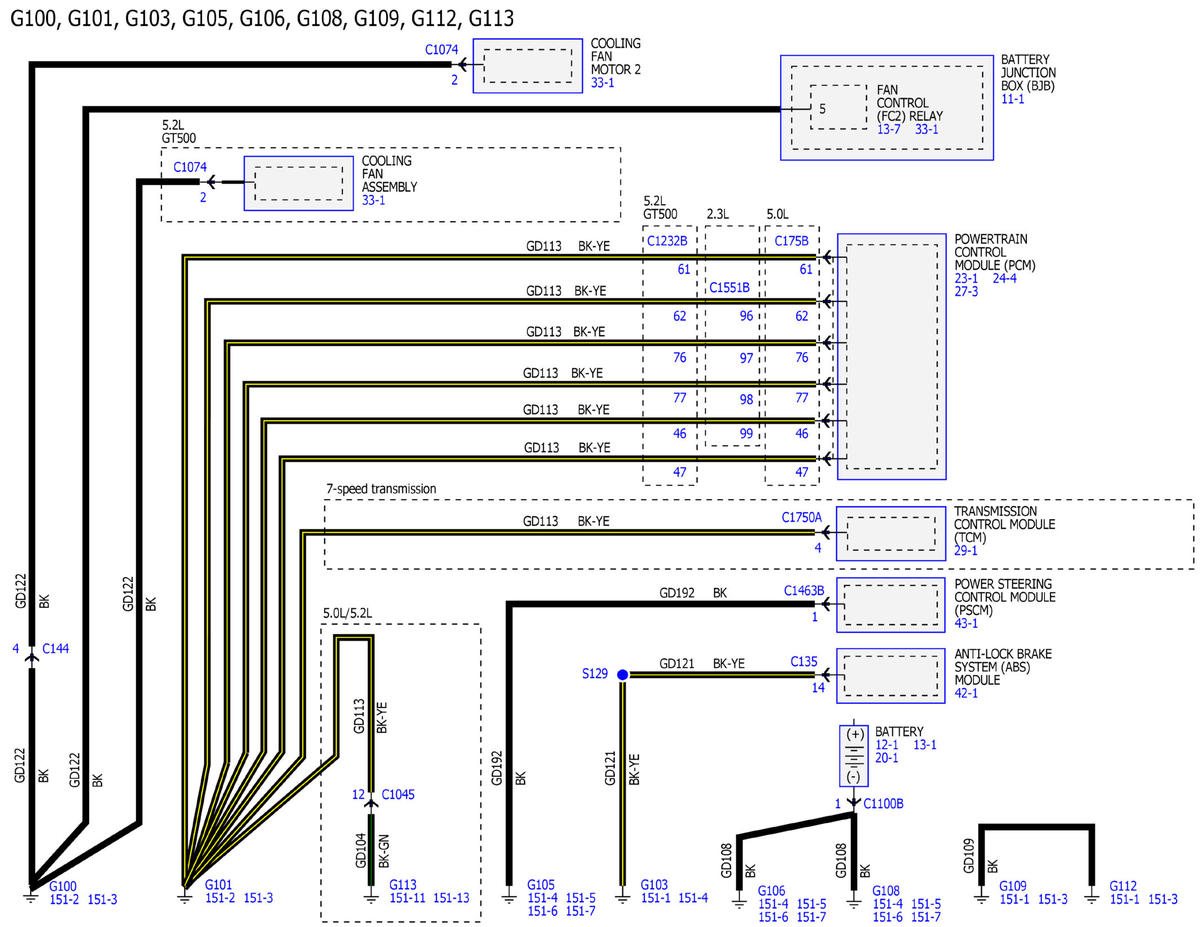

GFDWR187461Courtesy of FORD MOTOR COMPANY

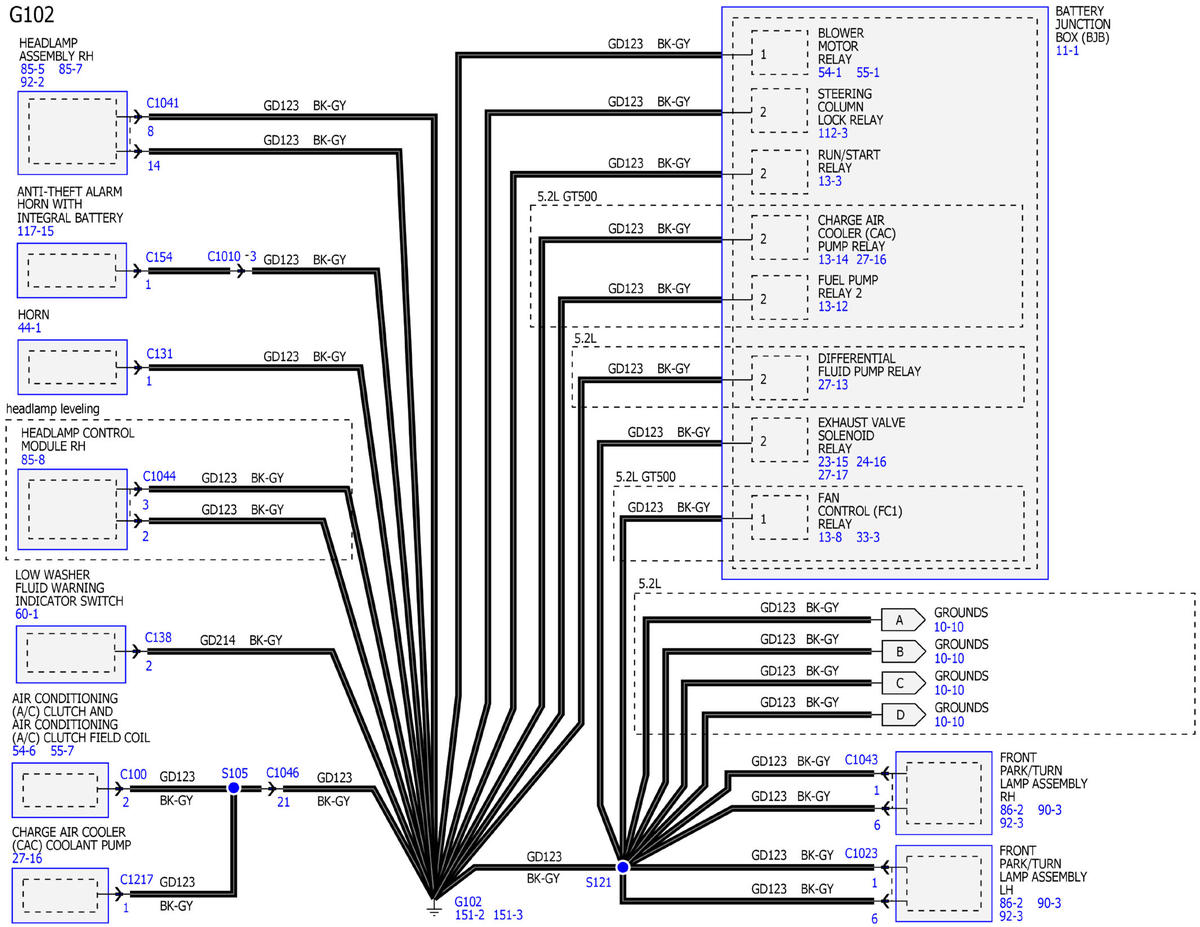

GFDWR187467Courtesy of FORD MOTOR COMPANY

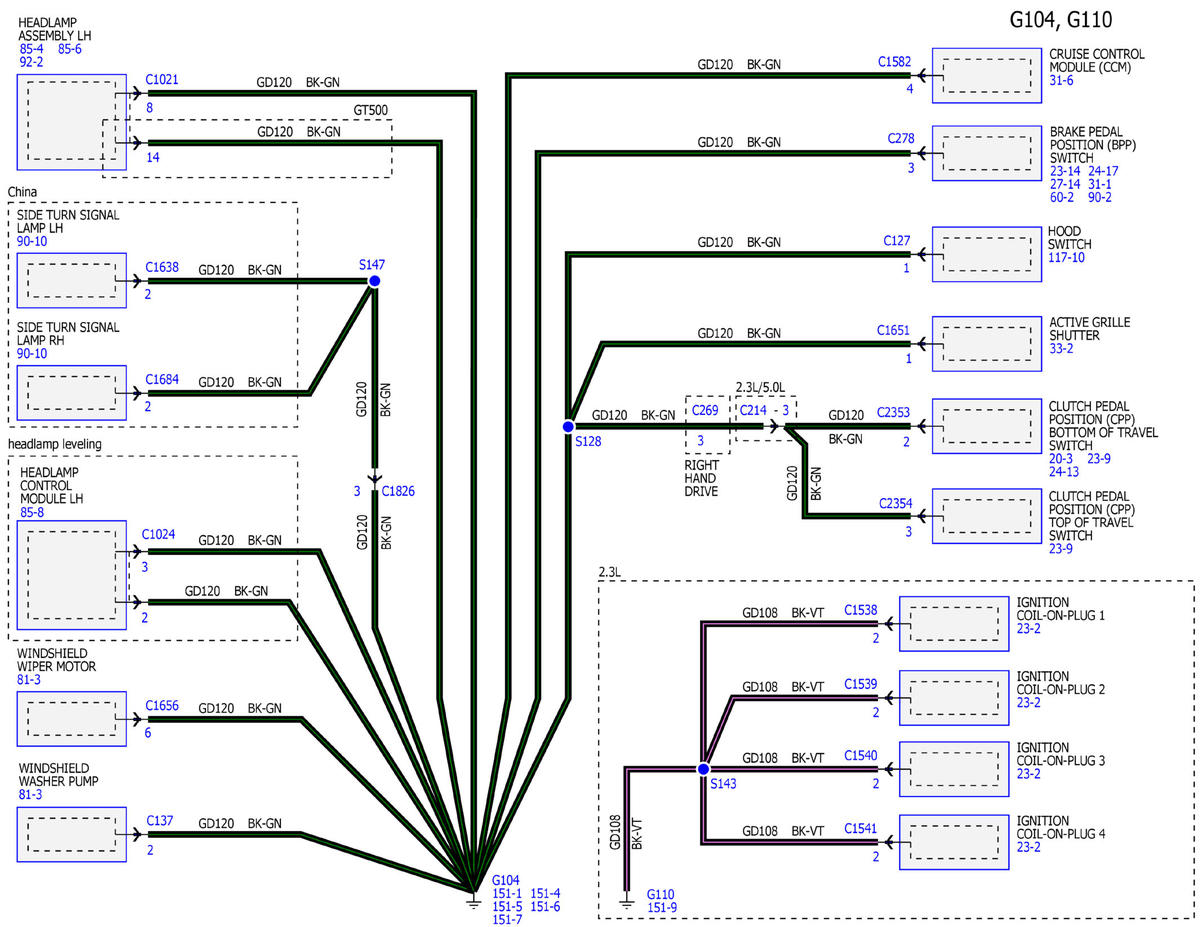

GFDWR187468Courtesy of FORD MOTOR COMPANY

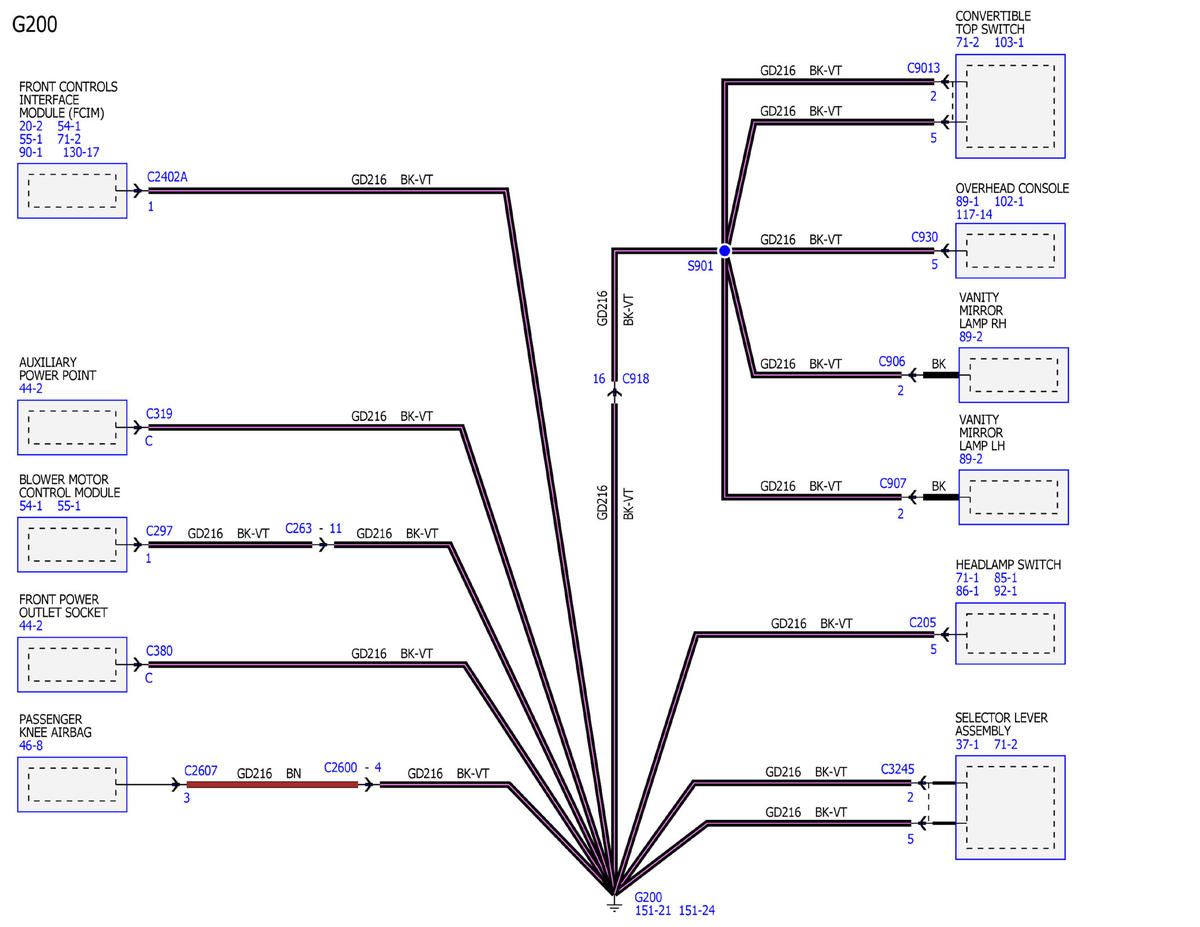

GFDWR187469Courtesy of FORD MOTOR COMPANY

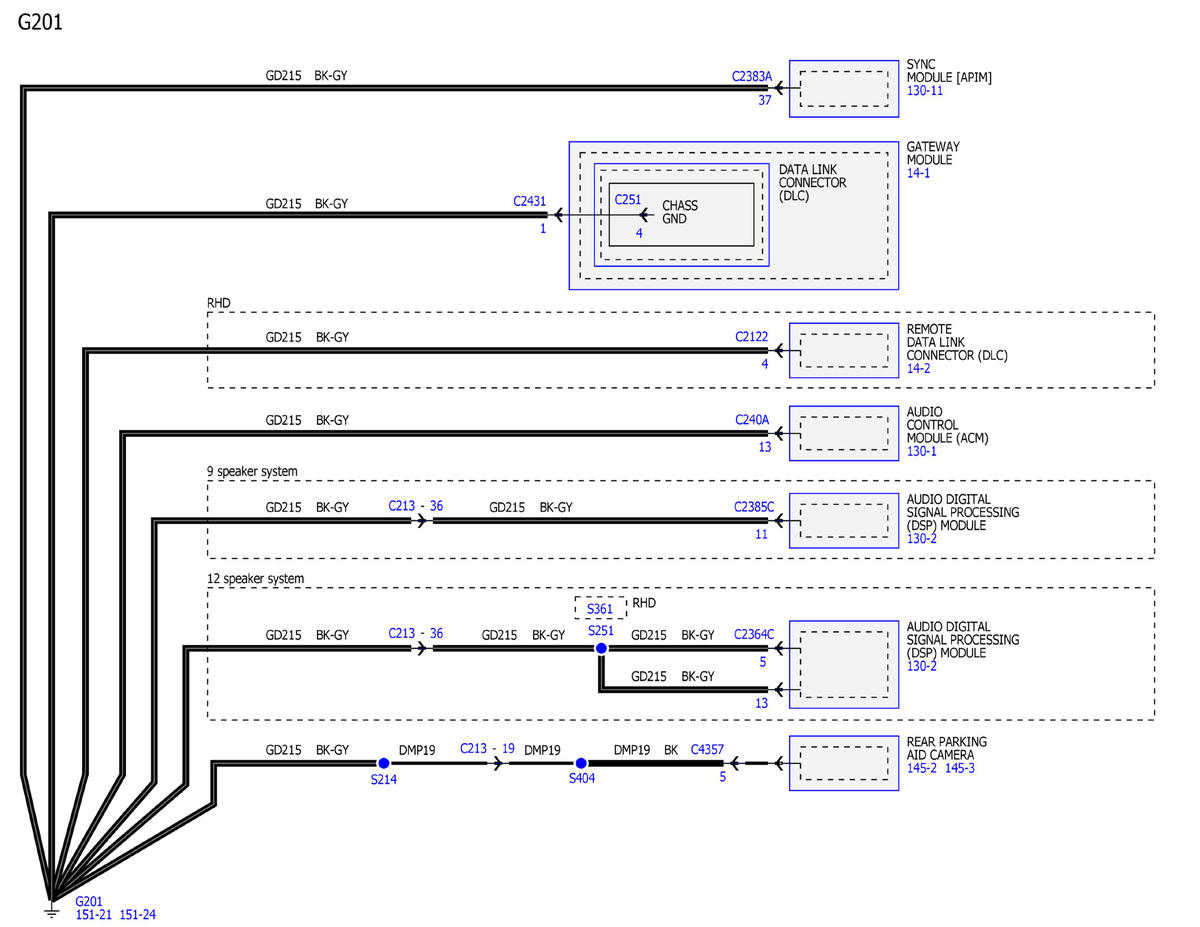

GFDWR187470Courtesy of FORD MOTOR COMPANY

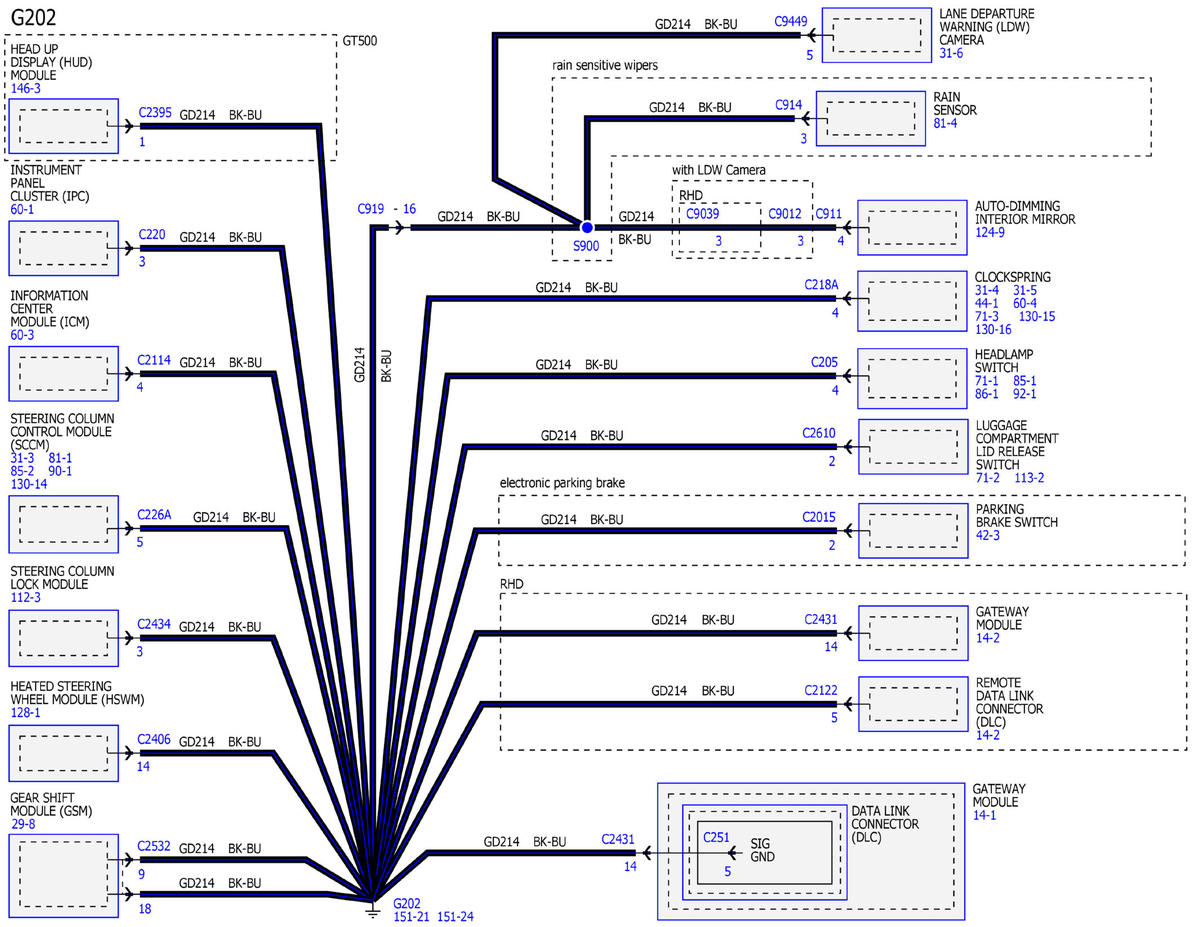

GFDWR187471Courtesy of FORD MOTOR COMPANY

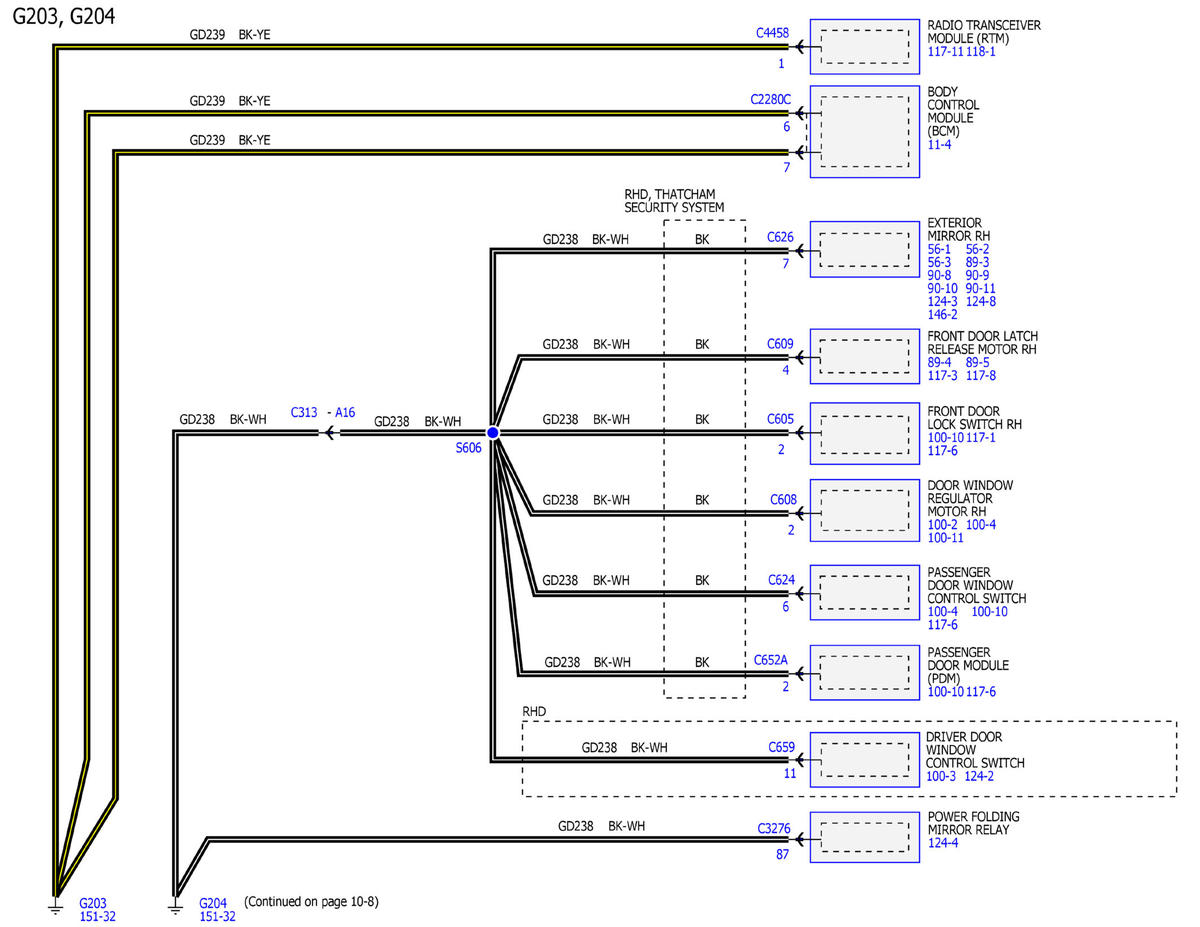

GFDWR187472Courtesy of FORD MOTOR COMPANY

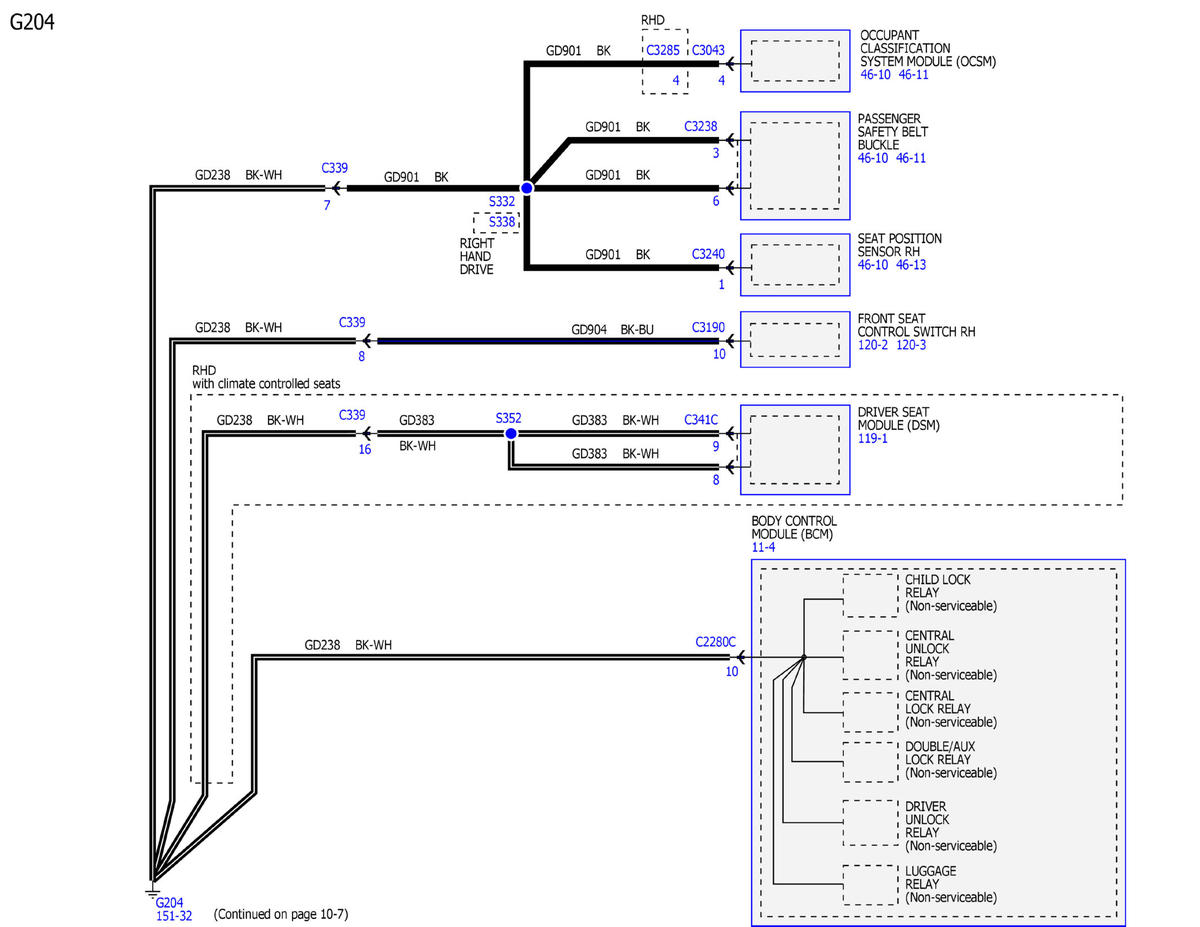

GFDWR187473Courtesy of FORD MOTOR COMPANY

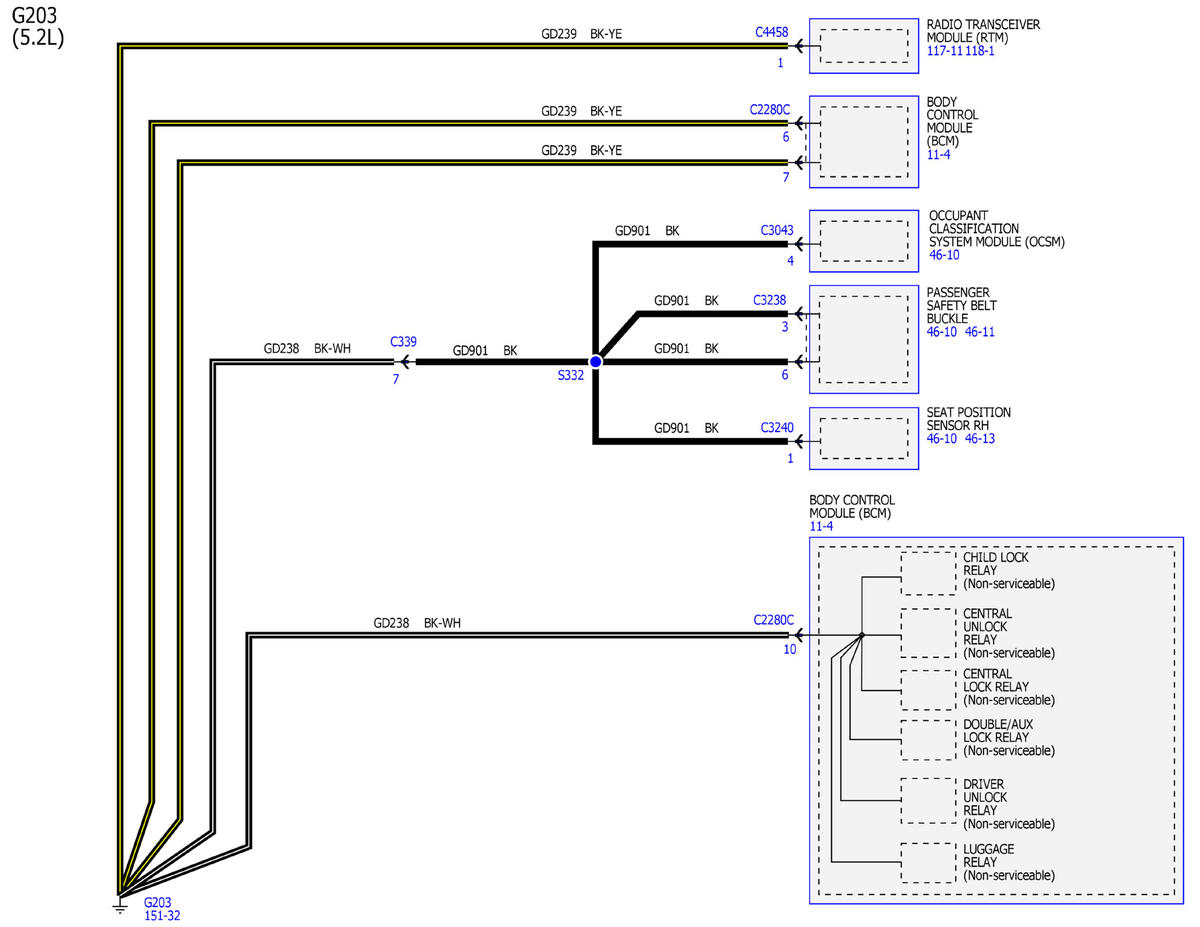

GFDWR187474Courtesy of FORD MOTOR COMPANY

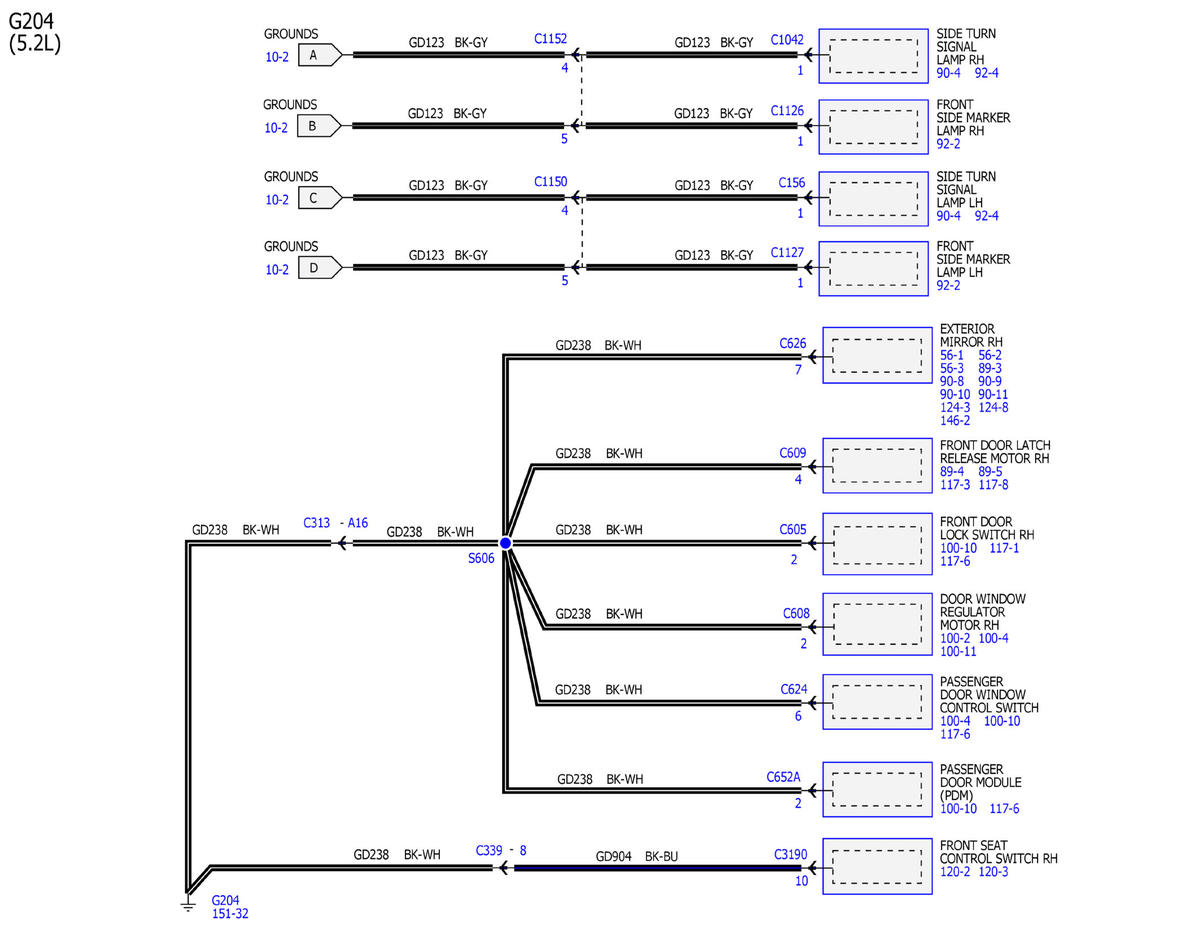

GFDWR187462Courtesy of FORD MOTOR COMPANY

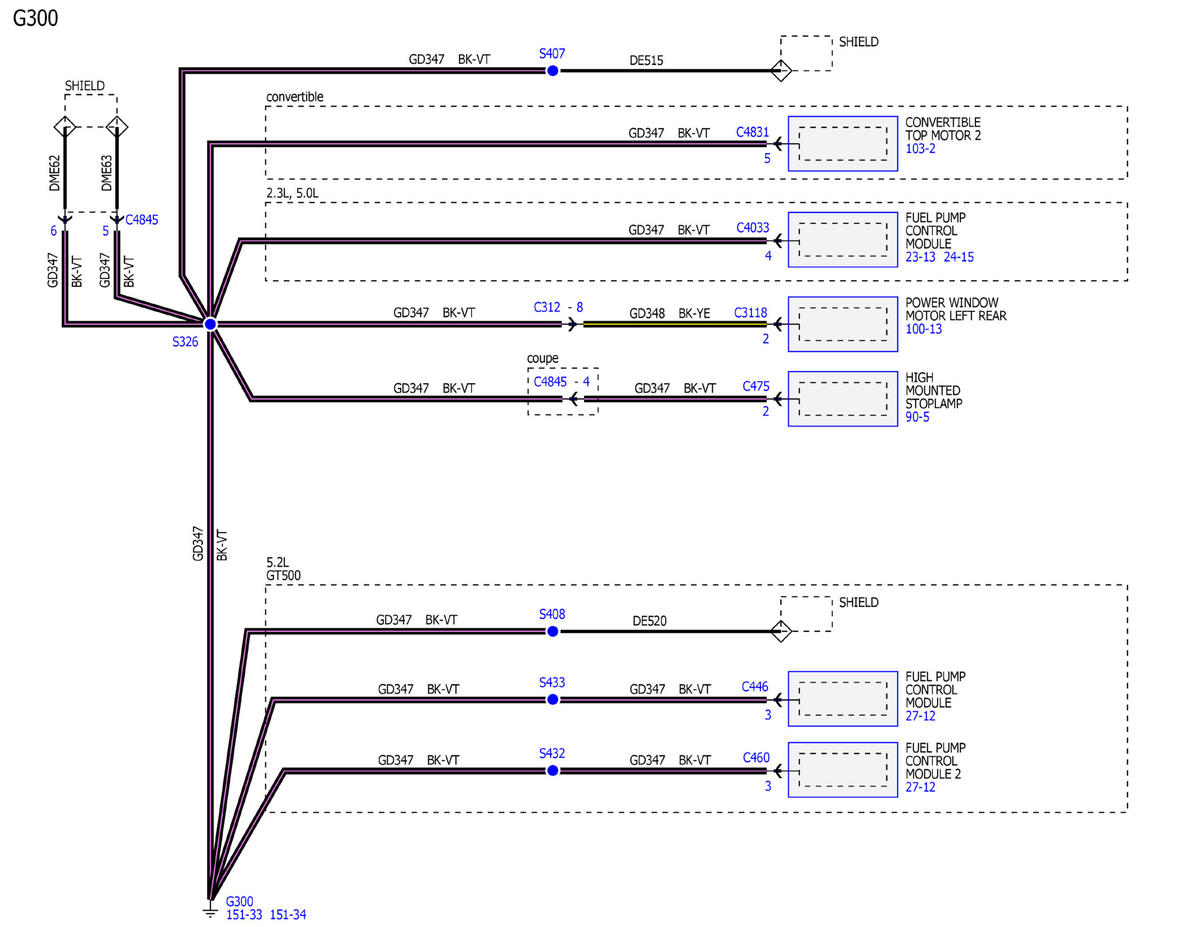

GFDWR187463Courtesy of FORD MOTOR COMPANY

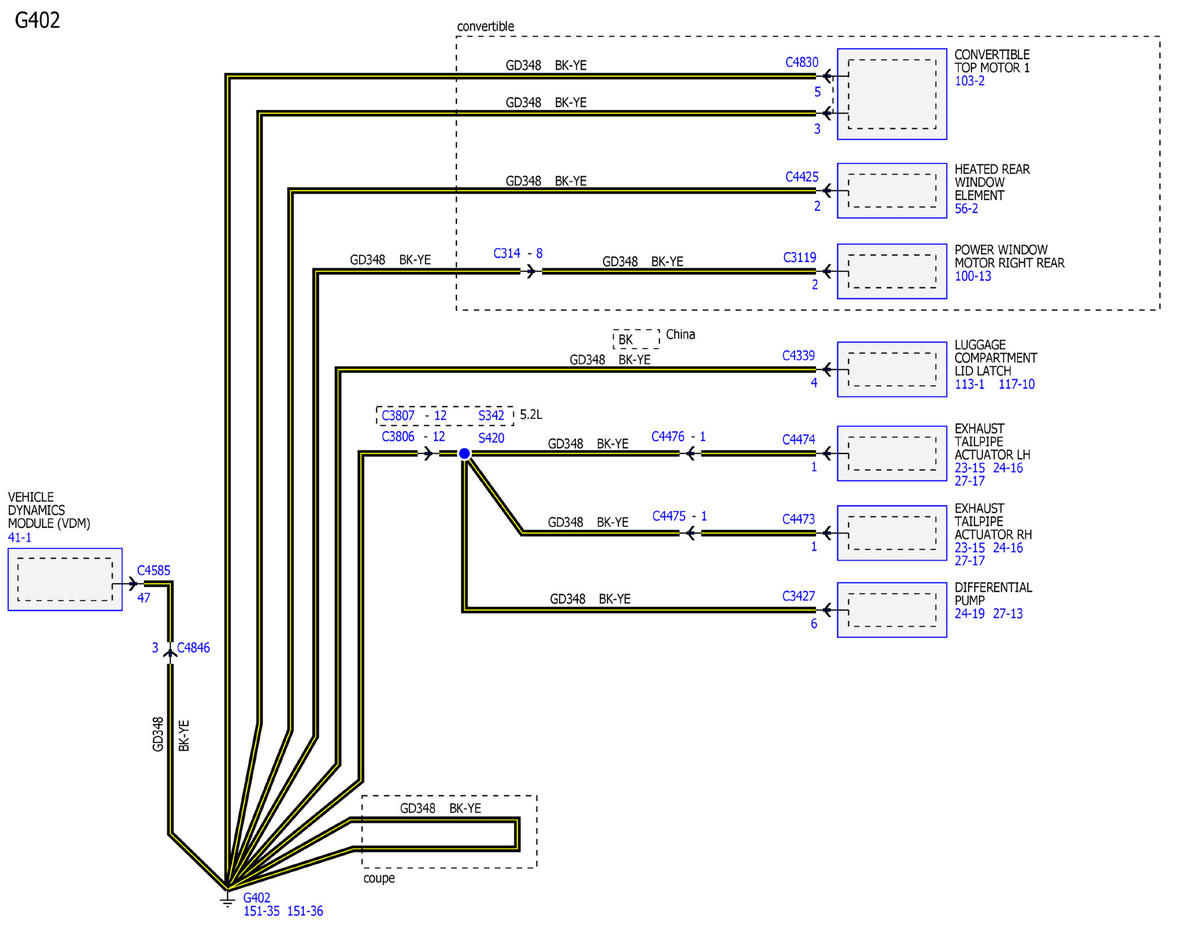

GFDWR187464Courtesy of FORD MOTOR COMPANY
GFDWR187465Courtesy of FORD MOTOR COMPANY

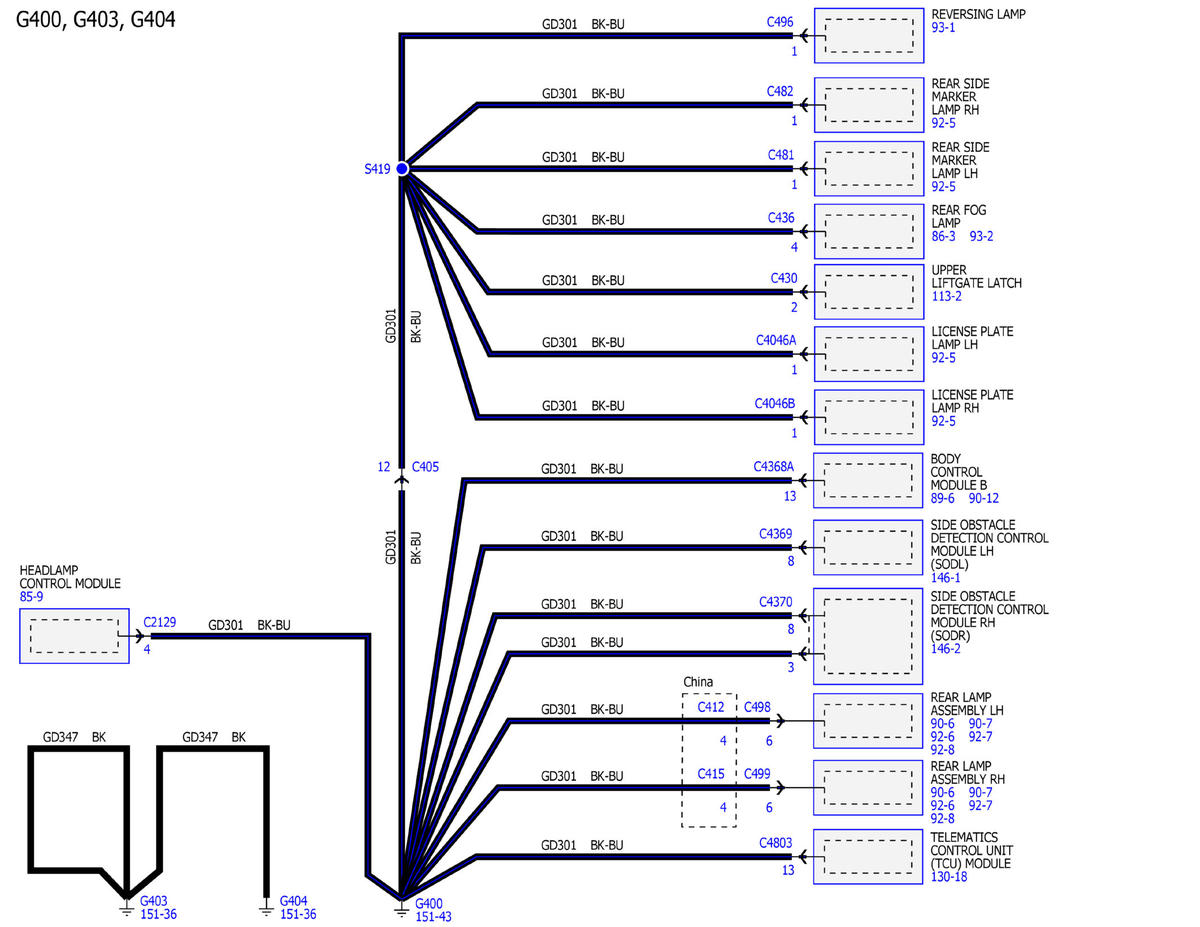

GFDWR187466Courtesy of FORD MOTOR COMPANY
