Component Testing: Relay

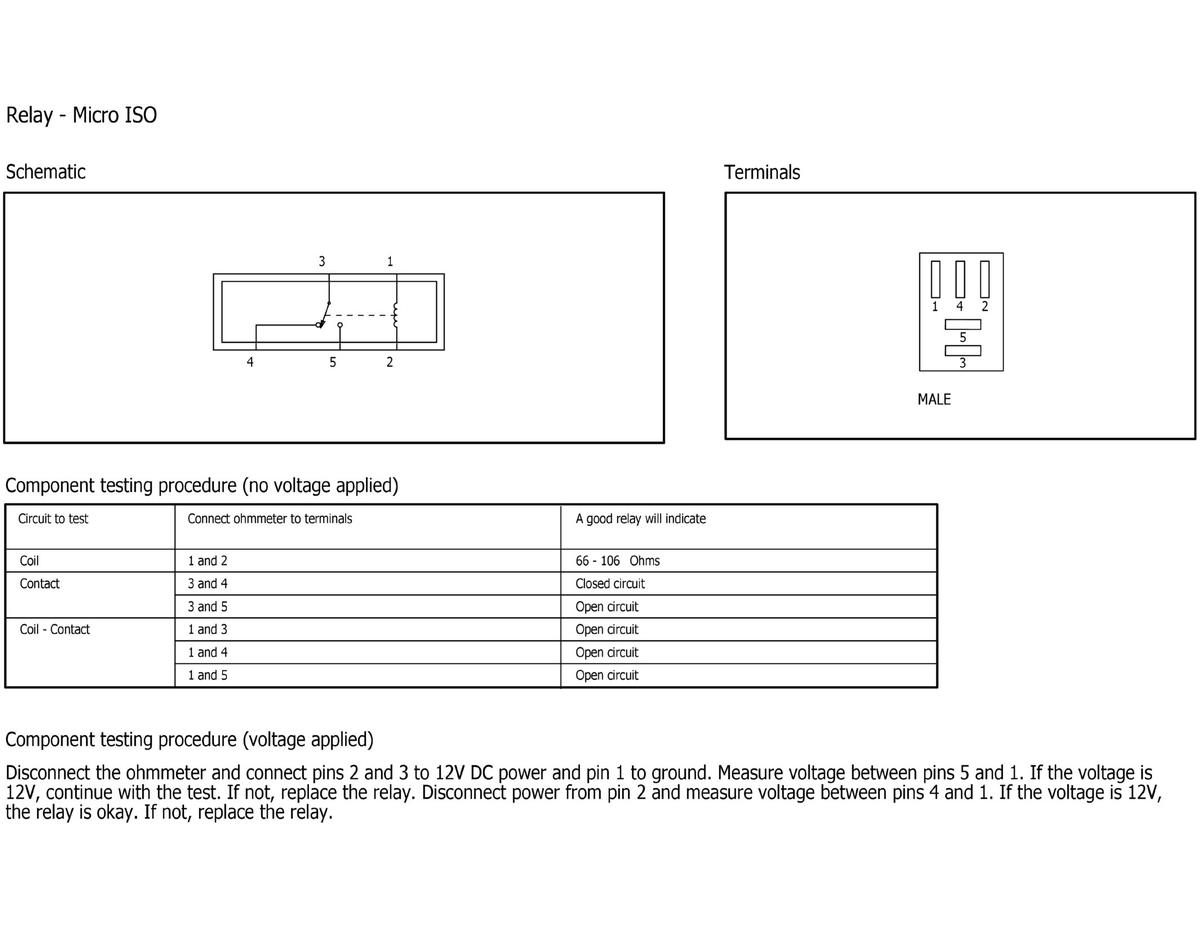

Fig 1: Relay - Micro ISO
GFDWR187815Courtesy of FORD MOTOR COMPANY

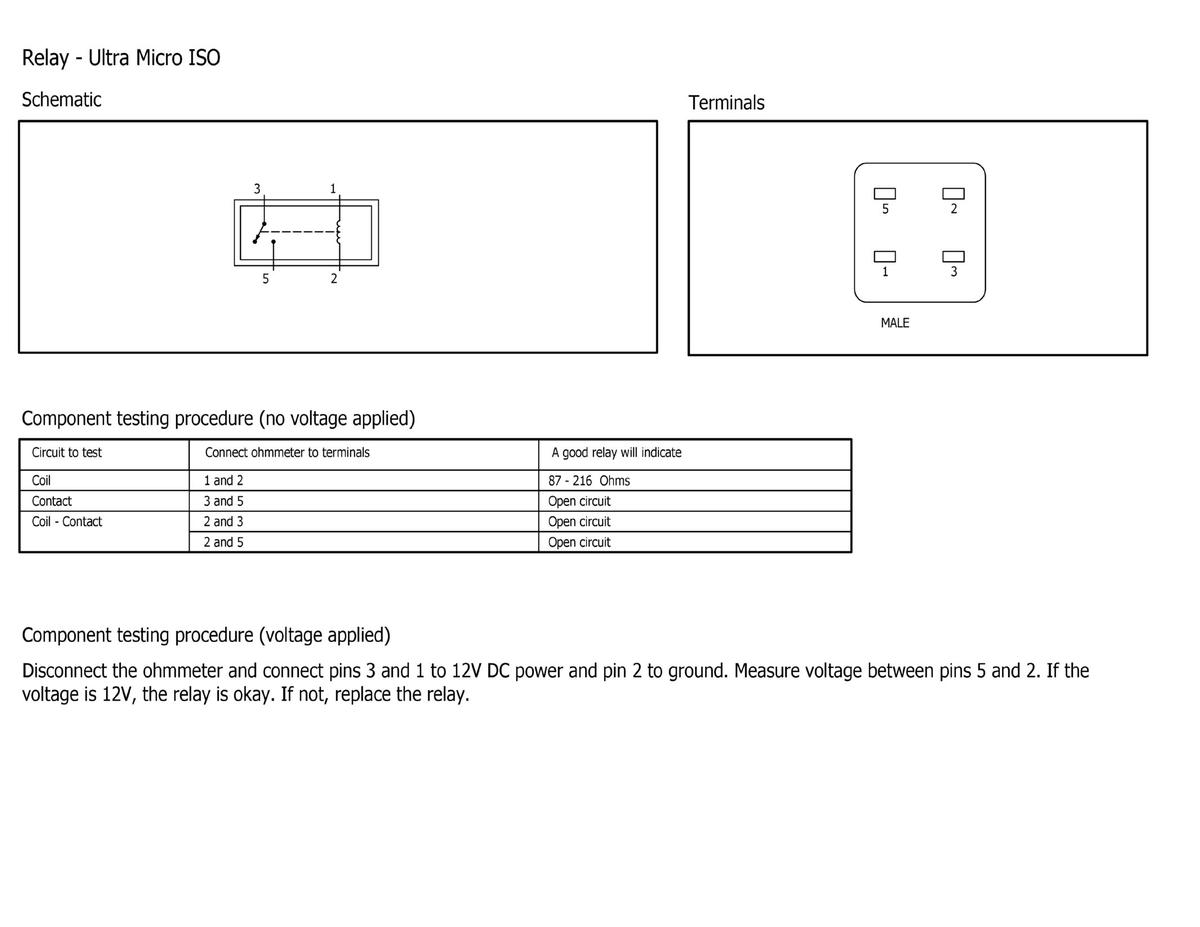

Fig 2: Relay - Ultra Micro ISO
GFDWR187805Courtesy of FORD MOTOR COMPANY

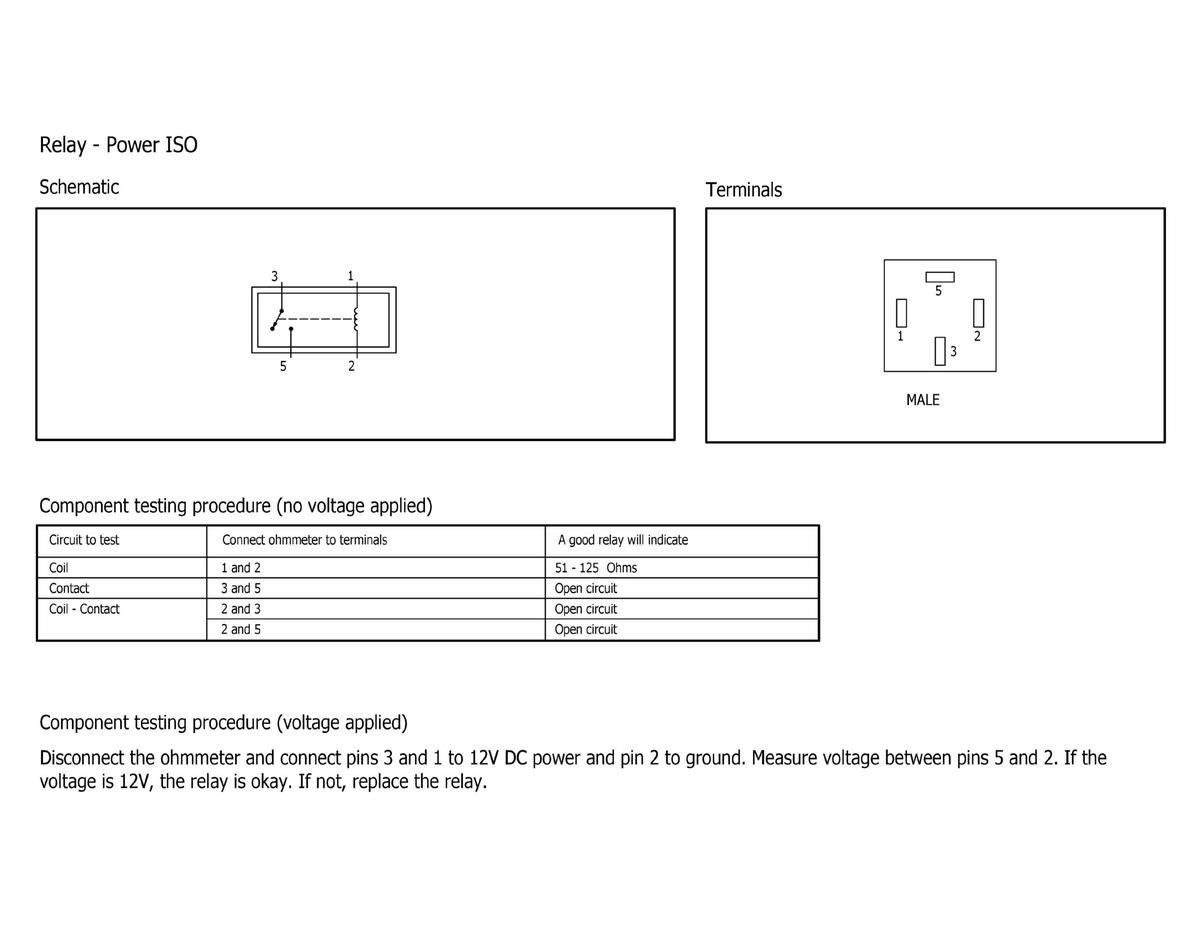

Fig 3: Relay - Power ISO
GFDWR187806Courtesy of FORD MOTOR COMPANY
