Front Seat Control Switch

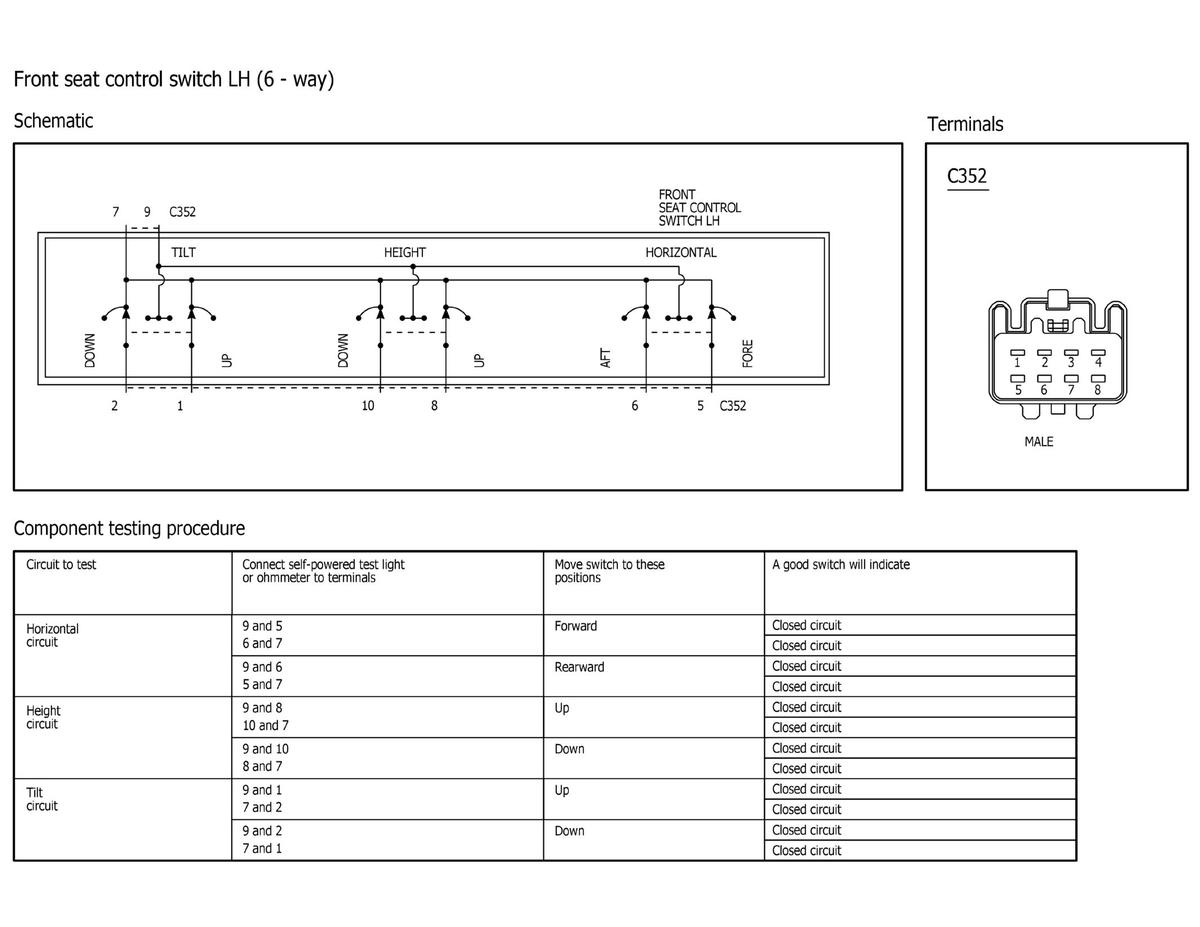

Fig 1: Front Seat Contol Switch LH (6-Way)
GFDWR187808Courtesy of FORD MOTOR COMPANY

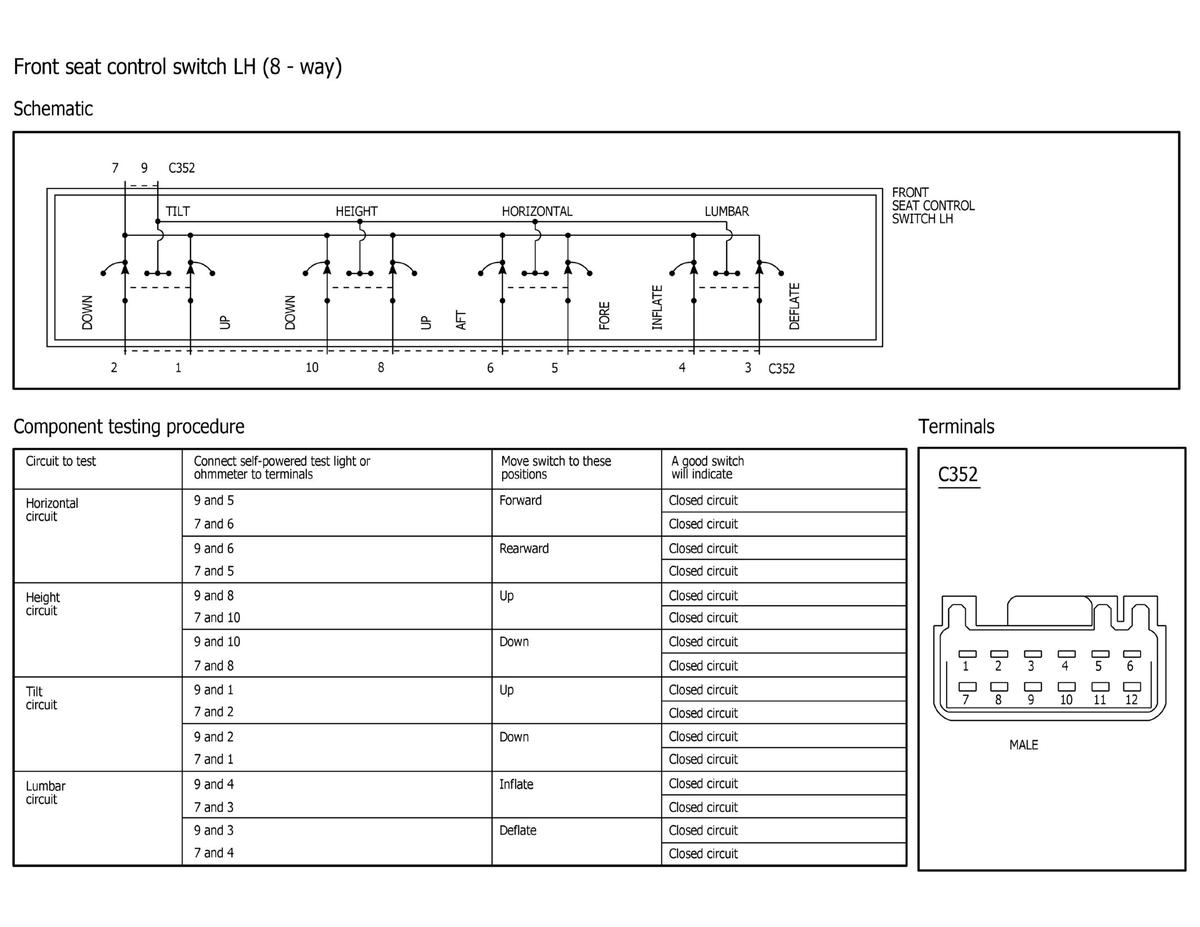

Fig 2: Front Seat Contol Switch LH (8-Way)
GFDWR187809Courtesy of FORD MOTOR COMPANY

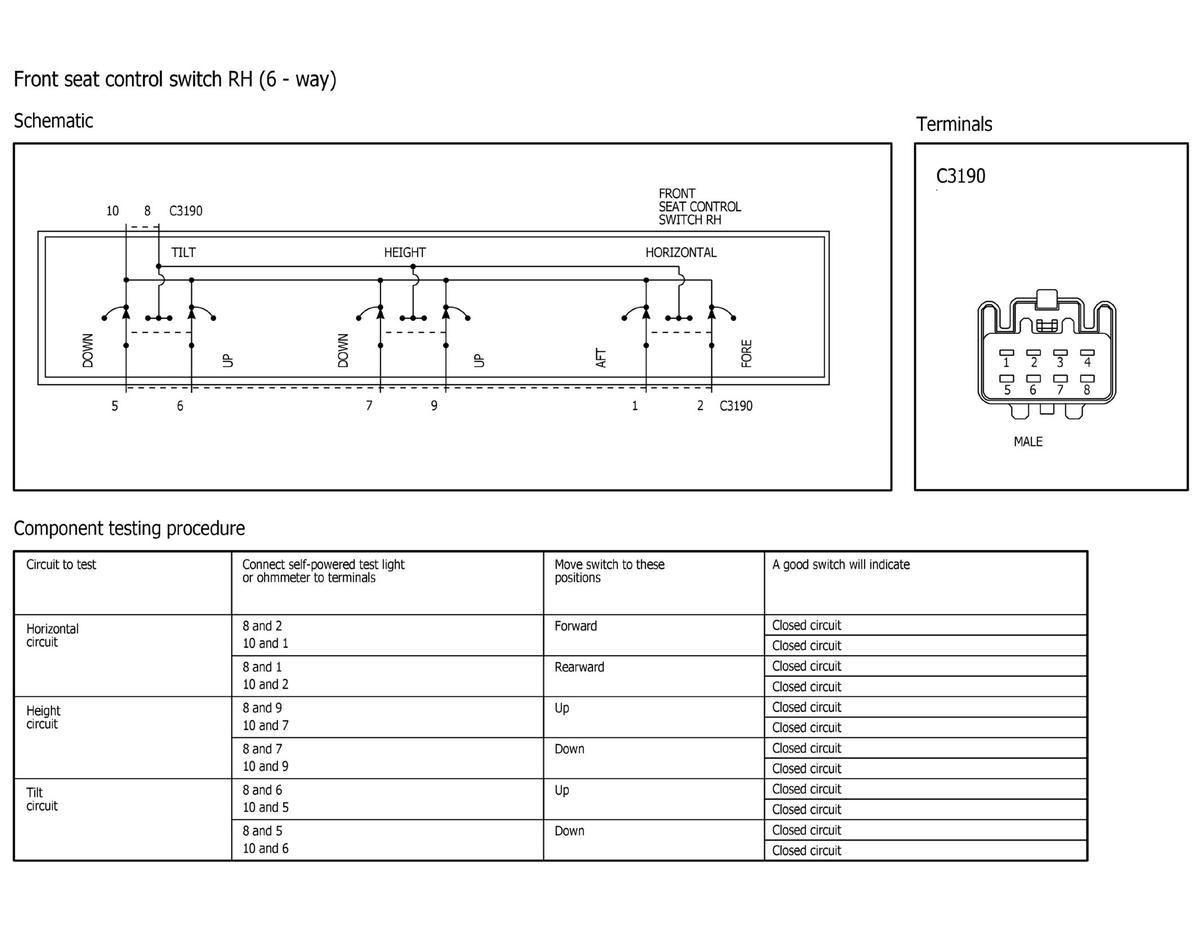

Fig 3: Front Seat Contol Switch RH (6-Way)
GFDWR187810Courtesy of FORD MOTOR COMPANY
