Power Transfer Unit Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name	Specification
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL	WSS-M2C942-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
Remove the underbody shield. Refer to: Engine Front Undershield .

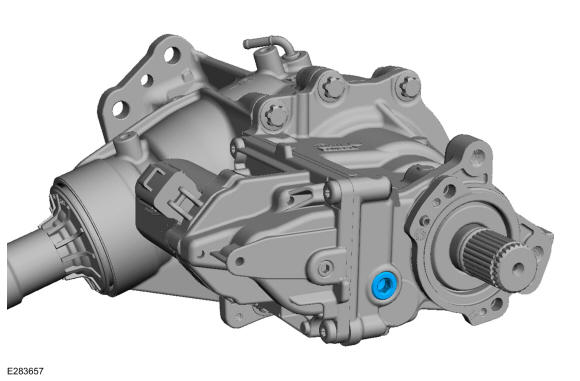

Remove the PTU fill plug.

Courtesy of FORD MOTOR COMPANY
Check the fluid level. If required fill the PTU with clean fluid, level with the fill plug opening. Refer to: Specifications .
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY
Install the PTU fill plug.
Torque: Stage 1: 133 lb.in (15 Nm) Stage 2: 360°

Courtesy of FORD MOTOR COMPANY
Install the underbody shield. Refer to: Engine Front Undershield .
