Spring Rear Hanger Bracket: Installation

Front Spring Bracket

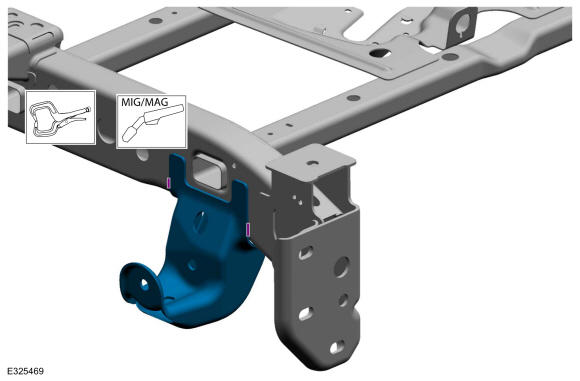

1. Install, properly position, clamp and weld the outboard side of the spring bracket.

   Use the General Equipment: Locking Pliers

   Use the General Equipment: MIG/MAG Welding Equipment

   Courtesy of FORD MOTOR COMPANY

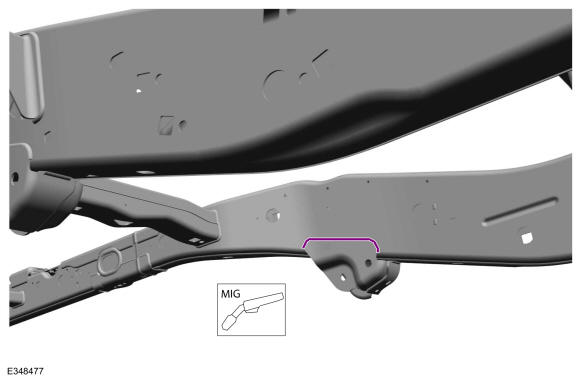

2. Install the inboard welds. Use the General Equipment: MIG/MAG Welding Equipment

   Courtesy of FORD MOTOR COMPANY

   Rear Spring Bracket

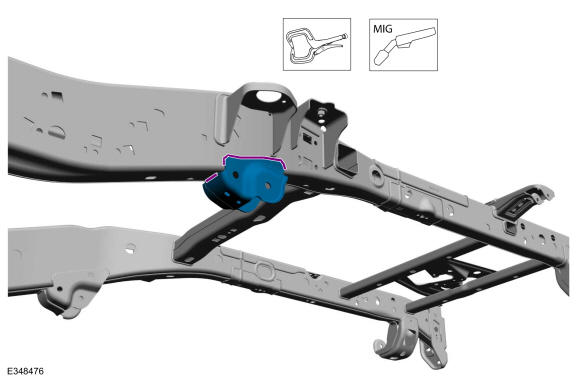

3. Loosely clamp the replacement bracket in a preliminary position. Perform measurements to verify proper placement of the new bracket, then clamp firmly into position. With all measurements verified and the new bracket in proper position, tack-weld the new bracket in place.

   Use the General Equipment: Locking Pliers

   Use the General Equipment: MIG/MAG Welding Equipment

   Courtesy of FORD MOTOR COMPANY

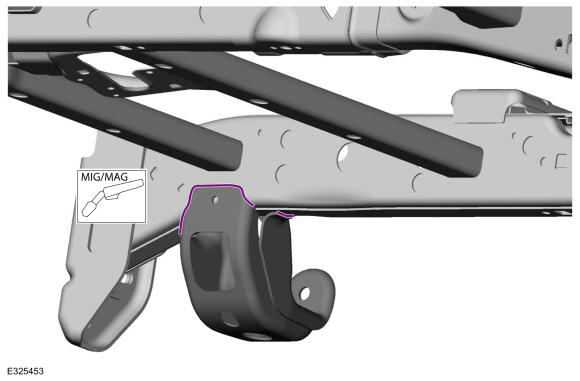

4. Re-check measurements, then solid weld the bracket to the frame. Use the General Equipment: MIG/MAG Welding Equipment

   Courtesy of FORD MOTOR COMPANY

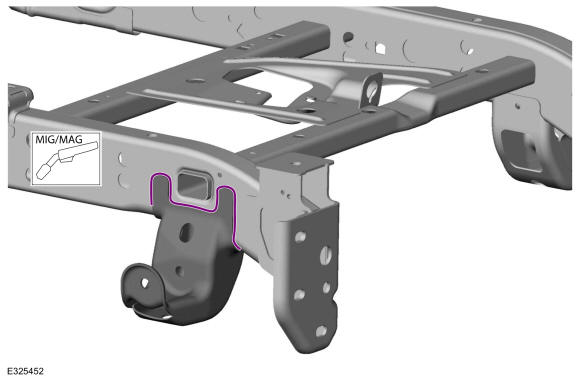

5. Re-check measurements, then solid weld the bracket to the frame. Use the General Equipment: MIG/MAG Welding Equipment

   Courtesy of FORD MOTOR COMPANY

   All vehicles

6. Metal finish the repair area using typical metal finishing techniques.
7. Restore corrosion protection. Refer to: CORROSION PREVENTION .
8. Install the spring. Refer to: Spring .
