Transfer Case Shift Motor: Installation

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure a new "O" ring is installed.

NOTE: Lubricate the "O" ring before installing.

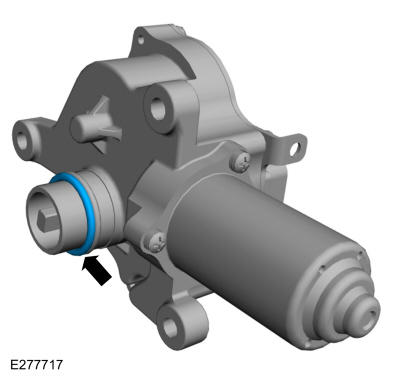

Install the "O"-ring seal on the transfer case shift motor.

Courtesy of FORD MOTOR COMPANY
NOTE: X: 5.4 deg.

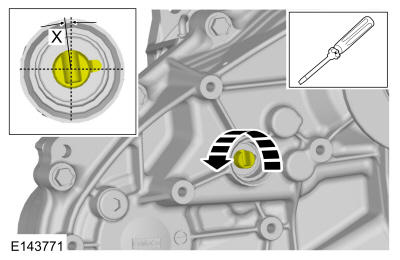

Align the transfer case electric shift cam control lever to X: 5.4 deg..

Courtesy of FORD MOTOR COMPANY

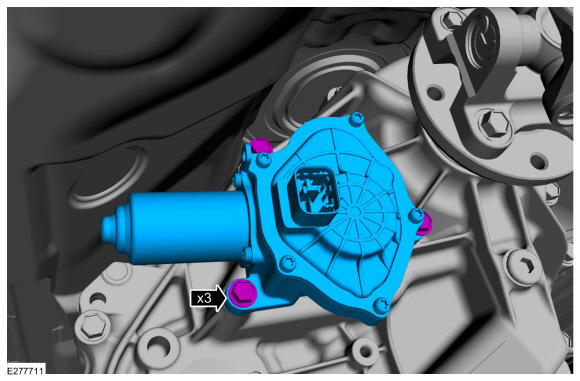

Install the transfer case shift motor and mounting bolts.
Torque: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY

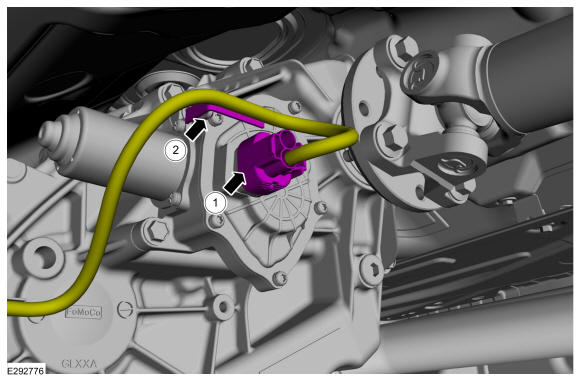

1. Connect the harness connector to shift motor.
2. Attach the wiring retainer to the shift motor body.
