Module Communications Network

Fig 1: Module Communications Network (1 Of 19)

GFDWR181925

Courtesy of FORD MOTOR COMPANY

Fig 2: Module Communications Network (2 Of 19)

GFDWR181936

Courtesy of FORD MOTOR COMPANY

Fig 3: Module Communications Network (3 Of 19)

GFDWR181937

Courtesy of FORD MOTOR COMPANY

Fig 4: Module Communications Network (4 Of 19)

GFDWR181938

Courtesy of FORD MOTOR COMPANY

Fig 5: Module Communications Network (5 Of 19)

GFDWR181939

Courtesy of FORD MOTOR COMPANY

Fig 6: Module Communications Network (6 Of 19)

GFDWR181940

Courtesy of FORD MOTOR COMPANY

Fig 7: Module Communications Network (7 Of 19)

GFDWR181941

Courtesy of FORD MOTOR COMPANY

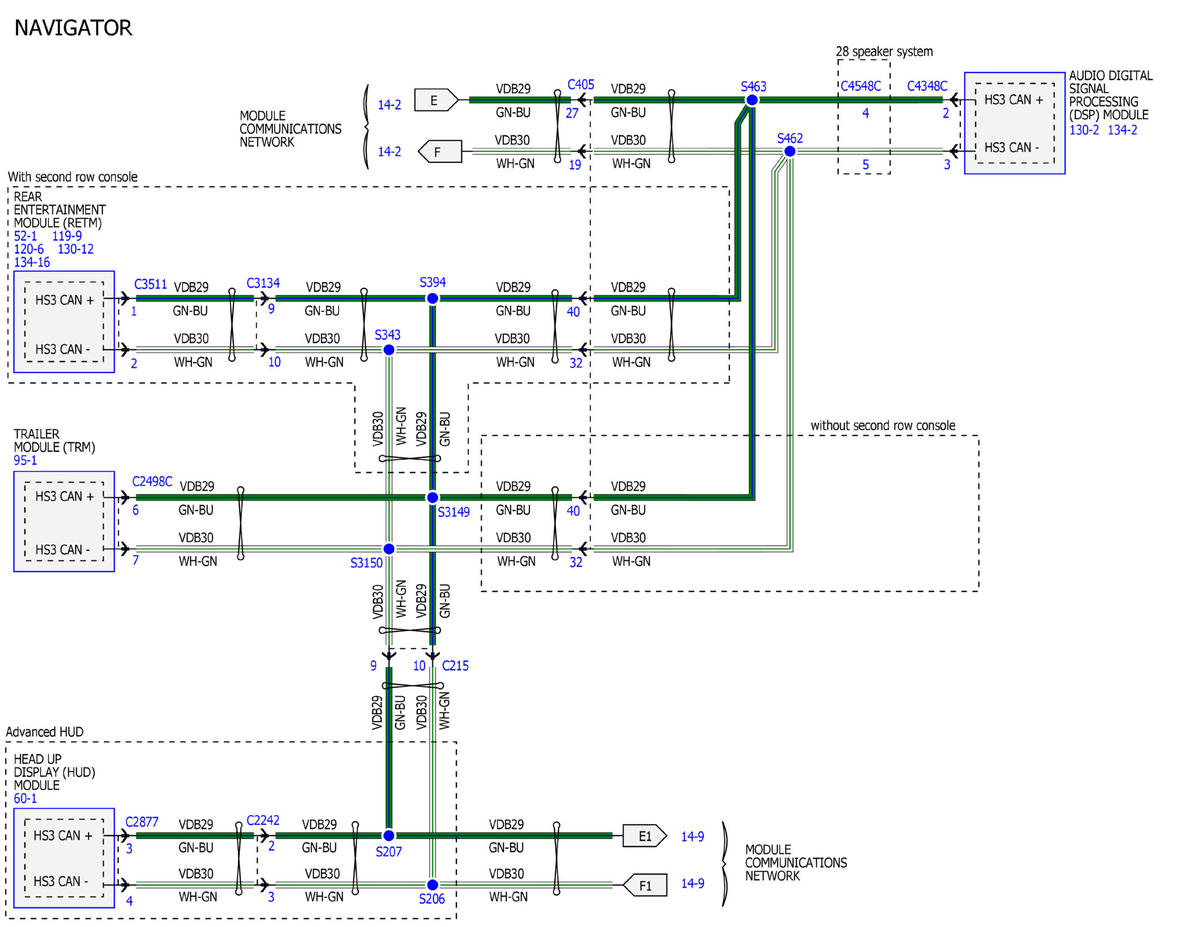

Fig 8: Module Communications Network (8 Of 19)

GFDWR181942

Courtesy of FORD MOTOR COMPANY

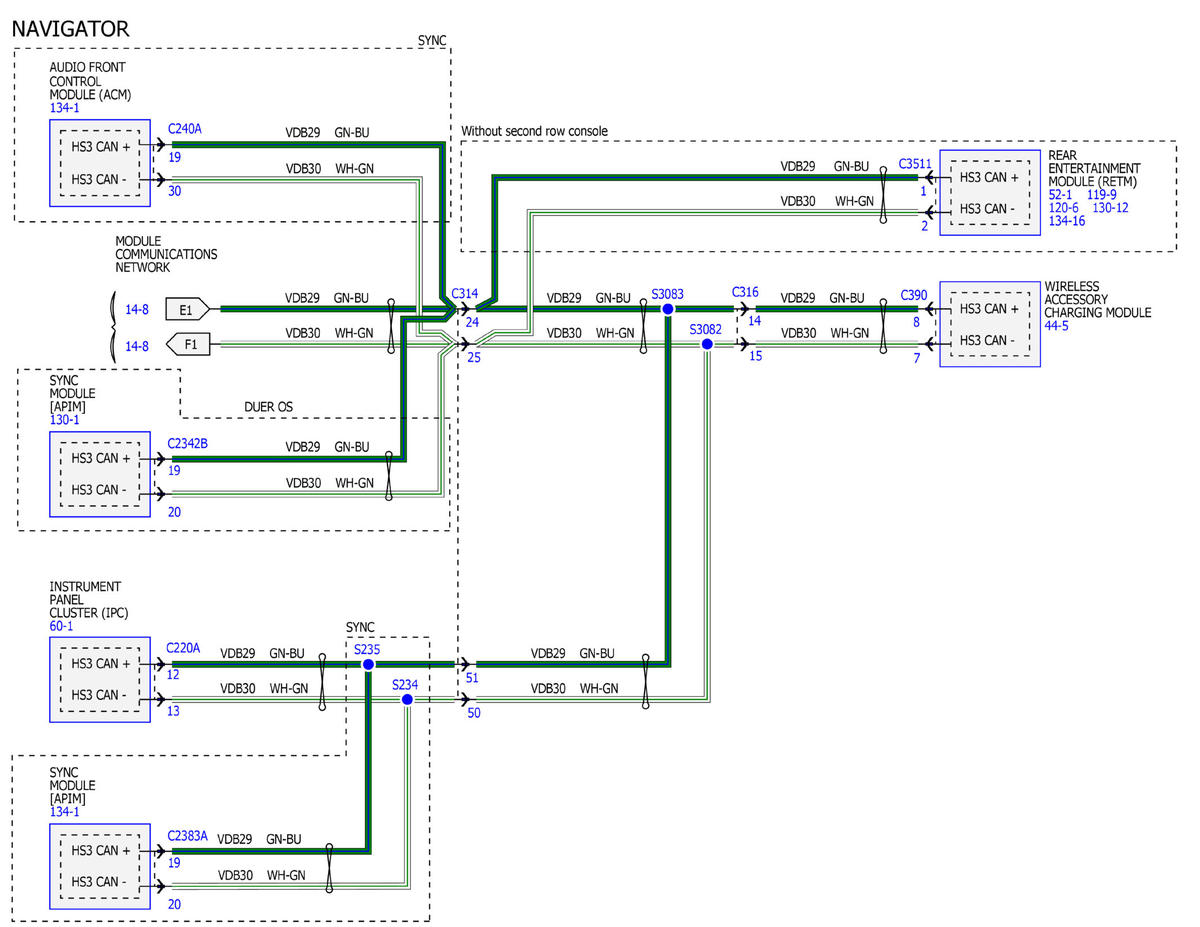

Fig 9: Module Communications Network (9 Of 19)

GFDWR181943

Courtesy of FORD MOTOR COMPANY

Fig 10: Module Communications Network (10 Of 19)

GFDWR181926

Courtesy of FORD MOTOR COMPANY

Fig 11: Module Communications Network (11 Of 19)

GFDWR181927

Courtesy of FORD MOTOR COMPANY

Fig 12: Module Communications Network (12 Of 19)

GFDWR181928

Courtesy of FORD MOTOR COMPANY

Fig 13: Module Communications Network (13 Of 19)

GFDWR181929

Courtesy of FORD MOTOR COMPANY

Fig 14: Module Communications Network (14 Of 19)

GFDWR181930

Courtesy of FORD MOTOR COMPANY

Fig 15: Module Communications Network (15 Of 19)

GFDWR181931

Courtesy of FORD MOTOR COMPANY

Fig 16: Module Communications Network (16 Of 19)

GFDWR181932

Courtesy of FORD MOTOR COMPANY

Fig 17: Module Communications Network (17 Of 19)

GFDWR181933

Courtesy of FORD MOTOR COMPANY

Fig 18: Module Communications Network (18 Of 19)

GFDWR181934

Courtesy of FORD MOTOR COMPANY

Fig 19: Module Communications Network (19 Of 19)

GFDWR181935

Courtesy of FORD MOTOR COMPANY
