Transfer Case

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

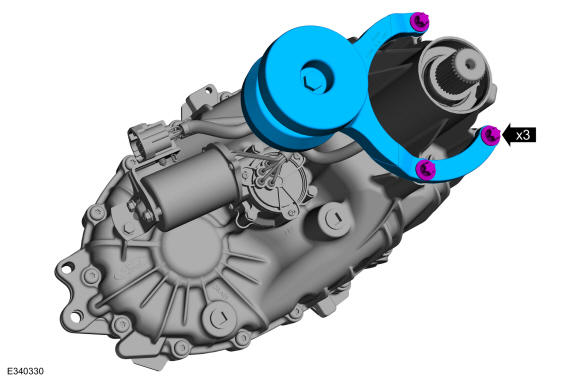

If removed, install the vibration damper to the transfer case.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The help of an assistant will be required.

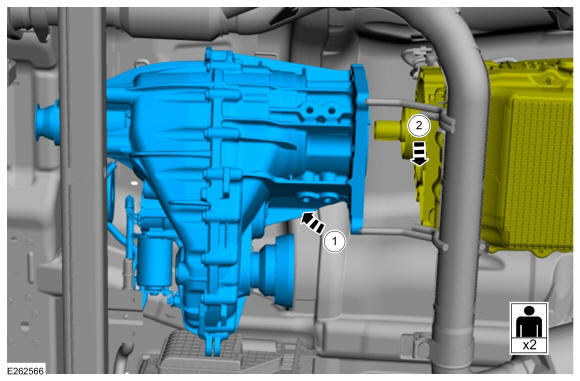

Position the transfer case on the crossmember. Lower the transmission approximately 25.4 mm (1 in).

Courtesy of FORD MOTOR COMPANY

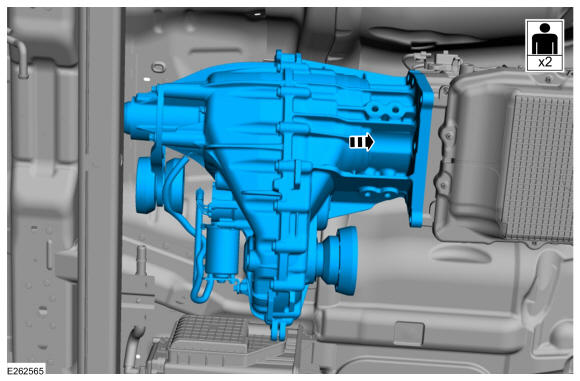

NOTE: The help of an assistant will be required.

Position the transfer case to the transmission and onto the output shaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not reuse the old transfer case-to-transmission bolts.

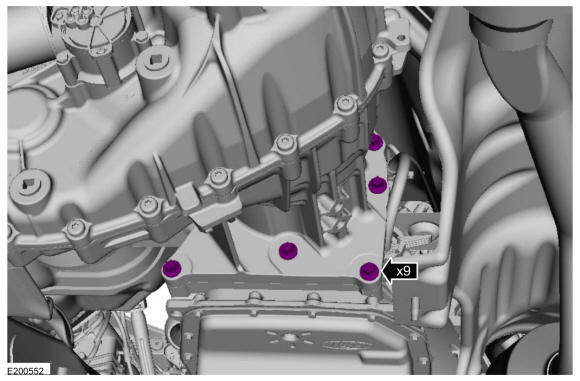

Install new transfer case-to-transmission bolts.

Torque: 168 lb.in (19 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission support insulator. Refer to: Transmission Support Insulator .

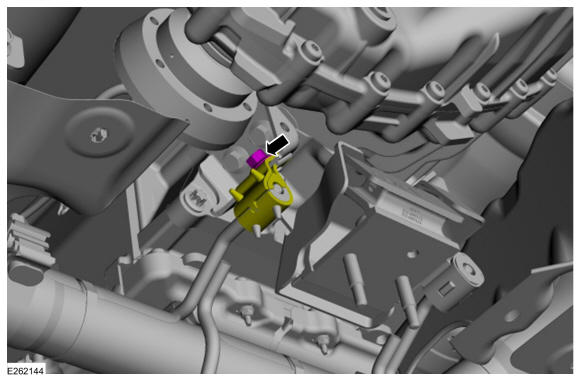

Install the LH exhaust support bracket and bolt.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission support crossmember. Refer to: Transmission Support Crossmember .

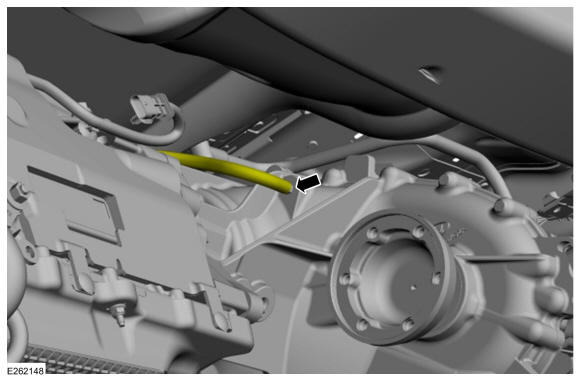

Connect the vent hose to the transfer case.

Courtesy of FORD MOTOR COMPANY

Vehicles With: 1-Speed Torque On Demand Transfer Case

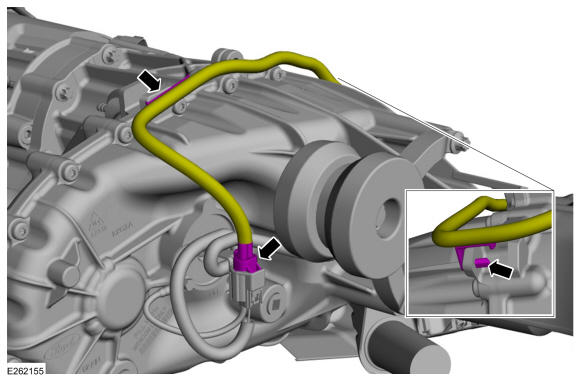

Connect the electrical connector and attach the harness retainer clip from the transfer case.

Courtesy of FORD MOTOR COMPANY

Vehicles With: 2-Speed Torque On Demand Transfer Case

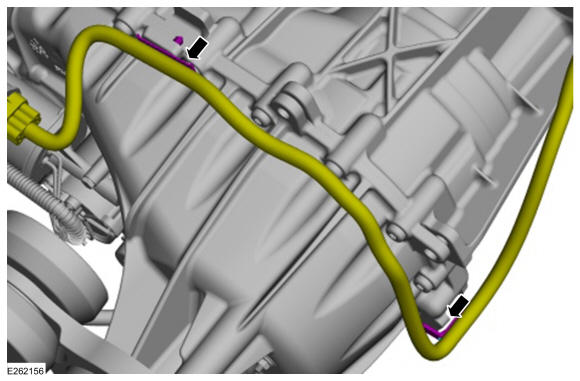

Connect the shift motor electrical connector.

Courtesy of FORD MOTOR COMPANY
Connect the shift motor electrical connector.

Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: Align the index marks made during removal.

Install the rear driveshaft. Refer to: Rear Driveshaft .
NOTE: Align the index marks made during removal.

Install the front driveshaft. Refer to: Front Driveshaft .
Check the transfer case fluid level. Refer to: Transfer Case Draining and Filling .

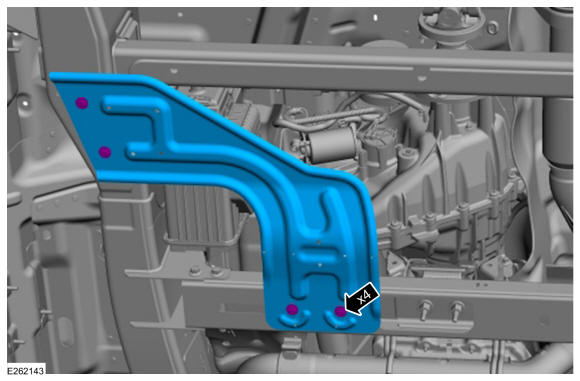

If equipped. Position the skid plate and install the skid plate bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
