Connector Repair Procedures

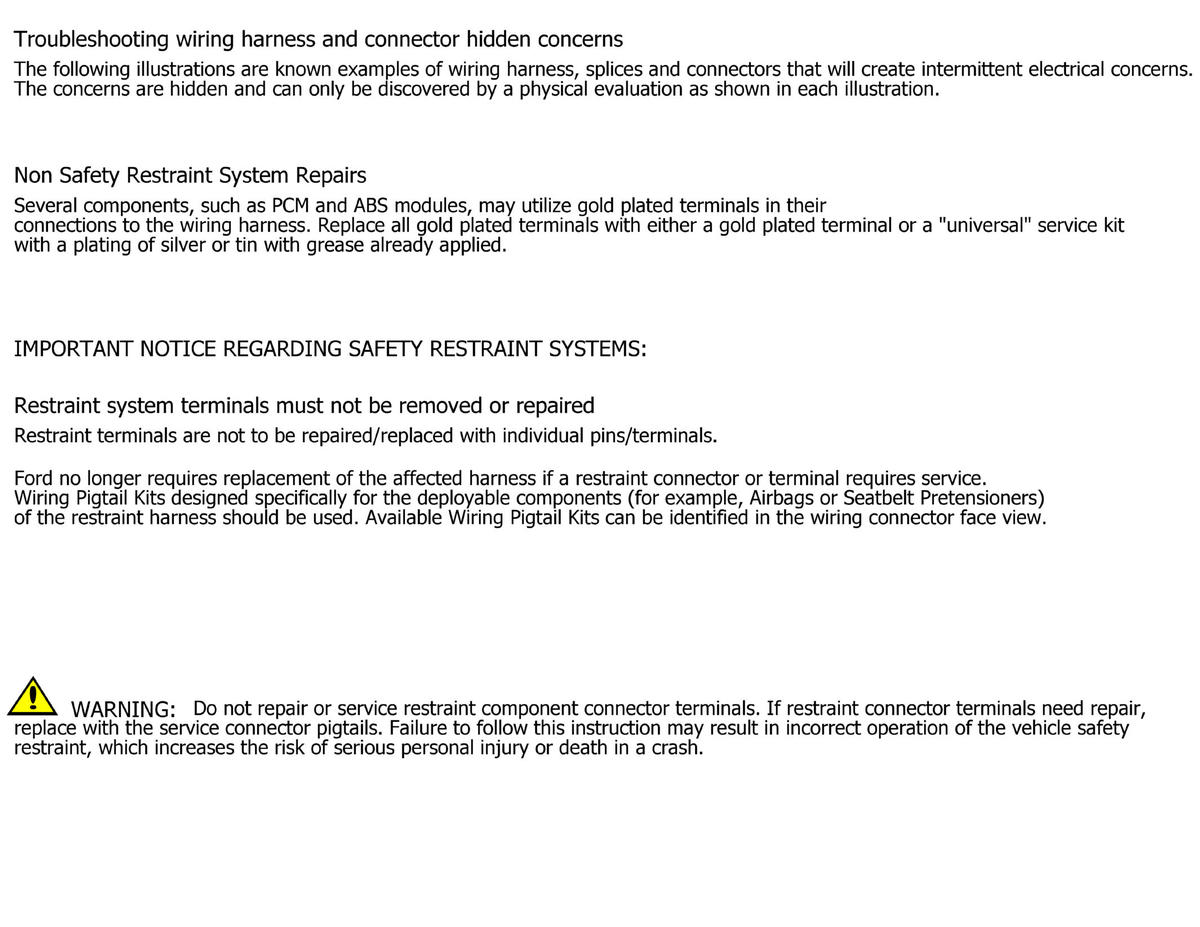

GFDWR165720Courtesy of FORD MOTOR COMPANY

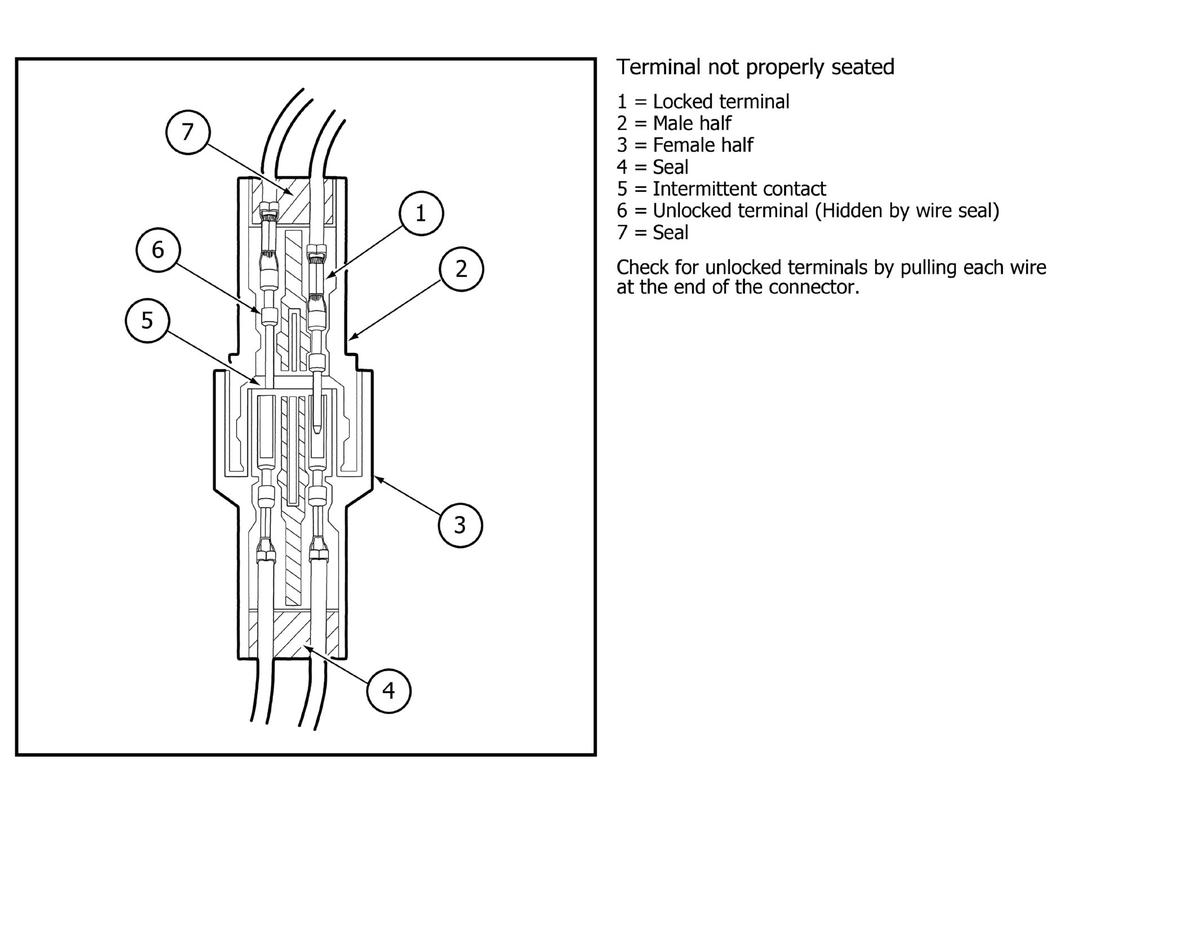

GFDWR165721Courtesy of FORD MOTOR COMPANY

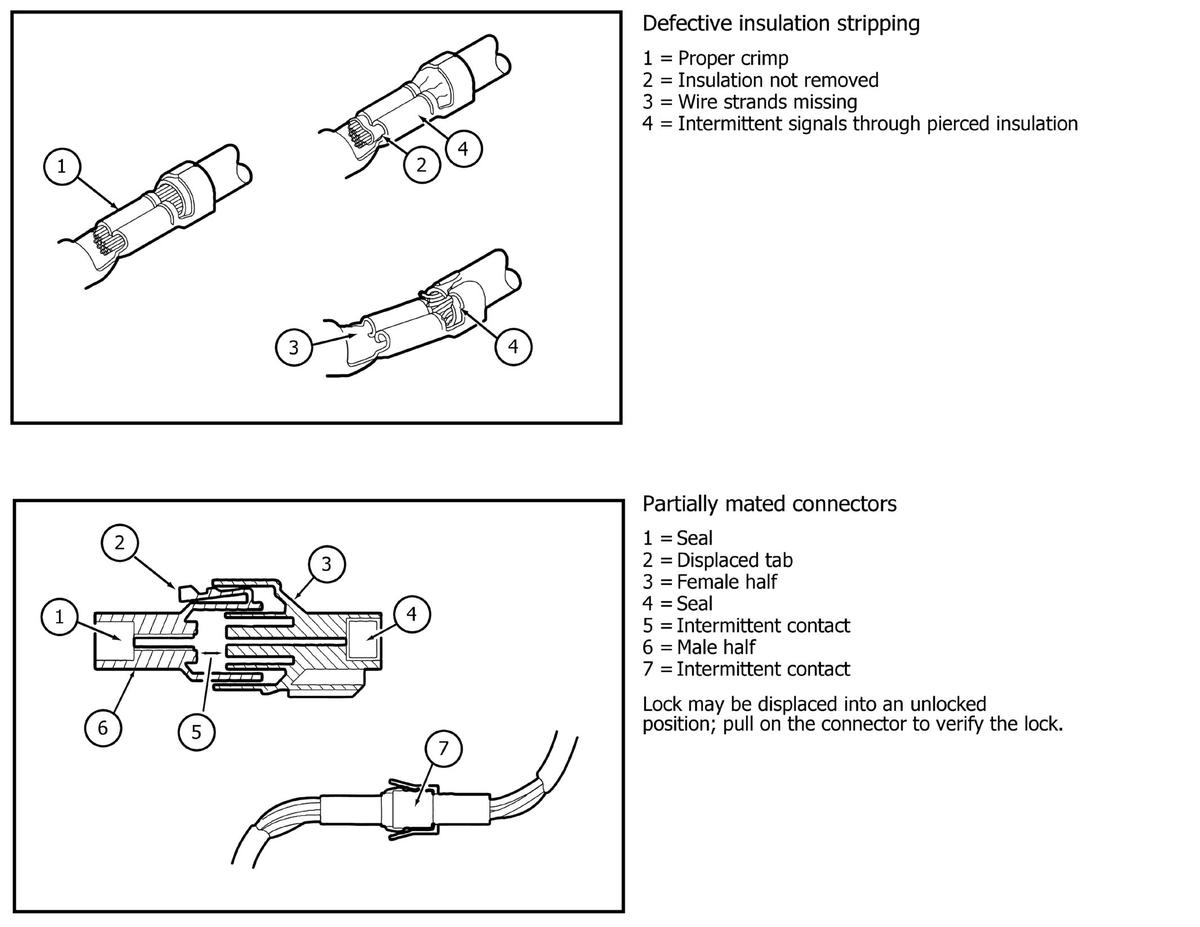

GFDWR165722Courtesy of FORD MOTOR COMPANY

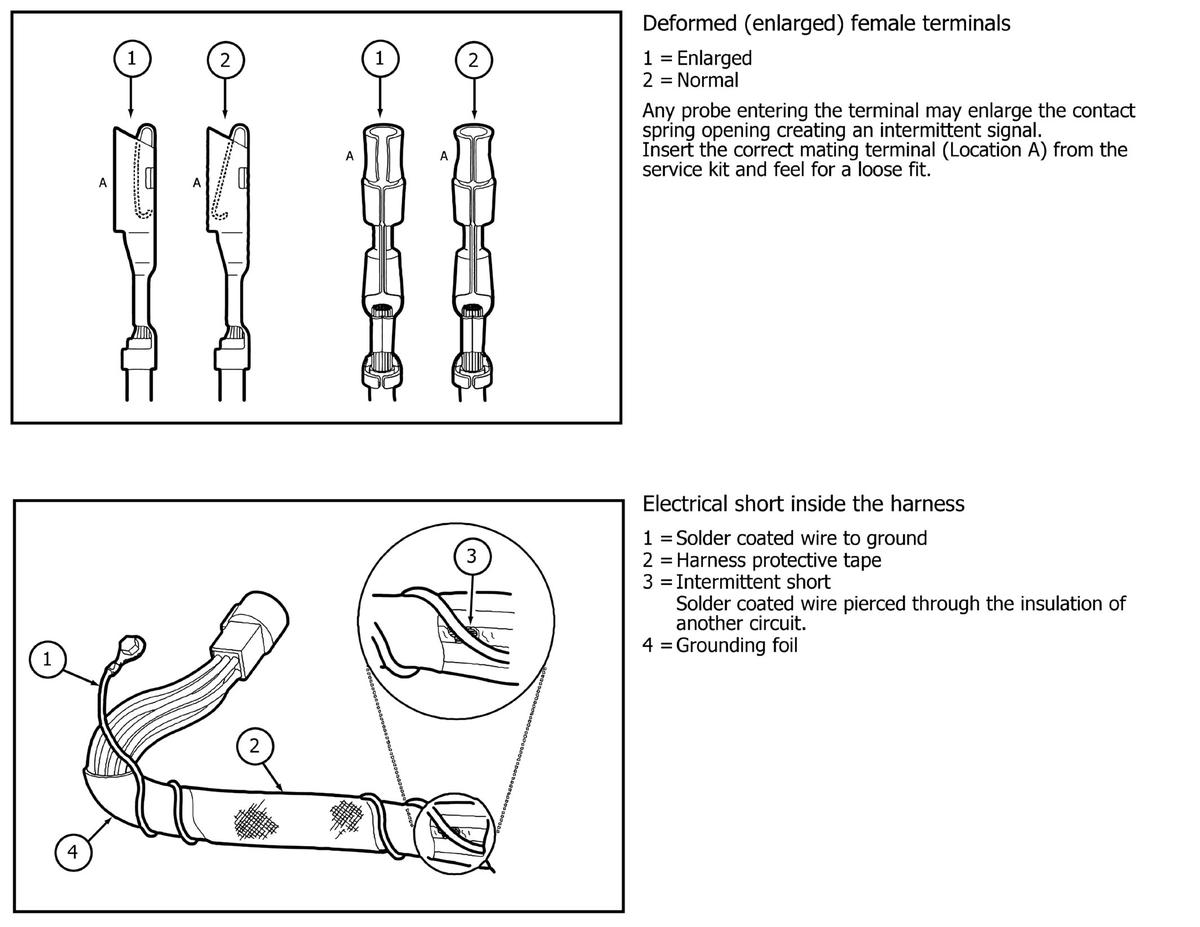

GFDWR165723Courtesy of FORD MOTOR COMPANY

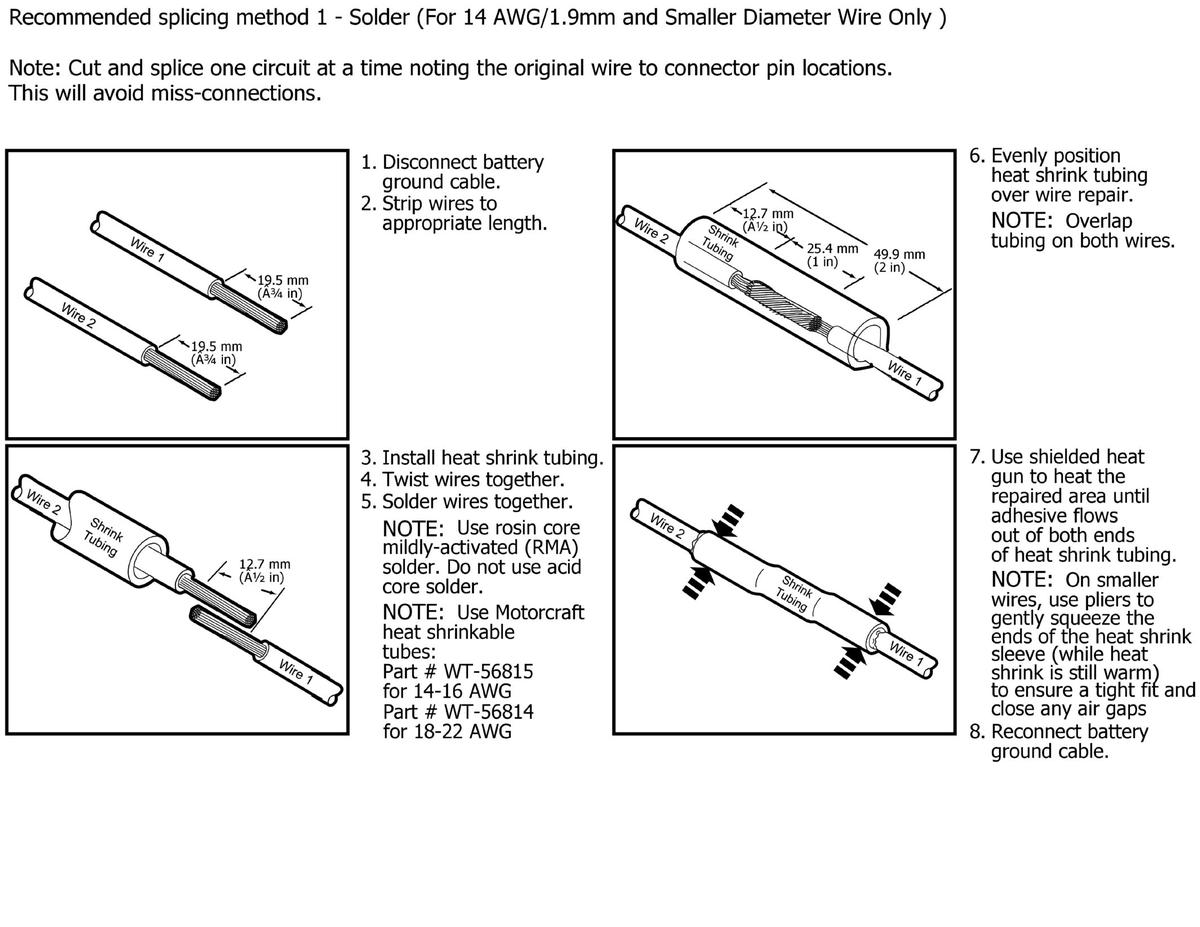

GFDWR165724Courtesy of FORD MOTOR COMPANY

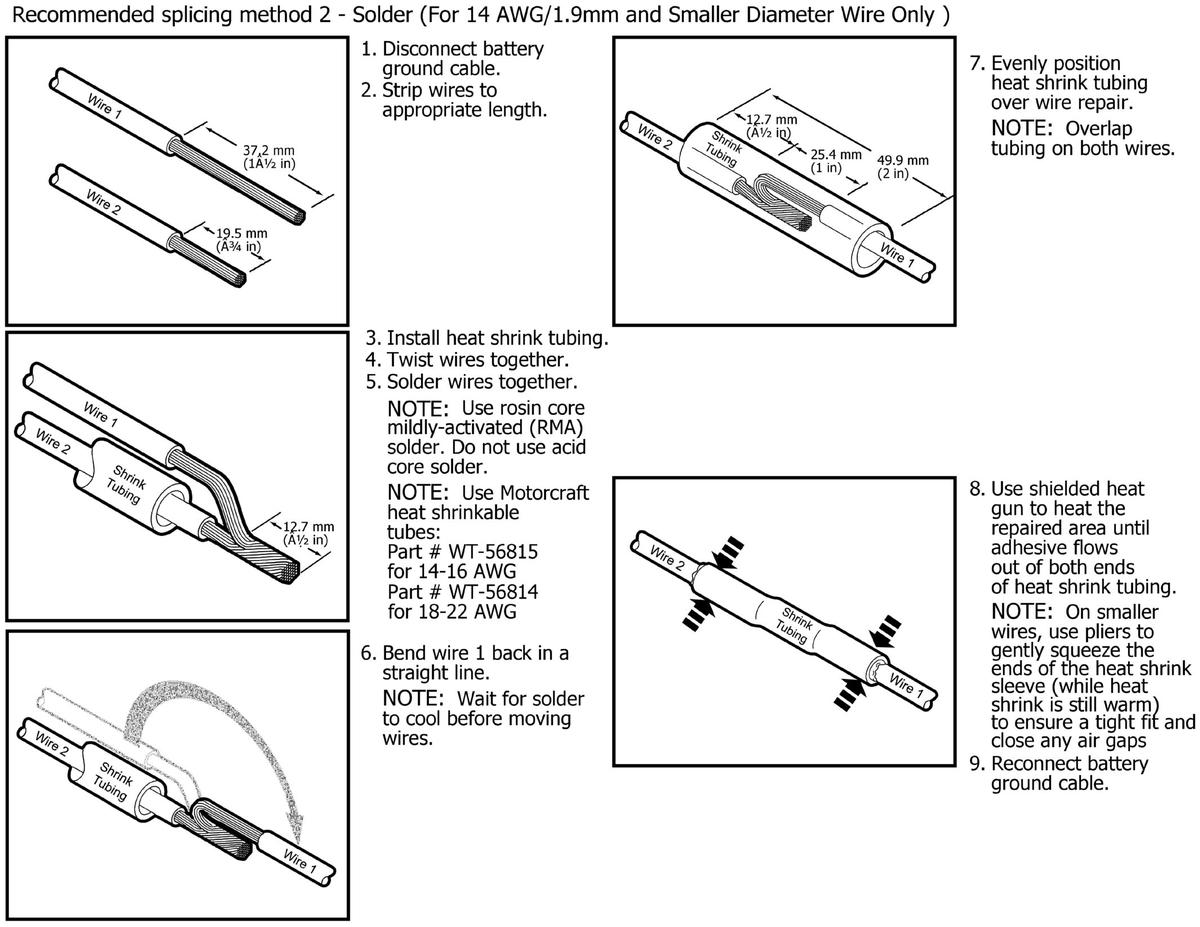

GFDWR165725Courtesy of FORD MOTOR COMPANY

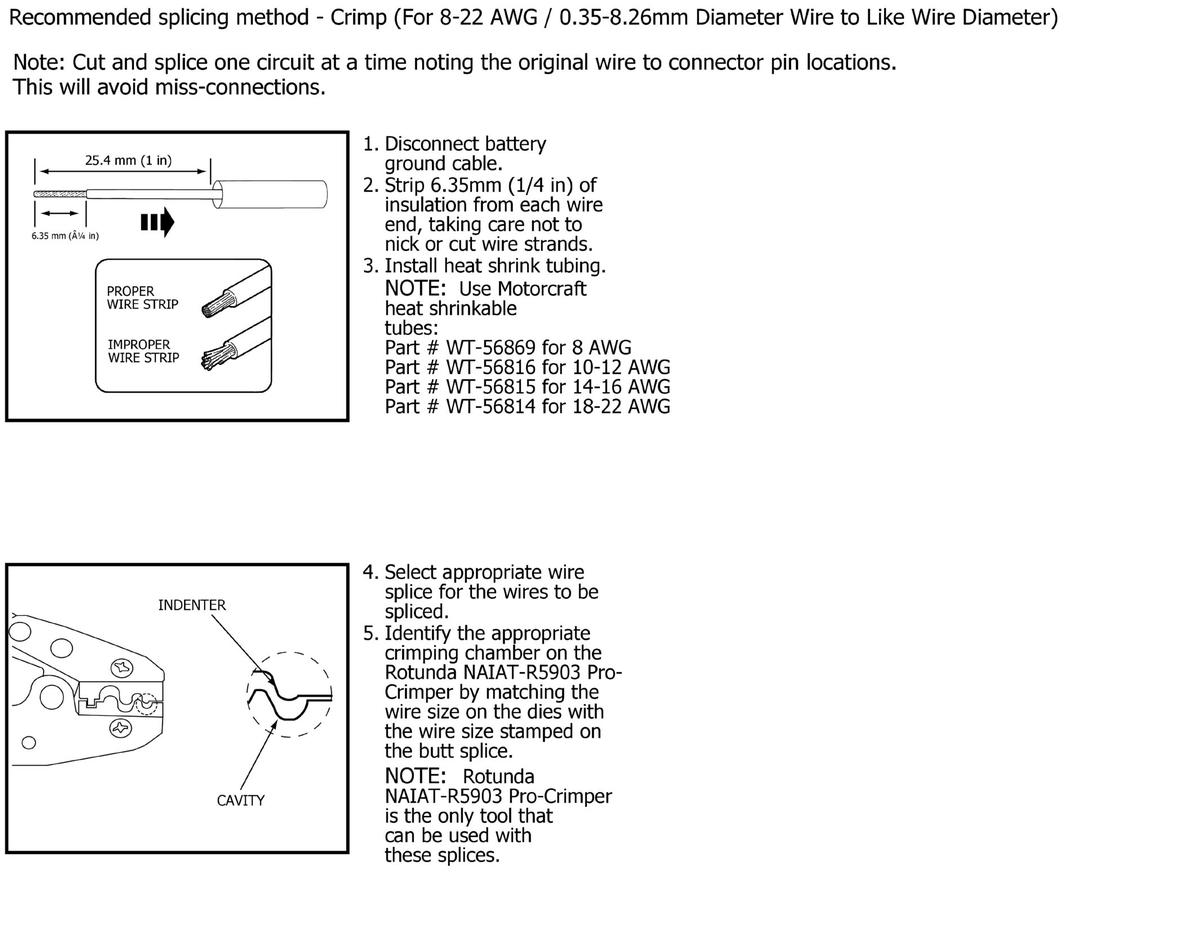

GFDWR165726Courtesy of FORD MOTOR COMPANY

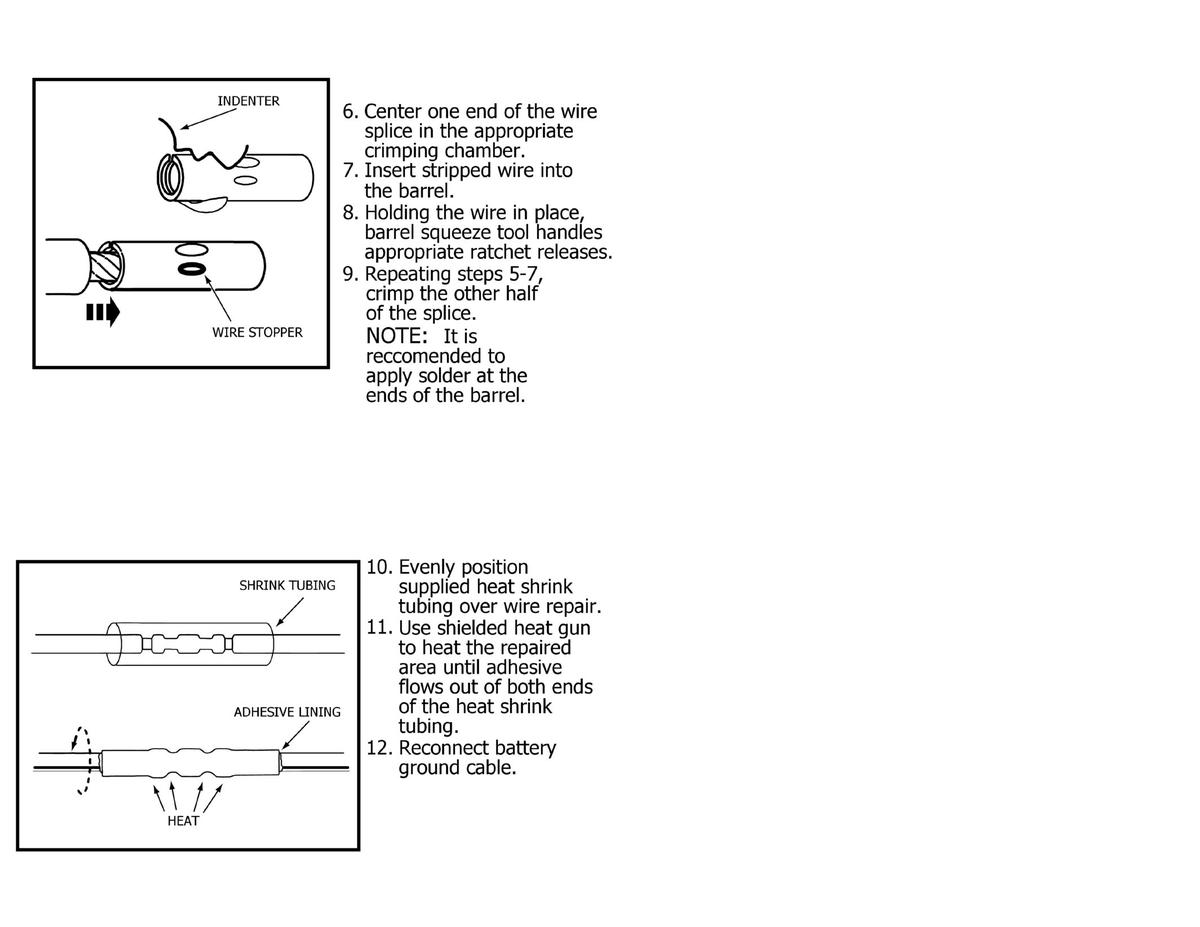

GFDWR165727Courtesy of FORD MOTOR COMPANY
