Park Lock Actuator: Assembly

  1. NOTE: Make sure park rod is installed in the park rod guide.

    Connect and install the park lock actuator.

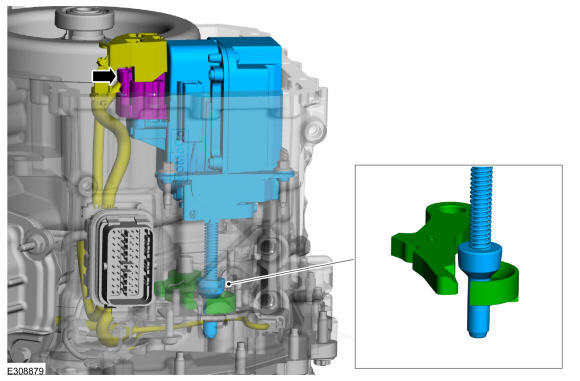

    GFD652013Courtesy of FORD MOTOR COMPANY
  2. Install the park lock actuator bolts.

    Torque: 97 lb.in (11 Nm)

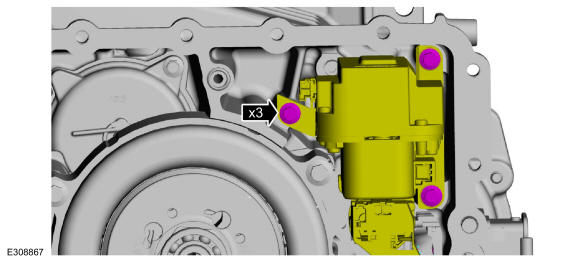

    GFD652011Courtesy of FORD MOTOR COMPANY
    1. Connect the park lock actuator.
    2. Install a new tie strap.

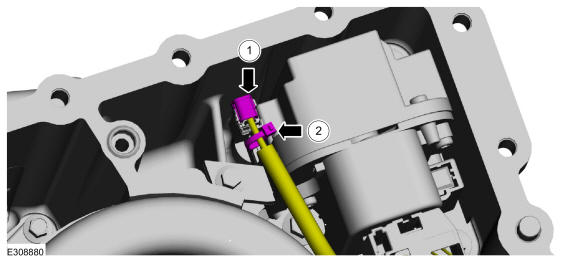

    GFD652014Courtesy of FORD MOTOR COMPANY
  4. Install the transmission case cover. Refer to: Transmission Case Cover .
