Front Seatbelt Buckle: Removal

NOTE: Removal steps in this procedure may contain installation details.

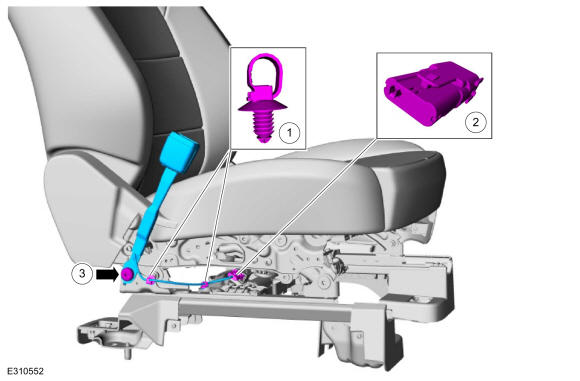

NOTE: Driver seat shown in illustration, passenger seat similar.

Remove the front seat. Refer to: Front Seat .
Remove the front seatbelt buckle.
1. Detach the wiring harness retainers.
2. Disconnect the electrical connector.
3. Remove the bolt.
  Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
