OEM Electrical Wiring Diagram Introduction: Introduction

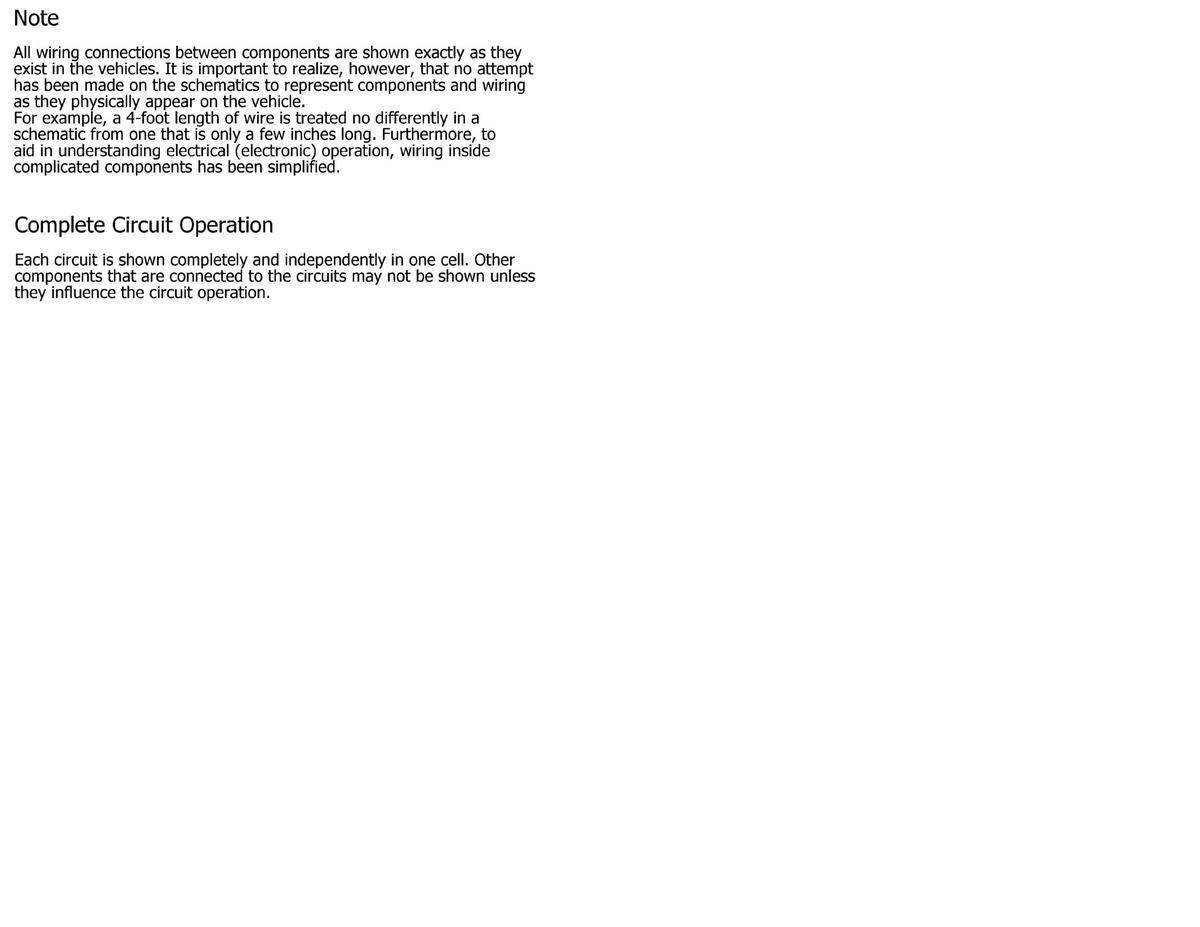

GFDWR165728Courtesy of FORD MOTOR COMPANY

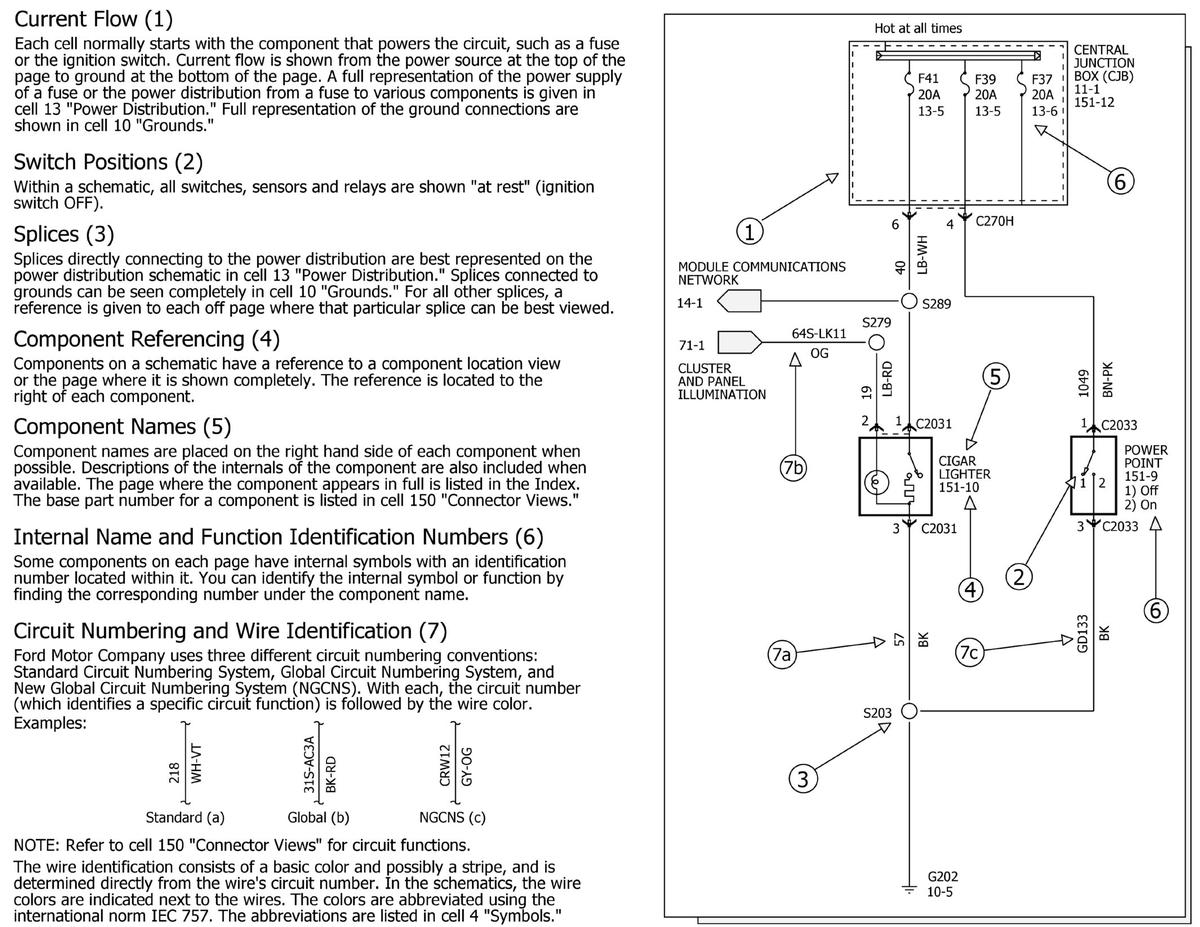

GFDWR165729Courtesy of FORD MOTOR COMPANY

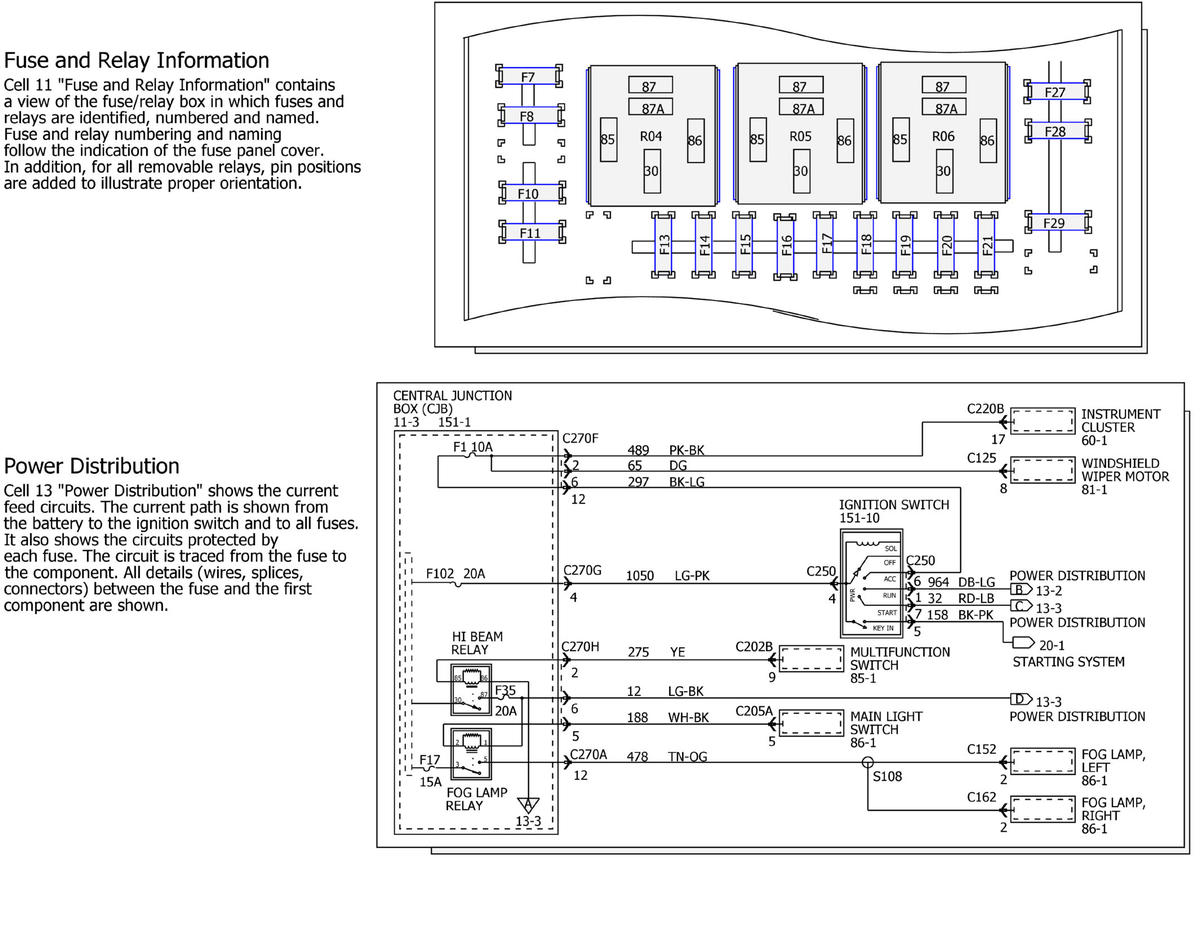

GFDWR165730Courtesy of FORD MOTOR COMPANY

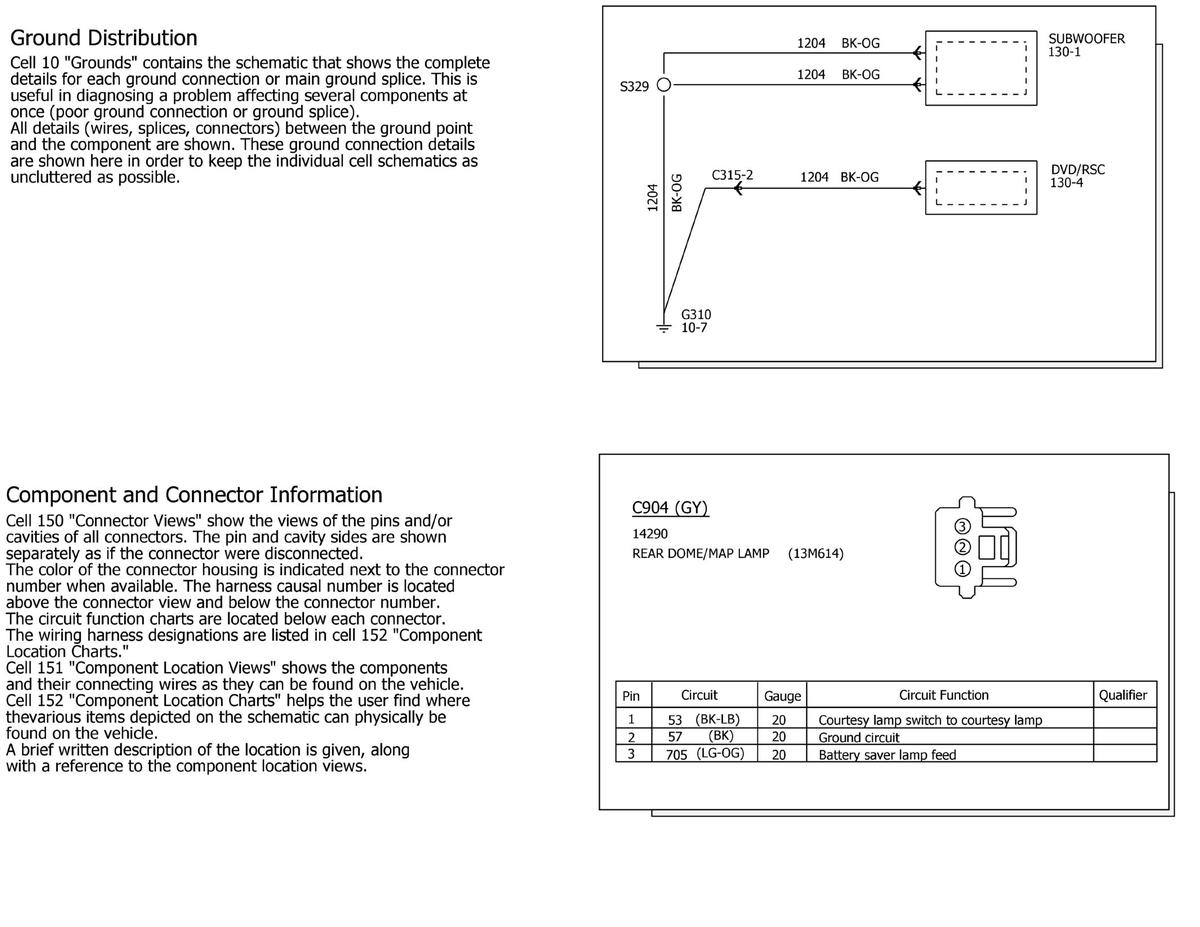

GFDWR165731Courtesy of FORD MOTOR COMPANY

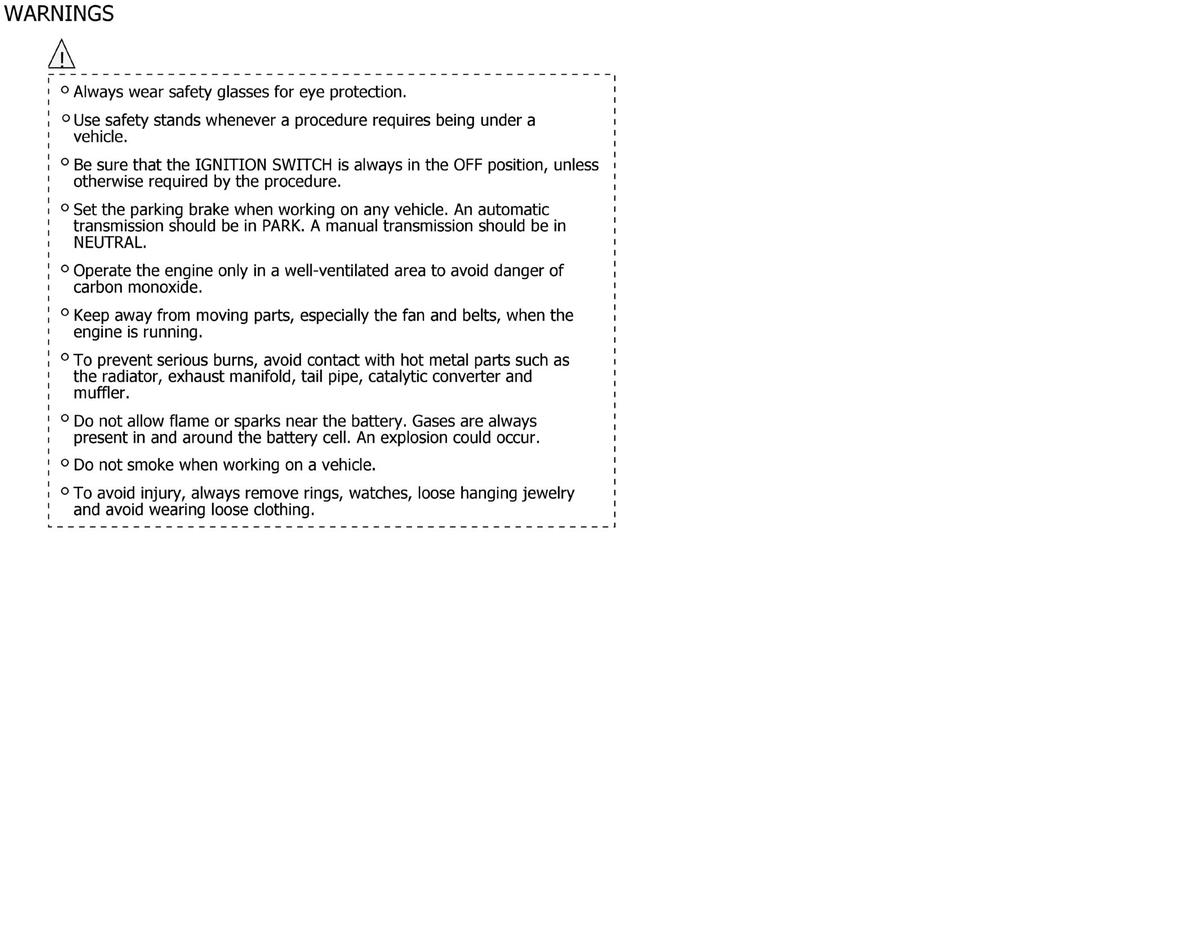

GFDWR165732Courtesy of FORD MOTOR COMPANY
