Front Seat Track Motor: Removal

NOTE: Driver seat shown in illustration, passenger seat similar.

NOTE: Positioning the seat fully upward provides access to service the seat track motor with the seat in the vehicle.

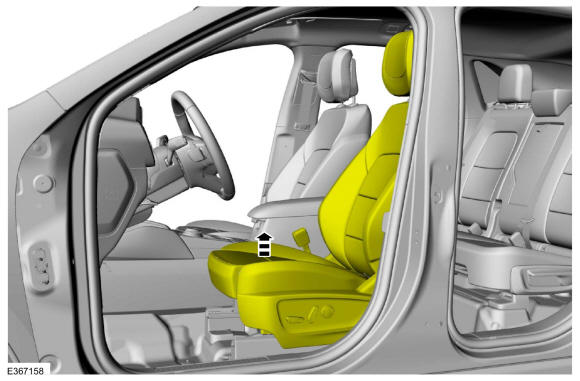

Move the front seat to the full upward position.

Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Disconnect the front seat wiring harness electrical connector.
1. Detach the front seat wiring harness retainer.
2. Disconnect the front seat electrical connector.
Courtesy of FORD MOTOR COMPANY

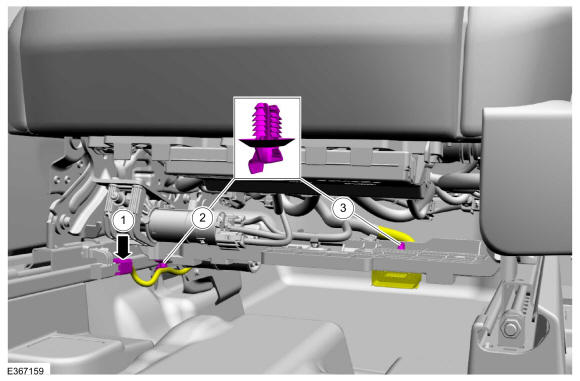

1. Disconnect the seat position sensor electrical connector.
2. Detach the seat position sensor wiring harness retainer.
3. Detach the front seat electrical connector.
Courtesy of FORD MOTOR COMPANY
Remove the front seat side shield screws.

Courtesy of FORD MOTOR COMPANY
1. Firmly grasp the front seat side shield, lift up and out, separating the side shield from the recliner bracket.
2. Slide the front seat side shield forward and separate the side shield from the seat.
Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector and remove the front seat side shield.

Courtesy of FORD MOTOR COMPANY
NOTE: Front seat track components are removed for clarity.

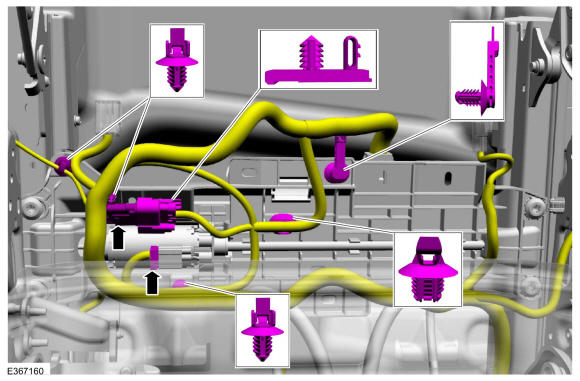

Disconnect the front seat track motor electrical connector, disconnect the front seatbelt buckle electrical connector, detach the front seat wiring harness retainers and position the front seat wiring harness aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Front seat track components and wiring harnesses are removed for clarity.

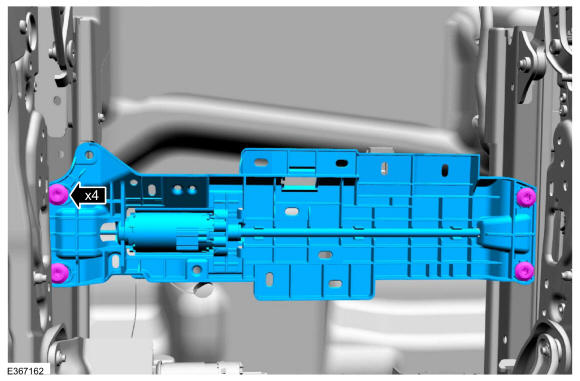

Remove the bolts and the front seat track motor.
