Front Seat Backrest Cover: Removal

WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: Driver seat shown in illustration, passenger seat similar.

Remove the side airbag. Refer to: Side Airbag .
Remove the front head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .

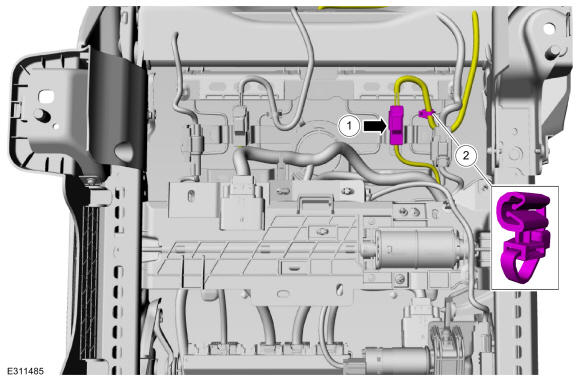

Vehicles with heated seats
1. Disconnect the front seat backrest heater mat electrical connector.
2. Detach the front seat backrest heater mat wiring harness retainer and position aside.
Courtesy of FORD MOTOR COMPANY

All seats

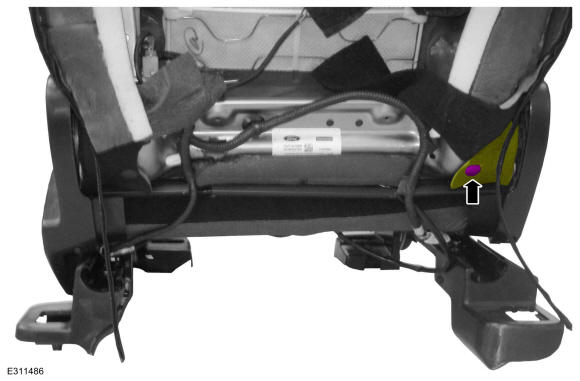

Remove the pin-type retainer and position the backrest cover aside.

Courtesy of FORD MOTOR COMPANY

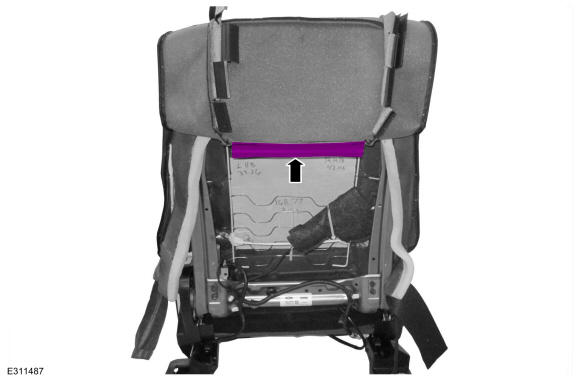

Detach the front seat backrest cover upper J-clip.

Courtesy of FORD MOTOR COMPANY

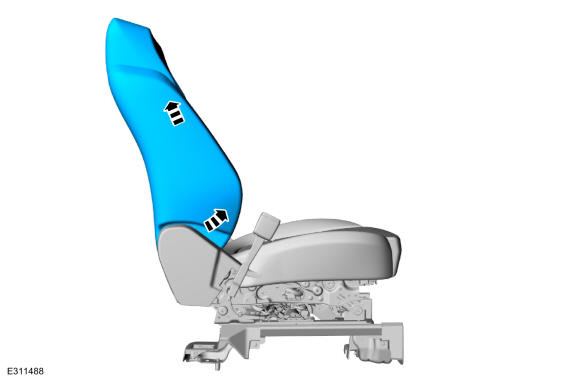

Remove the front seat backrest cover and foam as an assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

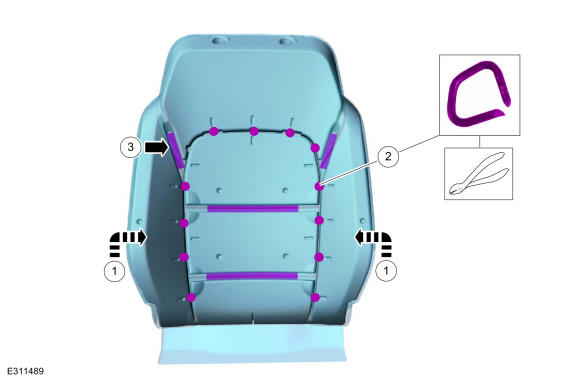

Remove the front seat backrest cover.
1. Invert the backrest cover.
2. Remove the hog rings.
3. NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

  Release the hook-and-loop strips.

Courtesy of FORD MOTOR COMPANY
