Liftgate Release Switch: Removal

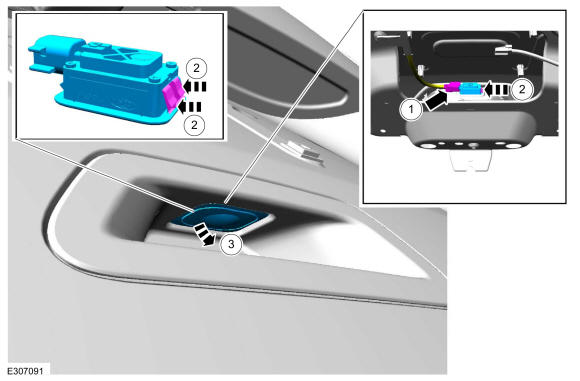

  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .
  2. Remove the liftgate release switch.

    1. Disconnect the liftgate release switch electrical connector.
    2. Release the liftgate release switch retaining tabs.
    3. Remove the liftgate release switch.

GFD653942Courtesy of FORD MOTOR COMPANY
