Component Testing

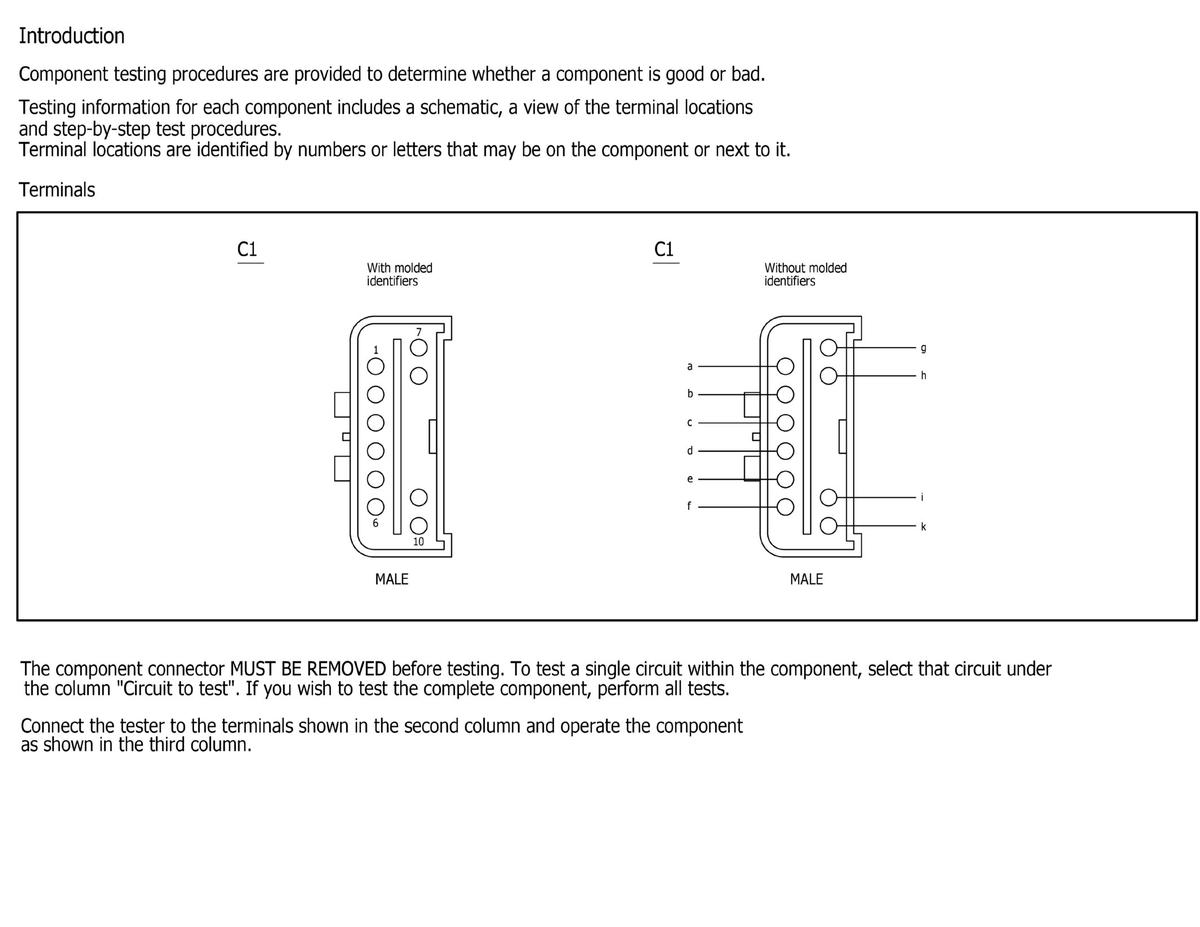

Fig 1: Introduction

Courtesy of FORD MOTOR COMPANY

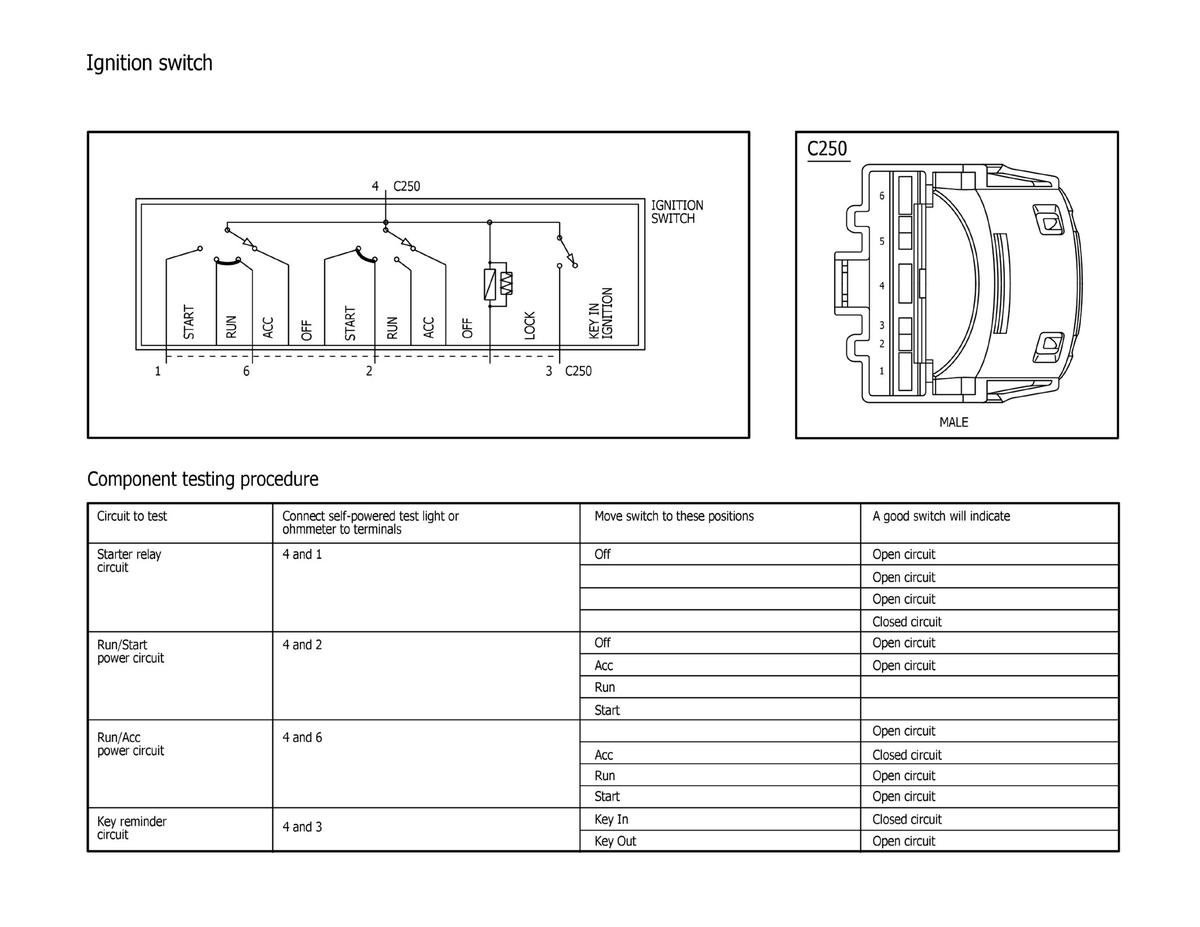

Fig 2: Ignition Switch Component Testing

Courtesy of FORD MOTOR COMPANY

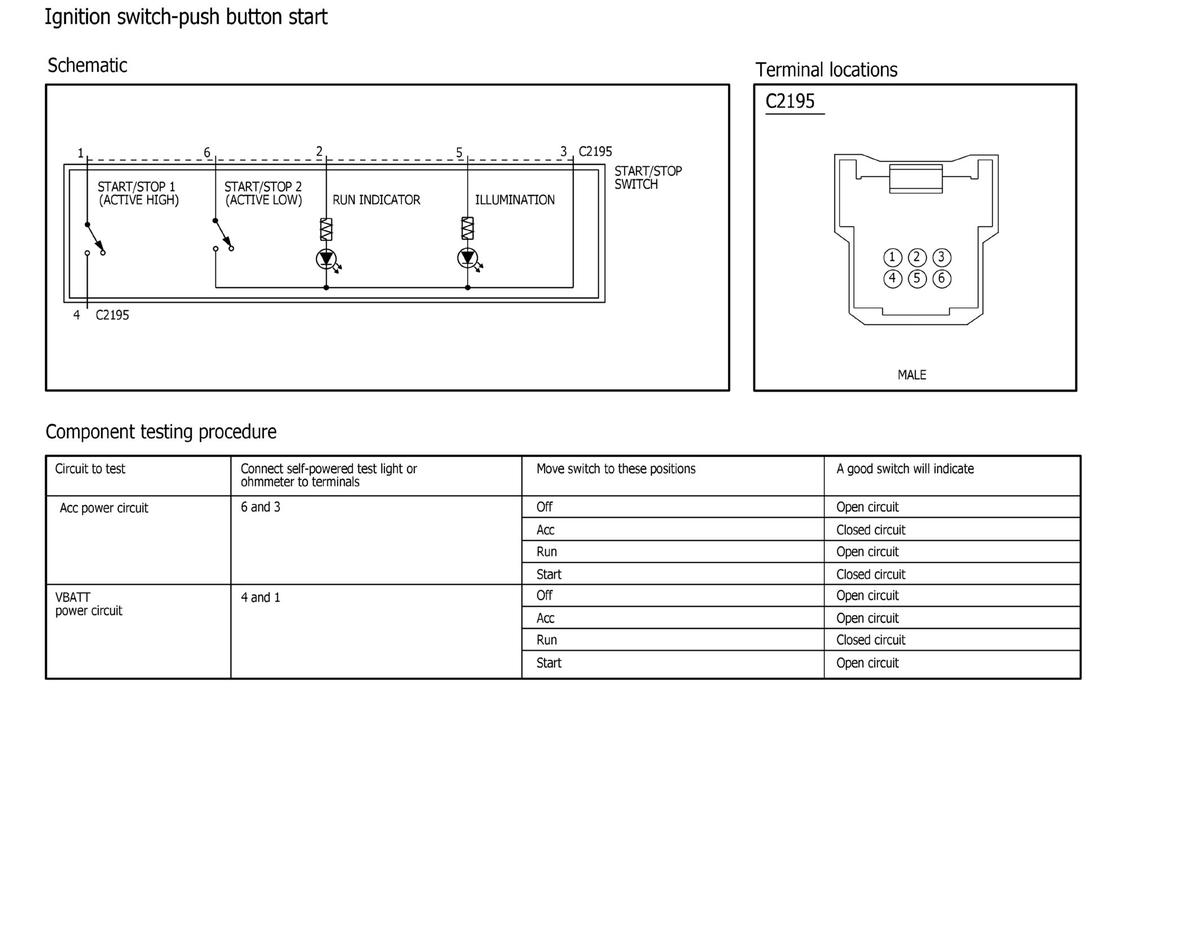

Fig 3: Ignition Switch - Push Button Start Component Testing

Courtesy of FORD MOTOR COMPANY

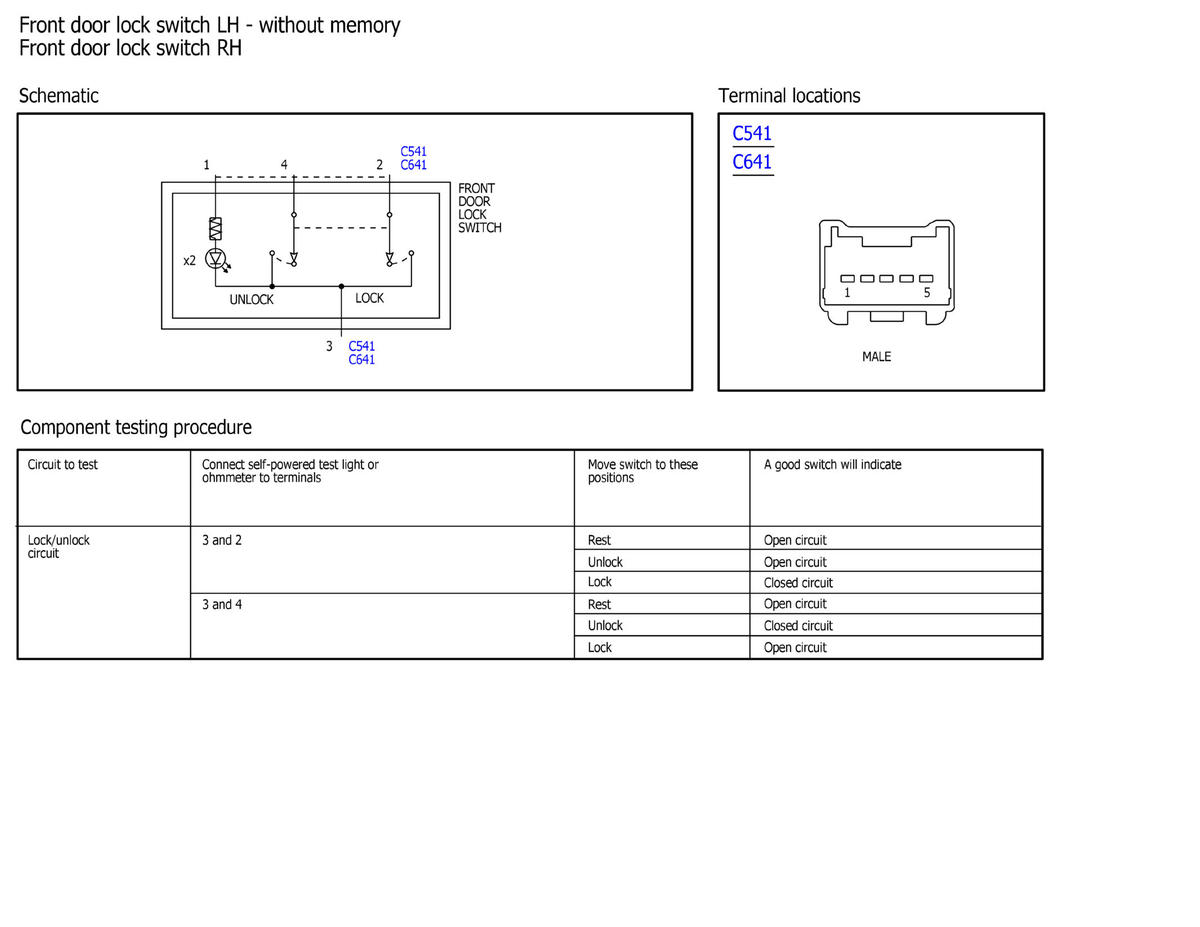

Fig 4: Front Door Lock Switch LH - Without Memory; Front Door Lock Switch RH Component Testing

Courtesy of FORD MOTOR COMPANY

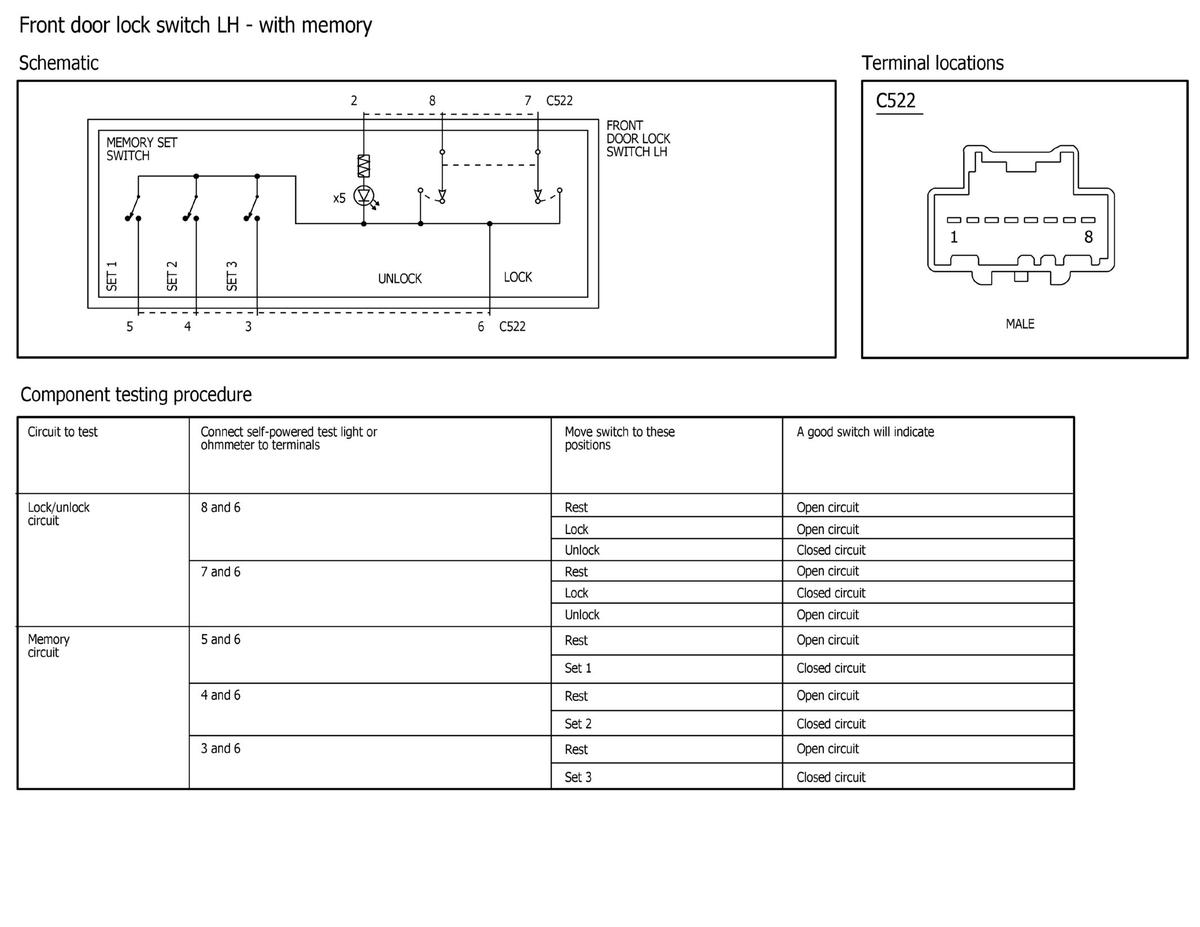

Fig 5: Front Door Lock Switch LH - With Memory Component Testing

Courtesy of FORD MOTOR COMPANY

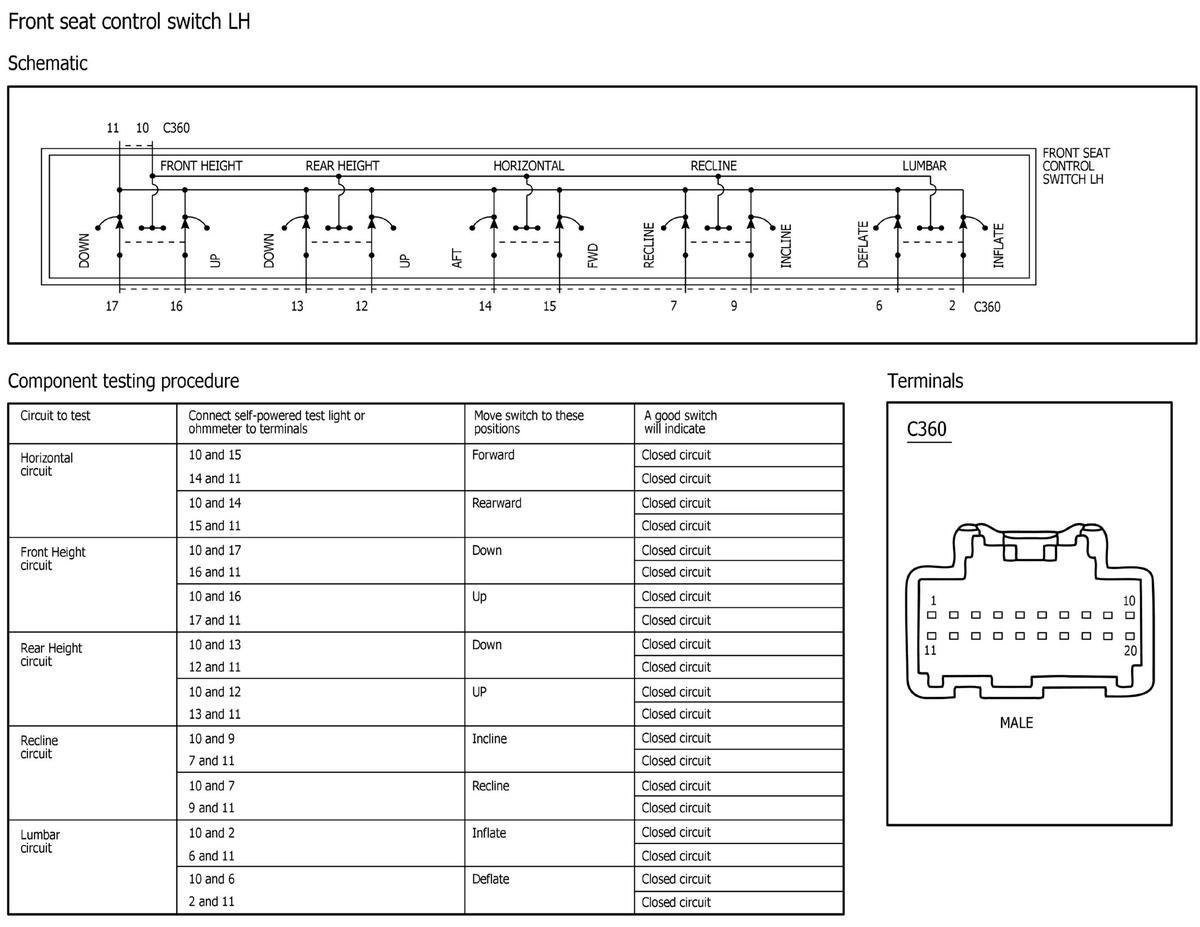

Fig 6: Front Seat Control Switch LH Component Testing

Courtesy of FORD MOTOR COMPANY

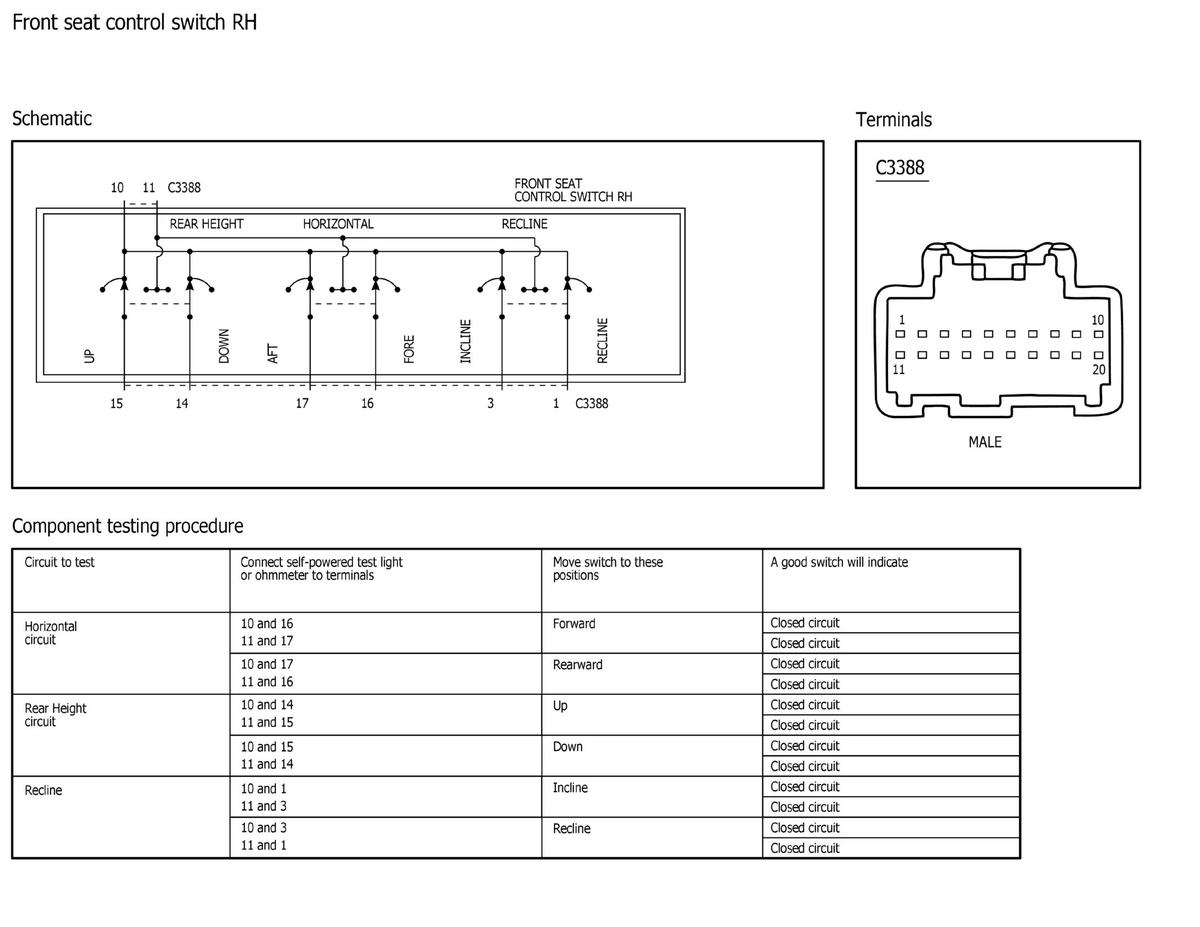

Fig 7: Front Seat Control Switch RH Component Testing

Courtesy of FORD MOTOR COMPANY

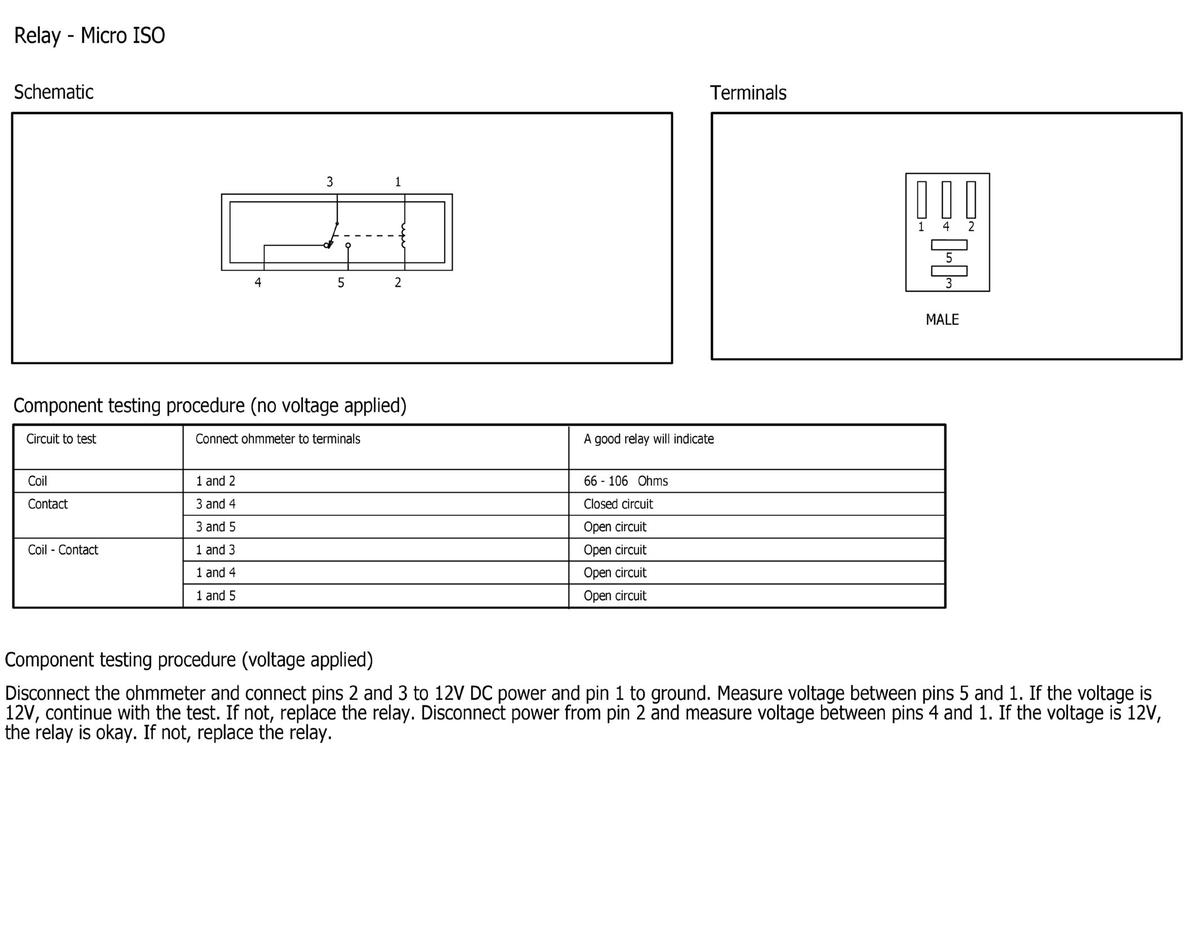

Fig 8: Relay - Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

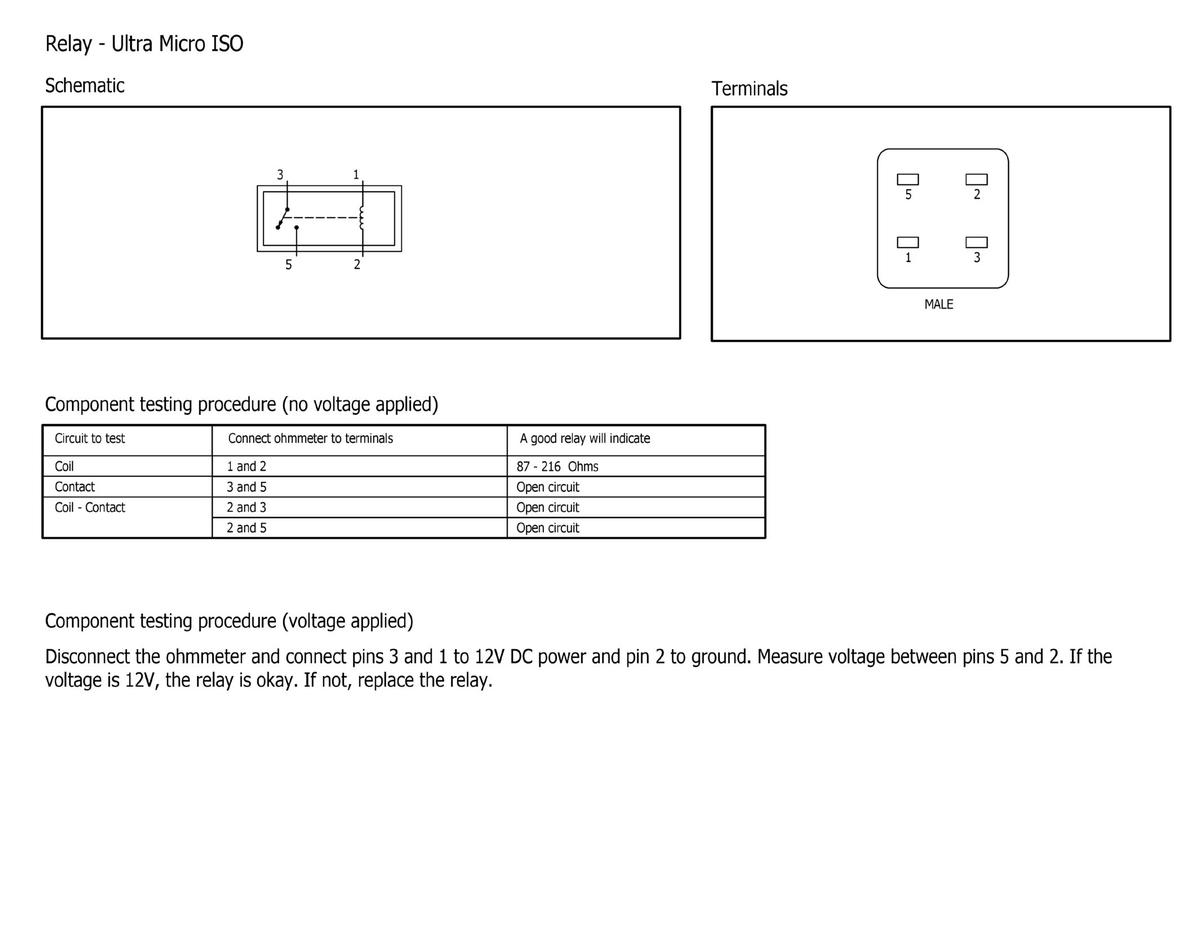

Fig 9: Relay - Ultra Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

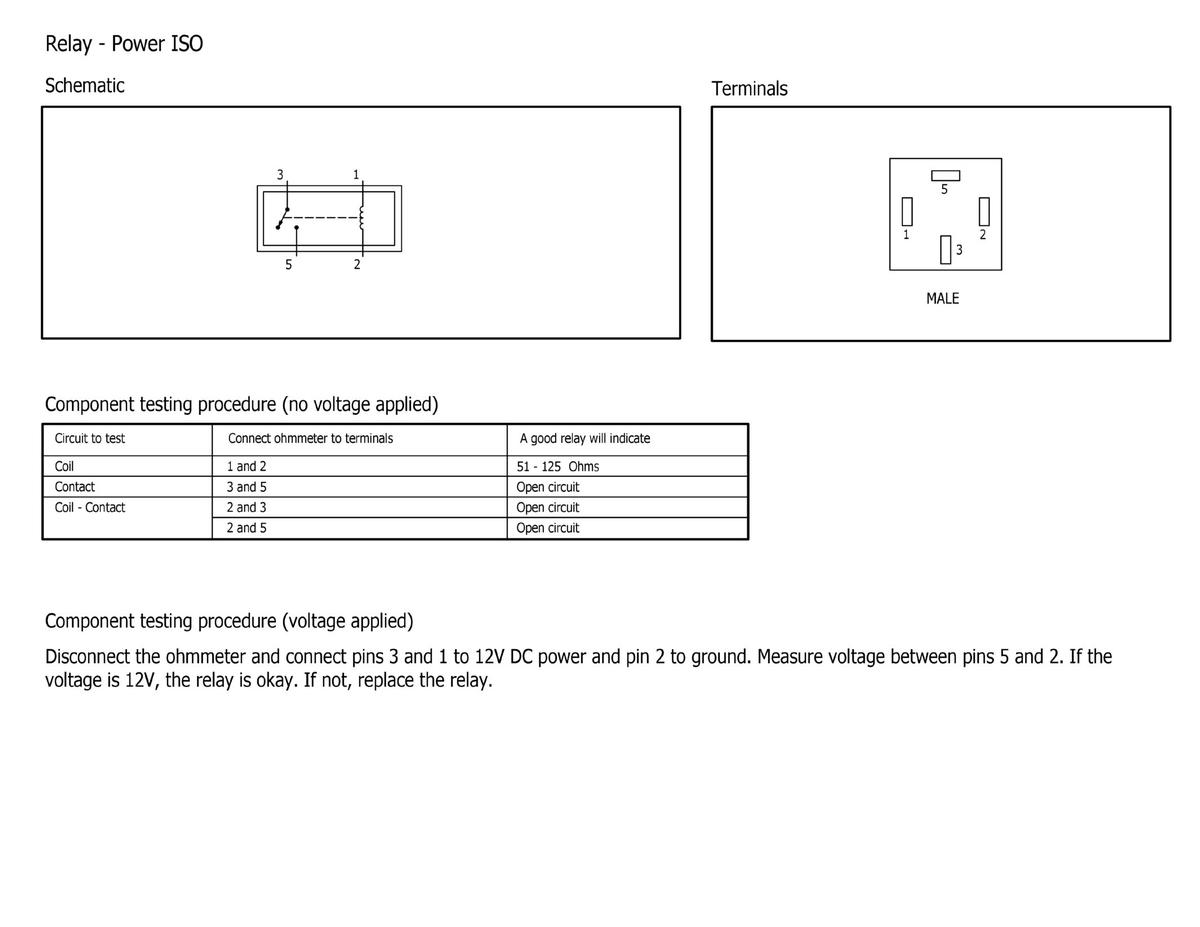

Fig 10: Relay - Power ISO Component Testing

Courtesy of FORD MOTOR COMPANY
