Liftgate Release Switch: Removal

  1. Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

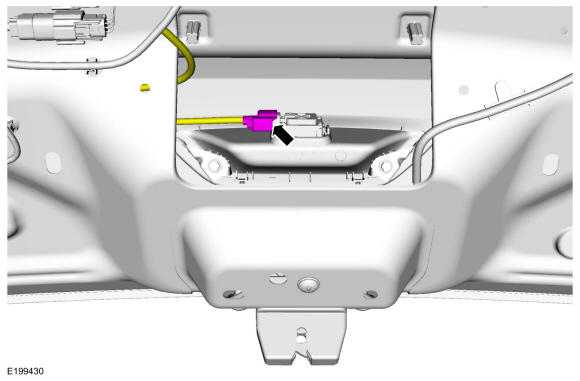

  2. Disconnect the electrical connector.
    GFD647389Courtesy of FORD MOTOR COMPANY

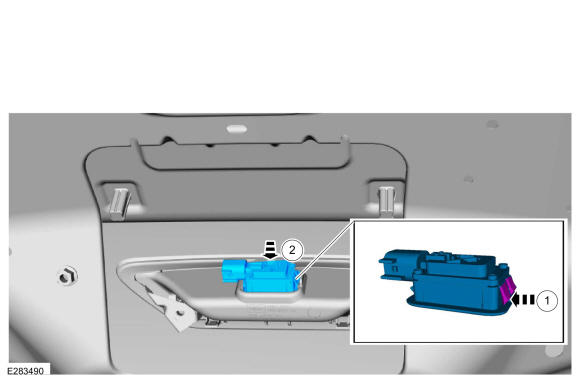

  3. Remove the liftgate release switch.

    1. Press the retaining tabs on the liftgate release switch.
    2. Remove the liftgate release switch.

GFD647390Courtesy of FORD MOTOR COMPANY
