Fuse And Relay Information

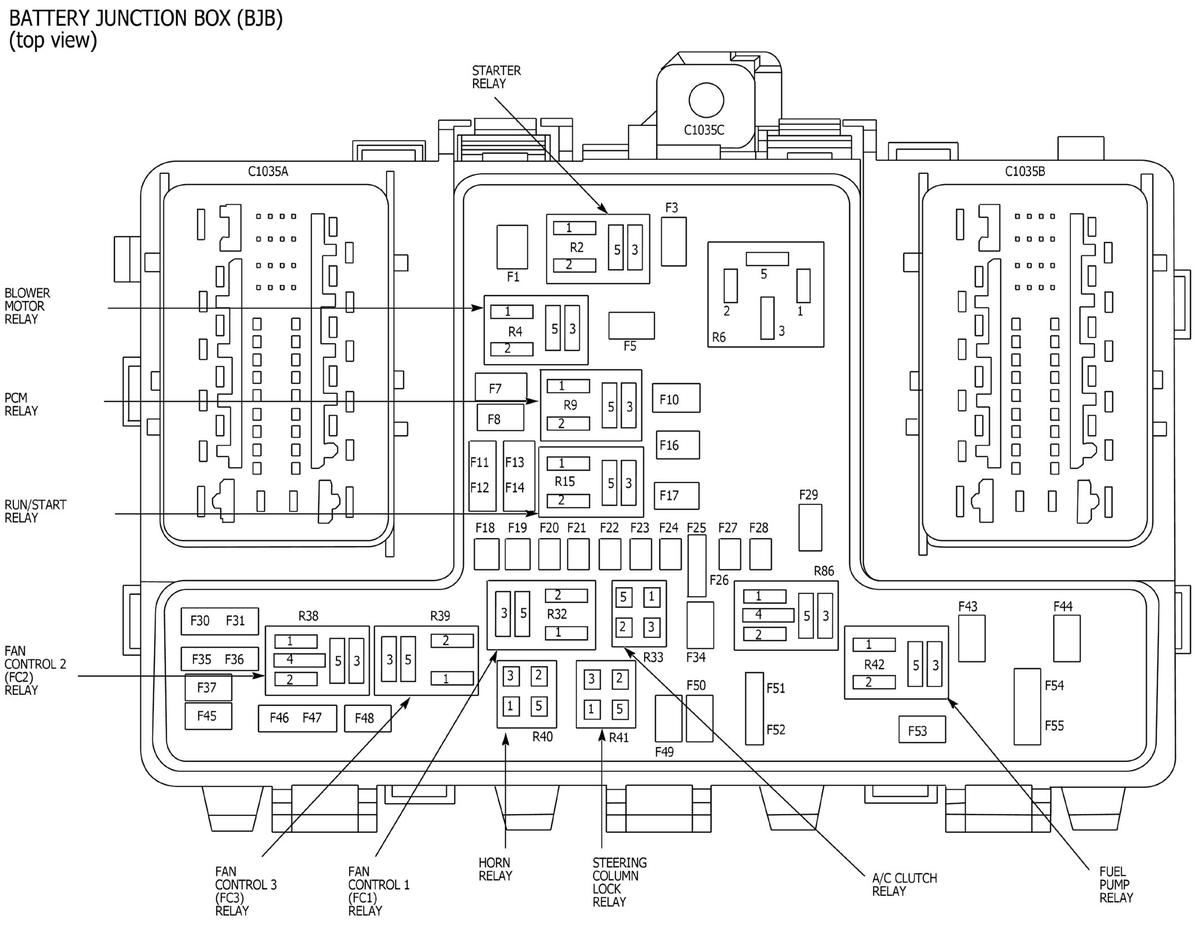

Fig 1: Battery Junction Box (BJB) (Top View) Component Location
GFDWR163568Courtesy of FORD MOTOR COMPANY

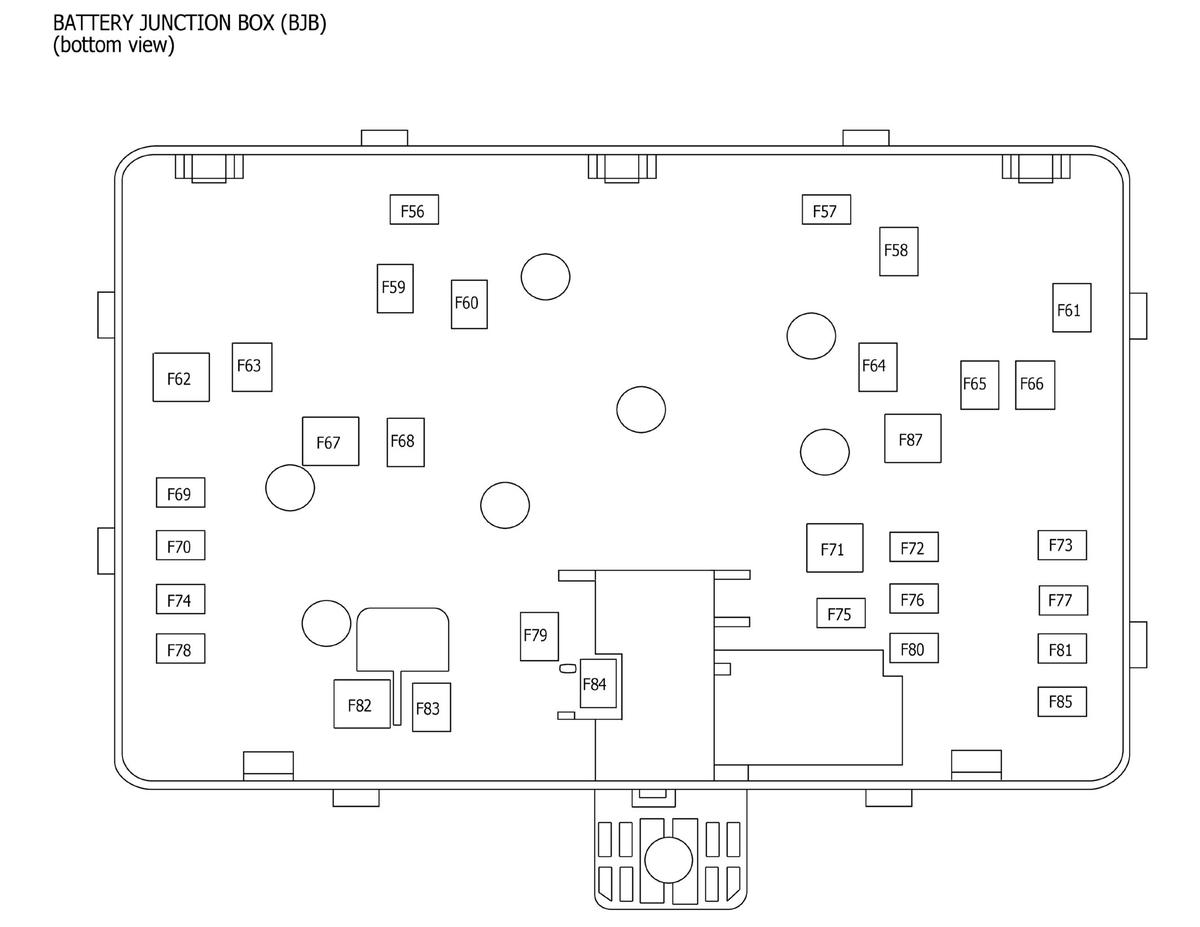

Fig 2: Battery Junction Box (BJB) (Bottom View) Component Location
GFDWR163569Courtesy of FORD MOTOR COMPANY

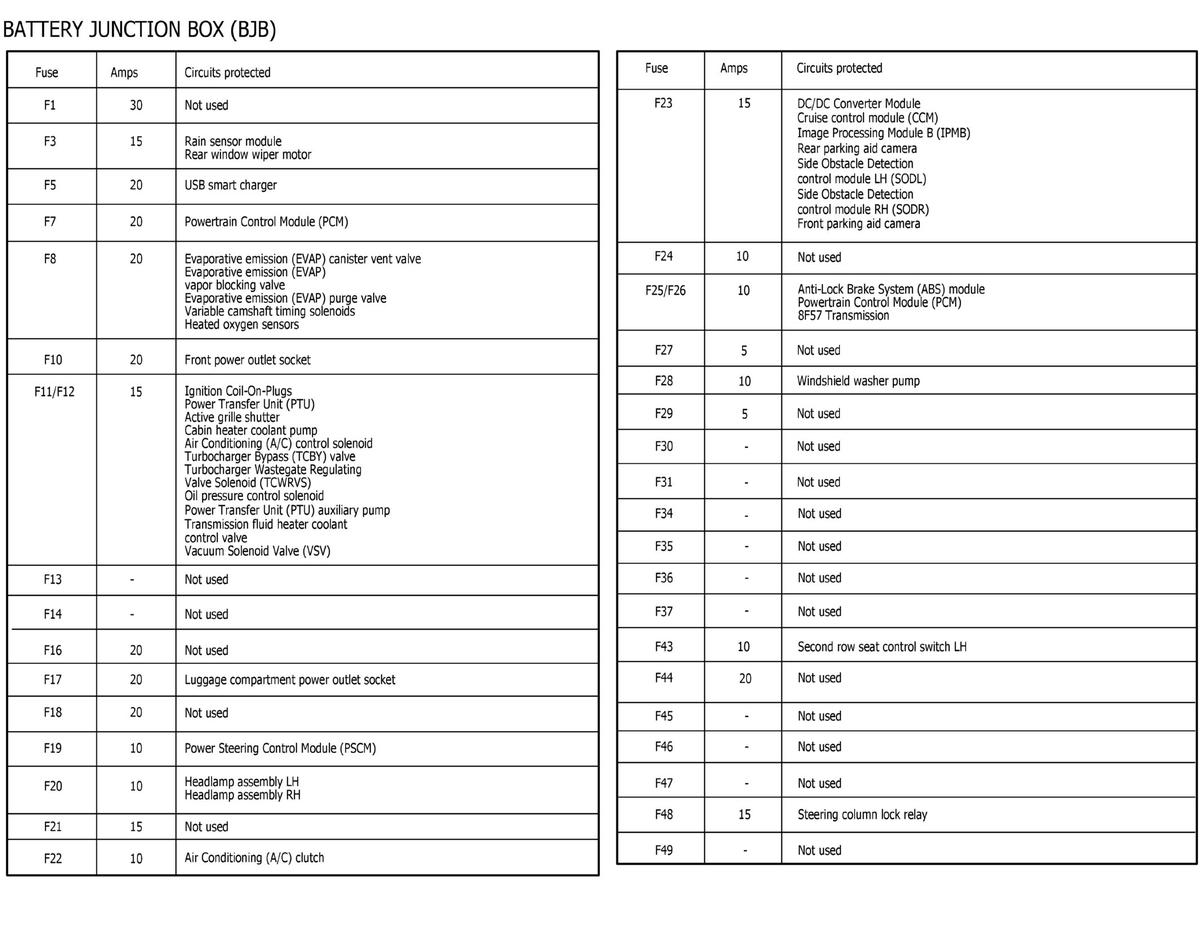

Fig 3: Battery Junction Box (BJB) Component Location Legend (1 of 2)
GFDWR163570Courtesy of FORD MOTOR COMPANY

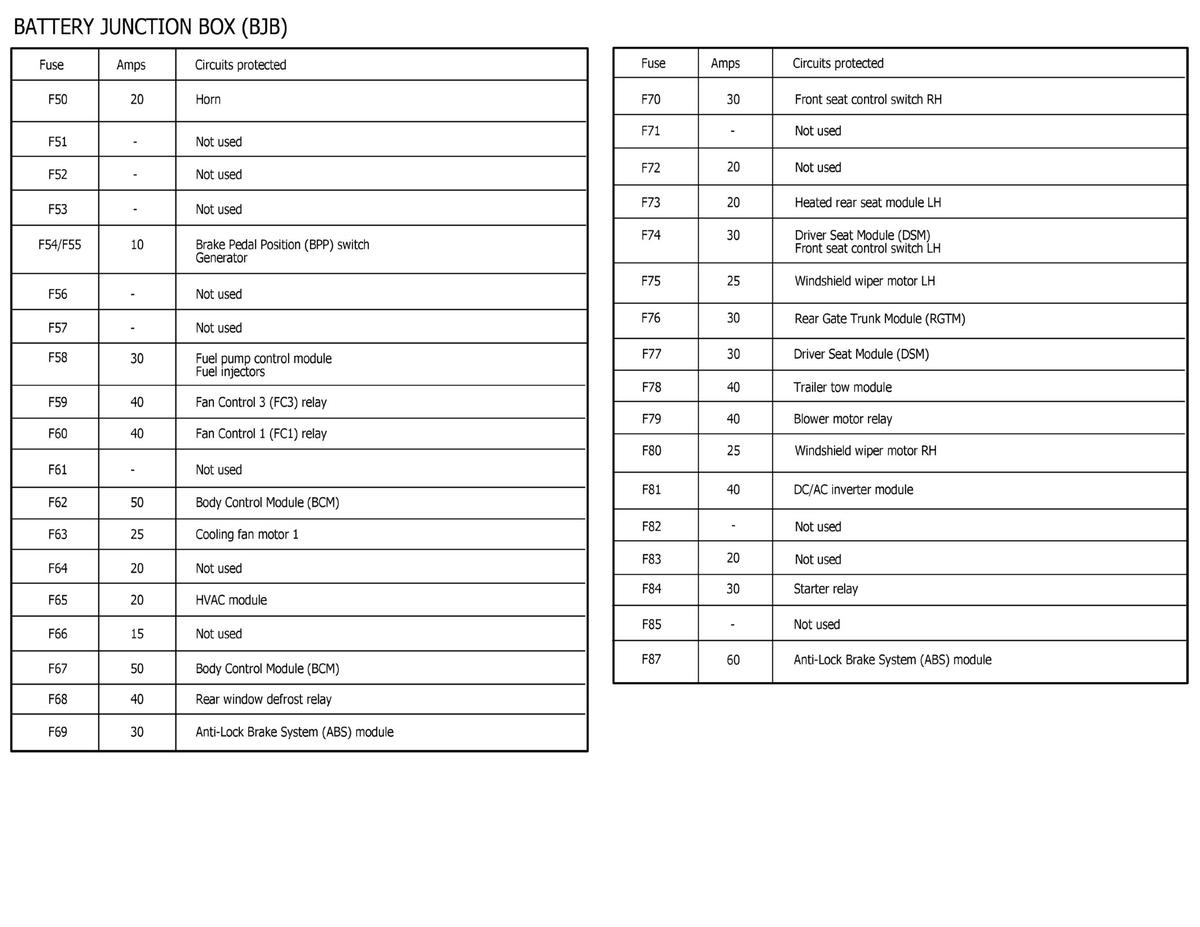

Fig 4: Battery Junction Box (BJB) Component Location Legend (2 of 2)
GFDWR163571Courtesy of FORD MOTOR COMPANY

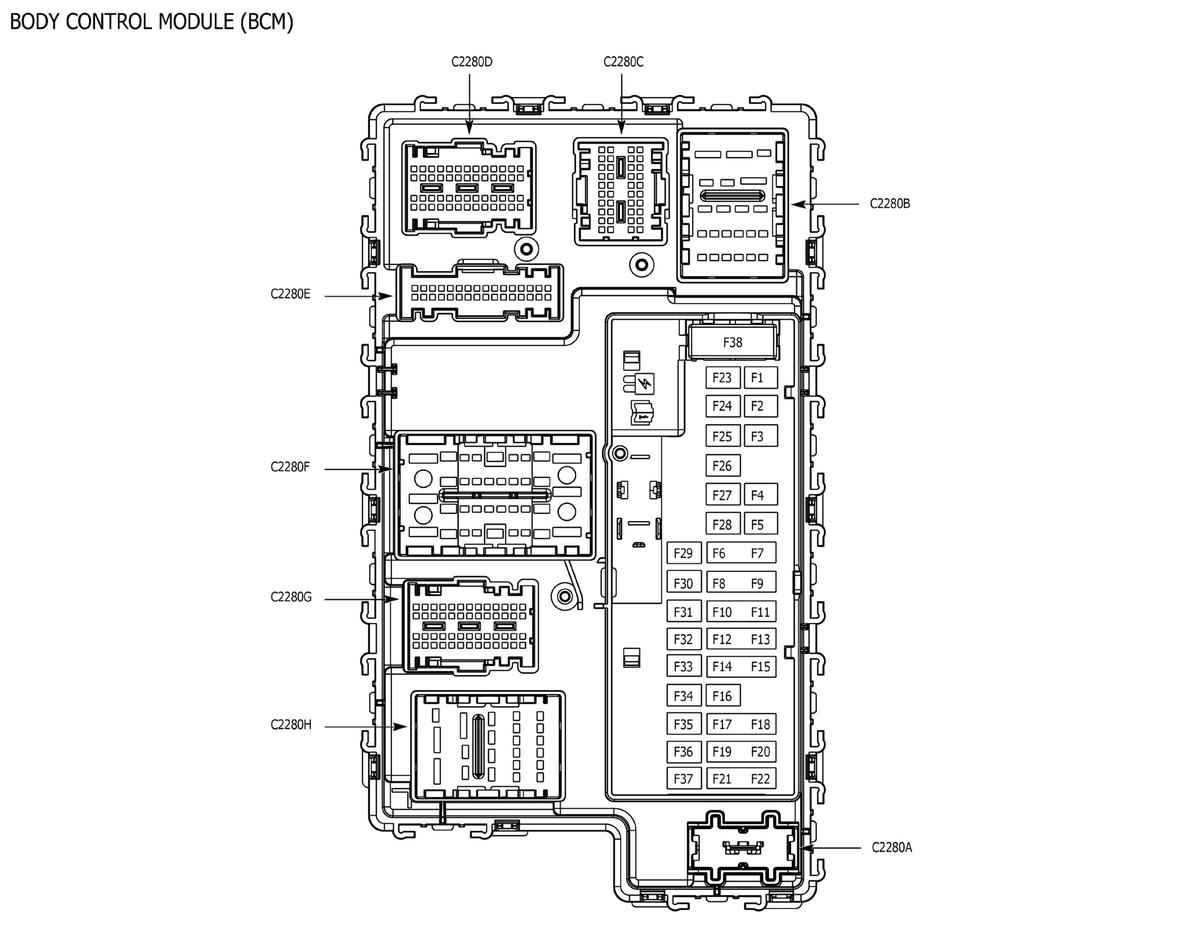

Fig 5: Body Control Module (BCM) Component Location
GFDWR163572Courtesy of FORD MOTOR COMPANY

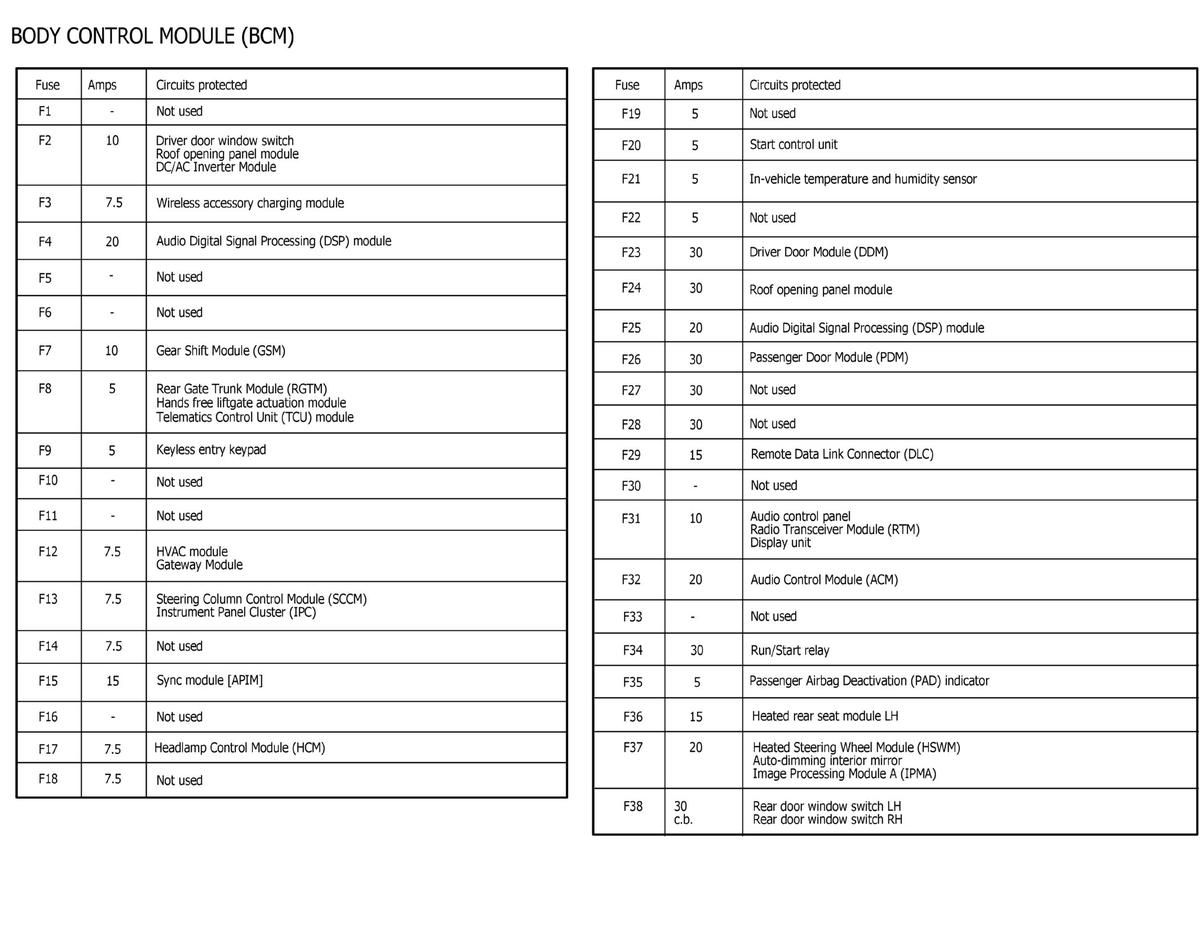

Fig 6: Body Control Module (BCM) Component Location Legend
GFDWR163573Courtesy of FORD MOTOR COMPANY

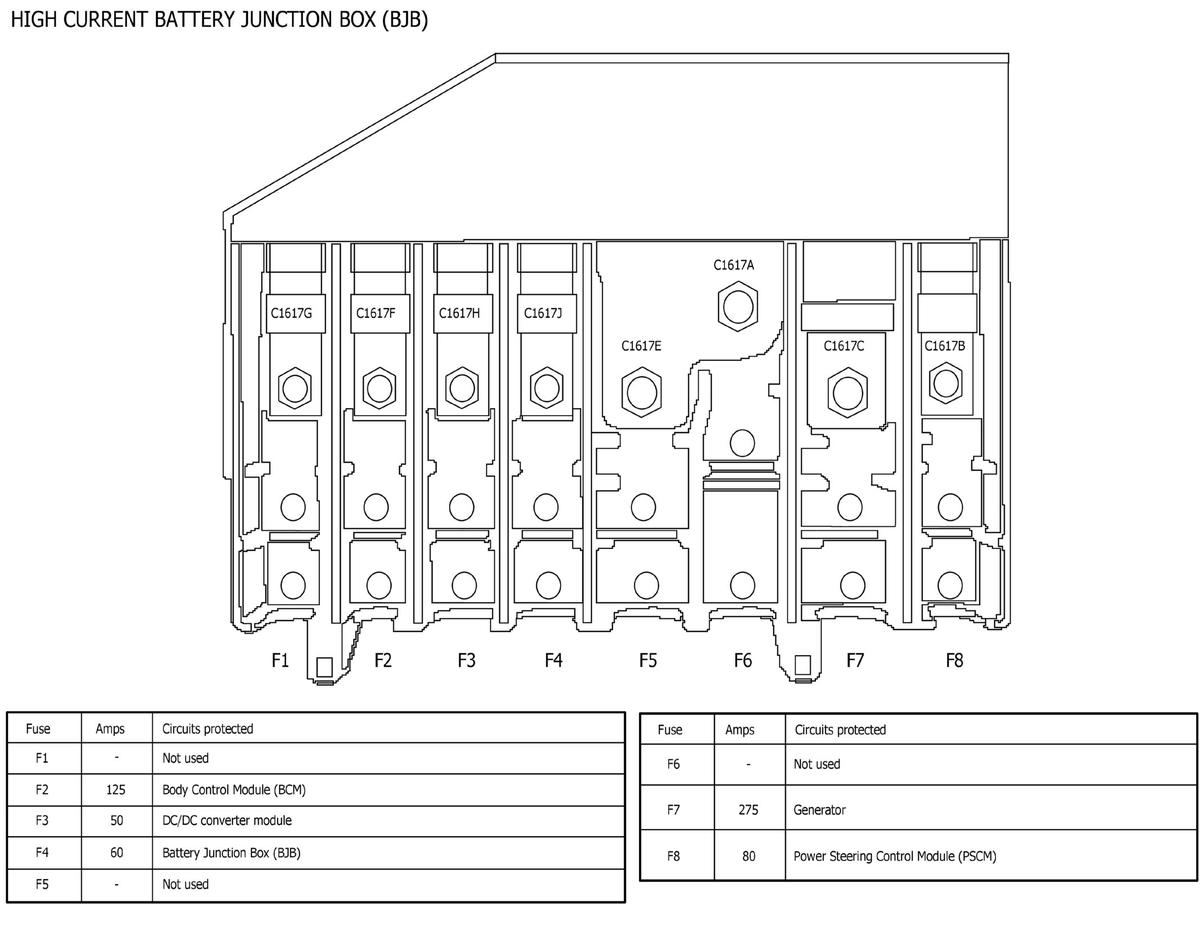

Fig 7: High Current Battery Junction Box (BJB) Component Location & Legend
GFDWR163574Courtesy of FORD MOTOR COMPANY
