Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the instrument panel. Refer to: Instrument Panel .

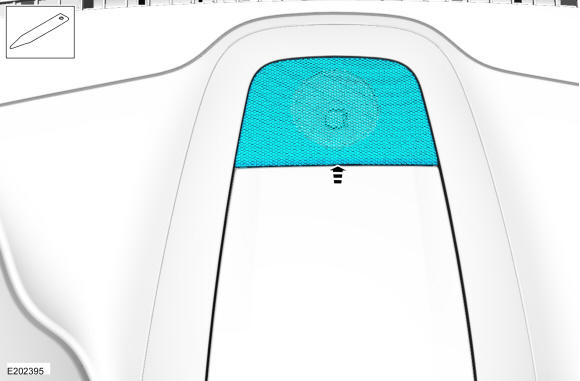

  2. Remove the instrument panel speaker grille. Use the General Equipment: Interior Trim Remover
    GFD647282Courtesy of FORD MOTOR COMPANY

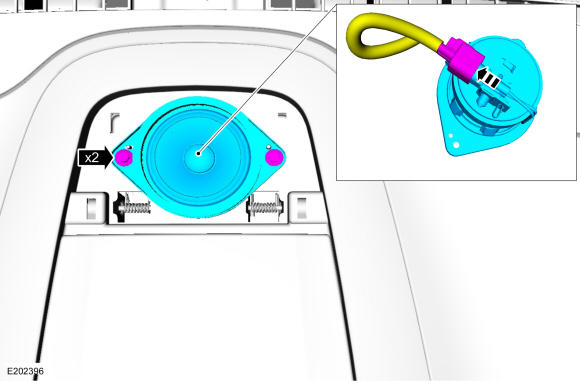

  3. Remove the bolts and the instrument panel speaker.

    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

    GFD647283Courtesy of FORD MOTOR COMPANY

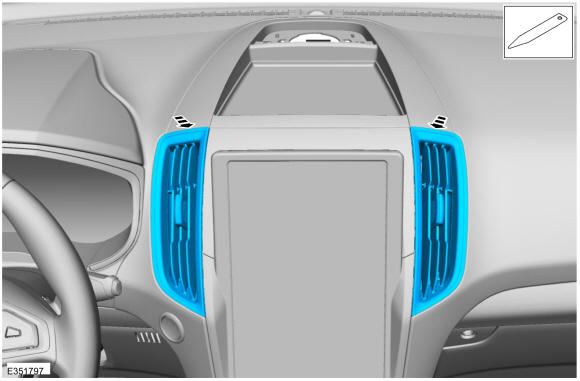

    GFD647284Courtesy of FORD MOTOR COMPANY

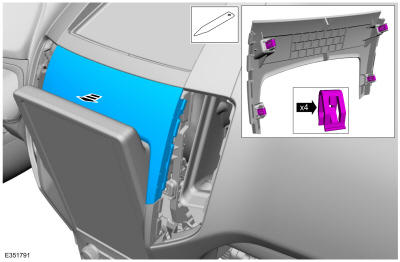

    GFD647285Courtesy of FORD MOTOR COMPANY

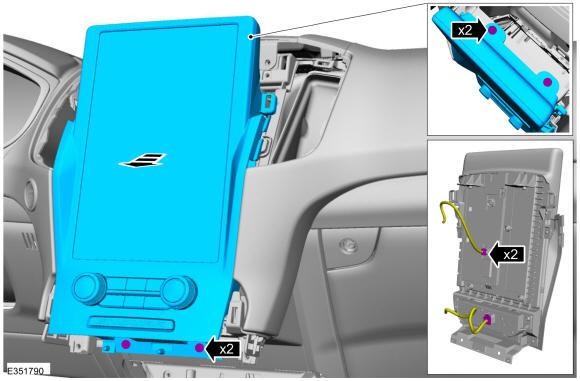

  4. Remove the bolts and the information and entertainment display unit.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD647286Courtesy of FORD MOTOR COMPANY

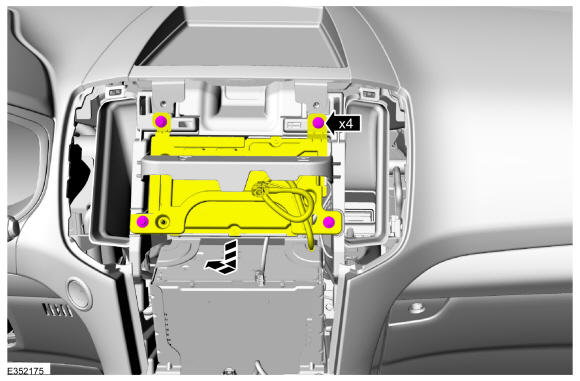

  5. Remove the screws and position the APIM down and rearward.

    Torque: 22 lb.in (2.5 Nm)

    GFD646611Courtesy of FORD MOTOR COMPANY

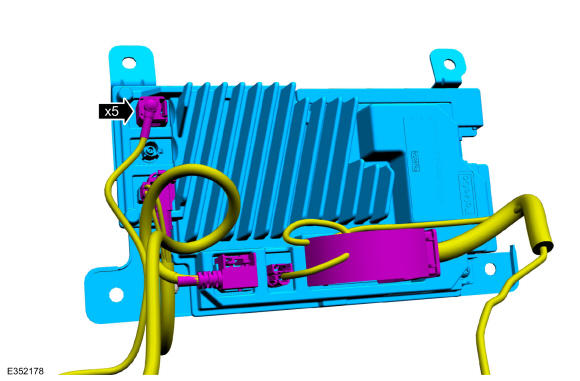

  6. Disconnect the electrical connectors.
    GFD647287Courtesy of FORD MOTOR COMPANY

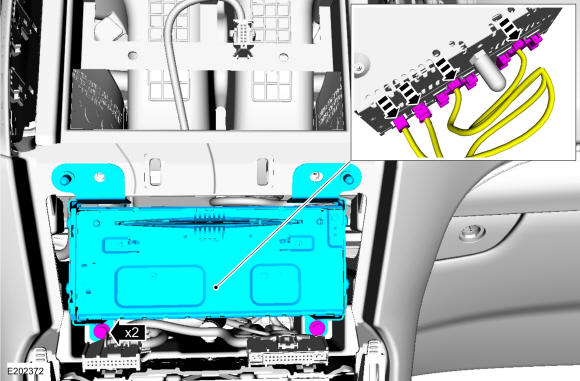

  7. Remove the bolts and the ACM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    GFD647288Courtesy of FORD MOTOR COMPANY

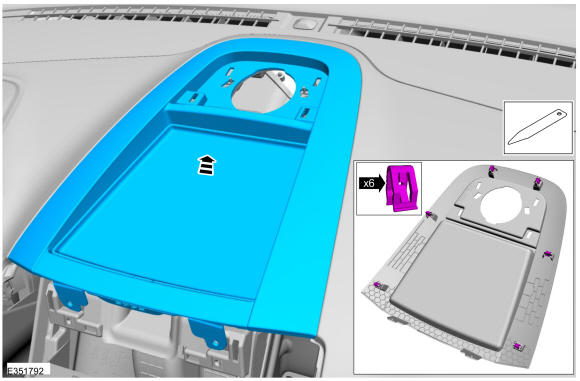

  8. Release the clips and remove the upper instrument panel storage bin.

    Torque: 22 lb.in (2.5 Nm)

    GFD647289Courtesy of FORD MOTOR COMPANY

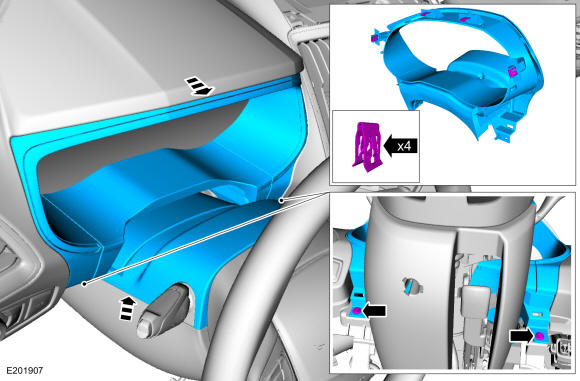

  9. Remove bolts, release the clips and remove the IPC bezel.

    Torque: 22 lb.in (2.5 Nm)

    GFD647290Courtesy of FORD MOTOR COMPANY

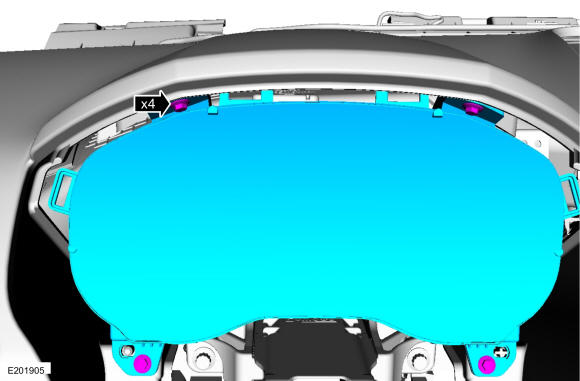

  10. Remove the bolts and the IPC.

    Torque: 22 lb.in (2.5 Nm)

    GFD647291Courtesy of FORD MOTOR COMPANY

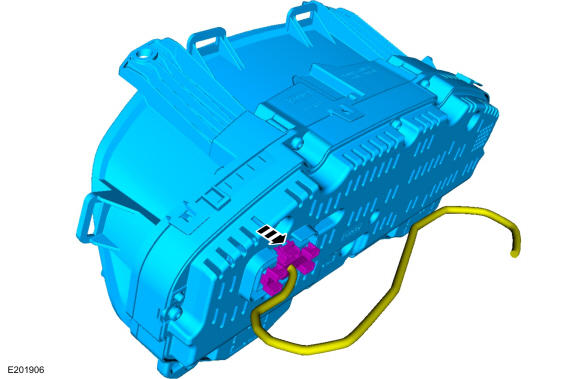

  11. Disconnect the electrical connector.
    GFD647292Courtesy of FORD MOTOR COMPANY

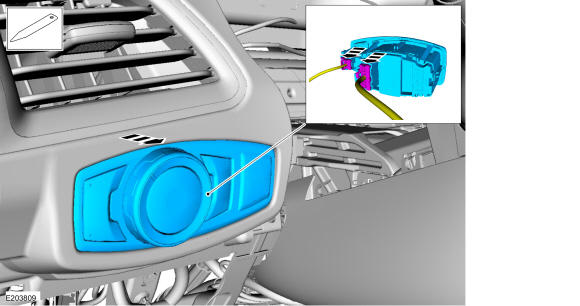

  12. Remove the headlamp switch.

    • Disconnect the electrical connector.

    GFD647293Courtesy of FORD MOTOR COMPANY

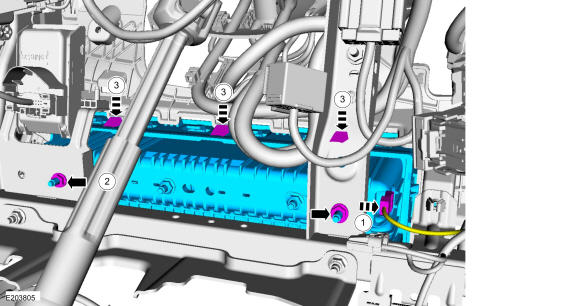

    • Disconnect the electrical connector.

    • Remove the bolts.

      Torque: 71 lb.in (8 Nm)

    • Through the opening, push the tabs down and detach the clips.

    GFD647294Courtesy of FORD MOTOR COMPANY

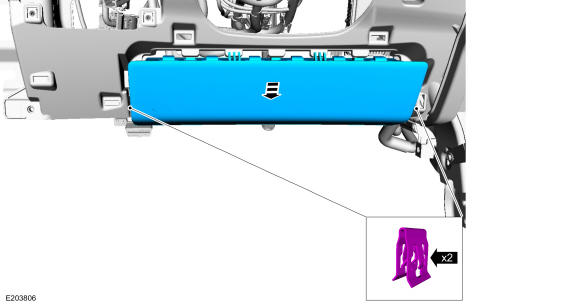

  13. Pivot the driver knee airbag down, separate the knee bolster clips and remove the driver knee airbag.
    GFD647295Courtesy of FORD MOTOR COMPANY

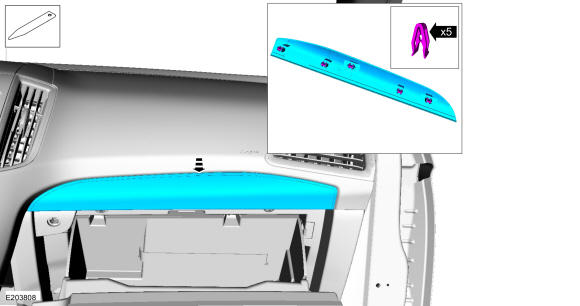

  14. Release the clips and remove the glove compartment finish panel.
    GFD647296Courtesy of FORD MOTOR COMPANY

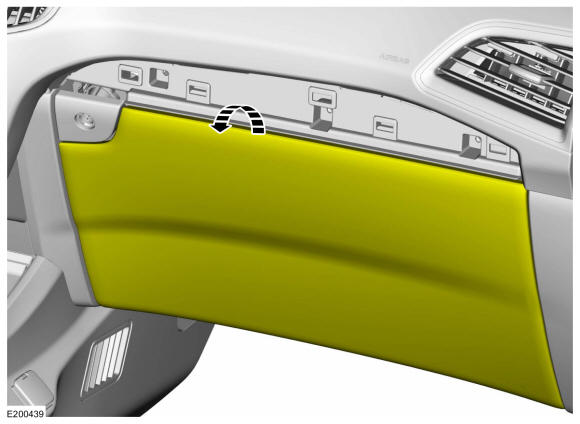

  15. Open the glove compartment.
    GFD646339Courtesy of FORD MOTOR COMPANY

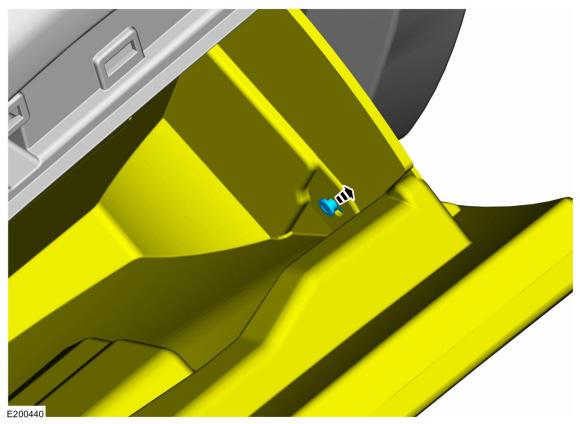

  16. Detach the glove compartment damper.
    GFD646340Courtesy of FORD MOTOR COMPANY

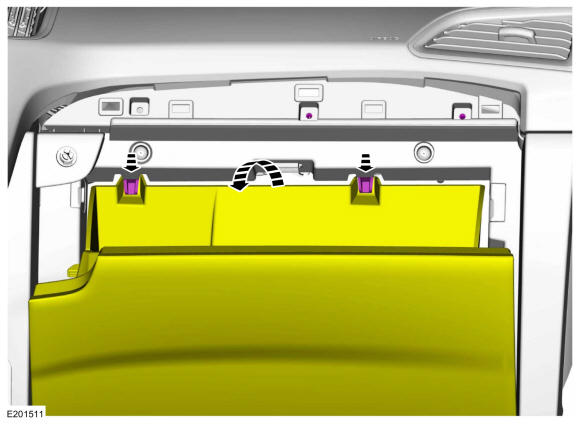

  17. Release the tabs and fully lower the glove compartment.
    GFD646341Courtesy of FORD MOTOR COMPANY

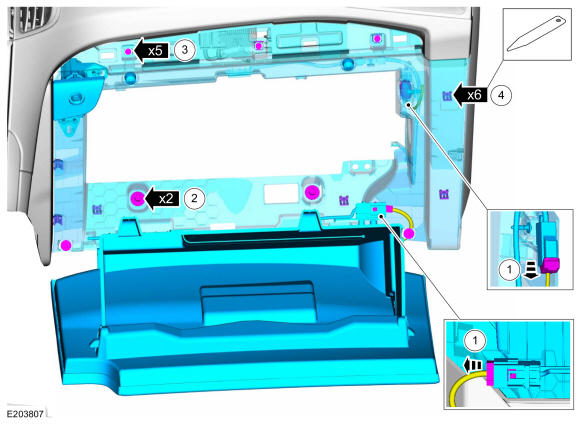

    1. Disconnect the electrical connectors.
    2. Remove the bolts.

      Torque: 35 lb.in (4 Nm)

    3. Remove the screws.

      Torque: 22 lb.in (2.5 Nm)

    4. Release the clips and remove the glove compartment. Use the General Equipment: Interior Trim Remover
    GFD647297Courtesy of FORD MOTOR COMPANY

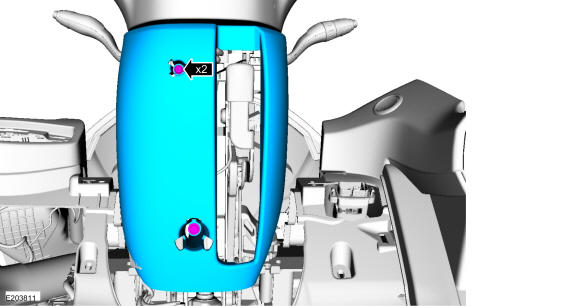

  18. Remove the screws and the lower steering column shroud.

    Torque: 22 lb.in (2.5 Nm)

    GFD647298Courtesy of FORD MOTOR COMPANY

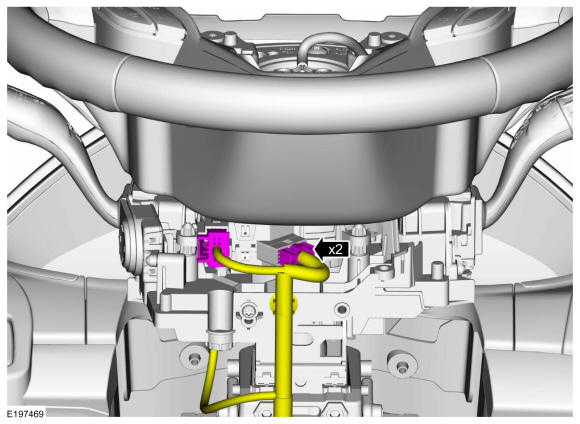

  19. Disconnect the electrical connectors.
    GFD647299Courtesy of FORD MOTOR COMPANY

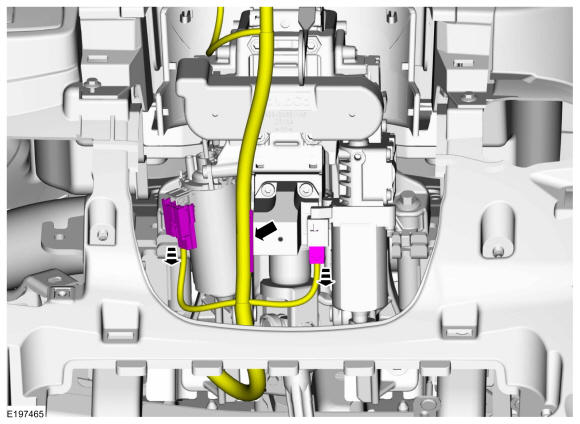

  20. NOTE: Vehicles with power adjustable steering column.

    Detach the retainer, disconnect the power tilt motor and power telescopic motor electrical connectors.

    GFD647300Courtesy of FORD MOTOR COMPANY

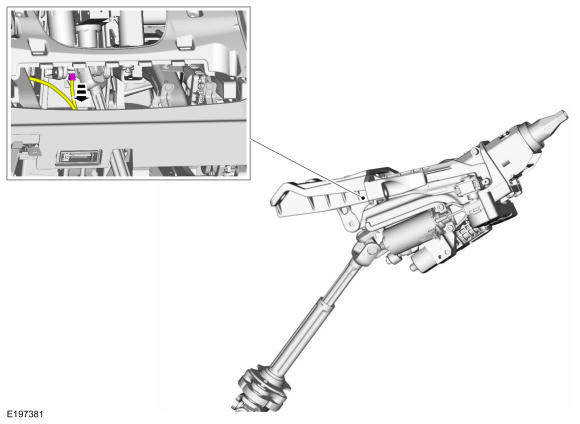

  21. Disconnect the deployable column electrical connector.
    GFD647301Courtesy of FORD MOTOR COMPANY

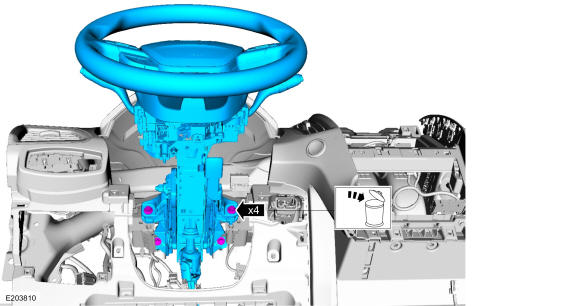

  22. NOTE: Do not reuse steering column bolts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the bolts and remove the steering column.

    Torque: 18 lb.ft (25 Nm)

    GFD647302Courtesy of FORD MOTOR COMPANY

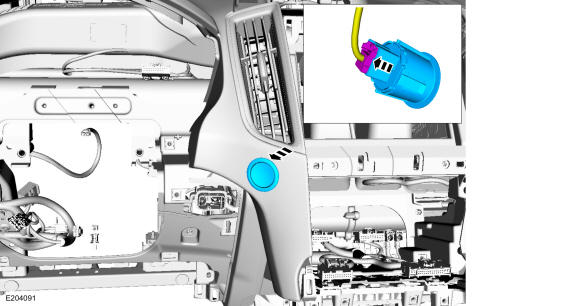

  23. Remove the engine start stop button.

    • Disconnect the electrical connector.

    GFD647303Courtesy of FORD MOTOR COMPANY

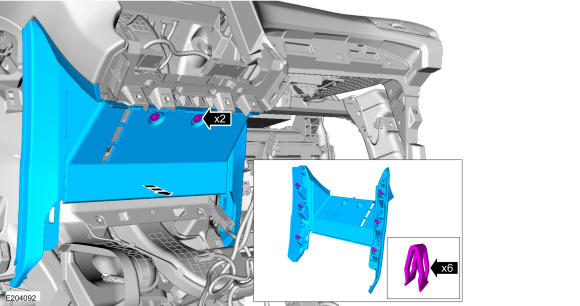

  24. Remove the 2 screws, release the clips and remove the lower instrument panel trim panel.
    GFD647304Courtesy of FORD MOTOR COMPANY

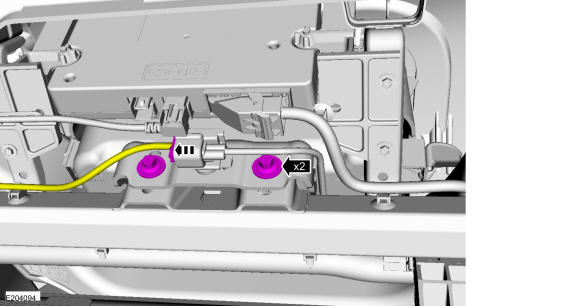

  25. Remove passenger airbag to cross car beam bolts.

    • Disconnect the electrical connector.

      Torque: 80 lb.in (9 Nm)

    GFD647305Courtesy of FORD MOTOR COMPANY

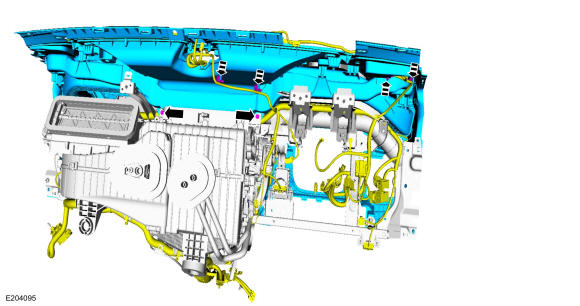

  26. Remove the HVAC to instrument panel upper section bolts.

    • Detach the wiring harness from the instrument panel upper section and position aside.

      Torque: 35 lb.in (4 Nm)

    GFD647306Courtesy of FORD MOTOR COMPANY

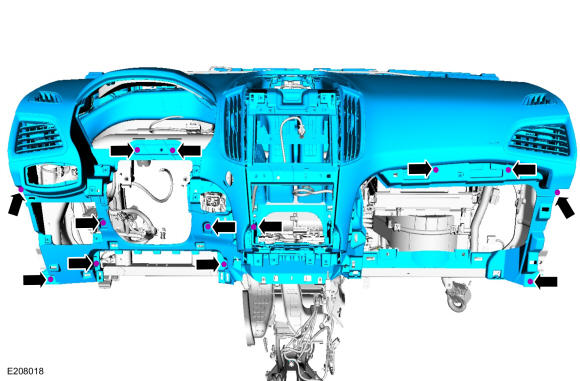

  27. NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel upper section or damage to the components may occur.

    Remove the instrument panel upper section to in-vehicle cross beam bolts and remove the instrument panel upper section.

    Torque: 22 lb.in (2.5 Nm)

GFD647307Courtesy of FORD MOTOR COMPANY
