Floor Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

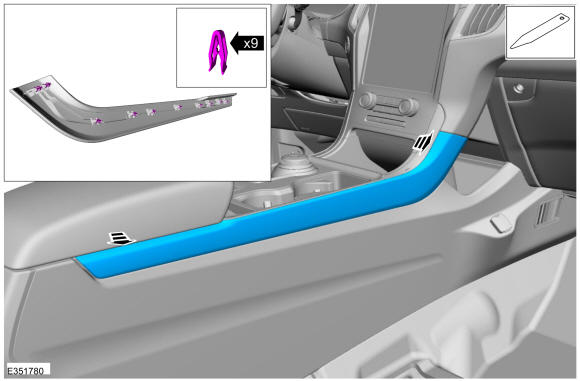

Release the clips and remove the RH floor console finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

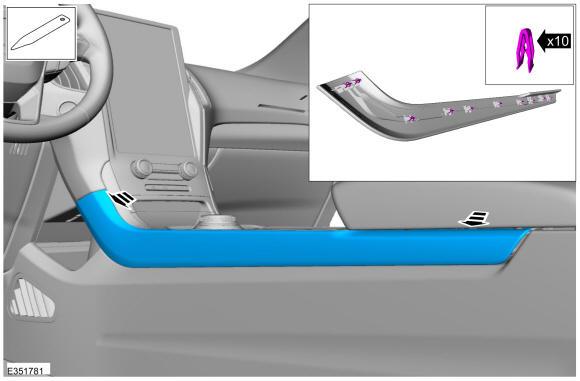

Release the clips, push pin and remove the LH floor console side trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

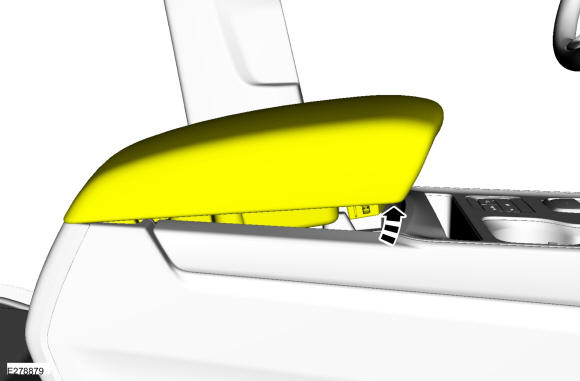

Open floor console armrest.

Courtesy of FORD MOTOR COMPANY

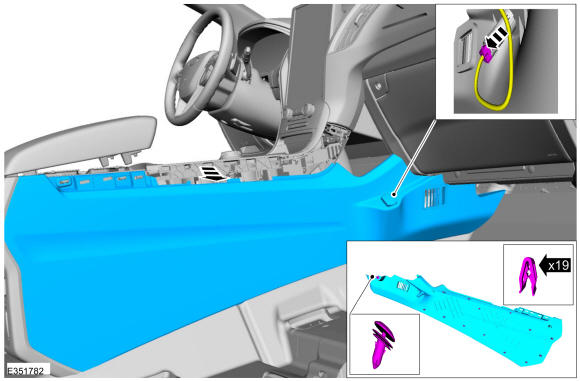

Release the clips, push pin and remove the RH floor console side trim panel.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

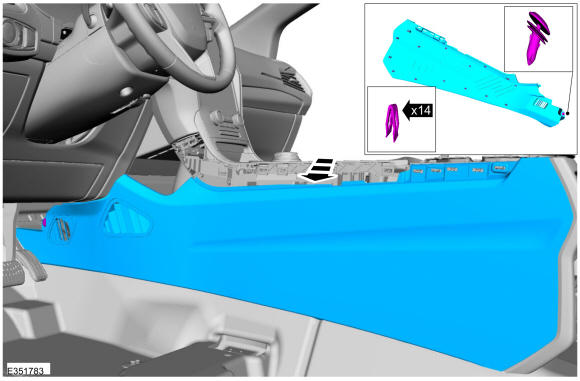

Release the clips, push pin and remove the LH floor console side trim panel.

Courtesy of FORD MOTOR COMPANY

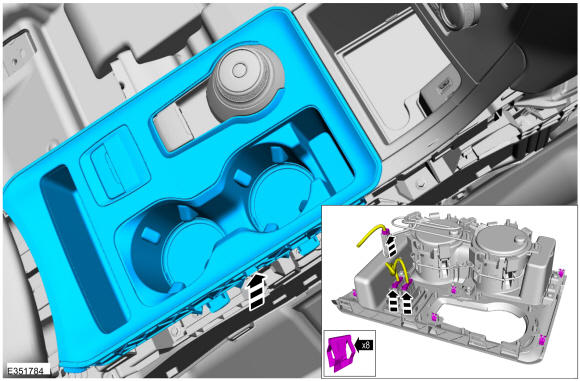

Release the clips and remove the floor console upper trim panel.
- Disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

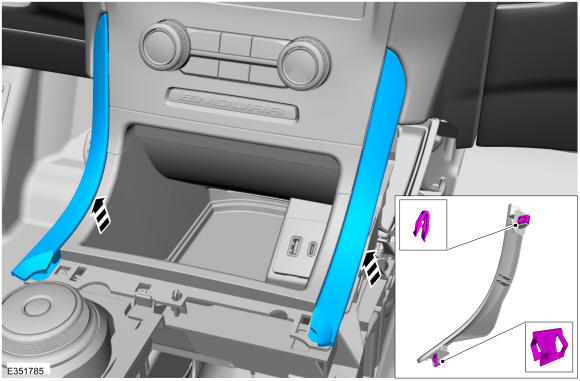

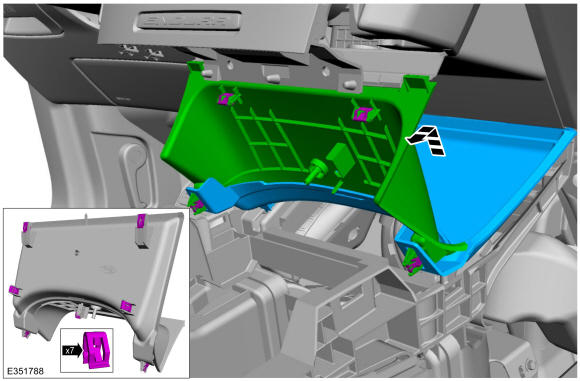

Release the clips and remove the finish panels.

Courtesy of FORD MOTOR COMPANY

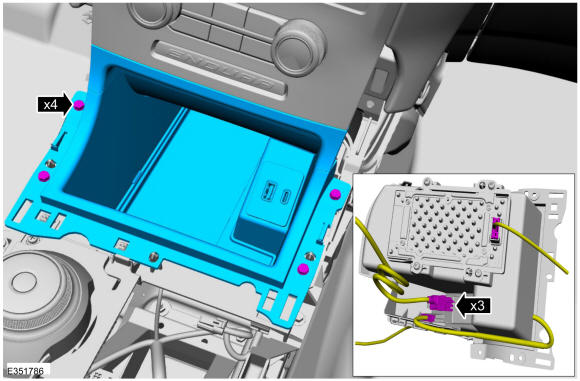

Remove the bolts and media bin.
- Disconnect the electrical connectors.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

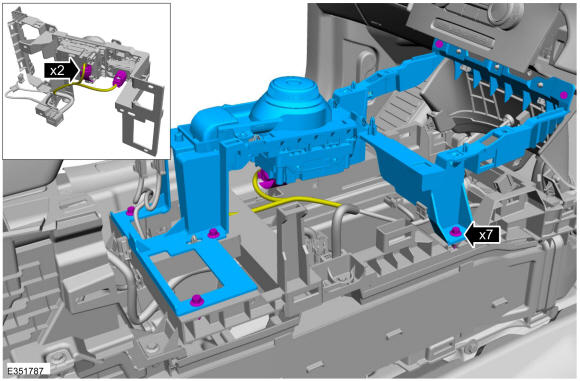

Remove the bolts and the transmission selector bracket.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
Release the clips and remove the trim panels.

Courtesy of FORD MOTOR COMPANY

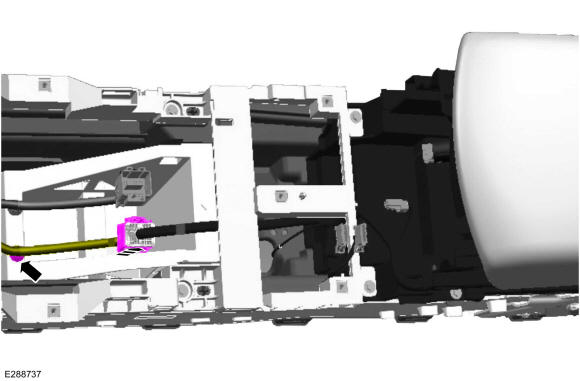

Disconnect the electrical connector and release the harness retainer.

Courtesy of FORD MOTOR COMPANY

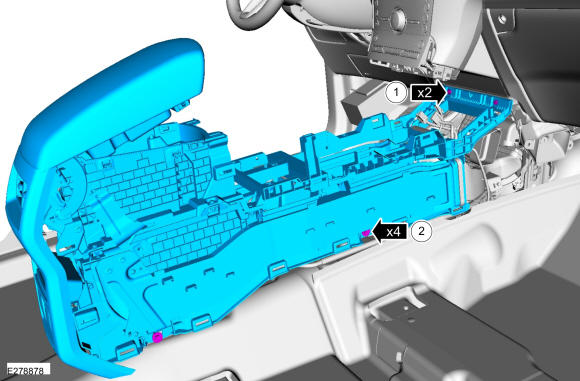

1. Remove the bolts.
  Torque: 22 lb.in (2.5 Nm)
2. Remove the bolts.
  Torque: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY
