OEM Ground Distribution: Grounds

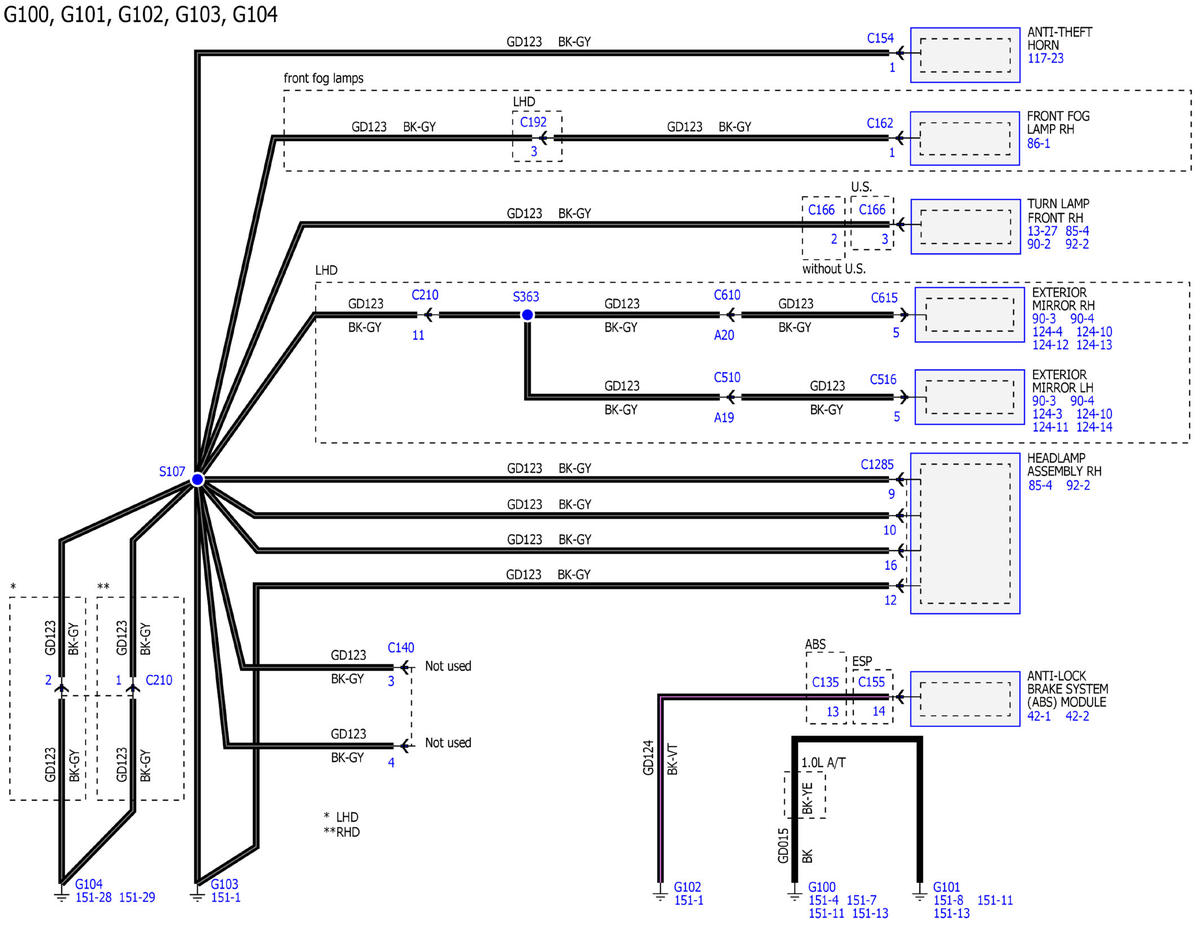

GFDWR177111Courtesy of FORD MOTOR COMPANY

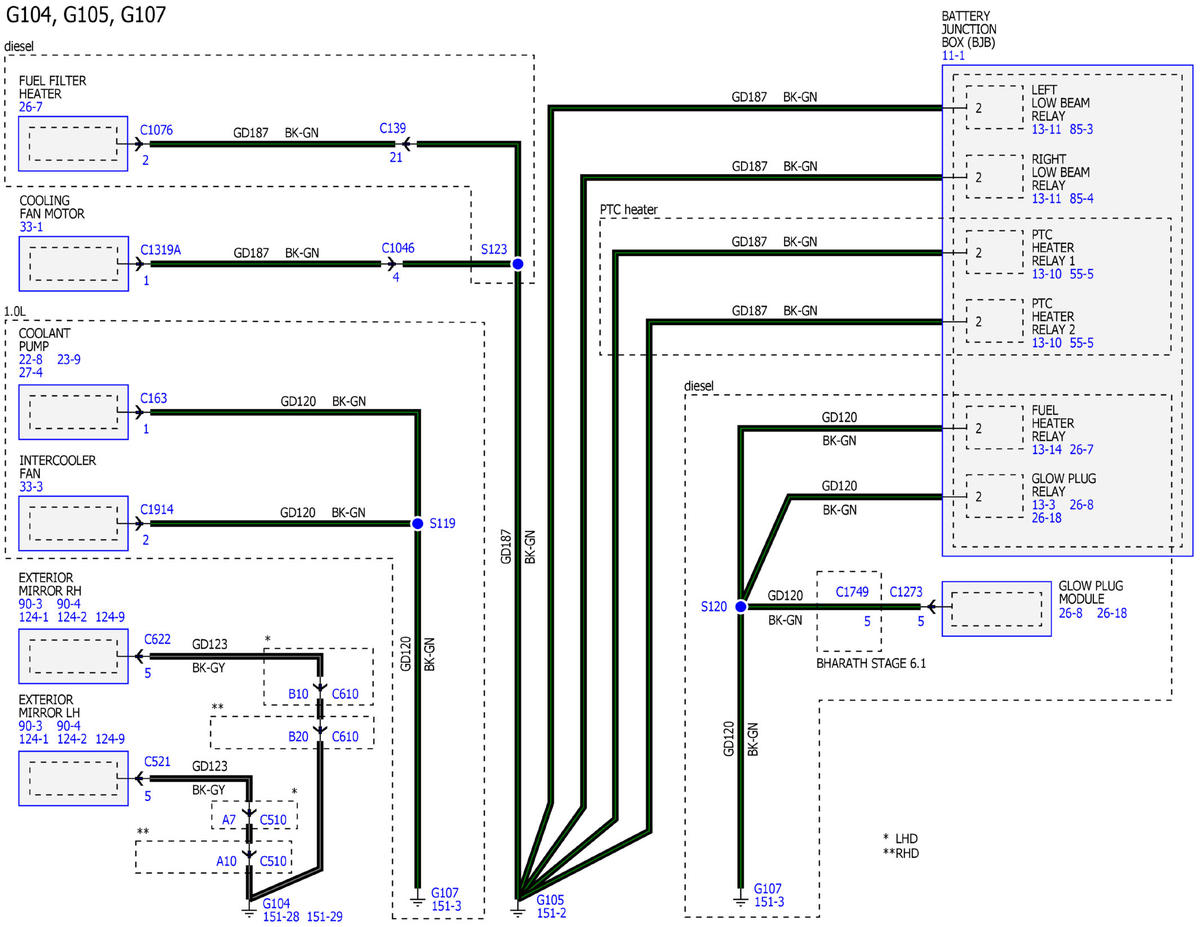

GFDWR177119Courtesy of FORD MOTOR COMPANY

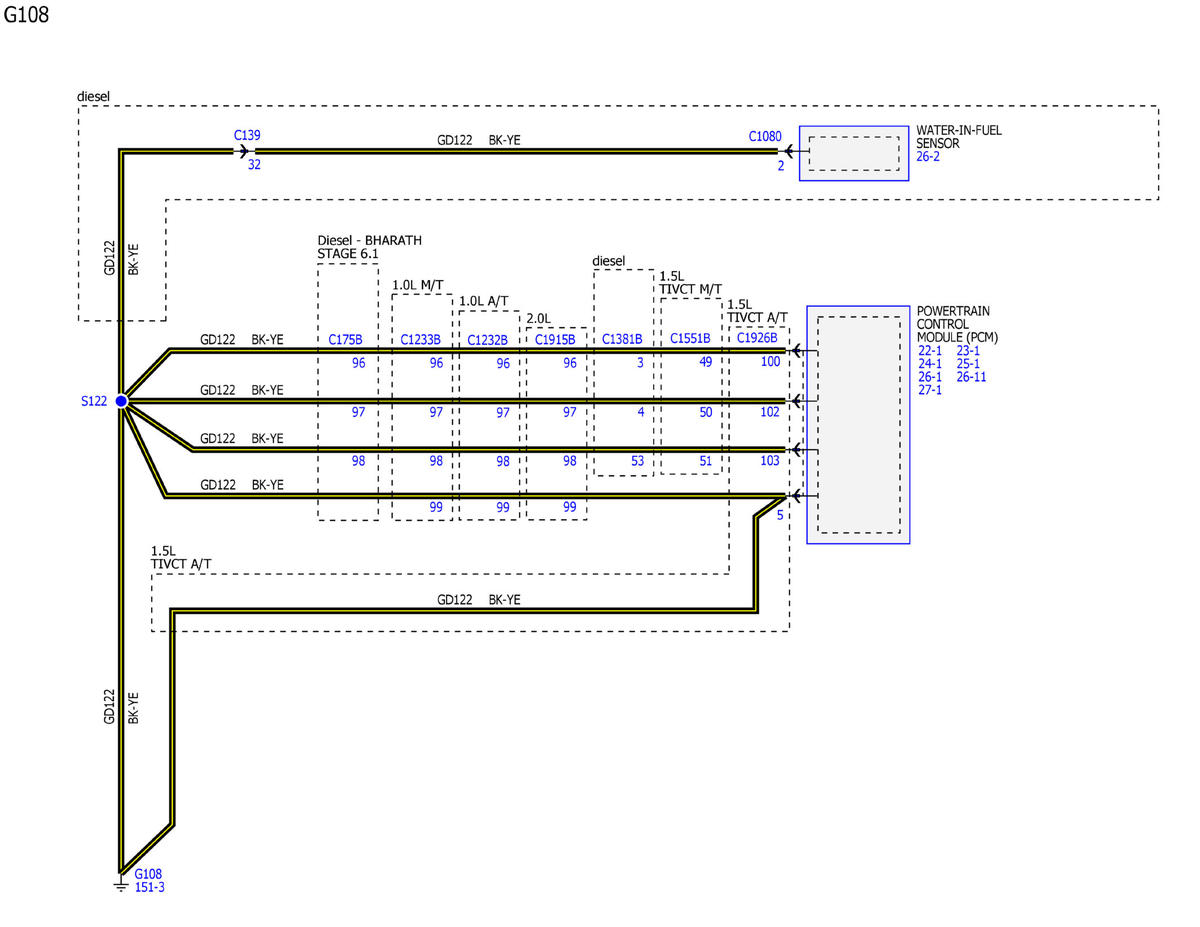

GFDWR177120Courtesy of FORD MOTOR COMPANY

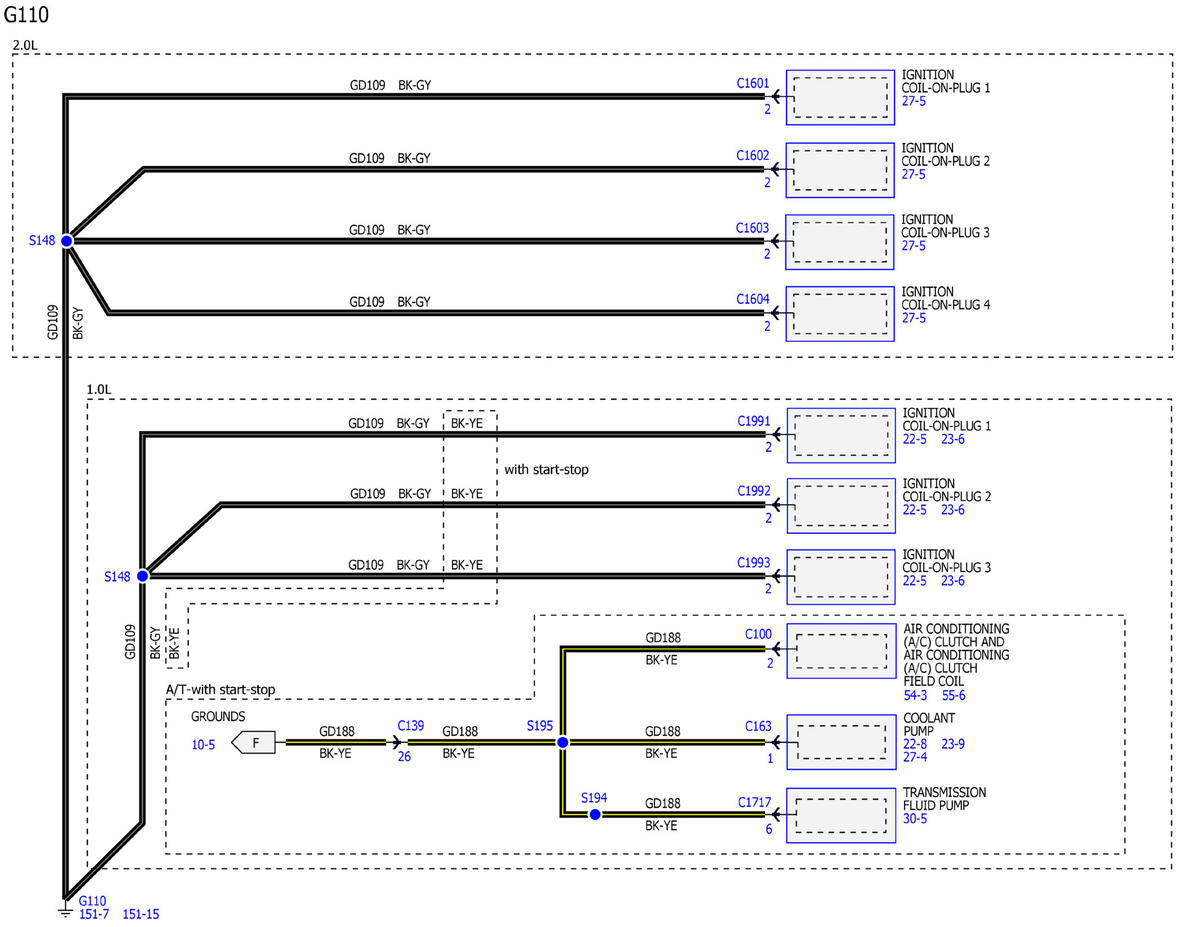

GFDWR177121Courtesy of FORD MOTOR COMPANY

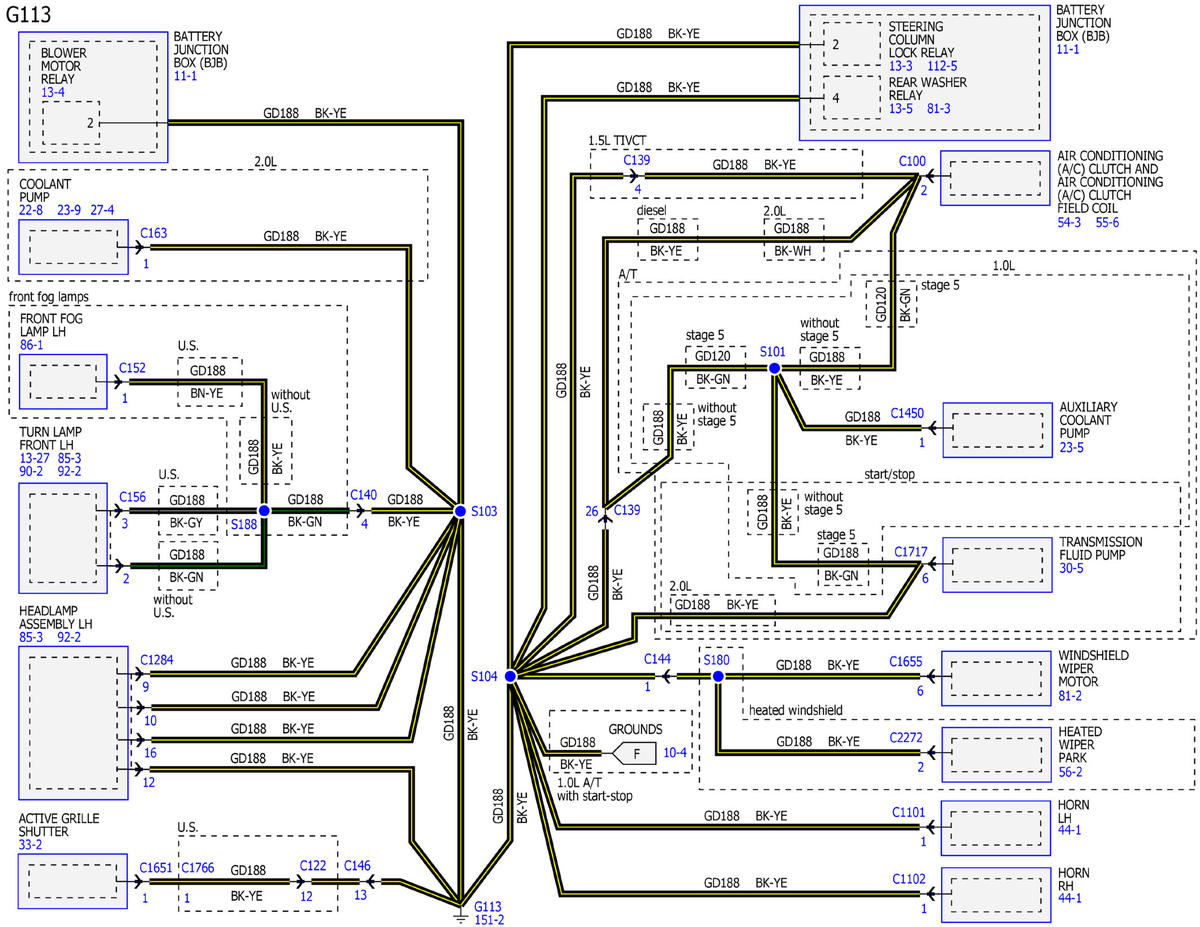

GFDWR177122Courtesy of FORD MOTOR COMPANY

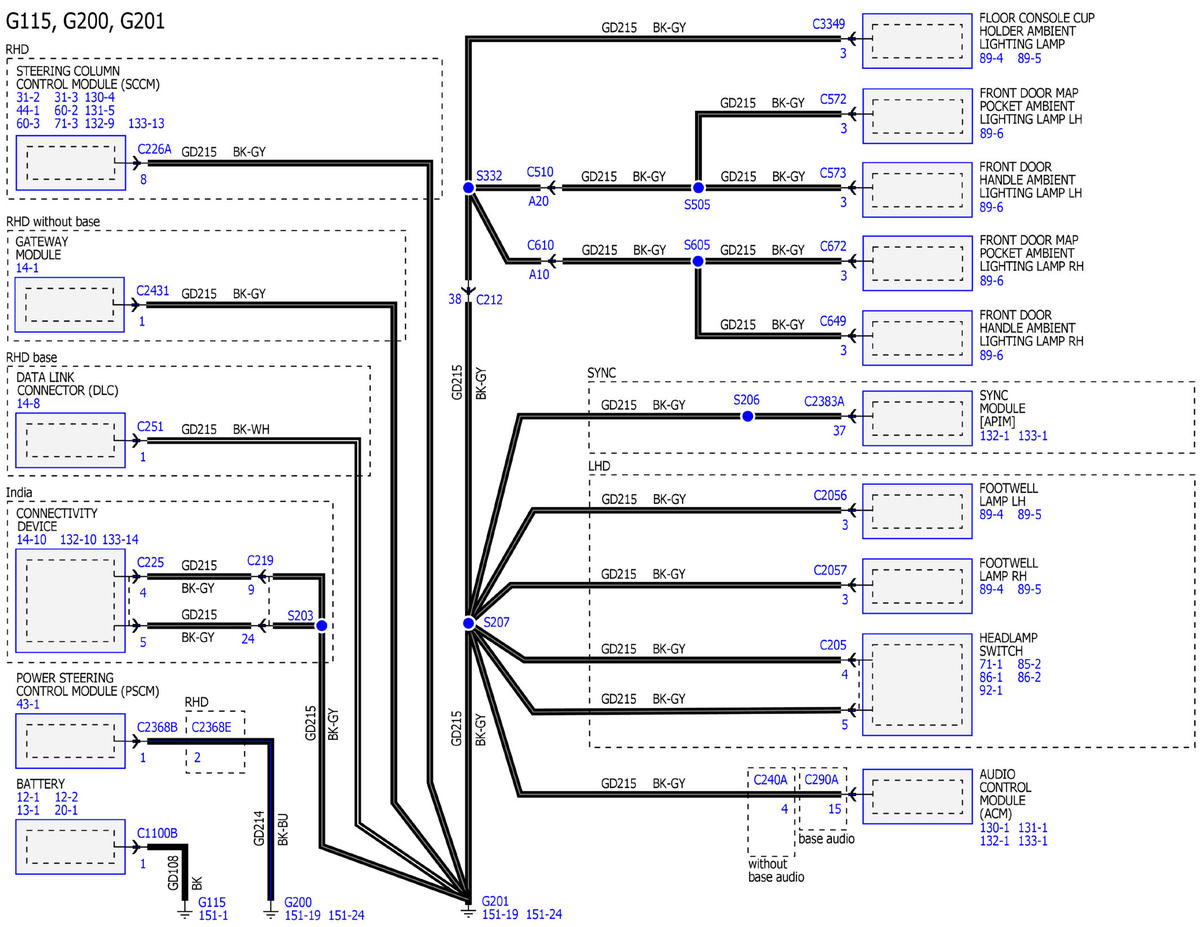

GFDWR177123Courtesy of FORD MOTOR COMPANY

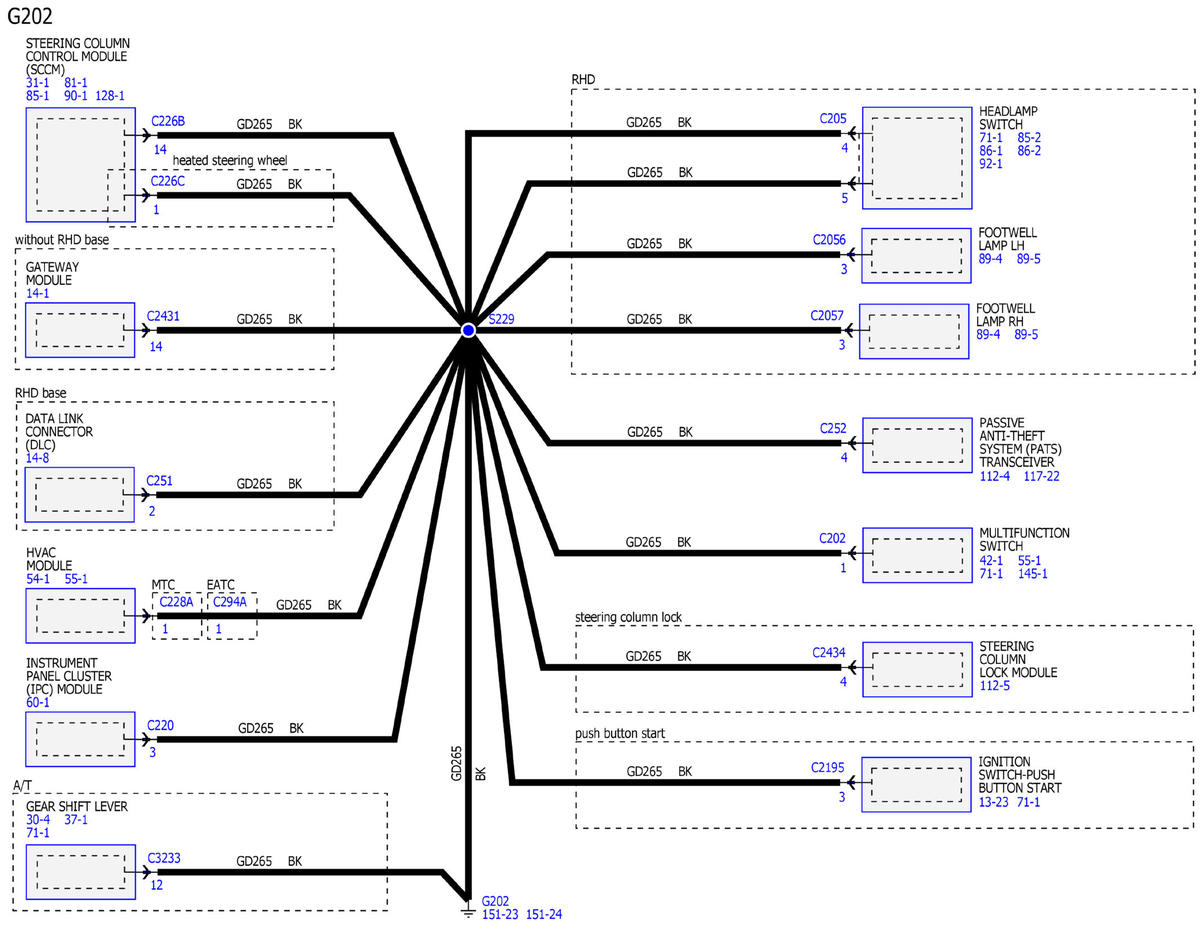

GFDWR177124Courtesy of FORD MOTOR COMPANY

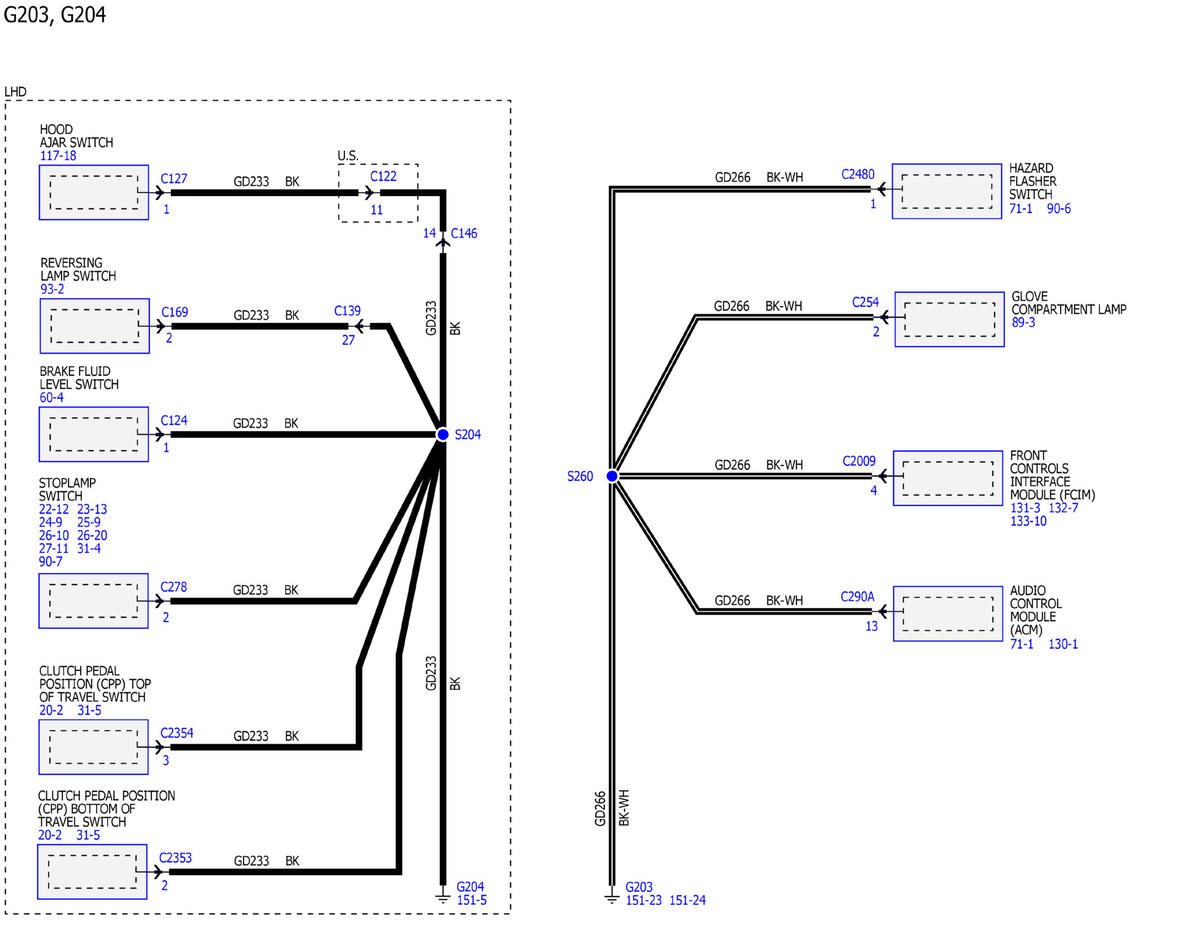

GFDWR177125Courtesy of FORD MOTOR COMPANY

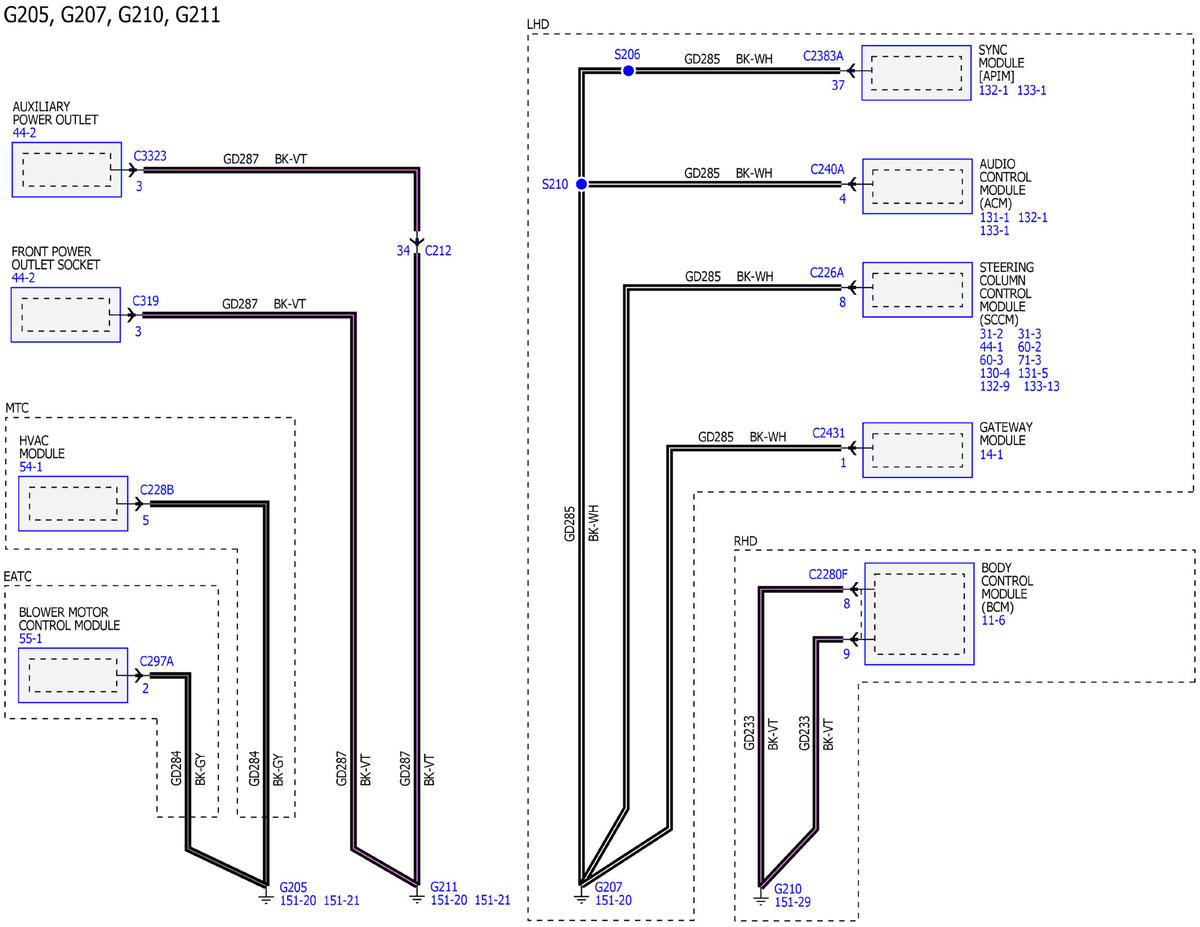

GFDWR177126Courtesy of FORD MOTOR COMPANY

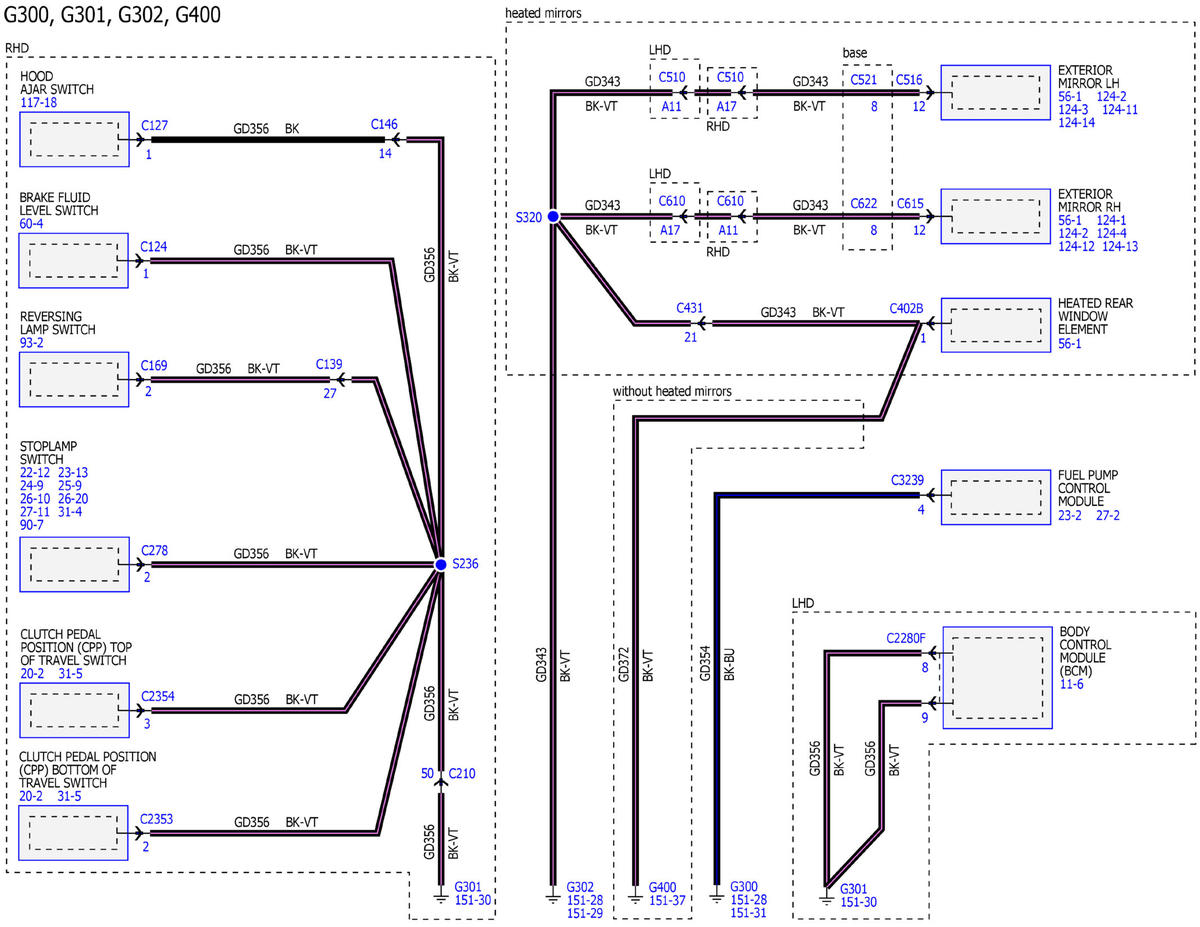

GFDWR177112Courtesy of FORD MOTOR COMPANY

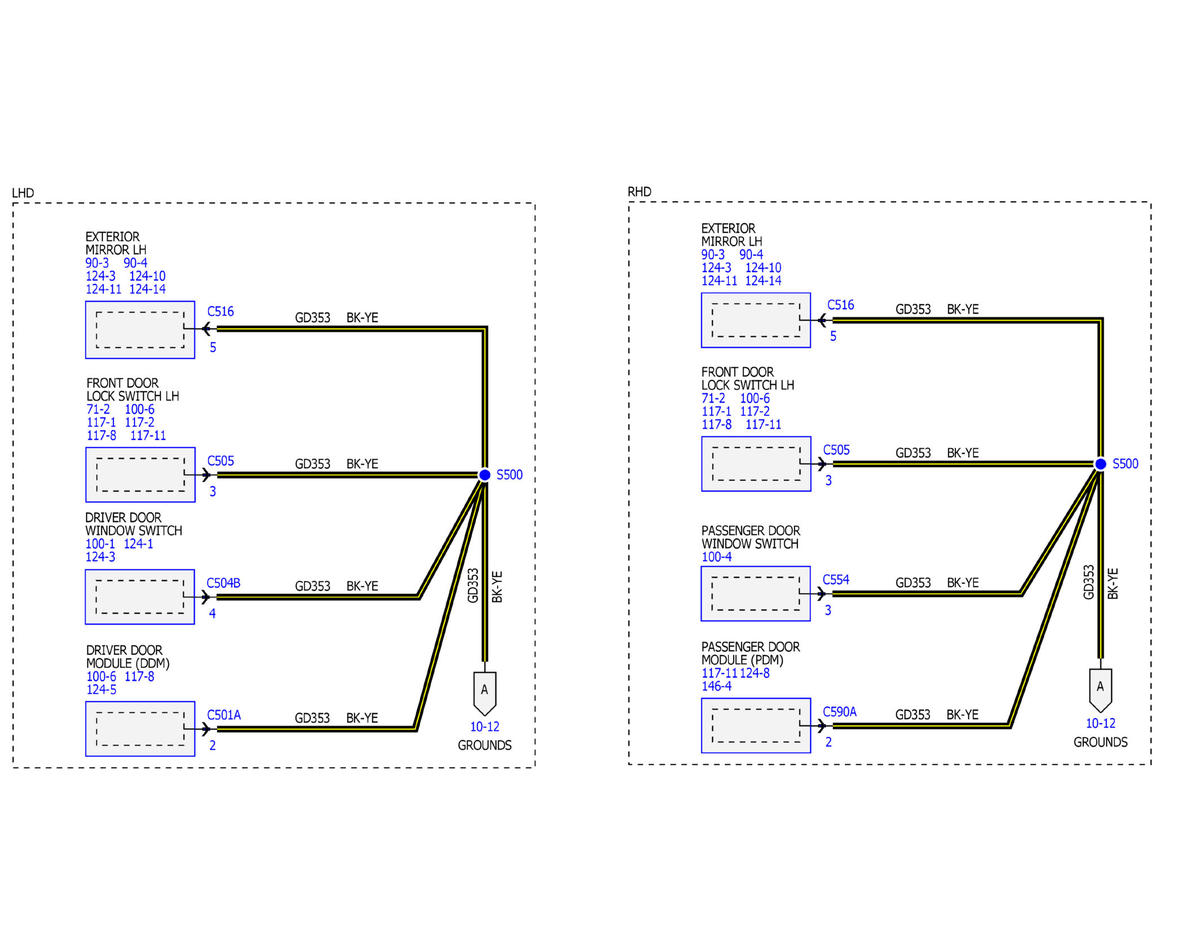

GFDWR177113Courtesy of FORD MOTOR COMPANY

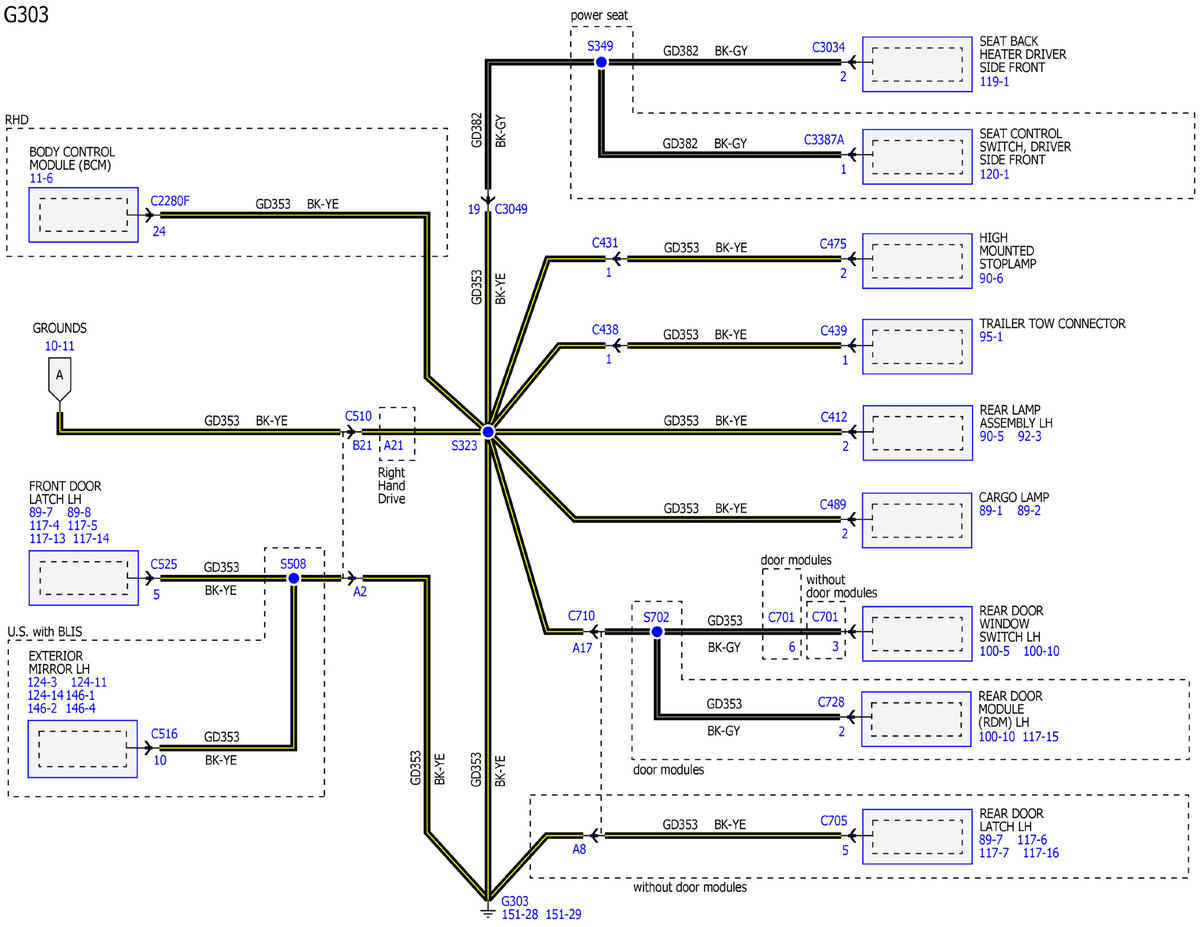

GFDWR177114Courtesy of FORD MOTOR COMPANY

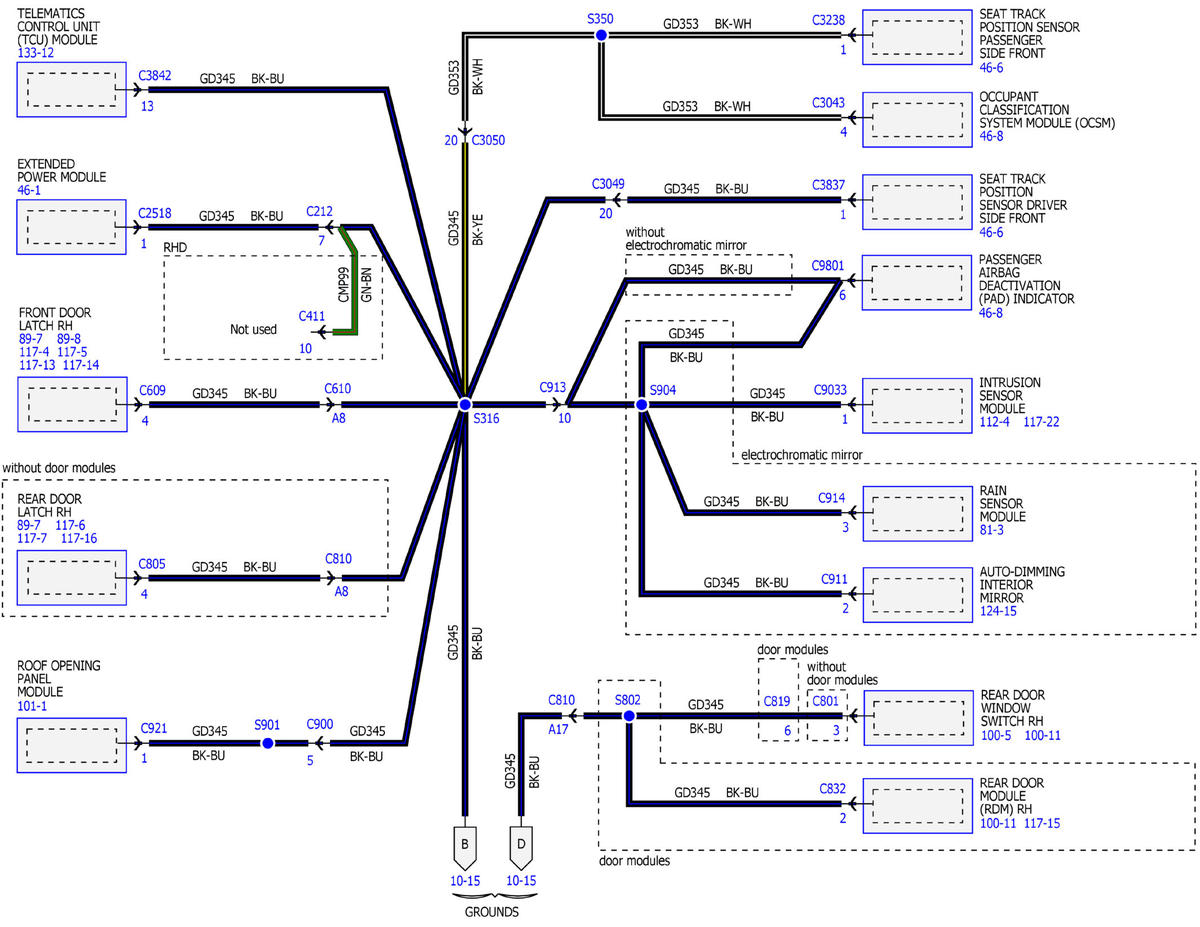

GFDWR177115Courtesy of FORD MOTOR COMPANY

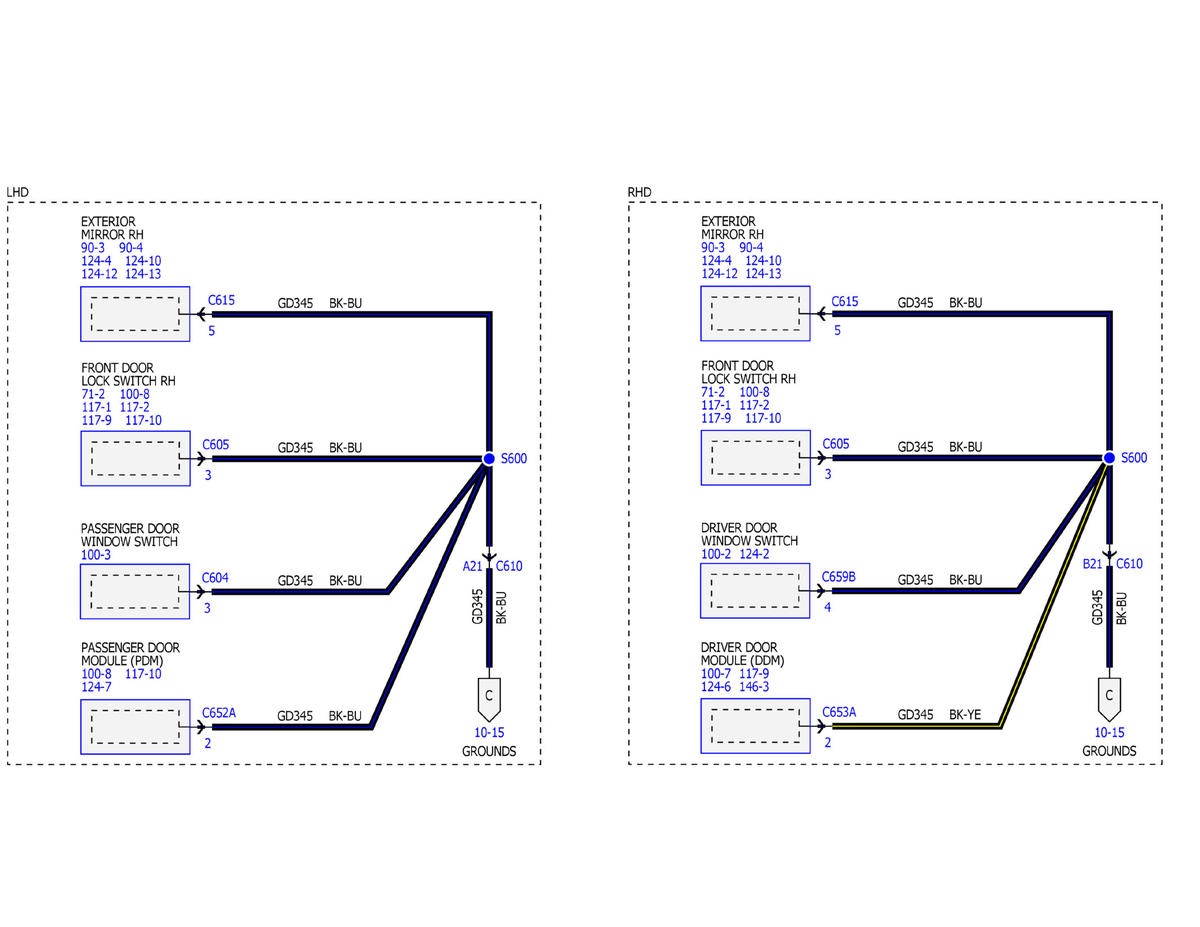

GFDWR177116Courtesy of FORD MOTOR COMPANY

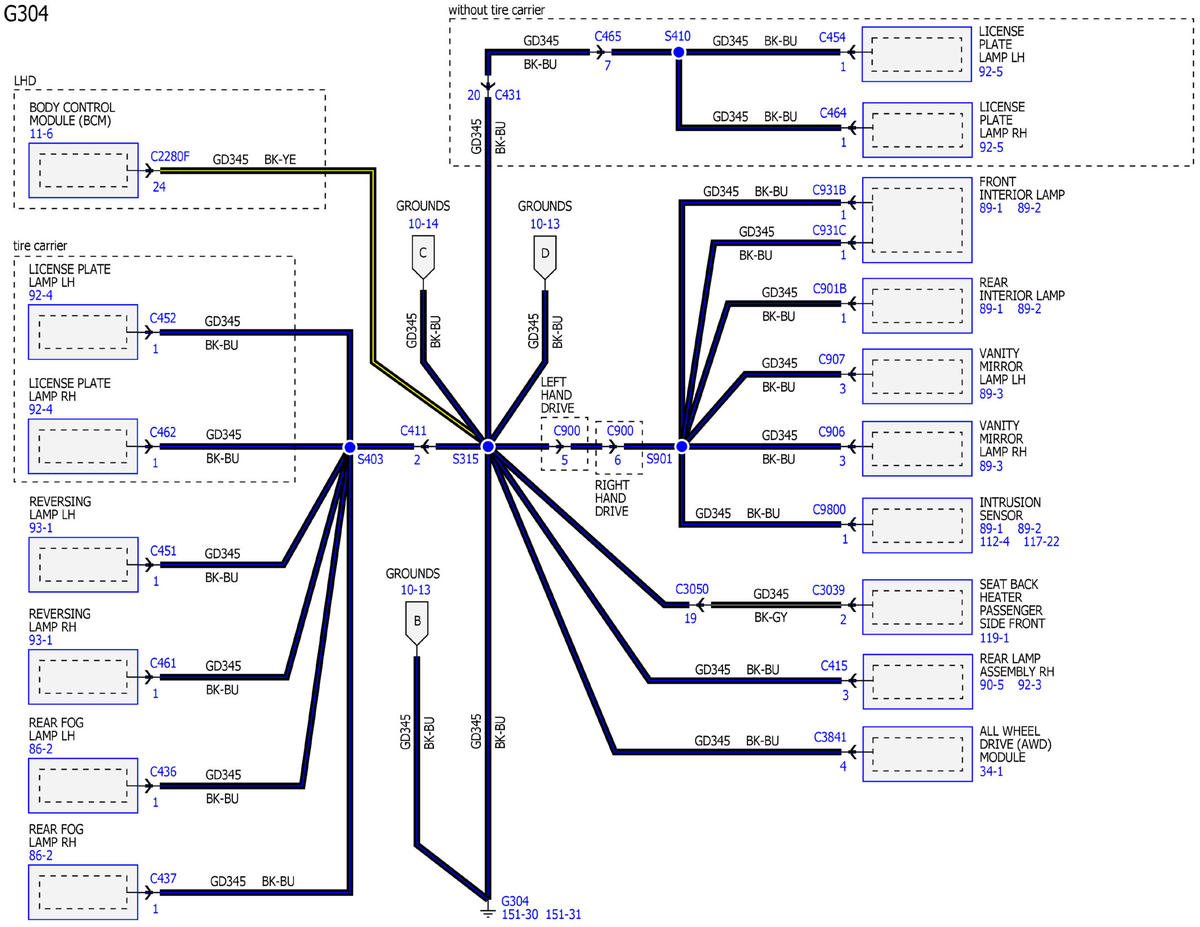

GFDWR177117Courtesy of FORD MOTOR COMPANY

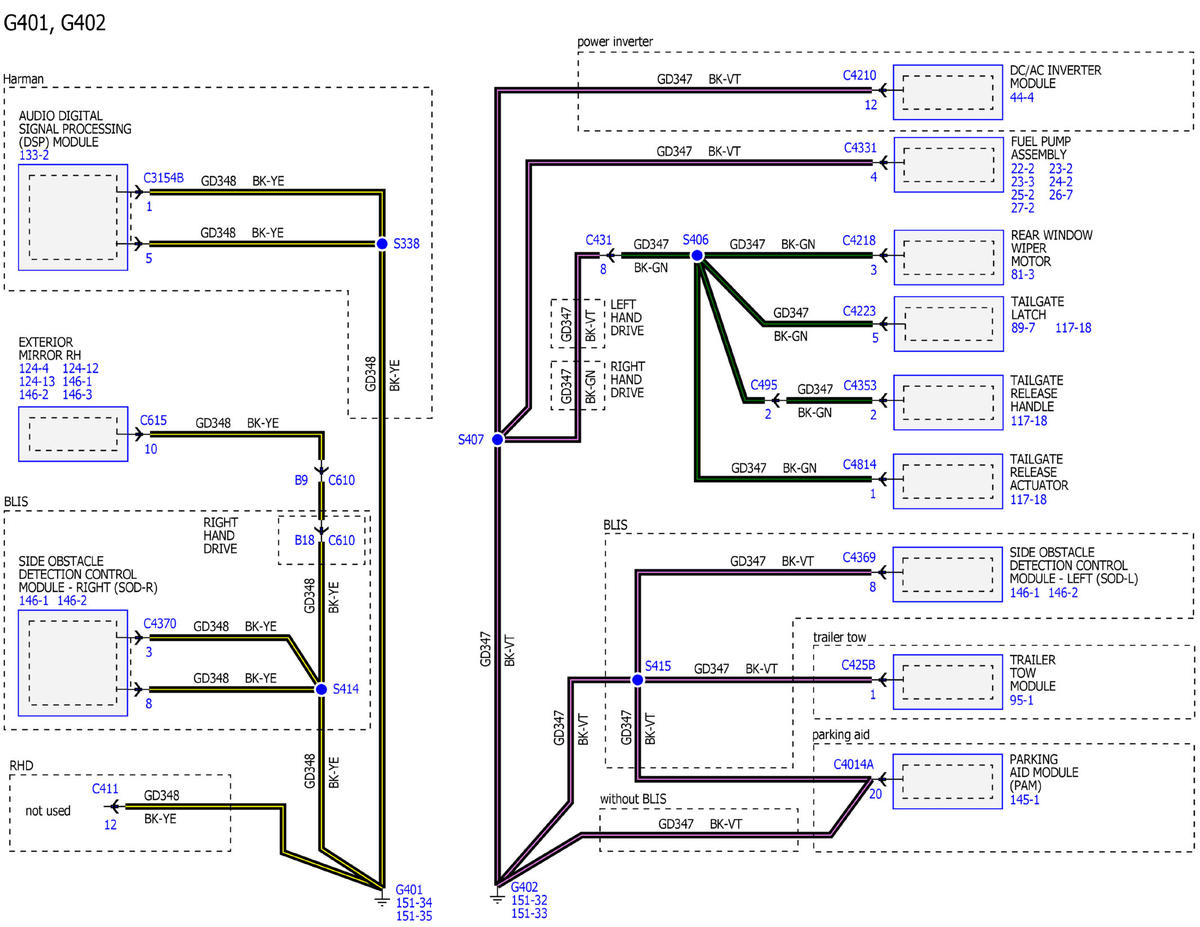

GFDWR177118Courtesy of FORD MOTOR COMPANY
