Steering Wheel: Removal

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Driver Airbag .
NOTE: Make sure that the steering column lock is engaged.

NOTE: Make sure that the road wheels are in the straight ahead position.

Courtesy of FORD MOTOR COMPANY

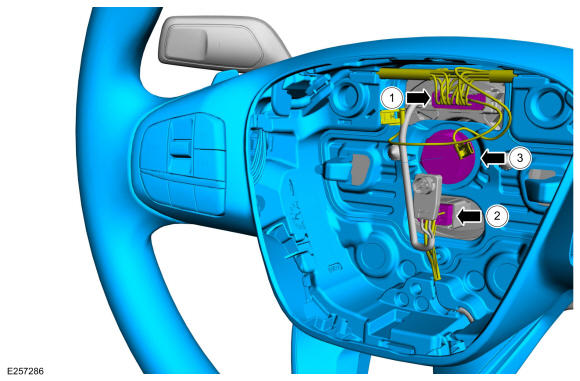

1. If equipped.
2. NOTE: Make sure a new bolt is installed.

  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

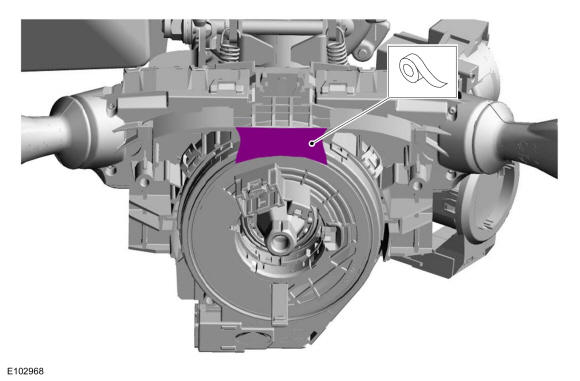

NOTE: Make sure that the clockspring rotor does not rotate.

Courtesy of FORD MOTOR COMPANY
