Front Seat Control Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE: Driver seat shown in illustration, passenger seat similar.

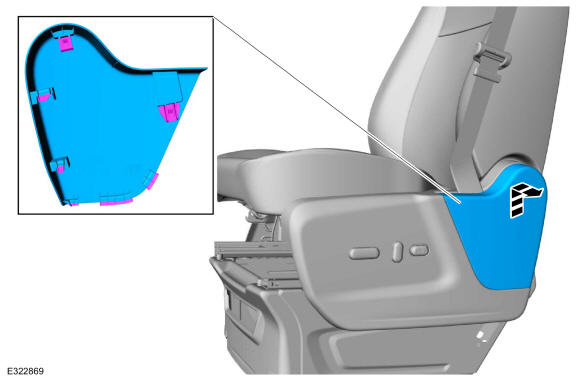

  1. Release the retainers and remove the front seatbelt anchor cover.
    GFD641225Courtesy of FORD MOTOR COMPANY

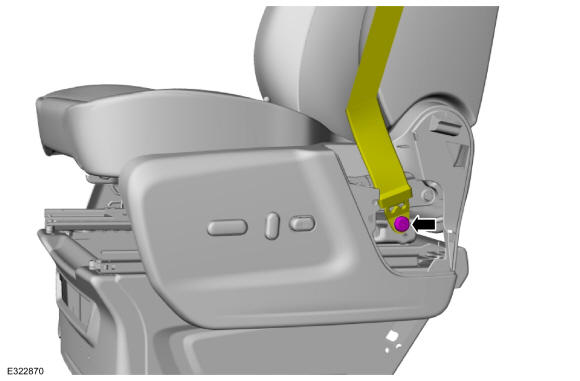

  2. Remove the bolt and position the front seatbelt anchor aside.

    Torque: 30 lb.ft (40 Nm)

    GFD641226Courtesy of FORD MOTOR COMPANY

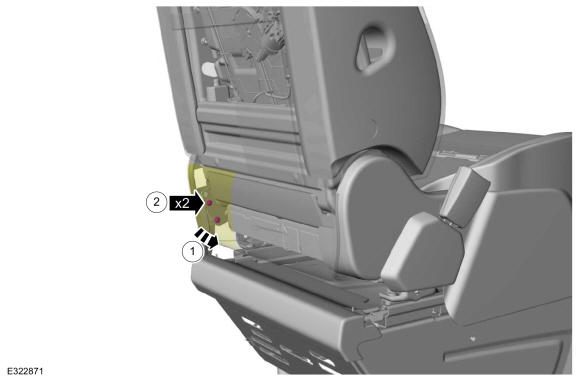

    1. Position the front seat backrest cover aside.
    2. Remove the front seat outboard side shield screws.
    GFD641227Courtesy of FORD MOTOR COMPANY

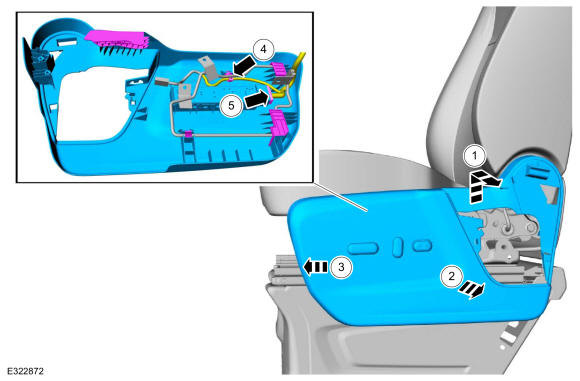

  4. Remove the front seat outboard side shield.

    1. Lift the rear portion of the front seat outboard side shield up and out.
    2. Pull the bottom portion of the front seat outboard side shield out.
    3. Slide the front seat side shield forward.
    4. Detach the front seat control switch wiring harness retainer.
    5. Disconnect front seat control switch electrical connector.

    GFD641228Courtesy of FORD MOTOR COMPANY

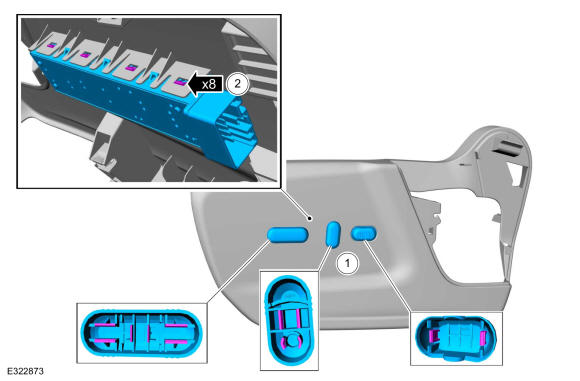

  5. Remove the front seat control switch.

    1. Remove the front seat control switch control knobs.
    2. Release the front seat control switch locking tabs.

GFD641229Courtesy of FORD MOTOR COMPANY
